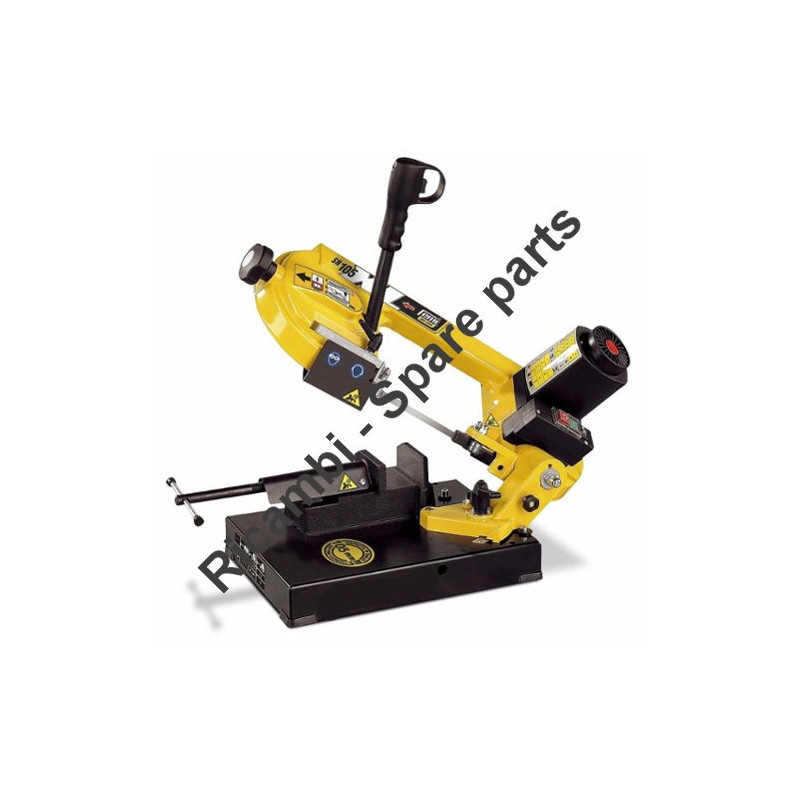

Femi Spare Parts for Band Saw SN105-8484021
€3.47
Tax included
Femi Spare Parts for Band Saw SN105-8484021
FEMI Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Band Saw SN105-8484021.Fix Your Band Saw SN105. All Spares are Ready at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Band Saw SN105-8484021
Fix Your Band Saw SN105-8484021. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Band Saw and the respective parts of the code.
| Band Saw SN105-8484021 | ||
| # | Part Num. | Description |
| 2 | 5181623 | PROTECTION |
| 5214016 | INCLUDED IN CODE 5214019 | |
| 4 | 5214019 | DRIVING WHEEL |
| 5 | 0155142 | THICKNESS WASHER |
| 6 | 0600607 | BALL BEARING |
| 7 | 5120638 | SPACER |
| 8 | 0174022 | NEEDLE |
| 9 | 0129004 | INOX STEEL WASHER |
| 10 | 0590624 | BALL BEARING |
| 12 | 0311080 | EXAGONAL HEAD SCREW |
| 13 | 0606202 | BALL BEARING |
| 14 | 7213003 | GEAR GROUP |
| 15 | 0570627 | BALL BEARING |
| 16 | 0155013 | ELASTIC RING |
| 17 | 0730810 | CAGE BEARING |
| 18 | 0155136 | THICKNESS WASHER |
| 19 | 7801612 | MOTOR |
| 20 | 5182522 | GEAR COVER |
| 22 | 5061039 | RUBBER BUSHING |
| 23 | 5024111 | STATOR - FIELD ASSY |
| 24 | 7013130 | ROTOR - ARMATURE 220/240V |
| 25 | 5850109 | BRUSHES |
| 26 | 0816005 | RADIO INTERFERENCE SUPPRESSOR |
| 27 | 5061038 | RUBBER BUSHING |
| 28 | 5850005 | BRUSHES SUPPORT |
| 29 | 5112024 | MOTOR FAN |
| 30 | 0155140 | THICKNESS WASHER |
| 31 | 5182816 | MOTOR COVER |
| 33 | 0102106 | CAP NUT |
| 34 | 0120206 | WASHER |
| 38 | 0730609 | CAGE BEARING |
| 41 | 7213007 | GEAR GROUP |
| 42 | 7213001 | GEAR GROUP |
| 47 | 5154103 | CABLE LOCKING DEVICE |
| 50 | 5181016 | BLADE CLEANER |
| 51 | 5130733 | BRACKET |
| 52 | 5100064 | SCREW |
| 53 | 5100065 | SCREW |
| 54 | 0400604 | SCREW |
| 55 | 0179901 | NEEDLE |
| 56 | 5001564 | (included into code 5001572) |
| 57 | 5137869 | (included into code 5137914) |
| 58 | 0155152 | THICKNESS WASHER |
| 59 | 0596002 | BALL BEARING |
| 60 | 5120663 | SPACER |
| 62 | 5124062 | WASHER |
| 64 | 5214225 | FREE WHEEL |
| 66 | 5130734 | WHEEL GUIDE |
| 67 | 0124026 | THICKNESS WASHER |
| 68 | 5081005 | SPRING |
| 70 | 0140074 | HANDWHEEL |
| 71 | 5100506 | (included into code 5100507) |
| 72 | 5081021 | (included into code 0080256x12) |
| 76 | 5142070 | LEVER |
| 77 | 5181622 | SLIDING PROTECTION |
| 78 | 0129004 | INOX STEEL WASHER |
| 79 | 5870847 | CABLE |
| 82 | 5130732 | BLADE GUIDE -- > 7132502 - DISCONTINUED |
| 83 | 0120706 | PLAIN WASHER |
| 84 | 0147000 | HAND LEVER |
| 85 | 0802317 | SWITCH |
| 86 | 5050117 | HANDLE |
| 87 | 5182520 | SWITCH COVER |
| 88 | 0802314 | SWITCH |
| 89 | 7890101 | CLAMP GROUP |
| 92 | 0802606 | SWITCH |
| 94 | 0816004 | RADIO INTERFERENCE SUPPRESSOR |
| 95 | 5870843 | CABLE |
| 96 | 5154501 | CABLE LOCKING DEVICE |
| 97 | 5182840 | SWITCH BOX |
| 98 | 0063027 | BUSHING |
| 99 | 5080116 | SPRING |
| 100 | 0155143 | THICKNESS WASHER |
| 101 | 0147002 | HAND LEVER |
| 102 | 7133629 | SWIVEL SUPPORT GROUP |
| 103 | 0120710 | PLAIN WASHER |
| 105 | 0102110 | CAP NUT |
| 106 | 5171043 | LOCKING PIN |
| 107 | 0140076 | HANDWHEEL |
| 108 | 0222021 | O-RING SEAL |
| 109 | 0151409 | SNAP RING |
| 110 | 0402905 | RIVET |
| 111 | 5401319 | GRADUATE PLATE |
| 113 | 5124029 | ECCENTRIC |
| 114 | 7130535 | ROD STOP GROUP |
| 115 | 0401001 | SCREW |
| 116 | 5137844 | (included into code 5138040) |
| 119 | 0150701 | CYLINDRIC PIN WITH SLOT |
| 122 | 0080261 | SPRING WASHER |
| 123 | 0063042 | SLEEVE |
| 124 | 7130527 | (included into code 7130673) |
| 130 | 5133637 | ANGULAR PLASTIC FOOT |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
