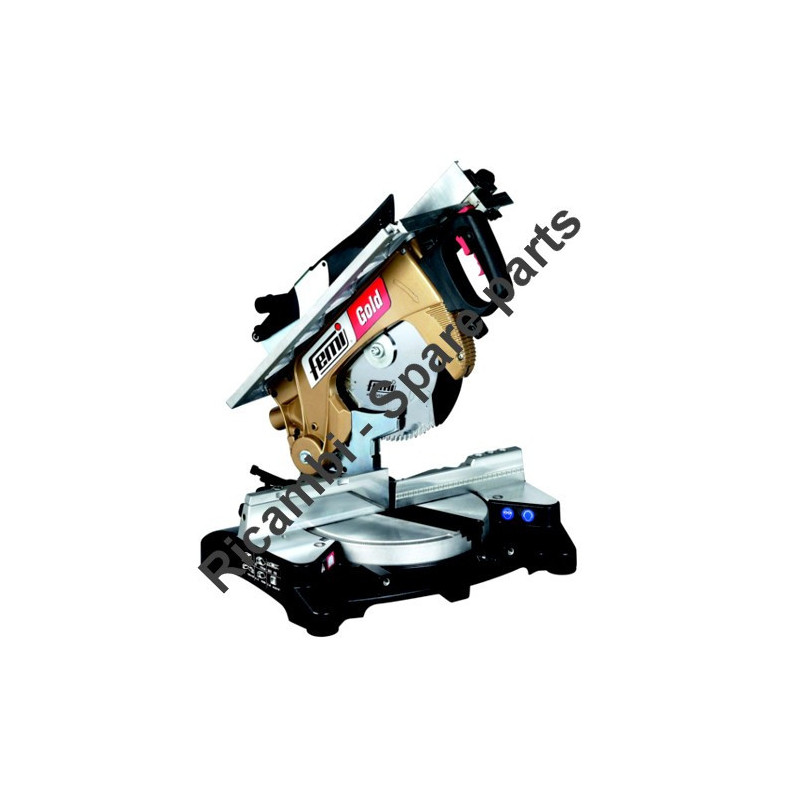

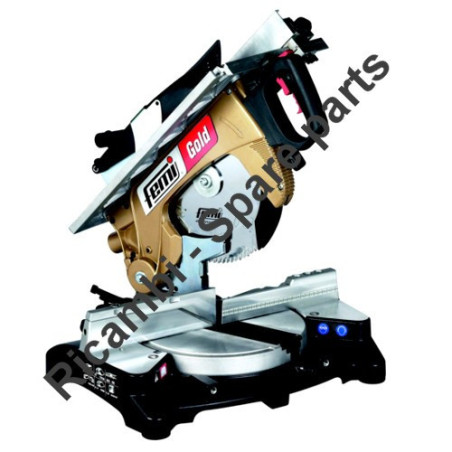

Femi Spare Parts for Mitre Saws GOLD - 8436032
€3.05
Tax included
Femi Spare Parts for Mitre Saws GOLD - 8436032
FEMI Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Wood Mitre Saw GOLD - 8436032.Mitre saws with shelf Ø 305 mm Femi Gold.
Suitable for cutting various types of wood with dimensions of max cutting WxH 170 x 95
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Mitre Saws GOLD - 8436032
FEMI Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Wood Mitre Saw GOLD - 8436032
In the following table, look for the model of Mitre Saws and the respective parts of the code.
| Wood Mitre Saw GOLD-8436032 | ||
| # | Part Num. | Description |
| 1 | 0320826 | SOCKET HEAD SCREW |
| 2 | 0120308 | WASHER |
| 3 | 0120714 | PLAIN WASHER |
| 4 | 5190299 | WHEEL FLANGE |
| 5 | 5061037 | BLADE BUSHING |
| 7 | 5182878 | ARM PROTECTION |
| 10 | 5100146 | NUT |
| 11 | 5170001 | PROTECTION LOCKING PIN |
| 12 | 7130585 | LEVER AND PROTECTION GROUP |
| 13 | 5000742 | BLADE SHAFT |
| 17 | 5182551 | ELECTRIC BOX COVER |
| 19 | 5182872 | CABLE PROTECTION |
| 20 | 5080129 | SPRING |
| 22 | 5100147 | NUT |
| 23 | 5120655 | SPACER |
| 24 | 0536203 | BALL BEARING |
| 25 | 0215111 | BELT |
| 26 | 5133008 | RIVING KNIFE PLATE |
| 28 | 0120206 | WASHER |
| 29 | 5100088 | ADJUSTING SCREW |
| 30 | 0151409 | SNAP RING |
| 31 | 0152318 | ELASTIC PIN |
| 32 | 5183067 | RIVING KNIFE |
| 35 | 0151116 | SNAP RING |
| 36 | 7013152 | ARMATURE |
| 37 | 5050146 | LEFT HANDLE |
| 38 | 5143014 | SAFETY BUTTON |
| 39 | 5143016 | SAFETY BUTTON |
| 40 | 5081022 | SPRING |
| 41 | 5143015 | RELEASE BUTTON |
| 42 | 5142071 | LEVER |
| 43 | 0802611 | SWITCH |
| 44 | 7130606 | HEAD RELEASE LINKAGE |
| 45 | 5080130 | SPRING |
| 46 | 5214400 | WHEEL |
| 47 | 0221106 | O-RING SEAL |
| 48 | 5171046 | HEAD PIN |
| 49 | 7801092 | MOTOR BODY |
| 50 | 5050145 | RIGHT HANDLE |
| 52 | 0536202 | BALL BEARING |
| 53 | 5137946 | BELT SUPPORT |
| 54 | 5100143 | SPACER |
| 57 | 5182853 | CAPACITOR COVER |
| 58 | 0526201 | BALL BEARING |
| 59 | 5112027 | MOTOR FAN |
| 60 | 5182871 | SWITCH COVER |
| 61 | 5154501 | CABLE LOCKING DEVICE |
| 64 | 7820118 | ELECTRONIC CARD |
| 66 | 0840028 | CAPACITOR |
| 68 | 5141016 | ADJUST HANDWHEEL |
| 69 | 5182850 | MOTOR COVER |
| 71 | 0107011 | NUT |
| 72 | 5042790 | MITRE-SAW BODY |
| 73 | 5130454 | GUIDE LOCKING BRACKET |
| 74 | 5130453 | GUIDE |
| 76 | 5181665 | UPPER PROTECTION |
| 78 | 5141009 | ADJUSTING HANDWHEEL |
| 79 | 5081016 | SPRING |
| 82 | 5181682 | UPPER PROTECTION |
| 83 | 5401404 | GRADUATE PLATE |
| 84 | 5130838 | UPPER TABLE FRONT GUIDE |
| 85 | 0170004 | BALL |
| 87 | 5173032 | TIE ROD |
| 88 | 5401416 | GRADUATE PLATE |
| 89 | 5871040 | CABLE |
| 91 | 5130417 | SQUARE |
| 92 | 5130433 | GUIDE |
| 93 | 5130767 | UPPER TABLE REAR GUIDE |
| 94 | 5130432 | BRACKET |
| 96 | 5130858 | REAR GUIDE |
| 98 | 4130441 | UPPER TABLE |
| 99 | 5130798 | REAR GUIDE |
| 101 | 0107004 | WING NUT |
| 102 | 5181666 | LOWER PROTECTION |
| 103 | 5181670 | MOBILE PROTECTION |
| 104 | 0711528 | CAGE BEARING |
| 105 | 0064002 | BEARING FIFTH WHEEL |
| 106 | 5124063 | WASHER |
| 107 | 7133625 | REST BASE SPARE PARTS |
| 109 | 5159513 | BASE INDEX |
| 110 | 0147002 | HAND LEVER |
| 111 | 5137793 | REST FOOT |
| 112 | 0140078 | WING NUT |
| 113 | 5142072 | LEVER |
| 114 | 5171023 | SWIVEL SUPPORT PIN |
| 116 | 5181668 | LEFT PROTECTION |
| 118 | 5171044 | SWIVEL SUPPORT SHAFT |
| 119 | 0152630 | ELASTIC PIN |
| 120 | 5171045 | JOINT PIN |
| 123 | 0174012 | NEEDLE |
| 124 | 5130434 | CAGE |
| 125 | 5064028 | FIFHT WHEEL |
| 126 | 0150635 | CYLINDRIC PIN |
| 129 | 5401417 | GRADUATE PLATE |
| 130 | 5081012 | SPRING |
| 131 | 0080260 | SPRING WASHER |
| 133 | 0152330 | ELASTIC PIN |
| 134 | 0596002 | BALL BEARING |
| 135 | 5001566 | SHAFT |
| 136 | 5137930 | JOINT |
| 137 | 5155157 | RUBBER DAMPER |
| 138 | 5081024 | SPRING |
| 139 | 0140083 | WING NUT |
| 140 | 5137902 | ANGULAR BRACKET |
| 141 | 5181820 | LOWER PROTECTION |
| 142 | 5133691 | MITRE SAW BASE |
| 143 | 0140084 | KNOB |
| 144 | 0120708 | PLAIN WASHER |
| 145 | 5063038 | BUSHING |
| 146 | 0106115 | SELF-LOCKING RING NUT |
| 148 | 5170504 | BASE LOCKING PIN |
| 149 | 5130837 | BASE EXTENSION |
| 150 | 5170503 | BASE GUIDE PIN |
| 152 | 5181669 | RIGHT PROTECTION |
| 153 | 5182541 | COVER |
| 154 | 5137894 | SWIVEL SUPPORT |
| 156 | 0140098 | WING NUT |
| 157 | 5137945 | MOTOR SUPPORT |
| 158 | 5080151 | SPRING |
| 159 | 5080172 | BRAKE SPRING |
| 160 | 5155159 | BRAKE DEVICE |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi GOLD - 8436032
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM CODE OR S/N FEMI:
- FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
