Femi Spare Parts for Band Saw 795 - 796 8488020 - 8488021
€136.60
Tax included
Femi Spare Parts for Band Saw 795 - 796 8488020 - 8488021
We are FEMI original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Band Saw 795 8488020 - 796 - 8488021.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Band Saw 795 - 796 8488020 - 8488021
We are FEMI original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Band Saw 795 8488020 - 796 - 8488021.

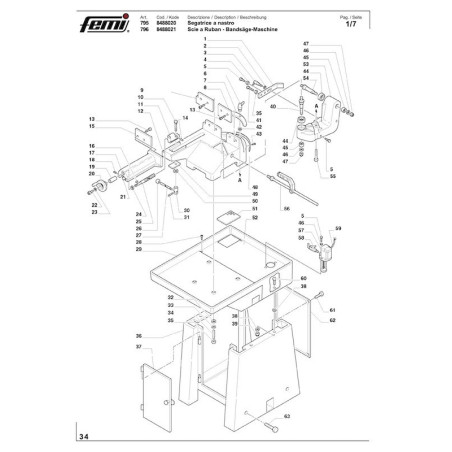

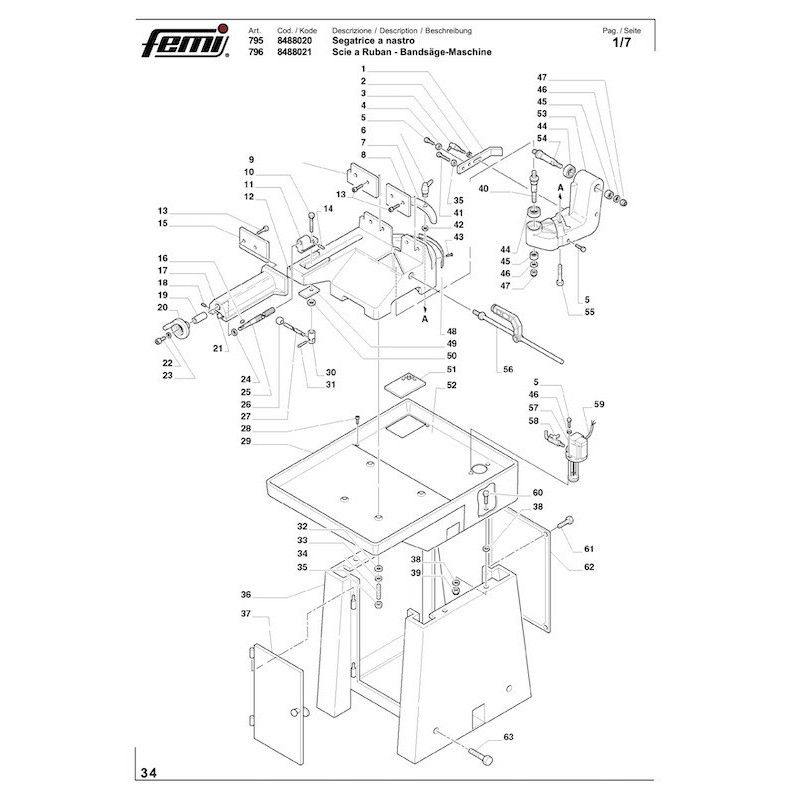

In the following table, look for the model of the Band Saw and the respective parts of the code
| 795 8488020 Band Saw | ||
| 796 8488021 Scié a ruban - Bandsage Maschine | ||
| # | Part Num. | Description |
| 1 | 5130796 | STOP PLATE |
| 2 | UNI6592 6,5 X 18 | |
| 3 | 0147007 | HAND LEVER |
| 4 | UNI5588 M6 | |
| 5 | UNI5737 M6 X 20 | |
| 6 | 0147012 | HAND LEVER |
| 7 | 5182532 | COVER |
| 8 | 5152591 | VICE JAW |
| 9 | 5152590 | VICE JAW |
| 10 | 0311470 | EXAGONAL HEAD SCREW |
| 11 | 5130783 | VICE SCREW SUPPORT |
| 12 | 5043556 | VICE BODY |
| 13 | UNI5931 M8 X 30 | |
| 14 | 0150612 | CYLINDRIC PIN |
| 15 | 5152589 | VICE JAW |
| 16 | 0150147 | FEATHER |
| 17 | 5130782 | SLIDING VICE |
| 18 | UNI5925 M5 X 25 | |
| 19 | 5063035 | BUSHING |
| 20 | 0140072 | HANDWHEEL |
| 21 | 5152069 | VICE GUIDE |
| 22 | UNI5939 M6 X 16 | |
| 23 | 0120706 | PLAIN WASHER |
| 24 | UNI6592 014 | |
| 25 | 5100322 | SCREW |
| 26 | 0140073 | HANDGRIP |
| 27 | 5142057 | LEVER |
| 28 | UNI6954 P8 X 9,5 | |
| 29 | 5133658 | TANK BASE |
| 30 | 5171035 | BUSHING |
| 31 | 0152424 | ELASTIC PIN |
| 32 | 5124033 | WASHER |
| 33 | 0120708 | PLAIN WASHER |
| 34 | UNI5923 M8 X 35 | |
| 35 | UNI5588 M8 | |
| 36 | 7133618 | |
| 37 | 5181695 | FRONT COLUMN PANEL |
| 38 | UNI6592 010 | |
| 39 | UNI7473 M6 | |
| 40 | 5171036 | VICE PIN |
| 41 | 0310855 | EXAGONAL HEAD SCREW |
| 42 | 0124032 | PLAIN WASHER |
| 43 | 0402905 | RIVET |
| 44 | 0606306 | BALL BEARING |
| 45 | 0606203 | BALL BEARING |
| 46 | UNI6592 016 | |
| 47 | 0101716 | SELF-LOCKING NUT |
| 48 | 5401436 | (not more available) |
| 49 | 5130784 | VICE SCREW SUPPORT |
| 50 | 5124056 | WASHER |
| 51 | 5182538 | TANK FILTER |
| 52 | 5182537 | PUMP SUPPORT |
| 53 | 5137877 | SWIVEL SUPPORT |
| 54 | 5171032 | JOINT PIN |
| 55 | 0311270 | EXAGONAL HEAD SCREW |
| 56 | 7130536 | ROD STOP GROUP |
| 57 | 7113524 | ELECTRIC PUMP |
| 58 | 0240303 | SPHERE VALVE |
| 59 | 5871057 | CABLE |
| 60 | UNI5739 M10 X 25 | |
| 61 | UNI5931 M6 X 20 | |
| 62 | 5181696 | REAR COLUMN PANEL |
| 63 | 0401002 | |
| 64 | UNI5933 M6 X 25 | |
| 65 | 5124060 | WASHER |
| 66 | 0586204 | BALL BEARING |
| 67 | 3277333 | |
| 68 | 5214224 | FREE WHEEL |
| 69 | 5130746 | GUIDE |
| 70 | 5001562 | SHAFT |
| 71 | 5081007 | SPRING |
| 72 | 5142058 | LEVER |
| 73 | 5100505 | BLADE TENSIONING SCREW |
| 74 | 5120661 | SPACER |
| 75 | UNI5588 M4 | |
| 76 | 5122017 | SPRING CONTEINER |
| 77 | 5124030 | WASHER |
| 78 | 0711528 | CAGE BEARING |
| 79 | 0140058 | HANDWHEEL |
| 80 | 0080260 | SPRING WASHER |
| 81 | UNI6592 016 | |
| 82 | 5222009 | SPRING DUST PROTECTION |
| 83 | 5066016 | BUSHING |
| 84 | 0801101 | MICROSWITCH |
| 85 | 5182842 | SWITCH BOX |
| 86 | DIN7500 M5 X 10 | |
| 87 | 5143005 | MICROSWITCH BUTTON |
| 88 | 5142059 | LEVER |
| 89 | 5182523 | COVER |
| 90 | UNI7687 M4 X 10 | |
| 91 | 0106120 | SELF-LOCKING RING NUT |
| 92 | UNI6592 @20 | |
| 93 | 5214025 | DRIVING WHEEL |
| 94 | 0155149 | THICKNESS WASHER |
| 95 | 5130795 | WHEEL SUPPORT |
| 96 | UNI5589 M12 | |
| 97 | 0606204 | BALL BEARING |
| 98 | UNI6955 P7 X 16 | |
| 99 | 0894007 | LIGHT PILOT |
| 100 | 7213009 | GEAR GROUP |
| 101 | 0150139 | FEATHER |
| 102 | 0586200 | BALL BEARING |
| 103 | 5024112 | STATOR |
| 104 | 5871036 | CABLE |
| 105 | 0606007 | BALL BEARING |
| 106 | 5124054 | SPACER |
| 107 | 5042731 | BANDSAW BODY |
| 108 | 7213010 | GEAR GROUP |
| 109 | 0731212 | CAGE BEARING |
| 110 | 0124026 | THICKNESS WASHER |
| 114 | 7213011 | GEAR GROUP |
| 112 | 5850006 | BRUSHES SUPPORT |
| 113 | 1180304 | MICROSWITCH LEVER |
| 114 | 0168513 | PLASTIC CAP |
| 115 | 0168515 | PLASTIC CAP |
| 116 | 0816004 | RADIO INTERFERENCE SUPPRESSOR |
| 117 | 5182823 | SWITCH BOX |
| 118 | 5081008 | SPRING |
| 119 | 5182843 | MOTOR COVER |
| 120 | 5850111 | FAN WITH MAGNETIC RING |
| 121 | 7820107 | (included into code 7820154) |
| 122 | 5182525 | COVER |
| 123 | UNI7687 M5 X 35 | |
| 124 | 7801611 | MOTOR |
| 125 | UNI5931 M5 X 6 | |
| 126 | 0816005 | RADIO INTERFERENCE SUPPRESSOR |
| 127 | 5061041 | RUBBER BUSHING |
| 128 | 7013134 | ROTOR |
| 129 | 5061038 | RUBBER BUSHING |
| 130 | UNI5931 M6 X 40 | |
| 131 | 0181018 | FAIRLEAD |
| 132 | 0181019 | FAIRLEAD |
| 133 | UNI5588 M4 | |
| 134 | 5154501 | CABLE LOCKING DEVICE |
| 135 | UNI7687 M4 X 20 | |
| 136 | 5182504 | SWITCH COVER |
| 137 | 0802319 | SWITCH |
| 138 | 0140077 | WING NUT |
| 139 | 5181677 | PROTECTION |
| 140 | 0123315 | RUBBER WASHER |
| 141 | 1855803 | COOLING LIQUID PIPE |
| 142 | 5181681 | CABLE PROTECTION |
| 143 | DIN 7500 M5 X 10 | |
| 144 | DIN 7500 M5 X 16 | |
| 145 | 5152596 | PROTECTION FIXING DEVICE |
| 146 | 7130567 | INTERNAL BEARING GROUP |
| 147 | UNI5931 M5 X 16 | |
| 148 | 5871056 | CABLE |
| 149 | 5050121 | HANDLE Base |
| 150 | 0802317 | SWITCH |
| 151 | 5050122 | HANDLE COVER |
| 152 | 0241367 | PIPE FITTING |
| 153 | 5871055 | CABLE |
| 154 | DIN7500 M5 X 15 | |
| 155 | 5154103 | CABLE LOCKING DEVICE |
| 156 | 0410630 | |
| 157 | 0410634 | |
| 158 | 5142069 | LEVER |
| 159 | UNI6954 P6 X 19 | |
| 160 | 0241443 | PIPE FITTING |
| 161 | 1855805 | COOLING LIQUID PIPE |
| 162 | 0241366 | PIPE FITTING |
| 163 | 5142060 | LEVER |
| 164 | 5130424 | BRACKET |
| 165 | UNI5588 M8 | |
| 166 | UNI7434 MM6 | |
| 167 | 5151505 | DAMPER FULCRUM |
| 168 | UNI7434 MM8 | |
| 169 | 5171033 | DAMPER PIN |
| 170 | 0310830 | |
| 171 | UNI5923 M8 X 35 | |
| 172 | UNI5933 M6 X 15 | |
| 173 | ||
| 174 | ||
| 175 | ||
| 176 | ||
| 177 | 5080137 | SPRING |
| 178 | 5124038 | WASHER |
| 179 | 7130568 | COMPLETE DAMPER GROUP |
| 181 | UNI5931 M6 X 25 | |
| 182 | 5130742 | BLADE GUIDE |
| 183 | 5120638 | SPACER |
| 184 | 0600607 | BALL BEARING |
| 185 | 0102106 | CAP NUT |
| 186 | UNI1751 MM6 | |
| 187 | 5130747 | SUPPORT |
| 188 | 0600626 | BALL BEARING |
| 189 | 0241442 | PIPE FITTING |
| 190 | 0124029 | PLAIN WASHER |
| 191 | 063025 | |
| 192 | 5100069 | SCREW |
| 193 | 5100070 | SCREW |
| 194 | 5130785 | BLADE GUIDE SUPPORT |
| 195 | UNI7687 M6 X 10 | |
| 196 | 5181683 | SLIDING PROTECTION |
| 197 | 0147002 | HAND LEVER |
| 198 | 5130786 | SLIDING BLADE GUIDE |
| 199 | 5181687 | SLIDING PROTECTION |
| 200 | UNI7687 M6 X 10 | |
| 201 | 5181016 | BLADE CLEANER FELT |
| 202 | 7820110 | BLADE TENSIONING DEVICE COVER |
| 203 | 0840202 | TRANSFORMER |
| 204 | 0810003 | MAGNETOTHERMIC SWITCH |
| 205 | 5137884 | CONTROL PANEL BASE |
| 206 | 5401565 | ELECTRIC BOX PANEL |
| 207 | 0820010 | SPEED COMMUTATOR |
| 208 | 5137883 | (included into code 5137908) |
| 209 | 5070001 | CONTROL PANEL SUPPORT |
| 210 | 0806007 | PUSH BUTTON WITH LOCK |
| 211 | 7213012 | GEAR GROUP |
| 212 | 0606204 | BALL BEARING |
| 213 | 5090119 | WHEEL GEAR |
| 214 | 0120112 | |
| 215 | UNI5931 M6 X 20 | |
| 216 | 5182545 | GEAR COVER |
| 217 | UNI5931 M6 X 40 | |
| 218 | 7013626 | ROTOR |
| 219 | 5182866 | SWITCH BOX |
| 220 | 5081008 | SPRING |
| 221 | DIN7500 M5 X 10 | |
| 222 | 0801101 | MICROSWITCH |
| 223 | 7801076 | MOTOR BODY |
| 224 | 0112014 | MOTOR FAN |
| 225 | 5182849 | FAN COVER |
| 226 | 5182546 | SWITCH COVER |
| 227 | UNI6954 P8 X 32 | |
| 228 | 0806006 | VOLTAGE COIL |
| 229 | 0811001 | MINI-CONTACTOR |
