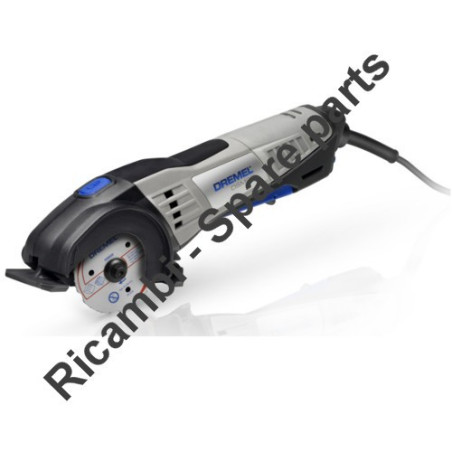

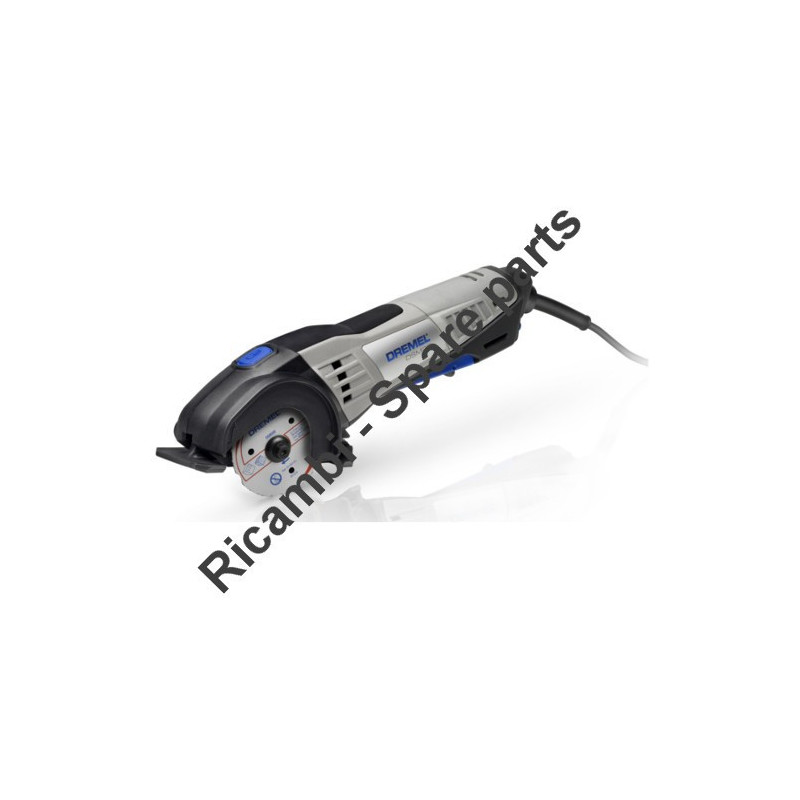

Dremel Spare Parts for Multipurpose Tool DSM20

€20.66
Tax included

Dremel Spare Parts for Multipurpose Tool DSM20

We have the original Dremel Spare Parts for Multipurpose Tool DSM20, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Multipurpose Tool DSM20 - F013SM2045. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee
ITEM CODE: 2610012050
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Dremel Spare Parts for Multipurpose Tool DSM20

We have the original Dremel Spare Parts for Multipurpose Tool DSM20 - F013SM2045, the diagram and parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of the Multipurpose Tool the respective parts of the code.
Dremel DSM20 - F013SM2045

Multipurpose Tool DSM20/F 013 SM2 045
# Part Num. Description
1 2610012050 Motor Housing
2 2610015716 Field 220-240V
3 2610021321 Armature assembly 220-240V
4 1607200179 Switch
5 1607000385 Power supply cord EU 2,6m 2 x 1,0 mm
6 2610015730 Cord guard
7 2601035001 Cable Clip
8 2610018459 Nameplate
13 1619P00456 Ball Bearing 7x19x6 MM
16 1619P02845 Brush Holder
19 2615294035 Cross Recessed-Head Screw
22 2610012042 Adjustable Foot
23 2610012049 Baffle
24 2610016070 Push-Button Key
25 2610015923 Switching Arm
26 2610017807 Front Housing
27 2610017808 Rear Housing Section
28 1619P02827 Suppression Filter
29 2603490022 Torx Oval-Head Screw 4x16
30 1619P02849 Torx Oval-Head Screw 3x8
31 2610012054 Locking Lever
33 1600502023 Intermediate Ring
34 1619P00987 Washer
36 2610012032 Flange Plate
37 2610015926 Worm-Gear Housing
38 2610012056 Torsion Spring
39 1603435068 Thread-forming tap. Screw DIN 7500, M4x10, SR10.2
40 2610012053 Lever Shaft
41 2610021327 Flange Plate
42 2610016801 Collar bolt
45 2610016072 Compression Spring
46 2610012055 Locking Hook
47 2603490023 Torx Oval-Head Screw 4x20
49 1619P02866 Shrinkable Tube
660 2610937464 Hexagon Socket Wrench
810 2610013288 Carbon Brush set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
