Dolmar Spare Parts for Bruschcutter MS5250E
We have the original DOLMAR Spare Parts for Bruschcutter MS5250E, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Bruschcutter MS5250E. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Brush Cutter and the respective parts of the code.

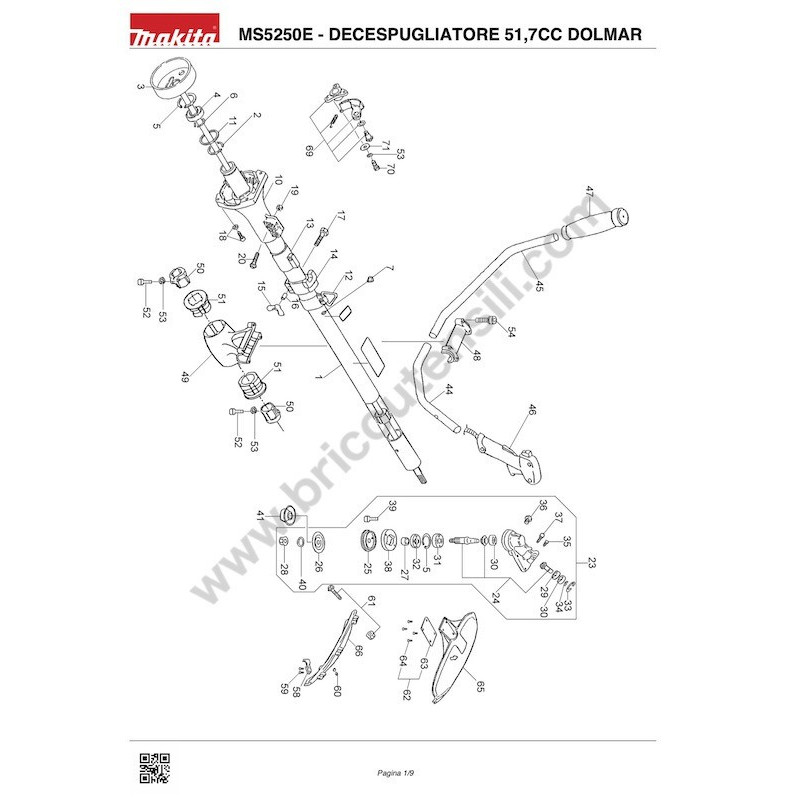

| MS5250E - PETROL BRUSHCUTTER 51,7CC DOLMAR pag.1 | ||
| # | Part Num. | Description |
| 1 | 6401008002 | SHAFT PIPE CPL X RBC525 |
| 2 | 6301501500 | OUTER SNAPRING RBC525/RBC420 |
| 3 | 6401033000 | SHAFT ASSY RBC525 |
| 4 | 0600179850 | BALL BEARING 6003DD RBC410 |
| 5 | 0031435000 | INNER SNAP RING RBC410/RBC420 |
| 6 | 0031517000 | OUTER SNAP RING RBC410/RBC420 |
| 7 | 6301500700 | OIL BOLT RBC525 |
| 10 | 6351500000 | CLUTCH CASE RBC525 |
| 11 | 6301501600 | WASHER X RBC520 |
| 12 | 6407006001 | BAND ASSY RBC350/420E/525E |
| 13 | 6411502101 | STOPPER RBC350/420E/525E |
| 14 | 318732-8 | STOPPER RBC525 |
| 15 | 6411501300 | WING NUT RBC350/420E/525E RBC350-RBC420 |
| 16 | 6401032010 | BUSH MS3500/4200/RBC350/351 MS5250 |
| 17 | 0016706500 | BOLT RBC350/420E/525E RBC350-420 |
| 18 | 0119069910 | HEX SOCKET HD BOLT M6X18 RBC4 RBC 410 |
| 19 | 0022706000 | NUT M6 EPH1000/RBL500/EM4251 PB500R |
| 20 | 0043406350 | BOLT M6x45 RBC410/420E/525E RBC525 |
| 23 | 6453011000 | GEAR CASE ASSY RBC525 |
| 24 | 6453012000 | CUTTER SHAFT SET RBC525 |
| 25 | 6453011030 | RECEIVE WASHER RBC525 |
| 26 | 6453011040 | CLAMP WASHER RBC525 |
| 27 | 6453011020 | SPACER RBC525 |
| 28 | 6453011060 | NUT RBC525 |
| 29 | 0600129920 | BALL BEARING MS5250 |
| 30 | 0600129980 | BALL BEARING 6001ZZ |
| 31 | 0600159880 | BALL BEARING 6202C3 X PB500R |
| 32 | 0440209910 | OIL SEAL RBC525 |
| 33 | 0031428000 | INNER SNAPRING EH7500/RBC420E RBC410 / 520 |
| 34 | 0031512000 | OUTER SNAP RING DBC260L/U/RBC RBC260 / 520RBK410 |
| 35 | 0119069880 | SOCKET HEAD BOLT M6X20 RBC525 |
| 36 | 6453011110 | OIL BOLT RBC525 |
| 37 | 6453011130 | SOCKET HEAD BOLT M5X15 RBC525 |
| 38 | 6453011050 | GUARD RBC525 |
| 39 | 6453011120 | SOCKET HEAD BOLT M5X10 RBC525 |
| 40 | 0203109990 | SPRING WASHER M10 RBC525 |
| 41 | 6458500900 | CUP RBC525E MS5250E |
| 44 | 6414507300 | HANDLE RBC420E/MS4200E - MS5250E |
| 45 | 6414507400 | HANDLE RBC420E/MS4200E/RBC525E |
| 46 | 6455007000 | CONTROL LEVER CPL MS5250E |
| 47 | 273526-7 | GRIP 18 MS5250E |
| 48 | 6254503802 | HANDLE HOLDER 1 RBC420E/525E MS5250E |
| 49 | 6414507201 | HANDLE HOLDER RBC420E/525E/MS |
| 50 | 6404506200 | STOPPER RBC420E/MS4200E/RBC52 RBC415 |
| 51 | 6404506600 | BUSH RBC420E/MS4200E/RBC525E - MS5250E |
| 52 | 0119069930 | SOCKET HD BOLT M6x30 RBC420E - RBC415 |
| 53 | 0032006000 | SPRING WASHER M6 RBC310/RBC420 RBK410-G2400R |
| 54 | 0119059840 | SOCKET HEAD BOLT M5X25 MOD RBC415 |
| 58 | 6458005040 | BLADE RBC525 |
| 59 | 6458005050 | BOLT ASSY RBC525 |
| 60 | 6458005060 | NUT RBC525 |
| 61 | 6458011000 | BOLT AND NUT SET RBC525E MS 5250E |
| 62 | 6458006000 | BOLT AND NUT SET RBC525 |
| 63 | 6458005020 | FIXING PLATE RBC525 |
| 64 | 6453011130 | SOCKET HEAD BOLT M5X15 RBC525 |
| 65 | 6458010010 | SAFETY GUARD RBC525E MS5250E |
| 66 | 6458010021 | COVER RBC525E MS5250E |
| 69 | 140897-6 | CLUTCH (MS4211) |
| 70 | 6202500400 | BOLT M6x14 RBC410/420E/525E |
| 71 | 267429-5 | FLAT WASHER 6 |
| MS5250E - PETROL BRUSHCUTTER 51,7CC DOLMAR pag.2 | ||
| 1 | 5501003001 | CRANKCASE ASSY RBC525 RBC525 |
| 2 | 213546-9 | OIL SEAL X PB500R-RBC525 |
| 3 | 0600159880 | BALL BEARING 6202C3 X PB500R |
| 4 | 0440179930 | OIL SEAL X PB500R |
| 5 | 0600179830 | BALL BEARING 6203C3 X PB500R-RBC |
| 6 | 5501502500 | CYLINDER X RBC525 |
| 7 | 5501500400 | GASKET X RBC520 |
| 8 | 5501500200 | GASKET X RBC 520 |
| 9 | 0043506200 | SCREW & WASHERASSY G5500/5501 RBC520-G5500R |
| 10 | 0043506400 | SCREW ASSY M6X40 XRBC520 |
| 13 | 5502005000 | CRANKSHAFT CPL RBC525 |
| 14 | 5502500400 | PISTON X RBC520 |
| 15 | 5602500900 | PISTON RING X RBC520 |
| 16 | 5602501100 | PISTON PIN RBC520 |
| 17 | 0610129961 | NEEDLE ROLLER BEARING X RBC520 |
| 18 | 233995-4 | CLIP |
| 19 | 0323049950 | WOODRUFF KEY RBC525/BBX7600 |
| 22 | 5503016001 | EXHAUST MUFFLER RBC525 |
| 23 | 0170069960 | NUT RBC525/BBX7600 |
| 24 | 0032006000 | SPRING WASHER M6 RBC310/RBC420 RBK410-G2400R |
| 25 | 5503503900 | MUFFLER COVER RBC525 |
| 26 | 5503504200 | MUFFLER GASKET X RBC525 |
| 27 | 5503504101 | INSULATER RBC525 |
| 28 | 0022705000 | NUT M5 X RBC230 / 310 / RBK410 |
| 29 | 5503504000 | INSULATER GASKET X RBC525 |
| 30 | 5503500501 | GASKET MS5250 |
| 31 | 0043705140 | PAN HEAD SCREW M5X14 RBC 410 / RBK 410 |
| 32 | 0119069850 | SOCKET HEAD BOLT M6X25 RBC525 |
| 33 | 0031006000 | WASHER RBC410/525E RBK410 G2400-5 |
| 36 | 5505001000 | REWIND STARTER RBC520 |
| 38 | 5105015020 | RATCHET RBC310/HT2256D/EH561 / RBC520 |
| 39 | 5505001020 | SPIRAL SPRING X RBC520 |
| 40 | 5105015050 | SPRING FRICTION RBC310/525E/520 |
| 41 | 5505001030 | FRICTION PLATE RBC310/525E/ RBC520 |
| 42 | 5105015110 | SCREW X RBC260 / 230/520 |
| 43 | 5105015060 | SPRING RETURN X RBC310 / RBC520 |
| 44 | 5505001050 | STARTER ROPE RBC 520 |
| 45 | 5305002110 | STARTER KNOB X RBC260 / RBK41 |
| 46 | 5505500001 | BLOWER HOUSING RBC525 |
| 47 | 0566059980 | CLAMP RBC525/MS20C/EM4251/434 |
| 48 | 0043604100 | SCREW X MS5250E |
| 49 | 5505010000 | CYLINDER COVER MS5250E |
| 50 | 0043706140 | SCREW 5X14 X RBC520 |
| 51 | 0043705200 | SCREW X RBC 410 / RBK 410 M5X20 |
| 53 | 6828011000 | WIRE COMPLETE RBC525 |
| 57 | 163447-0 | FUEL FILTER X DCS230T |
| 58 | 5506010000 | TUBE ASSY RBC525 |
| 59 | 0561059990 | HOSE CLAMP EH7500/EPH1000 RBC230-310 / 520 |
| 60 | 5506500200 | DAMPER RBC520 |
| 61 | 0230069760 | SPACER X RBC525 |
| 62 | 0031206000 | WASHER G.24 / 35-RBC225-255 |
| 63 | 0043506250 | SCREW AND WASHER ASSY RBC520-G5500 |
| 64 | 168398-2 | PRIMER PUMP DCS230T |
| 65 | 5506501700 | TUBE X RBC525 |
| 66 | 5806113050 | CLIP RBC525 |
| 67 | 452920-8 | TANK CAP |
| 68 | 5506501603 | FUEL TANK |
| 71 | 5507001010 | FLYWHEEL RBC525 |
| 73 | 0241059970 | GROMMET RBC525 |
| 75 | 5417037001 | SPARK PLUG CAP MS5250E |
| 76 | 324891-8 | SPARK PLUG SPRING EBH341 |
| 77 | 0650149721 | SPARK PLUG X RBK250 |
| 78 | 0119059870 | SOCKET HEAD BOLT M5x18 EH7500 RBC230 |
| 79 | 0022810000 | NUT M10 XRBC520 |
| 80 | 0031010000 | WASHER X RBC520 / G.5500R |
| 81 | 0032010000 | SPRINGWASHER M10 G5501R/ RBC520 / G.5500R |
| 84 | 6455500100 | STAND RBC520 |
| 85 | 0119069970 | HEX SOCKET HEAD BOLT M6x12 RB RBC520 |
| 86 | 140436-2 | STRAP COMPLETE EBH341U |
| MS5250E - PETROL BRUSHCUTTER 51,7CC DOLMAR pag.3 | ||
| 2 | 5506009040 | MAIN ADJUST SCREW RBC525 |
| 3 | 5426003030 | ADJUSTER RBC525 |
| 4 | 5426003010 | CAP BODY RBC525 |
| 5 | 5246004150 | CAP RBC525/EM4251/BCX2510 |
| 6 | 5246004010 | RUBBER CAP RBC525 |
| 7 | 5426003130 | CHECK VALVE RBC525 RBC525 |
| 8 | 5106048050 | JET NEEDLE CLIP RBC525 |
| 9 | 5106043150 | CONTROL LEVER X RBC520 |
| 10 | 5506001120 | DIAPHRAGM COVER RBC525 RBC 520 |
| 11 | 5426003050 | DIAPHRAGM ASSY RBC525 |
| 12 | 5106043130 | HINGE PIN RBC525 RBC520 |
| 13 | 5506009010 | NEEDLE JET RBC525 |
| 14 | 5426003220 | NEEDLE VALVE RBC525 |
| 15 | 5106042060 | O RING RBC525 RBC520 |
| 16 | 5246005222 | PACKING RBC525 |
| 17 | 5506001040 | DIAPHRAGM PACKING RBC525 RBC520 |
| 18 | 5106042310 | PUMP PACKING RBC525 RBC520 |
| 19 | 5246004320 | ADJUSTER PIPE RBC525 |
| 20 | 5426003140 | PLATE X RBC525 |
| 21 | 5506009030 | PUMP COVER ASSY MS5250E |
| 22 | 5426003060 | PUMP DIAPHRAGM X RBC525 |
| 23 | 5426003020 | ROCK NUT RBC525 |
| 24 | 5106041220 | SCREW M3X10 X RBC525 |
| 25 | 5106043360 | SCREW M3X6 X RBC525 |
| 26 | 5426003150 | SCREW M3X5 X RBC525 |
| 27 | 5426003160 | SCREW M3X8 X RBC525 |
| 28 | 5106048230 | STOP SCREW X RBC520 |
| 29 | 5426003210 | SPRING X RBC525 |
| 30 | 5506001060 | SPRING RECEIVE RBC525 |
| 31 | 5106042120 | ADJUST SPRING RBC520 |
| 32 | 5106048240 | ADJUST SCREW SPRING RBC525 RBC520 |
| 33 | 5426003230 | NEEDLE SPRING VALVE RBC525 |
| 34 | 5506009020 | THROTTLE SPRING RBC525 |
| 35 | 5506001050 | THROTTLE VALVE ASSY RBC525 |
| 38 | 0043505450 | SCREW ASSY RBC525 |
| 42 | 0230049980 | SPACER RBC525 RBC 520 |
| 43 | 5103502700 | SPONGE ELEMENT X RBC520 |
| 44 | 5503500300 | AIR CLEANER COVER RBC525 |
| 45 | 5503500400 | LEAD HOLDER RBC525 |
| 46 | 0043104300 | SCREW M4X30 X RBC520 |
| MS5250E - PETROL BRUSHCUTTER 51,7CC DOLMAR pag.4 | ||
| 1 | 6417015003 | BAND ASSY MS3200/RBC280/ RBC420E |
| 2 | 6257500100 | CUSHION RBC260/310/420E/525E RBC260 / 310/225/25 |
| 5 | B-70203 | CUTTER MS3500 |
| 6 | 6418500701 | CUTTER COVER DBC260U/EM4251/ MS251.4 |
| 9 | 6459020001 | TOOL SET MS5250 |
| 10 | 783223-2 | WRENCH X NUTS RBC350-RBC420 |
| 11 | 783232-1 | WRENCH X NUTS RBC350-RBC420 |
| 501 | B-01884 | STAR BLADE 255-4T |
| 502 | B-14124 | STAR BLADE 255X4TX25.4 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
