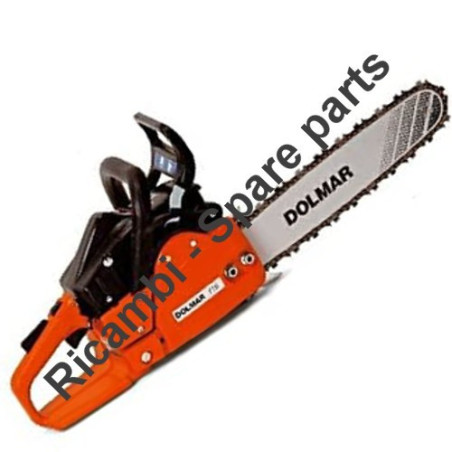

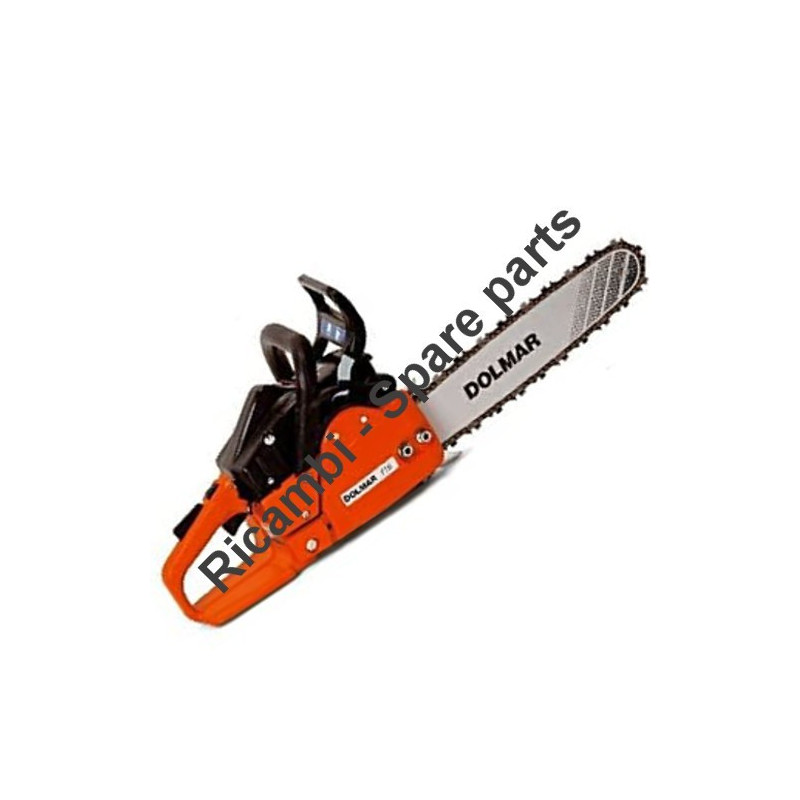

Dolmar Spare Parts for Engine Chainsaw 115I/38
€356.63
Tax included
Dolmar Spare Parts for Engine Chainsaw 115I/38
Dolmar Genuine spare parts or replacement parts for to repair Engine Chainsaw 115I/38 - 52CC DOLMAR 38CM.Fix Your Engine Chainsaw 115I/38. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Dolmar Spare Parts for Engine Chainsaw 115I/38
Fix Your Engine Chainsaw 115I/38 - 52CC DOLMAR 38CM. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Open PDF Diagram, check your spare part number position and then select it in the following table.
| 115I/38 - CHAINSAW 52CC DOLMAR 38CM pag.1 | ||
| # | Part Num. | Description |
| 1B | 027130034 | PISTON + CYLINDER CPL X 111/115 |
| 2B | 027132050 | PISTON DIAM. 44MM |
| 3B | 027132020 | PISTON RING DIAMETER 44MM |
| 4A | 027132030 | PISTON PIN |
| 4B | 001132010 | Piston pin, for piston assy. 032 132 011 X DCS430 |
| 5 | 020132050 | PISTON RING C10X0,8 |
| 6 | 266476-3 | SCREW M5X20 (TORX) |
| 7 | 965525042 | GASKET |
| 10 | 001142012 | CLAMP |
| 11 | 965401011 | RUBBER BUSH |
| 115I/38 - CHAINSAW 52CC DOLMAR 38CM pag.2 | ||
| 1B | 027111144 | CRANKCASE CLUTCH SIDE X PS540 |
| 1C | 027111144 | CRANKCASE CLUTCH SIDE X PS540 |
| 2A | 020111203 | CRANKCASE LEFT SIDE X 115 |
| 2B | 027111171 | CRANKCASE LEFT SIDE X PS 540 |
| 3B | 027120010 | CRANKSHAFT ASS'Y |
| 4A | 211154-0 | BALL BEARING 6202 |
| 4B | 960102131 | BALL BEARING 6201 |
| 5 | 939620371 | KEY 2,0X3,7 |
| 6 | 962211030 | NEEDLE BEARING |
| 7 | 213814-0 | RADIAL GASKET 15 / 24X7 |
| 8 | 213141-5 | OIL-SEAL |
| 9 | 936430160 | PIN 3X16 PS350C-420C |
| 10 | 965525002 | GASKET |
| 11 | 027213320 | FLAT SPRING |
| 12A | 934950160 | CLAMPING SLEEVE 5 X 16 X DCS430 |
| 12B | 934950160 | CLAMPING SLEEVE 5 X 16 X DCS430 |
| 14 | 027213520 | HEXAGONAL HEAD SCREW |
| 15 | 027213270 | SPRING |
| 16 | 027213510 | RING |
| 17 | 027213500 | SHOULDER NUT |
| 115I/38 - CHAINSAW 52CC DOLMAR 38CM pag.3 | ||
| 11 | 266945-4 | SCREW M5X30 (TORX) |
| 12 | 908105204 | SCREW M5X20 (TORX) |
| 13 | 001111012 | SCREW M12X1 |
| 15 | 905808305 | STUD BOLT M8X30 |
| 16 | 389213081 | TENSIONING SCREW |
| 17 | 001213020 | NUT WITH PLUG |
| 22 | 020111082 | CHAIN CATCH |
| 23 | 266946-2 | SCREW M5X12 (TORX) |
| 24 | 020111172 | GUIDE PLATE |
| 25 | 915135100 | SCREW 3.5 X 9.5 |
| 26 | 020250020 | OUTSIDE SPIKE |
| 27 | 266474-7 | SCREW M5X8 (TORX) |
| 28 | 020173011 | PRE FILTER |
| 29 | 020173026 | COVER |
| 30 | 266947-0 | TORX SCREW |
| 32 | 957605112 | ON-OFF SWITCH ASSY |
| 33 | 980113841 | LABEL |
| 34 | 965401011 | RUBBER GROMMET |
| 35 | 010114032 | OIL TANK CAP ASS'Y |
| 36 | 963100051 | GASKET |
| 37 | 010245010 | AIR VENT VALVE X PS6000I-6800I |
| 38 | 921905004 | NUT |
| 39 | 020111070 | CLAMP |
| 40 | 020173061 | FILTER |
| 115I/38 - CHAINSAW 52CC DOLMAR 38CM pag.4 | ||
| 1 | 957310027 | TOP HANDLE BAR |
| 3 | 965403491 | DAMPER |
| 4 | 021114051 | FIXING BUSH |
| 5 | 266945-4 | SCREW M5X30 (TORX) |
| 8 | 020310013 | COVER |
| 9 | 266478-9 | SCREW 5,5X16 (TORX) |
| 15 | 020114005 | TANK PS52 |
| 16 | 965451901 | FUEL TANK CAP ASSY DCS / PS9010 |
| 17 | 963232045 | GASKET OR32X4.5 |
| 18 | 163532-9 | FILTER |
| 19 | 963601240 | FELT |
| 20 | 957114011 | TANK VALVE |
| 21 | 965404460 | FUEL LINE |
| 22 | 965404521 | SEAL |
| 23 | 020117291 | THROTTLE LEVER AND LEVERISMS |
| 24 | 020117273 | SPRING |
| 25 | 020117301 | LOCKING LEVER |
| 26 | 020117160 | SPRING |
| 27 | 935932320 | CYLINDRICAL PIN |
| 28 | 020114053 | PLATE FOR HANDLE |
| 29 | 965403282 | RUBBER BUFFER |
| 30 | 913447134 | SELF TAPPING SCREW |
| 115I/38 - CHAINSAW 52CC DOLMAR 38CM pag.5 | ||
| 1 | 027160010 | RECOIL STARTER ASS'Y X 110-115 |
| 2 | 020112180 | FAN HOUSING ASS'Y |
| 3 | 965402262 | STARTER HANDLE X DCS9000 |
| 4 | 108164020 | STARTER ROPE 3,5X980MM |
| 5 | 266605-8 | SCREW M5X16 PS32CTLC |
| 6 | 020163031 | STARTER SPRING |
| 7 | 915135100 | SCREW 3.5 X 9.5 |
| 8 | 027162070 | CABLE DRUM |
| 9 | 924108400 | WASHER 8.4 |
| 10 | 929108080 | SAFETY WASHER 8X0.8 |
| 11 | 020112010 | PLASTIC AIR DUCT |
| 13 | 965603021 | SPARK PLUG NGK BPMR7A |
| 14 | 957604260 | SPARK PLUG CAP |
| 15 | 965604180 | SPRING |
| 17 | 027140001 | IGNITION COIL + FLYWHEEL ASS'Y |
| 18 | 027141021 | FLYWHEEL ASS'Y |
| 19 | 181166050 | STARTER PAWL ASS'Y |
| 20A | 122166020 | TORSION SPRING |
| 20B | 108166021 | SPRING |
| 21 | 264022-6 | NUT |
| 22 | 926208001 | ELASTIC WASHER 8 |
| 23A | 020143032 | IGNITION COIL (DUCATI) |
| 24 | 266607-4 | SCREW M5X20 PS32CTLC |
| 25 | 001147000 | IGNITION LEAD |
| 26 | 970310200 | IGNITION COIL CABLE 1mt |
| 27 | 970502110 | INSULATING HOSE 6 / 0.5 (M) |
| 28 | 970502050 | INSULATION PIPE (M) |
| 115I/38 - CHAINSAW 52CC DOLMAR 38CM pag.6 | ||
| 1 | 027213452 | HAND GUARD |
| 2 | 027213462 | SAFETY HANDLE |
| 3 | 810449-4 | LABEL |
| 4 | 027213430 | BUSHING SET |
| 5 | 027213150 | RUBBER BUSH |
| 6 | 027213161 | STUD BUSHING |
| 7 | 266476-3 | SCREW M5X20 (TORX) |
| 8 | 027213221 | RELEASE LEVER |
| 20 | 027213572 | CHAIN BRAKE CPL. |
| 21 | 027213280 | PROTECTION COVER |
| 22 | 027213050 | BRAKE SPRING WITH LEVER ASS'Y |
| 23 | 027213352 | BRAKE STOP SHEET |
| 24 | 913205125 | SCREW 5 X 12 X DCS430 |
| 25 | 027213111 | COVER PLATE |
| 26 | 257934-0 | LOCKING RING E-4 X UH6580 |
| 27 | 027111042 | GUIDE PLATE |
| 28 | 915135100 | SCREW 3.5 X 9.5 |
| 29 | 027213120 | SPRING |
| 30 | 027213560 | PLATE |
| 31 | 027213130 | BRAKE LEVER SHAFT |
| 32 | 027213140 | LEVER SHAFT |
| 34 | 924500049 | WASHER 5,2X12X1 |
| 35 | 264055-1 | NUT M8 |
| 36A | 980114135 | LABEL |
| 115I/38 - CHAINSAW 52CC DOLMAR 38CM pag.7 | ||
| 1 | 027245161 | OIL PUMP ASSY |
| 2 | 030245070 | OIL PUMP REPAIR KIT |
| 3 | 027245010 | WORM SCREW |
| 4 | 234366-8 | RETAINING RING 16X1 |
| 5 | 346872-2 | LOCKING RING |
| 6 | 020245020 | DELIVERY LINE FOR OIL |
| 7 | 020245041 | SUCTION LINE FOR OIL |
| 8 | 266946-2 | SCREW M5X12 (TORX) |
| 10 | 027223101 | CLUTCH DRUM |
| 11A | 020224070 | RIM SPROCKET 0.325" |
| 11B | 026224010 | RIM SPROCKET 3/8 " |
| 12 | 962210025 | NEEDLE BEARING |
| 13 | 027245021 | RING |
| 18 | 962900040 | SEAL RING 15 / 23X3 |
| 21 | 020223101 | CLUTCH DRUM |
| 22 | 020224120 | LOCKING WASHER |
| 33 | 957180030 | CLUTCH ASS'Y 109-115 |
| 34 | 122184011 | CLUTCH SPRING |
| 35 | 027182030 | LOCKING WASHER |
| 36 | 957180030 | CLUTCH ASS'Y 109-115 |
| 37 | 181184020 | CLUTCH SPRING |
| 115I/38 - CHAINSAW 52CC DOLMAR 38CM pag.8 | ||
| 1 | 027118155 | FILTER COVER |
| 2 | 266605-8 | SCREW M5X16 PS32CTLC |
| 3 | 020118121 | COMPLETE CARTER |
| 4 | 001118062 | NUT M5 |
| 5A | 020173202 | AIR FILTER ASS'Y (NYLON) |
| 5B | 020173300 | AIR FILTER ASS'Y |
| 6 | 266947-0 | TORX SCREW |
| 8 | 027118010 | BASE |
| 9 | 266474-7 | SCREW M5X8 (TORX) |
| 10 | 965401024 | RUBBER GROMMET |
| 11 | 965404780 | GASKET |
| 12 | 965525032 | GASKET |
| 13 | 965404230 | CAP (CARBURETTOR HEATER) |
| 14 | 965404410 | RUBBER BUSH |
| 15 | 965404341 | GASKET |
| 17 | 965524023 | GASKET |
| 18 | 020171100 | CONNECTION SLEEVE |
| 19 | 908205658 | THREADED SCREW |
| 21 | 020117281 | THROTTLE LINKAGE ASS'Y |
| 22 | 020118030 | GUIDE |
| 30 | 027150010 | CARBURETOR INJECTION HU 83C COMPLETE |
| 31 | 027150880 | AIR VALVE LEVER |
| 32 | 027150900 | CABLE TIE |
| 35 | 020174160 | MUFFLER |
| 36 | 346304-9 | MUFFLER GASKET PS32CTLC |
| 37 | 266474-7 | SCREW M5X8 (TORX) |
| 38 | 908205625 | SCREW M5X62 |
| 39 | 267821-5 | ELASTIC WASHER |
| 40 | 020174171 | GUARD |
| 48 | 915042130 | SCREW |
| 115I/38 - CHAINSAW 52CC DOLMAR 38CM pag.9 | ||
| 1 | 027150010 | CARBURETOR INJECTION HU 83C COMPLETE |
| 6 | 957150080 | GASKET SET HU-64 |
| 7A | 100150150 | PUMP DIAPHRAGM |
| 9 | 957150310 | SPRING |
| 11 | 001150321 | THROTTLE |
| 13 | 100150350 | SAFETY WASHER |
| 16 | 001150170 | COMPLETE INJECTION VALVE |
| 23 | 020150470 | IDLING ADJUST SCREW (L) |
| 25 | 001150480 | SPRING |
| 27 | 957150150 | COMPLETE CONTROL PARTS SERIES |
| 115I/38 - CHAINSAW 52CC DOLMAR 38CM pag.10 | ||
| 1 | 020310261 | COMPLETE TUBULAR HANDLE |
| 2 | 957310142 | COMPLETE SUPPORT |
| 3 | 965403430 | PS ** / DCS ** RUBBER BUFFER |
| 4 | 965551250 | CAP |
| 5 | 108213180 | CATCH STRAP |
| 6 | 924805310 | WASHER 5 |
| 8 | 266474-7 | SCREW M5X8 (TORX) |
| 9 | 900205084 | HEXAGONAL SCREW M5X8 |
| 10 | 266946-2 | SCREW M5X12 (TORX) |
| 11 | 921905004 | NUT |
| 12 | 020310131 | CLAMP |
| 13 | 970311151 | CABLE X PS 540 |
| 16 | 027148000 | IGNITION X HEATING GROUP |
| 17 | 027148020 | POLAR WHEEL FOR HEATING |
| 19 | 902604144 | SCREW 4X14 |
| 21 | 020144010 | BUSH |
| 22 | 965401014 | RUBBER BUSH |
| 24 | 957605112 | COMPLETE SHORT CIRCUIT SWITCH |
| 25 | 965605370 | NUT |
| 26 | 965605131 | RUBBER BUSH |
| 27 | 970311151 | CABLE X PS 540 |
| 30 | 020114060 | COMPLETE HANDLE PLATE |
| 35A | 020111303 | CRANKCASE FLYWHEEL SIDE ASSY |
| 35B | 020111240 | CRANKCASE FLYWHEEL SIDE ASSY |
| 115I/38 - CHAINSAW 52CC DOLMAR 38CM pag.11 | ||
| 1 | 415038631 | SPOCKET NOSE GUIDE BAR 38CM THICKNESS 1,5M |
| 3 | 558083010 | OUTER FLAP with RIVET BOLT 0.325 " |
| 4 | 510086040 | OUTER FLAP 0.325 " |
| 6A | 415325710 | SPROCKET BAR 0.325 " |
| 7 | 952020650 | PROTECTION BAR 38/45 CM |
| 11 | 957004002 | TOOL SET DCS430 |
| 12 | 941719133 | UNIVERSAL KEY 19/13 |
| 13 | 782025-3 | TORX KEY |
| 14 | 783012-5 | CARBURETOR SCREWDRIVER |
| 15 | 950004001 | PLASTIC CASE |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Domar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
