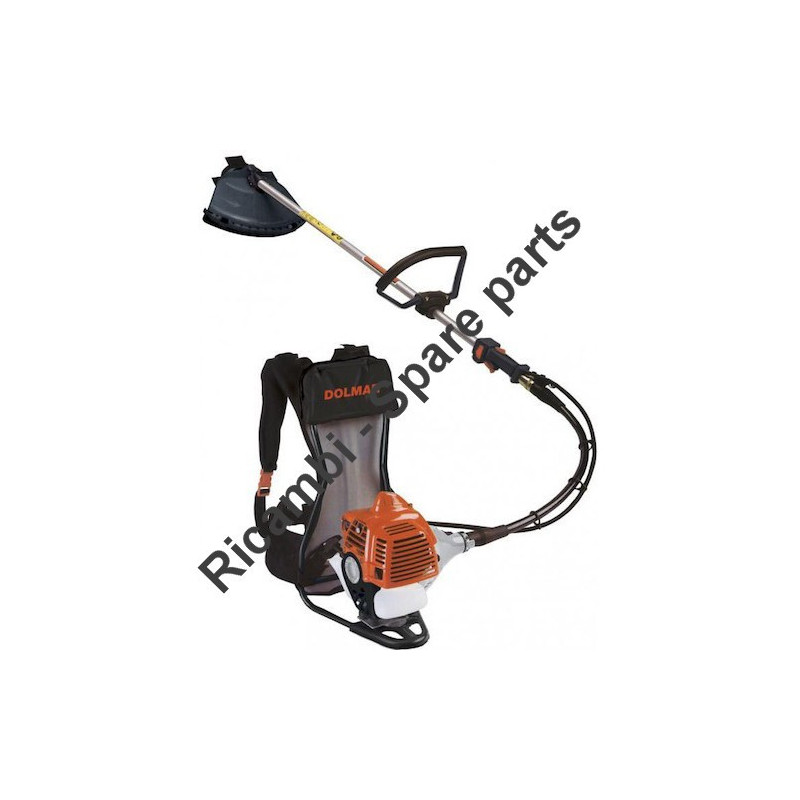

Dolmar Spare Parts for Backpack Bruschcutter MS4520B
€1.44
Tax included
Dolmar Spare Parts for Backpack Bruschcutter MS4520B
Dolmar genuine spare parts or Replacement parts for to repair Backpack Bruschcutter MS4520B.Fix Your Backpack Bruschcutter MS4520B. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Dolmar Spare Parts for Backpack Bruschcutter MS4520B
Fix Your Backpack Bruschcutter MS4520B. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Brush Cutter and the respective parts of the code.
| MS4520B - BACKPACK BRUSHCUTTER 44,9CC DOLMAR - PAG.1 | ||
| # | Part Num. | Description |
| 1 | BB630070 | STARTER ROPE |
| 2 | BB510190 | ROPE STRAIGHT PLATE |
| 3 | BB724740 | STARTER HANDLE WITH ROPE STOPPER PLATE |
| 4 | BB091640 | STATION FOR STARTER ROPE |
| 6 | BB724300 | CARTER STARTER COVER |
| 7 | BB180240 | STARTER SPRING |
| 8 | BB541320 | STARTER PULLEY |
| 9 | BB090720 | FLAT WASHER D.4, 3 X 16 |
| 10 | BB030800 | SCREW TCB M 4 X 10 |
| 11 | BB730050 | WHITE STARTER GROUP BBK570P02P4ER MACCH DCAT23031_72 |
| 12 | BB030410 | SCREW TCEI M 5 X 18 |
| 13 | BB090780 | FLAT WASHER 5.3 X 10 X 1 |
| 14 | BB541340 | TANK RUBBER |
| 15 | BB060370 | NUT M 9 X 1.25 |
| 16 | BB730080 | REEL SUPPORT |
| 17 | BB541330 | STARTER POWL |
| 18 | BB180200 | POWL SPRING |
| 19 | BB120160 | RETAINER RING D4 |
| 20 | BB722460 | POWL ASS'Y |
| 21 | BB240370 | SEAL RING 15X26X7 |
| 22 | BB721430 | MOTOR HOUSING |
| 23 | BB240260 | CARTER GASKET |
| 24 | BB420200 | PIN D.8X10 |
| 25 | BB270070 | BEARING 6202 |
| 26 | BB751600 | CRANKSHAFT P37 |
| 27 | BB090150 | GROWER WASHER 5.1 |
| 28 | BB030620 | SCREW TCEI M 5 X 35 |
| 29 | BB240030 | SEAL RING 15X26X7 |
| 30 | BB420030 | KEY 10X3,7X3 |
| 31 | BB270050 | NEEDLE BEARING PB K10X14X13FKI-V1 |
| 32 | BB150040 | CIRCLIP D.10 |
| 33 | BB420040 | PISTON PIN D10X30 |
| 34 | BB480710 | PISTON DIAMETER 41 FOR N45E |
| 35 | BB150240 | PISTON RING D.41 |
| 36 | BB721350 | COMPLETE PISTON D.41 |
| 37 | BB240270 | CYLINDER GASKET |
| 38 | BB090620 | SCHNORR WASHER D.6,4 |
| 39 | BB030630 | SCREW TCEI M 6 X 25 |
| 40 | BB752340 | DECOMPRESSOR X RNGINE N39 / 57E |
| 41 | BB480630 | CYLINDER DIAMETER 41 FOR N45E |
| 42 | BB240290 | COLLECTOR GASKET |
| 43 | BB541270 | CARBURATOR INTAKE MANIFOLD WT |
| 44 | BB090800 | SCHNORR WASHER D.5,3 |
| 44A | BB090780 | FLAT WASHER 5.3 X 10 X 1 |
| 45 | BB030070 | SCREW TE M 5 X 30 |
| 46 | BB240130 | CARBURETOR GASKET |
| 47A | BB331650A | CARBURETOR FOR BBK4500 |
| 48 | BB726390 | COMPLETE AIR FILTER SUPPORT |
| 49 | BB091630 | SPACER BUSH |
| 52 | BB120270 | RING |
| 53 | BB031140 | SCREW M 3 X 8 |
| 54A | BB726390 | COMPLETE AIR FILTER SUPPORT |
| 55 | BB090830 | WAVY WASHER D. 5.3 |
| 56 | BB030500 | SCREW TCEI M 5 X 45 |
| 57 | BB332100 | AIR FILTER X CARBURETOR WALBRO |
| 57A | BB332250 | AIR FILTER DBC5700 |
| 58 | BB543180/R | RED FILTER COVER |
| 59 | BB543090/R | ENGINE CYLINDER COVER RED |
| 60 | BB090780 | FLAT WASHER 5.3 X 10 X 1 |
| 61 | BB030680 | SCREW TCEI M 5 X 14 |
| 62 | BB090780 | FLAT WASHER 5.3 X 10 X 1 |
| 63 | BB030620 | SCREW TCEI M 5 X 35 |
| 64 | BB451060 | SPARK PLUG RCJ4 |
| 65 | BB543200/R | SPARK PLUG COVER RED |
| 66 | BB240500 | MUFFLER GASKET |
| 67 | BB752350 | MUFFLER |
| 68 | BB090830 | WAVY WASHER D. 5.3 |
| 69 | BB030410 | SCREW TCEI M 5 X 18 |
| 70 | BB090830 | WAVY WASHER D. 5.3 |
| 71 | BB030680 | SCREW TCEI M 5 X 14 |
| 73 | BB031150 | SCREW M 5 X 20 |
| 74 | BB450930 | CAPACITIVE COIL FOR N39 / 57 |
| 75 | BB450340 | CABLE GROUND X X COIL |
| 76 | BB541510 | GROUND GROMMET |
| 77 | BB450280 | FLYWHEEL FOR N39 / 57 |
| 78 | BB091000 | WAVY WASHER D.10.5 |
| 79 | BB060300 | NUT M 10 X 8 |
| 92 | BB480980 | CLUTCH CARCASS |
| 93 | BB752440 | CLUTCH DRUM |
| 94 | BB120030 | SEEGER 35I UNI 7437 RING |
| 95 | BB270060 | BEARING 6002-ZZ |
| 96 | BB091650 | WASHER |
| 97 | BB120050 | SEEGER 15E UNI 7435-75 RING |
| 98 | BB724090 | SUPPORT GROUP AND CLUTCH DRUM |
| 100 | BB480790 | FRONT BRACKET SUPPORT |
| 101 | BB030710 | SCREW TSPEI M5X20 |
| 102 | BB180170 | CLUTCH SPRING 23/27K |
| 103 | BB090550 | LOWER WASHER |
| 104 | BB780060 | CLUTCH ARM 23/27 (PZ.SING.) |
| 105 | BB390330 | CLUTCH BOLT 23/27 |
| 106 | BB721870 | CLUTCH ASSY |
| 107 | BB030380 | SCREW TCEI M 5 X 16 |
| 108 | BB543220 | LOWER HALF |
| 109 | BB543210 | UPPER HALF |
| 110 | BB481000 | LOWER SPACER |
| 111 | BB480990 | UPPER SPACER |
| 112 | BB060100 | NUT M 5 X 4 |
| 113 | BB030410 | SCREW TCEI M 5 X 18 |
| 114 | BB724110 | FUEL TANK ASSY FOR ENGINE |
| 115 | BB542520 | PIPE |
| 116 | BB723740 | CPL. TANK CAP |
| 117 | BB542460 | FUEL TUBE |
| 118 | BB330820 | FUEL FILTER |
| 119 | BB726390 | AIR FILTER SUPPORT COMPL. |
| MS4520B - BACKPACK BRUSHCUTTER 44,9CC DOLMAR - PAG.2 | ||
| 1 | BB540210 | GUAINE PROTECTION |
| 2 | BB724390 | COMPLETE FLEXIBLE EXTERNAL SHEATH |
| 3 | BB540690 | SUPPORT CABLE THROTTLE CONTROL |
| 4 | BB390790 | FLEXIBLE SPINDLE D.9 |
| 5 | BB150170 | RETAINER RING |
| 6 | BB090680 | BUSH |
| 7 | BB180130 | SPRING X QUICK COUPLING |
| 8 | BB270210 | SFERA D. 4.76 |
| 9 | BB091050 | CONNECTION BUSH (9MM) |
| 10 | BB240150 | RING OR 2087 D.22 |
| 11 | BB120170 | SEEGER 22I UNI 7437 RING |
| 12 | BB270110 | BEARING 608-ZZ |
| 13 | BB090380 | BEARING SHOULDER BEARING |
| 14 | BB150080 | WRILT RING WR 8 |
| 15 | BB090670 | JOINT |
| 16 | BB391110 | TRANSMISSION SHAFT EPM NPM |
| 17 | BB540420 | ANTIVIBRATION BUSH D.27 |
| 18 | BB720800 | TUBE COMPLETE WITH RUBBER X BAG |
| 19 | BB570530 | RUBBER HOSE X FRONT GRIP |
| 20 | BB542420 | ADJUSTABLE ANTI-VIBRATING HANDLEGRIP |
| 21 | BB722830 | HANDLEGRIP |
| 22 | BB030630 | SCREW TCEI M 6 X 25 |
| 23 | BB090040 | FLAT WASHER D.6,4 |
| 24 | BB542450 | CROSS SUPPORT |
| 26 | BB542440 | CROSS SUPPORT BODY |
| 27 | BB542430 | CROSS BODY SHELL |
| 28 | BB030810 | SCREW TCEI M 6 X 40 |
| 29 | BB722620 | CUP HOLDER NYLON HANDLEBAR SUPPORT |
| 30 | BB724290 | FLEXIBLE GROUP + PR. BIAX INSIDE SHAFT |
| MS4520B - BACKPACK BRUSHCUTTER 44,9CC DOLMAR - PAG.3 | ||
| 1 | BB030190 | SCREW TE M 8 X 16 |
| 2 | BB090080 | GROWER WASHER D. 8.1 |
| 3 | BB090700 | FLAT WASHER 9X24X2 |
| 4 | BB030230 | SCREW TE M 6 X 16 |
| 5 | BB090010 | GROWER WASHER D. 6.1 |
| 6 | BB270060 | BEARING 6002-ZZ |
| 7 | BB480060 | BEARING SUPPORT |
| 8 | BB060060 | NUT M 6 X 5 |
| 9 | BB090010 | GROWER WASHER D. 6.1 |
| 10 | BB180060 | DAMPER 20X20 |
| 11 | BB752850 | ENGINE LOWER SUPPORT |
| 12 | BB511300 | UPPER MOTOR SUPPORT |
| 13 | BB030230 | SCREW TE M 6 X 16 |
| 14 | BB752360 | ENGINE FRAME |
| 15 | BB752550/DOLMAR | DOLMAR PROFESSIONAL BACKPACK BACK |
| 16 | BB724350/DOLMAR | COMPLETE PROFESSIONAL BACKPACK DOLMAR |
| 17 | BB725980/DOLMAR | COMPLETE PROFESSIONAL BACKPACK |
| MS4520B - BACKPACK BRUSHCUTTER 44,9CC DOLMAR - PAG.4 | ||
| 1 | BB090020 | BUSHING CASE |
| 2 | BB030800 | SCREW TCB M 4 X 10 |
| 3 | BB120020 | SEEGER 12E UNI 7435-75 RING |
| 4 | BB120010 | SEEGER 28I UNI 7437 RING |
| 5 | BB270010 | BEARING 6001-ZZ |
| 6 | BB723380 | GEAR CASE SET |
| 7 | BB060060 | NUT M 6 X 5 |
| 8 | BB090010 | GROWER WASHER D. 6.1 |
| 9 | BB480470 | GEARS CASE D.27 |
| 10 | BB030010 | SCREW TE M 6 X 30 |
| 11 | BB031080 | GREASE CAP SCREW |
| 12 | BB270020 | BALL BEARING 6000 |
| 13 | BB390010 | SPINDLE D.27 |
| 14 | BB420010 | LOCK PIN |
| 15 | BB270030 | BEARING 6202-2RS |
| 16 | BB120030 | SEEGER 35I UNI 7437 RING |
| 17 | BB091560 | DOOR DISC DOOR D.50 |
| 18 | BB510180 | UPPER FLANGE |
| 19 | BB090070 | DISC FIXING FLANGE X D.27 |
| 20 | BB060470 | SELF-LOCKING NUT M 10 X 1 X 12 |
| 21 | BB722760 | GEAR CASE ASSY BBC4500 |
| 22 | P-47400 | 8 TEETH BLADE |
| 23 | P-47341 | BLADE 48 TEETH (255X1.4X25.4) MM |
| 24 | P-47391 | 4 TEETH BLADE (255X1.4X25.4) MM |
| 25 | BB120050 | SEEGER 15E UNI 7435-75 RING |
| 26 | BB480060 | BEARING SUPPORT |
| 27 | BB270060 | BEARING 6002-ZZ |
| 28 | BB060160 | NUT FIXING CUP M10X1 |
| 30 | BB090010 | GROWER WASHER D. 6.1 |
| 31 | BB030050 | SCREW TE M 6 X 12 |
| 33 | BB060100 | NUT M 5 X 4 |
| 34 | BB542410 | SAFETY GUARD |
| 35 | BB511020 | LINE BLADE |
| 36 | BB030820 | SCREW 3,9 X 16 |
| 37 | BB729200 | COVER GUARD WITH BLADE |
| 38 | BB091360 | WASHER 5.5 X 15 X 1.6 |
| 39 | BB090150 | GROWER WASHER 5.1 |
| 40 | BB030830 | SCREW M 5 X 12 |
| 41 | P-47335 | SAFETY COVER ASSY FOR SHAFT D.27 |
| 42 | P-47282 | CUP |
| 43 | BB720330 | SERVICE KEYS KIT |
| MS4520B - BACKPACK BRUSHCUTTER 44,9CC DOLMAR - PAG.5 | ||
| 1 | BB543260 | UPPER COVER FLASH LIGHT |
| 3 | BB180370 | SPRING FOR FLASH LIGHT HEAD |
| 4 | BB091350 | GUIDE BUSH X WIRE HEAD |
| 5 | BB543280 | BOBINA X FLASH LIGHT TEST |
| 6 | BB543270 | FLASH LIGHT STOP FLANGE |
| 7 | P-47313 | HEAD BATTI AND GO M10X1.0F |
| 8 | BB542180 | TOP COVER FLASH RAPID |
| 10 | BB180180 | SPRING X AUTOMATIC HEAD |
| 11 | BB091350 | GUIDE BUSH X WIRE HEAD |
| 12 | P-47254 | BOBINA PER TESTINA P-47422 |
| 13 | BB542190 | STOP FLANGE RAPID HEAD |
| 14 | P-47307 | MANUAL HEAD M10X1.0F |
| 15 | BB391510 | NUT X HEAD FLASH QUICK |
| 16 | BB543460 | TOP COVER HEAD QUICK |
| 17 | BB091350 | GUIDE BUSH X WIRE HEAD |
| 18 | BB724140 | REEL X FLASH QUICK |
| 19 | BB180110 | SPRING X FLASH HEAD AND QUICK |
| 20 | BB543430 | KNOB FOR "QUICK" HEAD |
| 21 | BB091600 | LOWER NUT X FLASH QUICK HEAD |
| 22 | P-47416 | MANUAL HEAD M10X1.0F |
| 23 | BB390540 | NUT X FLASH HEAD |
| 24 | BB541110 | TOP COVER TEST.FLASH |
| 25 | BB091350 | GUIDE BUSH X WIRE HEAD |
| 26 | BB540340 | REEL X FLASH HEAD S / FILO |
| 27 | BB180110 | SPRING X FLASH HEAD AND QUICK |
| 28 | BB541100 | LOWER COVER TEST.FLASH |
| 29 | BB090590 | WASHER X M16 17X30X3 |
| 30 | BB480310 | KNOB X LEFT HEAD |
| 31 | P-47307 | MANUAL HEAD M10X1.0F |
| MS4520B - BACKPACK BRUSHCUTTER 44,9CC DOLMAR - PAG.6 | ||
| 7 | BB751730 | THROTTLE CABLE GROUP |
| 8 | BB541860 | CABLE HOLDER CONTAINER |
| 9 | BB751310 | THROTTLE CABLE GROUP |
| 10 | BB721450 | COMPLETE GRIP HANDLE GRIP |
| 11 | BB727840 | Z / ZM KNOB WITH CABLE |
| MS4520B - BACKPACK BRUSHCUTTER 44,9CC DOLMAR - PAG.7 | ||
| 6 | BB96-166 | SCREW COVER PUMP WT |
| 7 | BB21-353 | PUMP COVER WT |
| 8 | BB96-647 | SCREW + SPRING X MINIMUM ADJUSTMENT |
| 9 | BB92-225 | MIXE PUMP GASKET |
| 10 | BB95-118 | MEMBRANE WT |
| 11 | BB88-131 | PLUG |
| 13 | BB96-142 | BUTTERFLY VALVE WT |
| 14 | BB52-548 | PIN WT101 |
| 15 | BB30-1140 | BUTTERFLY TREE |
| 16 | BB34-158 | THROTTLE |
| 17 | BB98-234 | SPRING WE RECALL THE VALVE |
| 18 | BB140-70 | FUEL INLET FILTER |
| 19 | BB16-71 | SAFETY RING |
| 20 | BB102-330 | SCREW MINIMUM ADJUSTMENT WT |
| 21 | BB98-404 | MINIMUM ADJUSTMENT SPRING |
| 22 | BB102-3066 | MAXIMUM ADJUSTMENT SCREW WT |
| 23 | BB98-405 | MAXIMUM ADJUSTMENT SPRING |
| 24 | BB140-69 | VALVE SCREEN WASHER |
| 25 | BB16-42 | STILL RING |
| 26 | BB88-119 | PLUG |
| 27 | BB88-171 | MINIMUM CIRCUIT CAP |
| 28 | BB96-156 | SCALE AXIS BILANCER |
| 29 | BB84-613 | VALVE SEAT |
| 30 | BB82-75 | PIN VALVE |
| 31 | BB98-387 | SPRING BALANCING SPRING |
| 32 | BB166-48 | ROCKER |
| 33 | BB144-77 | BILANCER AXES |
| 34 | BB92-251 | DIAFR.WT MEMBRANE GASKET |
| 35 | BB95-526 | DIAPHRAGM MEMBRANE |
| 36 | BB5-2694 | AIR FILTER BODY |
| 37 | BB176-64 | CONTROL VALVE |
| 38 | BB188-12 | SEAL |
| 39 | BB21-404 | PRIMER PUMP COVER |
| 40 | BB090190 | GROWER WASHER D.3,1 |
| 41 | BB96-578 | MEMBRANE COVER SCREW |
| 42A | BB331650A | CARBURETOR FOR BBK4500 |
| 43 | BBD10-WAT | MEMBRANE KIT X WT 362,364,397 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar MS4520B
12 Items
Data sheet
- SHIPPING IN:
- RESERVATION ONLY
- MORE INFO:
- info@bricoutensili.com
New
You might also like
Comments (0)
No customer reviews for the moment.
Viewed products
Customers who bought this product also bought:
16 other products in the same category:
Dolmar Spare Parts for Backpack Bruschcutter MS4520B
Dolmar genuine spare parts or Replacement parts for to repair Backpack Bruschcutter MS4520B.Fix Your Backpack Bruschcutter MS4520B. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
