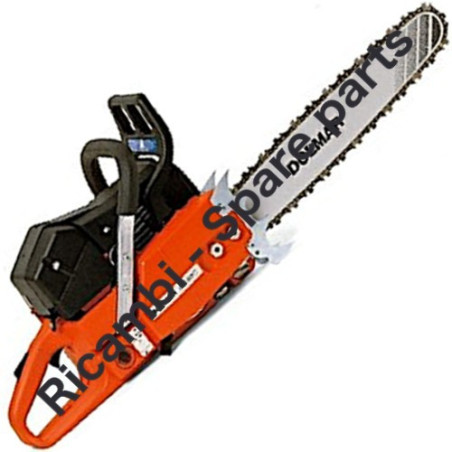

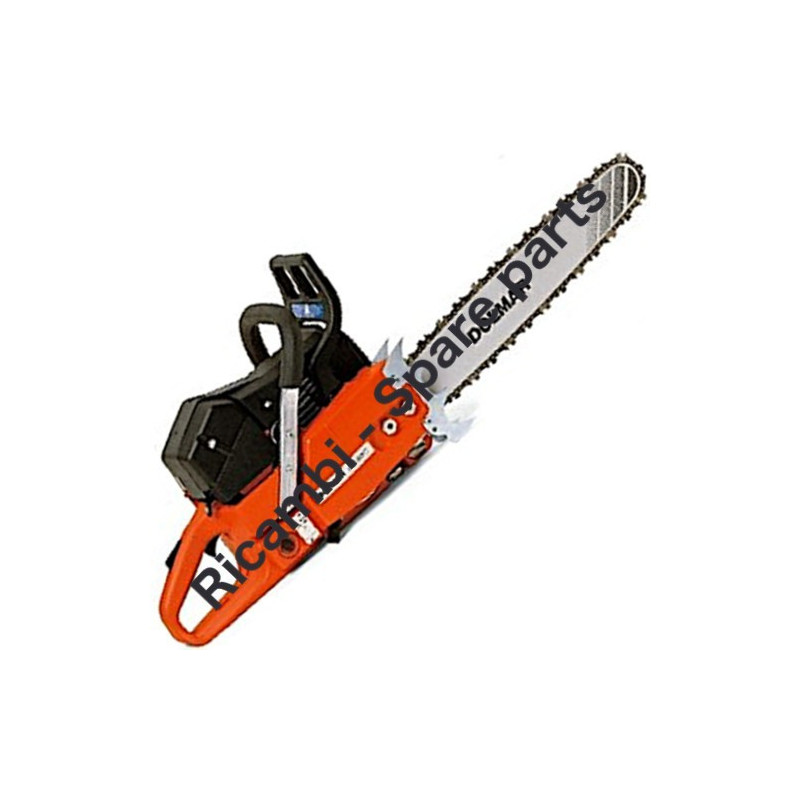

Dolmar Spare Parts for Engine Chainsaw PS9000
€288.68
Tax included
Dolmar Spare Parts for Engine Chainsaw PS9000
Dolmar Genuine spare parts or replacement parts for to repair Engine Chainsaw PS9000 - 50 - 60 - 74.Fix Your Engine Chainsaw PS9000 - 50 - 60 - 74. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Dolmar Spare Parts for Engine Chainsaw PS9000
Dolmar Genuine spare parts or replacement parts for to repair Engine Chainsaw PS9000 - 50 - 60 - 74.
Open PDF Diagram, check your spare part number position and then select it in the following table.
| PS9000 Chainsaw 90CC Dolmar 50-60-74 - Pag.1 | ||
| # | Part Num. | Description |
| 1A | 024130300 | Cylinder/piston assy. DCS9000 |
| 3 | 024132020 | PISTON DCS9000 |
| 4 | 133132050 | Spring ring DCS9000 |
| 6 | 119132060 | Spring ring C12X1 |
| 7 | 266476-3 | SCREW M5X20 (TORX) |
| 8 | 965525060 | CYLINDER BASE GASKET DCS 9000 |
| 10 | 962210028 | Needle cage 12X17X13 X9000 |
| 11 | 254042-8 | KEY 3X3,7 |
| 12 | 960102171 | BALL BEARING C417/40X12 - READ CT06-2 |
| 14 | 024111024 | Crankcase, mag. Side |
| 16 | 965525070 | GASKET X DCS 9000 |
| 17 | 962900054 | RADIAL RING 17/28X5,4 |
| 18 | 965605402 | Stop switch DCS9000 |
| 19 | 965605131 | Rubber bush |
| 20 | 965605120 | NUT |
| 21 | 010114050 | Oil tank plug cpl. DCS/PS33 |
| 22 | 963228030 | O-RING 28 X 3 |
| 23 | 965403370 | SHOCK ABSORBER WITH STOP DEVICE |
| 24 | 258038-1 | Spiral clamping pin |
| 26 | 010245010 | VENT VALVE PS6000I-6800I |
| 27 | 024232030 | BOLT DCS9000 |
| 28 | 001213160 | Tensioning screw DCS9000 |
| 29 | 001213170 | NUT WITH PIVOT DCS9000 |
| 31 | 915735100 | SCREW DCS3400TH |
| 32 | 963204015 | O-RING 4,0X1,5 |
| 33 | 266945-4 | SCREW M5X30 (TORX) |
| 34 | 024111071 | GUIDE PLATE DCS9000 |
| 36 | 024250030 | Spike bar DCS9000 |
| 37 | 908006145 | SCREW M6X14 (TORX) |
| 40 | 024232040 | BOLT |
| 41 | 024111031 | GUIDE PLATE |
| PS9000 Chainsaw 90CC Dolmar 50-60-74 - Pag.2 | ||
| 2 | 024310100 | Tubular handle assy. DCS9000 |
| 3 | 965551250 | POT |
| 4 | 965403430 | RUBBER BUFFER PS**/DCS** |
| 5 | 266605-8 | SCREW M5X16 PS32CTLC |
| 6A | 913455304 | SCREW M5X30 (TORX) |
| 6B | 913455204 | SCREW 5,5X20 (TORX) |
| 8 | 965451750 | BUTTON |
| 9 | 965551160 | PRESSURE SPRING |
| 11 | 935930280 | Cylindrical pin M6X 28DIN |
| 12 | 024117020 | CATCH LEVER DCS9000 |
| 13 | 965551150 | STOP PIN |
| 14 | 024117031 | SPRING DCS9000 |
| 15 | 455820-1 | THROTTLE LEVER DCS9000 |
| 16 | 965725041 | BOWDEN CABLE COMPL. |
| 17 | 957114011 | Air valve cpl. |
| 18 | 163532-9 | Suction head (fuel) |
| 19 | 963601240 | FELT FILTER |
| 20 | 965404700 | FUEL LINE DCS9000 |
| 21 | 965404521 | GASKET |
| 23 | 965451901 | Tank plug cpl. (fuel) DCS/PS9010 |
| 24 | 963232045 | Packing ring 32X4,5 |
| 25 | 965404720 | BUSH DCS9000 |
| 26 | 965403462 | Rubber buffer DCS9000 |
| 27 | 965404740 | Plug DCS9000 |
| PS9000 Chainsaw 90CC Dolmar 50-60-74 - Pag.3 | ||
| 1 | 024112300 | STARTER ASSY |
| 2 | 965402262 | STARTER GRIP DCS9000 |
| 3A | 122164010 | STARTER ROPE DCS9000 |
| 3B | 985000165 | STARTER ROPE DIAM.4X100M |
| 4 | 267821-5 | DISC |
| 5 | 024112350 | FAN HOUSING |
| 6 | 980114208 | LABEL PC7314 |
| 7 | 020163031 | REWIND SPRING CPL. |
| 8 | 915735100 | SCREW DCS3400TH |
| 12 | 929314100 | SNAP RING 14X1 |
| 13 | 266605-8 | SCREW M5X16 PS32CTLC |
| 14 | 024141200 | FLYWHEEL ASSY DCS-PS9000 |
| 15 | 031166010 | Starter ratchet cpl. |
| 16 | 264022-6 | Hexagonal nut |
| 17 | 926208001 | SPRING WASHER 8 |
| 18B | 957143010 | FLYWHEEL/IGNITION COIL 13500RPM 120/5 - READ CT03-2 |
| 19 | 266607-4 | SCREW M5X20 PS32CTLC |
| 20 | 965401011 | RUBBER BUSH |
| 21 | 970502052 | Insulating hose (M) |
| 22 | 444042-8 | Insulating hose PS32TCLC |
| 23 | 970310200 | IGNITION CABLE 1mt |
| 24 | 957604260 | Plug cap cpl. |
| 25 | 168648-5 | SPARK PLUG NGK BPMR7A |
| 26 | 024112021 | AIR DUCT X DCS9000 |
| PS9000 Chainsaw 90CC Dolmar 50-60-74 - Pag.4 | ||
| 1 | 024245101 | OIL PUMP X SPARE PARTS X DCS9000 |
| 2 | 957245360 | OIL PUMP ASSY |
| 4 | 266946-2 | SCREW M5X12 (TORX) |
| 5 | 024245200 | OIL SUCTION LINE ASSY DCS9000 |
| 6 | 900005066 | DISTANCE RING |
| 7 | 963601100 | SCREEN |
| 8 | 024213181 | Hand protection cpl. DCS9000 |
| 9 | 810449-4 | LABEL |
| 10 | 010213021 | Braking mechanism DCS6000I |
| 11 | 257934-0 | RETAINING RING E-4 X UH6580 |
| 12 | 259033-4 | SAFETY WASHER X UC |
| 20 | 965404800 | Cover foam plate |
| 21 | 266946-2 | SCREW M5X12 (TORX) |
| 23 | 010180110 | CLUTCH ASSY DCS9000 |
| 24 | 232352-3 | TENSION SPRING DCS9000 |
| 25 | 267389-1 | GUIDE DISC PS350C/420C |
| 26 | 024223041 | CLUTCH DRUM DCS9000 |
| 27 | 962210024 | NEEDLE CAGE K10-16X12 X9000 |
| 28A | 031224010 | Rim sprocket DCS9000 3/8" Z=8 |
| 28B | 133224010 | Rim sprocket .404" Z=7 |
| 29 | 267820-7 | DISC PS350C-420C |
| 30 | 021224011 | DISC |
| 31 | 927308000 | SAFETY WASHER DCS9000 |
| 34 | 024250030 | Spike bar DCS9000 |
| 35 | 908006145 | SCREW M6X14 (TORX) |
| 36 | 264055-1 | Hexagonal NUT M8 |
| 38 | 922606000 | Hexagonal NUT M6 |
| 39 | 024213240 | CHAIN GUIDE X DCS9000 |
| 40 | 915735100 | SCREW DCS3400TH |
| 41 | 024213221 | Chip guide DCS9000 |
| 42 | 965404761 | RUBBER PLATE XPS6000I-6800 |
| PS9000 Chainsaw 90CC Dolmar 50-60-74 - Pag.5 | ||
| 3 | 908305255 | SCREW M5X10X25 (TORX) |
| 5 | 024118112 | COVER ASSY DCS9000 |
| 6 | 024173200 | NUT DCS9000 |
| 7 | 980115888 | IGNITION LABEL |
| 11 | 266947-0 | TORX SCREW |
| 13A | 024173230 | AIR FILTER COMPLETE DCS9000 |
| 13B | 024173190 | AIR FILTER COMPL. NYLON |
| 15 | 928105000 | SAFETY WASHER |
| 17 | 024150170 | Sheet-metal holder DCS9000 |
| 18 | 346867-5 | Insert for suction hose 9000 |
| 19 | 024131022 | SUCTION HOSE DCS 9000 |
| 20 | 233625-7 | CLAMP |
| 21 | 965452090 | Ventilations line PS45 |
| 22 | 965401016 | RUBBER BUSH |
| 23 | 965401011 | RUBBER BUSH |
| 26 | 024118032 | BOTTOM PS 9010 |
| 27 | 965451495 | PLUG DCS 9000 |
| 28 | 266605-8 | SCREW M5X16 PS32CTLC |
| 29 | 024118051 | Adjusting guide DCS9000 |
| 32 | 965401024 | RUBBER BUSH |
| 33 | 024150020 | Choke shaft DCS9000 |
| PS9000 Chainsaw 90CC Dolmar 50-60-74 - Pag.6 | ||
| 1 | 024174011 | MUFFLER ASSY DCS9000 |
| 2 | 024174020 | SPECIAL SCREW M6 X DCS9000 |
| 3 | 965525101 | GASKET DCS 9000 |
| 4 | 024174041 | COVER PLATE |
| PS9000 Chainsaw 90CC Dolmar 50-60-74 - Pag.7 | ||
| 1 | 024152011 | CARBURETTOR H459B 102B X 9000 |
| 2 | 024152160 | PUMP COVER DCS9000 |
| 3 | 114152170 | SCREW DCS9000 |
| 10 | 024152500 | Holder for bowden cable DCS9000 |
| 11 | 114152350 | SAFETY WASHER DCS9000 |
| 24 | 024152900 | Set of control parts cpl. DCS9000 |
| PS9000 Chainsaw 90CC Dolmar 50-60-74 - Pag.8 | ||
| 1 | 415050652 | Sprocket nose bar 50CM THICKNESS 1,5 |
| 3 | 415050452 | Solid nose bar 50CM THICKNESS 1,5MM |
| 1 | 415060652 | Sprocket nose bar 60CM THICKNESS 1,5 |
| 3 | 415060452 | Solid nose bar 60CM THICKNESS 1,5MM |
| 3 | 415074452 | Solid nose bar 74CM THICKNESS 1,5MM 3/8 |
| 4 | 528099772 | SAW CHAIN 5 SUPER 70 LINKS 72 3/8 |
| 4 | 528099780 | SAW CHAIN 60cm 73LP 3/8" |
| 4 | 528099096 | SUPER CHAIN 74cm 3/8" 1,5mm |
| 5 | 558093010 | Tie strap with rivets 3/8" |
| 5 | 558093000 | Tie strap 3/8" |
| 10 | 952020660 | Chain protection 60CM |
| 10 | 952030180 | Chain protection 80CM |
| 11 | 957004002 | TOOL CPL. DCS430 |
| 12A | 941719133 | UNIVERSAL WRENCH 19/13 |
| 12B | 941717192 | UNIVERSAL WRENCH 17/19 |
| 13 | 782025-3 | TORX KEY |
| 14 | 783012-5 | SCREWDRIVER FOR CARBURETOR |
| 15 | 950004001 | PLASTIC BAG |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Domar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
