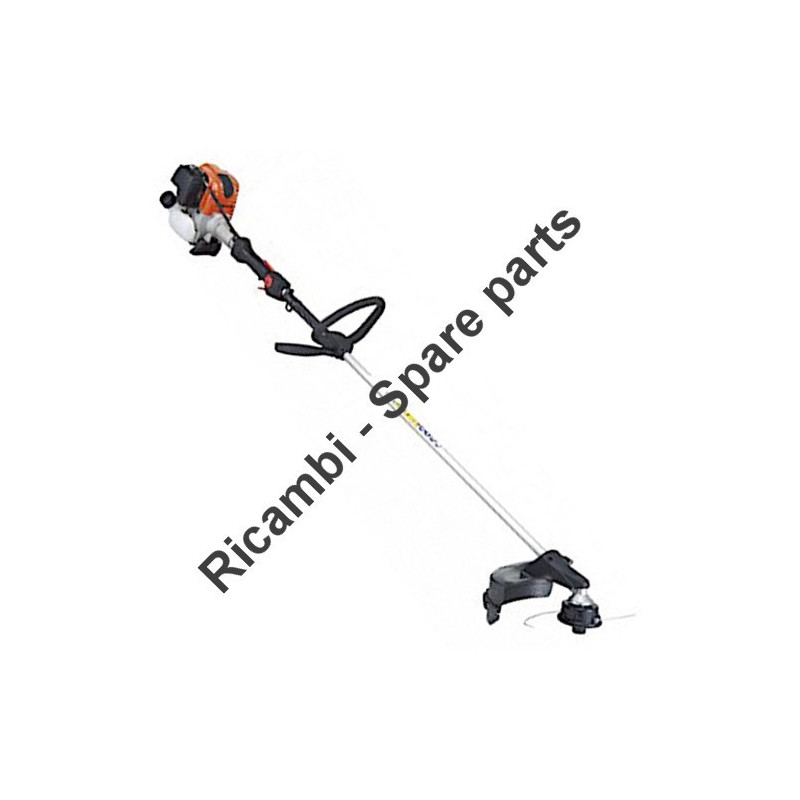

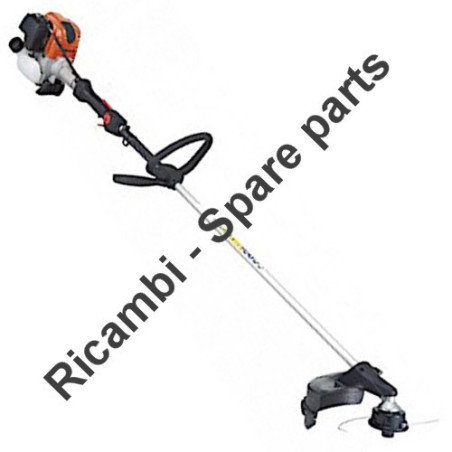

Dolmar Spare Parts for Brusch Cutter MS335.4C
€79.05
Tax included
Dolmar Spare Parts for Bruschcutter MS335.4C
DOLMAR repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter Dolmar MS335.4C - 33,5 cm³ 4T.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Dolmar Spare Parts for Bruschcutter MS335.4C
Fix Your Brushcutter Dolmar MS335.4C - 33,5 cm³ 4T. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Brush Cutter and the respective parts of the code.
| Brushcutter Dolmar MS335.4C - 33,5 cm³ 4T - Pag.1 | ||
| # | Part Num. | Description |
| 1 | 961057-5 | RETAINER RING S17 |
| 2 | 922331-6 | BOLT HEXAGONAL CUT. 6X20 |
| 3 | 318421-5 | CLUTCH CASE EBH341U |
| 4 | 451157-4 | SPACER EBH341U |
| 5 | 210126-2 | BEARING 6003LLU |
| 6 | 962153-2 | RING R35 |
| 7 | 165577-3 | CLUTCH DRUM FOR EBH341U |
| 8 | 195144-0 | SUPPORT EBH341U |
| 9 | 911218-7 | CYLINDRICAL HEAD SCREW M5X14 |
| 10 | 961151-3 | RING CHECK S-32 EBH341U |
| 11 | 424204-4 | EBH341U SHOCK ABSORBER |
| 12 | 318453-2 | HOUSING COVER EBH341U |
| 13 | 922231-0 | BOLT M5X20 |
| 14 | 318454-0 | MOTOR SUPPORT EBH341U |
| 15 | 922331-6 | HEXAGONAL BOLT TAGL. 6X20 |
| 16 | 922201-9 | HEXAGONAL HEAD SCREW M5X8 |
| 17 | 443146-3 | FELT RING 8 EBH341U |
| 18 | 195251-9 | HANDLE CPL MS335.4C |
| 19 | 911253-5 | SCREW M 5 X 30 X JR3030T |
| 20 | 451596-8 | GRIP 28 MS335.4C |
| 21 | 451597-6 | GRIP BASE 28 MS335.4C |
| 22 | 451600-3 | SPACER 28 MS335.4C |
| 23 | 125760-4 | CONTROL LEVER MS335.4C |
| 42 | 810562-8 | LABEL MS335.4C |
| 43 | 819760-1 | LABEL EBH341U |
| 44 | 140042-3 | PIPE EBH341U |
| 45 | 325675-7 | DRIVE SHAFT EBH341U |
| 46 | 413143-3 | WASHER MS335.4C |
| 47 | 452259-9 | PROTECTION EBH341U |
| 48 | 266326-2 | SCREW 4X18 X MT601 |
| 49 | 347050-7 | BLADE |
| 50 | 135753-3 | LOWER PROTECTION |
| 51 | 346072-4 | BASE SUPPORT PROTE. EBH341U |
| 52 | 451090-0 | PROTECTION SUPPORT EBH341U |
| 53 | 266579-3 | SCREW M6X30 MS335.4C |
| 54 | 922218-2 | SCREW M5X14 EBH341U |
| 55 | 123835-3 | GEAR BOX ASSEMBLY |
| 56 | 213459-4 | GASKET 32 X HR3850B |
| 57 | 188865-1 | GEARS CASE EBH341U |
| 58 | 210059-1 | BEARING 6000 HR2010 |
| 59 | 211062-5 | BEARING 6000 X9524NB |
| 60 | 961006-2 | RINGING RING S10 |
| 61 | 962105-3 | R26 RING |
| 62 | 922353-6 | SCREW M6 X30 X HM1202C |
| 63 | 265590-2 | SCREW M8X10 EBH341U |
| 64 | 210081-8 | BEARING 629ZZ EBH341U |
| 66 | 125558-9 | HOOK EBH341U |
| 67 | 922233-6 | HEX SOCKET HD BOLT M5X20 X DCS230T |
| 68 | 210116-5 | BEARING 6201LLU EBH341U |
| 69 | 962151-6 | R32 RING |
| 70 | 332114-0 | INTERNAL FLANGE X EM4350RH |
| 71 | 346355-2 | EXTERNAL FLANGE |
| 72 | 168526-9 | EBH341U CUP |
| 73 | 264025-0 | NUT M10-17 EBH341U |
| Brushcutter Dolmar MS335.4C - 33,5 cm³ 4T - Pag.2 | ||
| 23 | 125760-4 | CONTROL LEVER MS335.4C |
| 24 | 266130-9 | SCREW 3X16 X 6203/13 / 6313DW |
| 25 | 451595-0 | SWITCH COVER MS335.4C |
| 26 | 451594-2 | SWITCH LEVER MS335.4C |
| 27 | 232251-9 | SPRING PLATE EBH341U |
| 28 | 188831-8 | LEVER CONTROLS HOSING MS335.4C |
| 29 | 346249-1 | CLAMP 28 MS335.4C |
| 30 | 922218-2 | SCREW M5X14 EBH341U |
| 31 | 451593-4 | BLOCK LEVER MS335.4C |
| 32 | 233541-3 | SPRING TUBE 7 EBH341U |
| 33 | 168549-7 | CONTROL WIRE MS335.4C |
| 34 | 233540-5 | SPRING TORSION 11 EBH341U |
| 35 | 451592-6 | THROTTLE LEVER MS335.4C |
| 36 | 638676-9 | WIRE MS335.C |
| 37 | 638677-7 | WIRE MS335.4C |
| 38 | 451602-9 | TUBE MS335.4C |
| 39 | 266326-2 | SCREW 4X18 X MT601 |
| Brushcutter Dolmar MS335.4C - 33,5 cm³ 4T - Pag.3 | ||
| 89 | 318614-4 | FLYWHEEL CASE EBH341U |
| 90 | 922223-9 | SCREW M5X16 EBH341U EX2650LH |
| 93 | 267424-5 | WASHER 8 EBH341U |
| 94 | 267832-0 | WAVE WASHER 10 EBH341U |
| 95 | 266571-9 | SCREW M8X23 EBH341U |
| 96 | 125757-3 | CLUTCH CPL X EM3400L |
| 97 | AN02010C00 | TENSION SPRING 9 |
| 98 | 265577-4 | SCREW M6X16 EBH341U |
| 99 | 318611-0 | FFLYWHEEL EBH341U |
| 100 | 168816-0 | IGNITION COIL EBH341U |
| 101 | 922138-0 | SCREW M4X20 |
| 102 | 324891-8 | SPARK PLUG SPRING HOOD EBH341 |
| 103 | 424105-6 | SPARK PLUG HOOD EBH252L |
| 104 | 638664-6 | WIRE EBH341U |
| 105 | 638665-4 | WIRE EBH341U |
| 106 | 424313-9 | GROMMET EBH341U |
| 107 | 345963-6 | HOOK EBH341U |
| 109 | 451876-2 | SPARK PLUG COVER EBH341U |
| 110 | 266572-7 | SCREW M5X8 EBH341U |
| 111 | 808633-3 | LABEL 4T EH252L |
| 112 | 911213-7 | SCREW M5X12 X 5143R EBH252L |
| 113 | 451884-3 | CYLINDER COVER MS335.4U |
| 114 | 266440-4 | SCREW M5X40 EBH341U |
| 115 | 265184-3 | SCREW M5X55 EBH341U |
| 116 | 345915-7 | MUFFLER COVER EBH341U |
| 117 | 168469-5 | MUFFLER EBH341U |
| 118 | 345916-5 | MUFFLER GASKET EBH341U |
| 119 | 324980-9 | GUARD EBH341U |
| 120 | 922217-4 | SCREW M5X14 EBH341U |
| 121 | 140419-2 | VALVE COVER EBH341U |
| 122 | 162307-3 | BROWN COVER GASKET |
| 123 | 168534-0 | SPARK PLUG NGKCMR4A EBH341U |
| 124 | 162274-2 | CAM GEAR COVER GASKET ER2650LH EBH341 |
| 125 | 318443-5 | EBH341U SIDE COVER |
| 126 | 922212-4 | SCREW M5X12 |
| 127 | 450565-6 | OIL CAP EBH341U |
| 128 | 424100-6 | GASKET OIL CAP EBH341U |
| 129 | 282020-8 | CLAMP EBH341U |
| 130 | 424202-8 | OIL TUBE EBH341U |
| 131 | 325666-8 | FITTING EBH341U |
| 132 | 162308-1 | OIL CUP GASKET EBH341U |
| 133 | 318612-8 | OIL CUP EBH341U |
| 134 | 922217-4 | SCREW M5X14 EBH341U |
| 135 | 266573-5 | SCREW M5X33 EBH341U |
| 136 | 266570-1 | SCREW M5X16 EBH341U |
| 137 | 922112-8 | SCREW M4X10 BPT350 |
| 138 | 318440-1 | CHECK PLATE EBH341U |
| 139 | 346083-9 | PLATE EBH341U |
| 140 | 424201-0 | CONTROL VALVE EBH341U |
| 141 | 135373-3 | CYLINDER EBH341U |
| 142 | 125554-7 | BALANCER EBH341U |
| 143 | 325912-9 | SPRING COVER EBH341U |
| 144 | 234181-0 | COMPRESSION SPRING 13 EBH341U |
| 145 | 256200-2 | PIN 5 FOR 2704 |
| 146 | 256866-8 | PIN 2.5 EBH341U |
| 147 | 424200-2 | SPACER EBH341U |
| 148 | 268239-3 | PIN 4 EBH341U |
| 149 | 313169-4 | BALANCER CAM EBH341U |
| 150 | 325913-7 | DISCHARGE VALVE EBH341U |
| 151 | 325914-5 | SUCTION VALVE EBH341U |
| 152 | 125552-1 | CAM GEAR EBH341U |
| 153 | 268238-5 | PIN 5 EBH341U |
| 154 | 195141-6 | PISTON RING SET EBH341U |
| 155 | 318613-6 | PISTON EBH341U |
| 156 | 257796-6 | PISTON PIN EBH341U |
| 157 | 233983-1 | PISTON PIN CIRCLIP EBH341 |
| 158 | 254040-2 | KEY 3 EBH341U |
| 159 | 213537-0 | OIL SEAL 12 EBH341U |
| 160 | 267425-3 | WASHER 26 EBH341U |
| 161 | 125756-5 | ECCENTRIC SHAFT EBH341U |
| 162 | 213769-9 | OIL SEAL 10 |
| 163 | 125472-9 | CPL. TANK CAP |
| 164 | 140435-4 | TANK CAP EBH341U |
| 165 | 140436-2 | ROD EBH341U |
| 166 | 810455-9 | COLLAR PLATE EBH341U |
| 167 | 424104-8 | DAMPER EBH341U |
| 168 | 451877-0 | FUEL TANK EBH341U |
| 169 | 163447-0 | FUEL FILTER X DCS230T |
| 170 | 345920-4 | CLAMP EBH341U |
| 171 | 424103-0 | DAMPER EBH341U |
| 172 | 424102-2 | DAMPER EBH341U |
| 173 | 162309-9 | FUEL TUBE EBH341U |
| 174 | 195142-4 | REOIL STARTER CPL EBH341U |
| 175 | 165606-2 | STARTER PULLEY EBH341U |
| 176 | 266580-8 | SCREW M5X10 EBH341U |
| 177 | 451923-9 | STARER REEL EBH341U |
| 178 | 232257-7 | SPIRAL SPRING EBH341U |
| 179 | 424317-1 | STARTER KNOB EBH341U |
| 180 | 444018-5 | STARTER ROPE EBH341U |
| 181 | 911218-7 | CYLINDER HEAD SCREW M5x14 |
| 182 | 819434-4 | LABEL MS335.4C |
| 183 | 162310-4 | TANK PROTECTION EBH341U |
| 184 | 911218-7 | CYLINDRICAL HEAD SCREW M5X14 |
| Brushcutter Dolmar MS335.4C - 33,5 cm³ 4T - Pag.4 | ||
| 185 | 325915-3 | SUCTION TUBE EBH341U |
| 186 | 413120-5 | INSULATING GASKET EBH341U |
| 187 | 213063-9 | GASKET 10 X HR2000 |
| 188 | 451874-6 | EBH341U INSULATOR |
| 190 | 346261-1 | CARBURETOR INSULATOR EBH341 |
| 191 | 922228-9 | SCREW M5X18 EBH341U |
| 192 | 413138-6 | CARBURETOR GASKET EBH341 |
| 193 | 450562-2 | CLAMP EBH341U |
| 194 | 922213-2 | SCREW M5X12 EBH341U |
| 195 | 168561-7 | CARBURATOR EBH341U |
| 196 | 325922-6 | CARBURETOR SCREW EBH341U |
| 197 | 413140-9 | WASHER EBH341U |
| 198 | 257964-1 | STILL RING E3 EBH341U |
| 199 | 266581-6 | SCREW M3X8 EBH341U |
| 200 | 213538-8 | RING 2 EBH341U |
| 201 | 325921-8 | JET EBH341H |
| 202 | 234183-6 | SPRING 65-9 EBH341U |
| 203 | 442155-9 | PUMP GASKET EBH341U |
| 204 | 168575-6 | EBH341U PUMP DIAPHRAGM |
| 205 | 266582-4 | SCREW 3X24 EBH341U |
| 206 | 346270-0 | PUMP COVER EBH341U |
| 207 | 424314-7 | PRIMING PUMP EBH341 |
| 208 | 140438-8 | BODY EBH341U |
| 209 | 168574-8 | DIAPHRAGM CPL EBH341U |
| 210 | 442154-1 | DIAPHRAGM GASKET EBH341U |
| 211 | 140437-0 | PUMP BODY EBH341U |
| 212 | 352010-6 | FILTER EBH252L |
| 213 | 345918-1 | FASCETTA EBH341U |
| 214 | 422055-9 | BREATHER TUBE EBH341U |
| 215 | 422042-8 | TUBE EBH341U |
| 216 | 125468-0 | CLEANER PLATE ASS'Y EBH341U |
| 217 | 451925-5 | CHOKE LEVER EBH341U |
| 218 | 213540-1 | RING 15 EBH341U |
| 219 | 424316-3 | CHECK VALVE EBH341U |
| 220 | 213539-6 | RING 14 EBH341U |
| 221 | 451924-7 | RETURN VALVE PLATE |
| 222 | 424315-5 | CONTROL VALVE EBH341U |
| 223 | 168577-2 | SEPARATOR GASKET EBH341UP01 |
| 224 | 168576-4 | SEPARATOR EBH341U |
| 225 | 450560-6 | AIR LEVER PLATE EBH341U |
| 226 | 423376-2 | GASKET EBH341U |
| 227 | 345919-9 | FIXING PLATE EBH341U |
| 228 | 265188-5 | SCREW M5X68 EBH341U |
| 229 | 443140-5 | AIR CLEANER ELEMENT EBH341U |
| 230 | 443141-3 | AIR CLEANER ELEMENT SPONGE EBH341U |
| 231 | 450561-4 | AIR FILTER COVER EBH341U |
| 232 | 911218-7 | CYLINDER HEAD SCREW M5x14 |
| 234 | 325663-4 | ADJUSTING SCREW MS335.4C |
| 500 | 381224241 | HEAD TAP&GO MEDIUM M10X1,25 LINE MAX D.2,4MM |
| 501 | 382224301 | HEAD TAP&GO LARGE M10X1,25 LINE MAX D. 2,7MM |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
