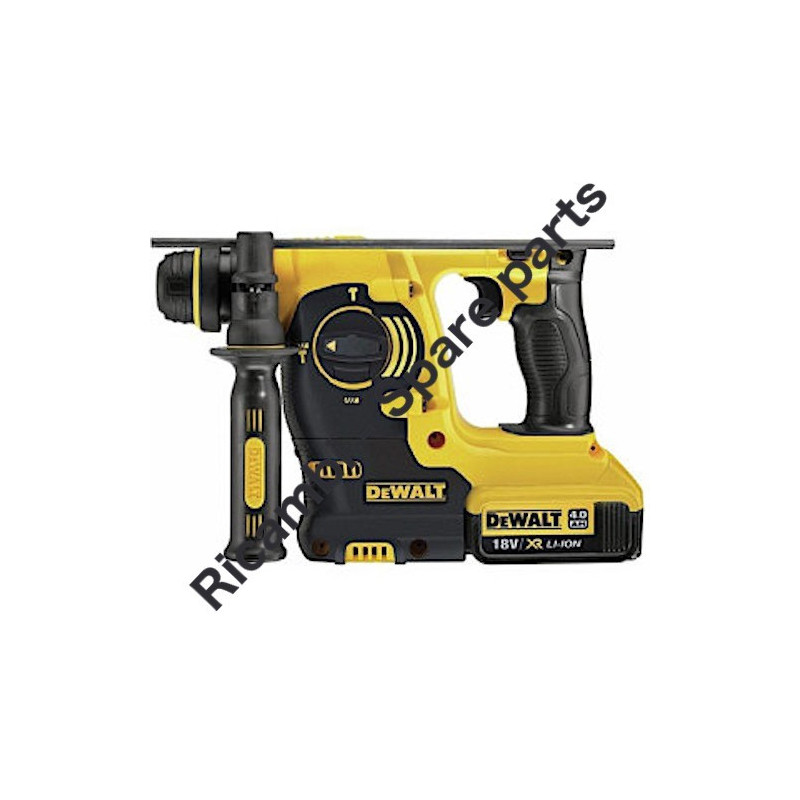

DEWALT DCH253 Rotary Hammer Type 2 Spare Parts
€3.33
Tax included
DEWALT DCH253M2 Cordless Rotary Hammer Type 2 Spare Parts
DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCH253M2 Cordless Rotary Hammer Type 2.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
DEWALT DCH253M2 Cordless Rotary Hammer Type 2 Spare Parts
DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCH253M2 Cordless Rotary Hammer Type 2.Open PDF Drawing in this page to check spare parts you need.
| DeWALT DCH253M2 (Type 2) ModeL DCH253M2-QW 18V Max SDS Hammer Parts | ||
| # | Part Num. | Description |
| 1 | 323489-00 | CAP |
| 2 | 579212-00 | RING |
| 3 | N504215 | TUBE |
| 4 | 583890-00 | BALL |
| 5 | 578387-00 | WASHER |
| 6 | 871690 | SPRING |
| 7 | 590306-00 | FELT SEAL |
| 8 | N137915 | GEAR CASE COVER |
| 10 | N190510 | SELECTOR |
| 11 | 324006-16 | SCREW |
| 12 | N034134 | COVER |
| 13 | N074923 | SPRING |
| 14 | N190511 | RELEASE BUTTON |
| 19 | N149956 | NEEDLE BEARING |
| 20 | 488105-00 | CLIP |
| 21 | N043423 | WASHER |
| 30 | N060009 | SPRING |
| 31 | N072203 | RING |
| 32 | N290001 | GEAR KIT |
| 33 | 479478-00 | BEARING, BALL |
| 34 | N043424 | WASHER |
| 35 | 488390-00 | CLIP |
| 36 | N918449 | SPINDLE |
| 37 | 323711-02 | O-RING |
| 38 | 492808-00 | BEAT PIECE |
| 39 | N470388 | GUIDE |
| 40 | N451068 | RETAINING RING |
| 41 | 327087-00 | O-RING |
| 42 | 323762-07 | RING |
| 43 | N178363 | RAM ASSY |
| 44 | N114827 | O-RING |
| 45 | 492822-00 | PISTON |
| 46 | 492823-00 | BALL SPINDLE |
| 47 | N288223 | CRANKSHAFT |
| 48 | N168103 | BALL BEARING |
| 49 | N466046 | COMPRESSION SPRING |
| 50 | N150085 | COLLAR |
| 57 | N918448 | SPINDLE SA |
| 60 | 323763-10 | SNAP RING |
| 61 | N450704 | GEAR |
| 62 | N621023 | BEARING, BALL |
| 63 | 590312-00 | PIN |
| 64 | 575022-00 | PLATE, TRANSMISSION |
| 66 | 575032-00 | PIN MM7,34 |
| 67 | 575030-00 | SPRING |
| 68 | 479313-00 | SPRING |
| 69 | N288221 | CLAMSHELL SET |
| 70 | 330019-80 | SCREW |
| 71 | N094649 | PLATE |
| 72 | N051450 | LED LIGHT |
| 73 | N122099 | BLOCK |
| 74 | N294000 | SWITCH ASSEMBLY |
| 75 | N072124 | LEVER |
| 76 | N288219 | HOUSING ASSEMBLY |
| 77 | 582865-00 | FELT FILTER |
| 78 | 1006725-00 | SHIM WASHER |
| 79 | 330065-04 | SCREW |
| 80 | 323711-34 | O-RING |
| 81 | 575025-00 | LEVER |
| 85 | N119679 | SPRING |
| 90 | N230576 | MAGNET RING 26MM |
| 91 | N392987 | ARMATURE ASSY |
| 92 | N217452 | BALL BEARING |
| 94 | N076342 | COVER |
| 95 | N384037 | BRUSH RING ASM |
| 100 | N112156 | SIDE HANDLE ASSEMBLY |
| 101 | 580787-00 | DEPTH STOP |
| 800 | 870889-02 | GREASE RENOLIT PARAGON EP ½ - 90 GRAMS |
| 800 | 870889-03 | GREASE RENOLIT PARAGON EP ½ - 20 GRAMS |
| 801 | 487130-04 | GREASE GLK FLUID 249 NLGI 000 (10G SERVICE) |
| 861 | 576657-05 | KIT BOX |
| 826 | N196274 | LABEL |
| 860 | H1400196008 | HANDLE DCH253NT |
| 861 | N279261 | TOOL BOX DCH253NT |
| 862 | N409477 | LATCH DCH253NT |
| 863 | P910190 | LATCH METAL |
| 864 | N565020 | INSERT |
| 866 | N195933 | BATTERY 18V - 4.0AH - 72WH DCB182-XE |
| 871 | N450536 | BATTERY CHARGER DCS565P2-QW / DCB115 |
| 900 | NA040437 | FORM |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
