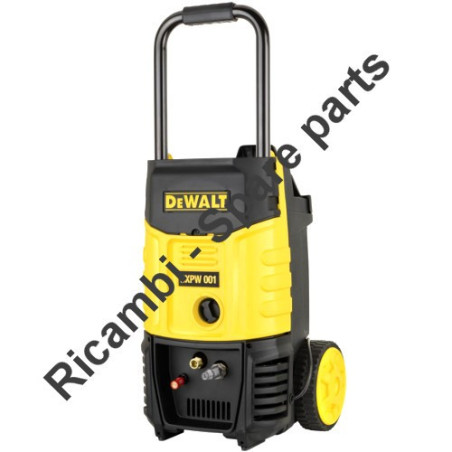

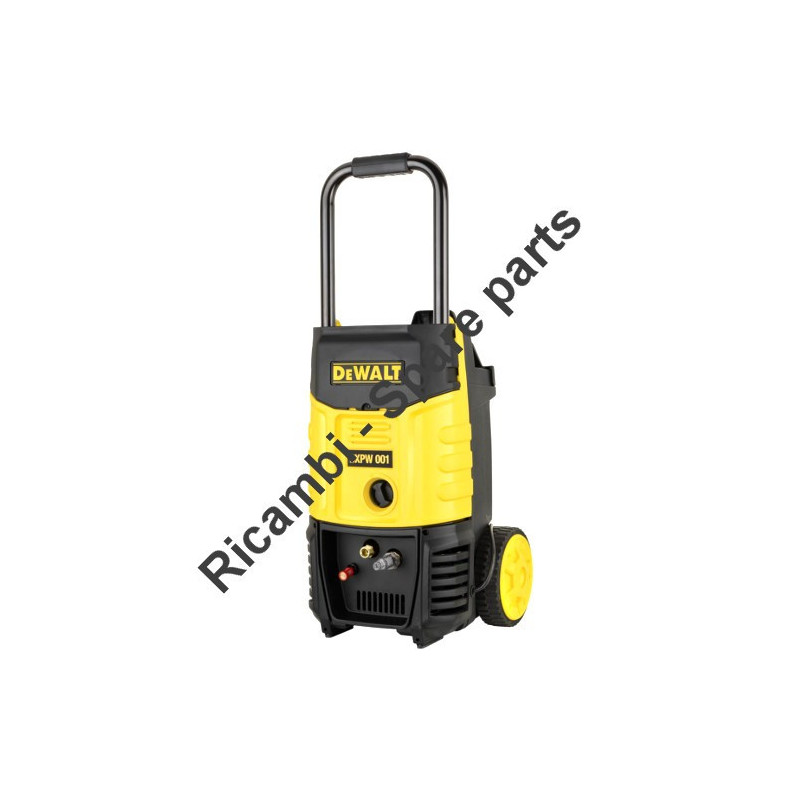

DeWalt Spare Parts for Pressure Washer DXPW001E
€10.54
Tax included
DeWalt Spare Parts for Pressure Washer DXPW001E
DeWalt original replacement parts for to replace broken parts for to fix Pressure Washer DXPW001E - 13674.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
DeWalt Spare Parts for Pressure Washer DXPW001E
DeWalt original replacement parts for to replace broken parts for to fix Pressure Washer DXPW001E - 13674.
In the following table, look for the model of the Pressure Washer and the respective parts of the code.
| Casing DXPW001E - 13674 Pag.1 |
||
| # | Part Num. | Description |
| 1 | 3960150 | GUARD |
| 2 | 3960100 | HANDLE SA |
| 3 | 2100300 | SCREW |
| 4 | 3960160 | GUARD |
| 5 | 3960190 | GUARD |
| 6 | 2440290 | SCREW |
| 7 | 3960840 | WHEEL |
| 8 | 1262790 | HOSE |
| 9 | 3969001 | BASE SA |
| 10 | 1341030 | FILTER |
| 11 | 3960140 | GUARD |
| 12 | 3960850 | DOOR |
| 13 | 2440280 | SCREW |
| 14 | 1470390 | WASHER |
| 15 | 1269115 | HOSE SA |
| 16 | 3960480 | GUARD |
| 17 | 3960210 | BRACKET |
| 18 | 2320190 | SCREW |
| 19 | 3960200 | BRACKET |
| 20 | 2000110 | SCREW |
| 21 | 3961010 | GLAND |
| 22 | 3082130 | COUPLING SA |
| 23 | 3960420 | SPACER |
| 24 | 2060200 | SCREW |
| 25 | 3960110 | CASING |
| 26 | 3960260 | KNOB |
| 27 | 3960130 | GUARD |
| 28 | 3960830 | GUARD |
| 29 | 3960120 | GUARD |
| 30 | 4240590 | SCREW |
| 31 | 4240540 | FOOT |
| Pump DXPW001E - 13674 Pag.2 |
||
| 1 | 880581 | PLUG |
| 2 | 2900200 | HEAD |
| 3 | 800220 | SCREW |
| 4 | 820510 | O RING |
| 5 | 3780690 | CONNECTION |
| 6 | 740290 | O RING |
| 7 | 3780680 | CONNECTION |
| 8 | 3400660 | O RING |
| 9 | 2849051 | VALVE |
| 10 | 2200141 | SEAL |
| 11 | 770590 | O RING |
| 12 | 2840550 | BUSHING |
| 13 | 2840540 | BUSHING |
| 14 | 1683500 | SEAL |
| 15 | 2900500 | SCREW |
| 16 | 3400020 | PISTON GUIDE |
| 17 | 2901170 | SPRING |
| 18 | 2840530 | PISTON |
| 19 | 2840050 | LOCK |
| 20 | 2841530 | PLUG |
| 21 | 2840830 | SCREW |
| 22 | 2909005 | PRE ASSEMBLY SPRING SA |
| 23 | 1120680 | O RING |
| 24 | 3040270 | O RING |
| 25 | 2900130 | CONNECTION |
| 26 | 1560520 | SPRING |
| 27 | 1250280 | BALL |
| 28 | 480480 | O RING |
| 29 | 1982520 | COUPLING |
| 30 | 1460431 | O RING |
| 31 | 2901070 | SHUTTER |
| 32 | 3780450 | SPRING |
| 33 | 800560 | O RING |
| 34 | 3700200 | PIPE |
| 35 | 3409114 | HEAD SA |
| A | 2233 | VALVE KIT |
| B | 2313 | PISTON KIT |
| C | 42124 | SEALS KIT |
| F | 42438 | GASKET SET |
| Motor DXPW001E - 13674 Pag.3 |
||
| 1 | 2900170 | THRUST BEARING |
| 2 | 2901490 | PLATE |
| 3 | 1780490 | BALL BEARING |
| 4 | 1460530 | OIL SEAL |
| 5 | 2320090 | SCREW |
| 6 | 4240400 | BODY |
| 7 | 1460590 | BEARING |
| 8 | 1460040 | COVER |
| 9 | 1461200 | SEAL |
| 10 | 394280 | O RING |
| 11 | 1460370 | FAN |
| 12 | 4240520 | CONVEYOR |
| 13 | 1680960 | WASHER |
| 14 | 1460460 | SCREW |
| 15 | 660170 | O RING |
| 16 | 2320132 | BOX |
| 17 | 1262400 | WASHER |
| 18 | 2020570 | SCREW |
| 19 | 4240290 | COVER |
| 20 | 2900420 | SWITCH |
| 21 | 2021480 | GLAND |
| 22 | 4240690 | POWER CABLE |
| 23 | 2320640 | O RING |
| 24 | 1982590 | CAPACITOR |
| 25 | 45014 | MOTOR |
| 26 | 2022201 | FORK |
| 27 | 2029801 | BOX |
| 28 | 2000210 | SCREW |
| 29 | 2021480 | GLAND |
| 30 | 2180670 | O RING |
| 31 | 390341 | O RING |
| Accessories DXPW001E - 13674 Pag.4 |
||
| 1 | 41842 | GUN SA |
| 2 | 42861 | LANCE |
| 3 | 2000570 | O RING |
| 4 | 3960920 | HOSE |
| 5 | 391000 | O RING |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DeWalt websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DeWalt brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DeWalt DXPW001E - 13674
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N AR:
- AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
