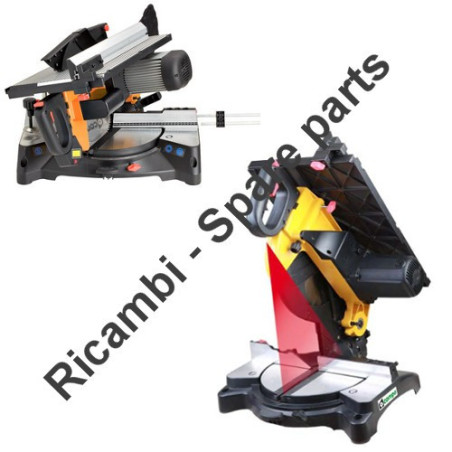

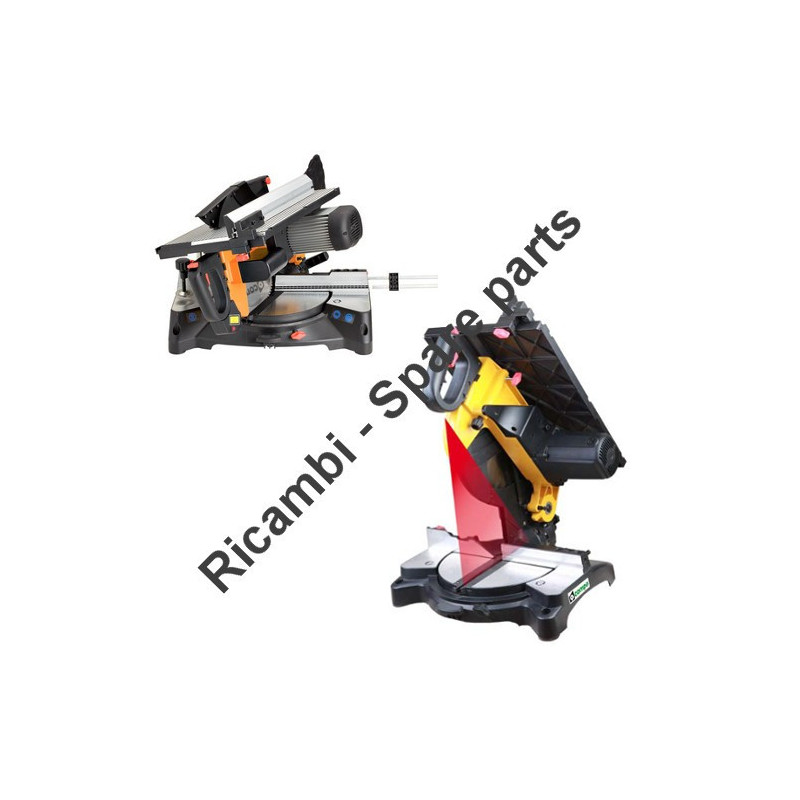

Compa-OMS Spare Parts for Portable Saws Orange 305-90/100
€5.05
Tax included
Compa-OMS Spare Parts for Portable Mitre Saw Orange 305-90/100
Compa-OMS Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Portable Mitre Saw Orange 305-90/100.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Compa-OMS Spare Parts for Portable Mitre Saw Orange 305-90/100
Compa-OMS Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Portable Mitre Saw Orange 305-90/100.
In the following table, look for the model of the Portable Saws and their spare part.
| MITRE SAW ORANGE 305-90/100 | ||
| # | Part Num | Description |
| 1 | ORANG3059/001 | Blade attachment bolt |
| 2 | ORANG3059/002 | external flange |
| 4 | ORANG3059/004 | internal flange |
| 5 | ORANG3059/005 | M5 x 20 mm |
| 6 | ORANG3059/006 | M5 x 20 mm |
| 7 | ORANG3059/007 | Semi-left arm |
| 9 | ORANG3059/009 | Rivet d.4 x 8 mm |
| 10 | ORANG3059/010 | Bushing d.16 x d.10 x 12 mm |
| 11 | ORANG3059/011 | nut M5 |
| 12 | ORANG3059/012 | Connecting rod |
| 13 | ORANG3059/013 | Mobile Security |
| 14 | ORANG3059/014 | Sealing ring d.36 mm |
| 15 | ORANG3059/015 | Bushing d.14 x d.7.8 x 7.5 mm |
| 16 | ORANG3059/016 | M5 x 12 mm |
| 19 | ORANG3059/019 | Ball Bearing (6202) |
| 20 | ORANG3059/020 | Spring d.10.6 22 x 1.2 mm |
| 21 | ORANG3059/021 | stator |
| 22 | ORANG3059/022 | Bolt d.6 x M5 x 26 mm |
| 23 | ORANG3059/023 | Bushing d.23.5 x 25 mm |
| 24 | ORANG3059/024 | Ball Bearing (6203) |
| 25 | ORANG3059/025 | Copricusinetto |
| 26 | ORANG3059/026 | Riving knife locking plate |
| 27 | ORANG3059/027 | Screw M6 x 15 mm |
| 28 | ORANG3059/028 | Spring washer M6 |
| 29 | ORANG3059/029 | motor cover |
| 30 | ORANG3059/030 | Aluminum casing of the engine |
| 31 | ORANG3059/031 | Semi-right arm |
| 32 | ORANG3059/032 | riving knife |
| 33 | ORANG3059/033 | Screw M4 x 30 mm |
| 34 | ORANG3059/034 | Flat washer d.16 mm |
| 35 | ORANG3059/035 | Sealing ring d.16 |
| 36 | ORANG3059/036 | Armature, Brushless |
| 37 | ORANG3059/037 | Semi-left handle |
| 38 | ORANG3059/038 | Start button |
| 39 | ORANG3059/039 | The tripping device start button |
| 40 | ORANG3059/040 | spring |
| 41 | ORANG3059/041 | Release button arm |
| 42 | ORANG3059/042 | Kit levers release arm |
| 43 | ORANG3059/043 | Switch x mod. Orange 305-90 |
| 44 | ORANG3059/044 | Kit release levers arm |
| 45 | ORANG3059/045 | Spring d.7 x 45 mm x d.1 |
| 46 | ORANG3059/046 | Block release blade |
| 47 | ORANG3059/047 | Sealing ring d.10 mm |
| 48 | ORANG3059/048 | Pin release blade d.10 x 54 mm |
| 49 | ORANG3059/049 | fan |
| 50 | ORANG3059/050 | Semimpugnatura Dx |
| 51 | ORANG3059/051 | Screw M4 x 20 mm |
| 52 | ORANG3059/052 | Fan cover |
| 53 | ORANG3059/053 | Screw M4 x 20 mm |
| 54 | ORANG3059/054 | M5 x 160 mm |
| 55 | ORANG3059/055 | Locking pawl M6 x 30 mm |
| 56 | ORANG3059/056 | Screw M4 x 10 mm |
| 57 | ORANG3059/057 | Flat washer d.4 mm |
| 58 | ORANG3059/058 | Spring D.11 x 140 mm x d.2 |
| 59 | ORANG3059/059 | clamp bracket |
| 60 | ORANG3059/060 | Colonetta driving raising plan |
| 61 | ORANG3059/061 | Colonetta driving raising plan |
| 62 | ORANG3059/062 | Screw M6 x 25 mm |
| 63 | ORANG3059/063 | Upper clamp bracket top |
| 64 | ORANG3059/064 | nut M6 |
| 65 | ORANG3059/065 | Support bracket top |
| 66 | ORANG3059/066 | Caps upper bracket |
| 67 | ORANG3059/067 | Language protection headphones |
| 68 | ORANG3059/068 | nut M8 |
| 69 | ORANG3059/069 | Headphone blade guard |
| 70 | ORANG3059/070 | Lower guard upstairs |
| 71 | ORANG3059/071 | Locking knob headset |
| 72 | ORANG3059/072 | Spring d.7 x 7.5 x d. 0.6 mm |
| 73 | ORANG3059/073 | Sealing ring d.6 mm |
| 74 | ORANG3059/074 | Pin D.3 x 30 mm |
| 75 | ORANG3059/075 | Locking pin d.10 x 43 mm |
| 76 | ORANG3059/076 | locking lever carousel |
| 77 | ORANG3059/077 | Spring d.8 x 21 x d. 0.7 mm |
| 78 | ORANG3059/078 | Nut M12 closed |
| 79 | ORANG3059/079 | Flat washer M12 |
| 80 | ORANG3059/080 | Locking pawl carousel M6 x 35 |
| 81 | ORANG3059/081 | Foot-slip rubber and |
| 82 | ORANG3059/082 | base |
| 83 | ORANG3059/083 | Locking pawl M6 x 20 mm |
| 84 | ORANG3059/084 | M8 x 40 mm |
| 85 | ORANG3059/085 | carousel |
| 86 | ORANG3059/086 | bracket |
| 87 | ORANG3059/087 | fifth wheel |
| 88 | ORANG3059/088 | Cage portarullini complete |
| 89 | ORANG3059/089 | roll |
| 90 | ORANG3059/090 | lower protection |
| 91 | ORANG3059/091 | nut M6 |
| 92 | ORANG3059/092 | Threaded bolt M6 x 30 mm |
| 93 | ORANG3059/093 | Screw M12 x 85 mm |
| 94 | ORANG3059/094 | M5 x 10 mm |
| 95 | ORANG3059/095 | OBSOLETE new: ORANG3059 / 135 |
| 96 | ORANG3059/096 | spring |
| 97 | ORANG3059/097 | M8 x 15 mm |
| 98 | ORANG3059/098 | Flat washer d.8 mm |
| 99 | ORANG3059/099 | Guide plastic blade |
| 100 | ORANG3059/100 | M4 screw |
| 101 | ORANG3059/101 | Handle unlocks arm R80 M12 |
| 102 | ORANG3059/102 | Threaded bolt M6 x 45 mm |
| 103 | ORANG3059/103 | tree arm |
| 104 | ORANG3059/104 | Sealing ring d.16 mm |
| 105 | ORANG3059/105 | Support arm |
| 106 | ORANG3059/106 | Ball Bearing 6002 |
| 107 | ORANG3059/107 | Upper Working Table |
| 108 | ORANG3059/108 | upper bracket |
| 109 | ORANG3059/109 | Push stick |
| 110 | ORANG3059/110 | nut M6 |
| 112 | ORANG3059/112 | Chip collection bag |
| 113 | ORANG3059/113 | Retaining bar piece |
| 114 | ORANG3059/114 | hex wrench |
| 115 | ORANG3059/115 | Allen key |
| 116 | ORANG3059/116 | Vertical vice x Orange 305-90 / 100 |
| 117 | ORANG3059/117 | USE BRAKE ORANGE |
| 118 | ORANG3059/118 | Capacitor x Orange 305-90 / 100 |
| 119 | ORANG3059/119 | Plastic cover |
| 120 | ORANG3059/120 | electrical cable |
| 121 | ORANG3059/121 | belt |
| 122 | ORANG3059/122 | Sealing ring d.15 mm |
| 123 | ORANG3059/123 | Flat washer d.15 mm |
| 124 | ORANG3059/124 | pulley |
| 125 | ORANG3059/125 | engine cover |
| 126 | ORANG3059/126 | Ball Bearing (6003) |
| 127 | ORANG3059/127 | crankshaft |
| 128 | ORANG3059/128 | key |
| 129 | ORANG3059/129 | Ball Bearing (6203) |
| 130 | ORANG3059/130 | bearing cover |
| 131 | ORANG3059/131 | pulley |
| 132 | ORANG3059/132 | Flat washer d.15 mm |
| 133 | ORANG3059/133 | nut M15 |
| 134 | ORANG3059/134 | Plastic Cover |
| 135 | ORANG3059/135 | Conveyor OR.305 / 100 |
| 136 | ORANG3059/136 | OR D.1.5 x 35 mm |
| 138 | ORANG3059/138 | Threaded bolt M6 x 30 mm |
| 139 | ORANG3059/139 | nut M6 |
| 140 | ORANG3059/140 | key |
| 141 | ORANG3059/141 | key |
| 142 | ORANG3059/142 | Protection lower upper shelf |
| 144 | ORANG3059/144 | Motor Assembly 305/90/100 (125-24-25-36- |
| 145 | ORANG3059/145 | Accessories complete (113-114-115- |
| 146 | ORANG3059/146 | Shaft Assembly (126-133) |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Compa-OMS websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Compa-OMS brand review. Please refine the important parameters by the selling assistant when making a purchase.All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Orange 305-90/100
