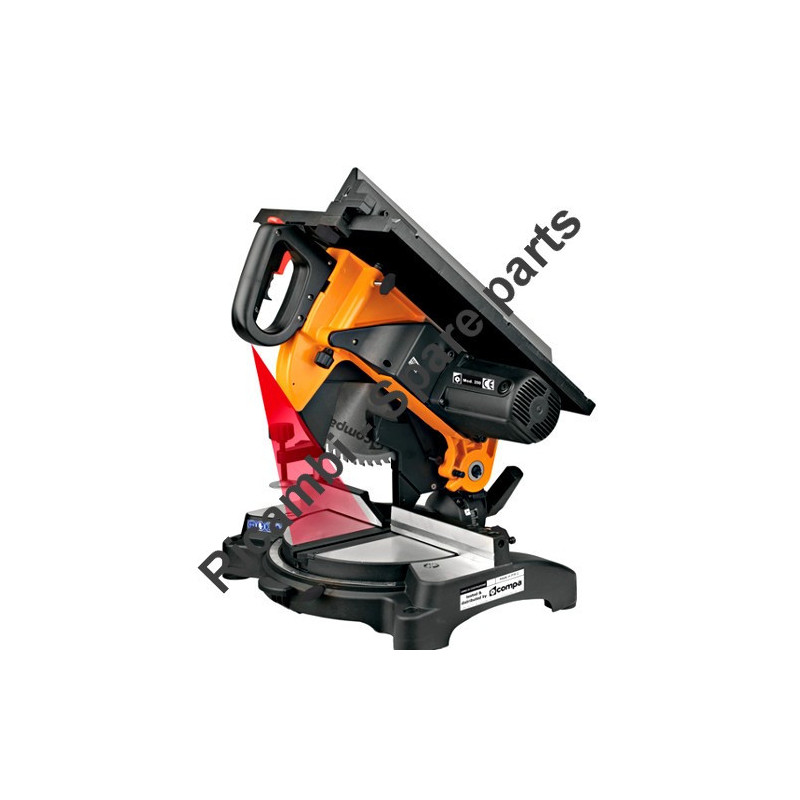

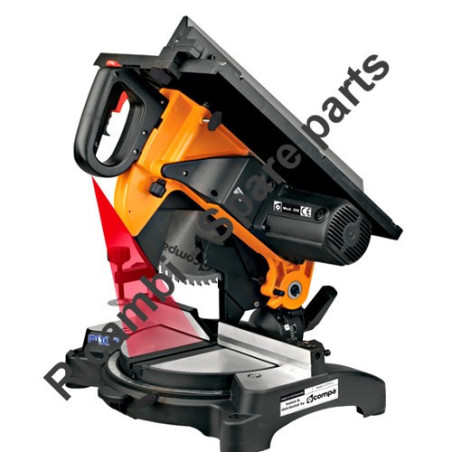

Compa-OMS Spare Parts for Portable Saws Orange 250/0
€3.78
Tax included
Compa-OMS Spare Parts for Portable Mitre Saw Orange 250/0
Compa-OMS authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Portable Mitre Saw Orange 250/0.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Compa-OMS Spare Parts for Portable Mitre Saw Orange 250/0
Compa-OMS authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Portable Mitre Saw Orange 250/0.
In the following table, look for the model of the Portable Saws and their spare part.
| MITRE SAW ORANGE 250/0 | ||
| # | Part Num. | Description |
| 1 | ORANGE250/001 | Screw tightening blade mod.250 / 305-90 / 100 |
| 2 | ORANGE250/002 | EXTERNAL FLANGE |
| 4 | ORANGE250/004 | FLANGE INTERNAL |
| 5 | ORANGE250/005 | SCREW M5 X 20 mm |
| 6 | ORANGE250/006 | SCREW M5 X 20 mm |
| 7 | ORANGE250/007 | SEMI-ARM LEFT |
| 9 | ORANGE250/009 | RIVETTO 04 x 8 mm |
| 10 | ORANGE250/010 | BUSH d.16 X d.10 x 12 mm |
| 11 | ORANGE250/011 | NUT M5 |
| 12 | ORANGE250/012 | CONNECTING ROD |
| 13 | ORANGE250/013 | PROTECTION MOBILE |
| 14 | ORANGE250/014 | Seeger blocks bearing blade d.36mm |
| 15 | ORANGE250/015 | BUSH d.14 x 7.8 x 7.5 mm |
| 16 | ORANGE250/016 | SCREW M5 X 12 mm |
| 17 | ORANGE250/017 | Plastic cover |
| 18 | ORANGE250/018 | Screw M4 x 10 mm |
| 19 | ORANGE250/019 | Ball Bearing (6202) |
| 20 | ORANGE250/020 | Spring d. 10.6 x 22 x 1.2 mm |
| 21 | ORANGE250/021 | Induction motor stator line 'Orange' |
| 22 | ORANGE250/022 | Bolt d.6 x M5 x 26 mm |
| 23 | ORANGE250/023 | Bushing d.23 x 25 mm |
| 24 | ORANGE250/024 | Ball Bearing (6203) |
| 25 | ORANGE250/025 | Copricusinetto |
| 26 | ORANGE250/026 | Riving knife locking plate |
| 27 | ORANGE250/027 | Screw M6 x 15 mm |
| 28 | ORANGE250/028 | Spring washer M6 |
| 29 | ORANGE250/029 | motor cover |
| 30 | ORANGE250/030 | Motor casing to. line 'Orange' |
| 31 | ORANGE250/031 | Semi-right arm |
| 32 | ORANGE250/032 | riving knife |
| 33 | ORANGE250/033 | Screw M4 x 30 mm |
| 34 | ORANGE250/034 | Flat washer d.16 mm |
| 35 | ORANGE250/035 | Sealing ring d.16mm |
| 36 | ORANGE250/036 | rotor |
| 37 | ORANGE250/037 | Semimpugnatura Left |
| 38 | ORANGE250/038 | Starter Button |
| 39 | ORANGE250/039 | The tripping device start button |
| 40 | ORANGE250/040 | spring |
| 41 | ORANGE250/041 | Release button arm + 042 |
| 42 | ORANGE250/042 | Release lever arm in the handle |
| 43 | ORANGE250/043 | Switch x Orange |
| 44 | ORANGE250/044 | Kit release levers blade |
| 45 | ORANGE250/045 | Spring d.7 x 45 mm x d.1 |
| 46 | ORANGE250/046 | Block release blade |
| 47 | ORANGE250/047 | Sealing ring d.10 mm |
| 48 | ORANGE250/048 | Pin release blade d.10 x 54 mm |
| 49 | ORANGE250/049 | fan |
| 50 | ORANGE250/050 | Semimpugnatura Dx |
| 51 | ORANGE250/051 | Screw M4 x 20 mm |
| 52 | ORANGE250/052 | Fan cover |
| 53 | ORANGE250/053 | M5 x 10 mm |
| 54 | ORANGE250/054 | M5 x 180 mm |
| 55 | ORANGE250/055 | Chanterelle M6 x 30 mm |
| 56 | ORANGE250/056 | Screw M4 x 10 mm |
| 57 | ORANGE250/057 | Flat washer d.4 mm |
| 58 | ORANGE250/058 | Spring D.11 x 140 mm x d.2 |
| 59 | ORANGE250/059 | clamp bracket |
| 60 | ORANGE250/060 | Colonnetta driving raising plan |
| 61 | ORANGE250/061 | Colonnetta driving raising plan |
| 62 | ORANGE250/062 | Screw M6 x 25 mm |
| 63 | ORANGE250/063 | Upper clamp bracket top |
| 64 | ORANGE250/064 | nut M6 |
| 65 | ORANGE250/065 | Support bracket top |
| 66 | ORANGE250/066 | Caps upper bracket |
| 67 | ORANGE250/067 | Upper Disc Guard |
| 68 | ORANGE250/068 | nut M8 |
| 69 | ORANGE250/069 | blade guard |
| 70 | ORANGE250/070 | Lower guard upstairs |
| 71 | ORANGE250/071 | Guard Lock knob |
| 72 | ORANGE250/072 | Spring d.7 x 7.5 x d.0.6 mmm |
| 73 | ORANGE250/073 | Snap ring d.6 mm |
| 74 | ORANGE250/074 | Pin D.3 x 30 mm |
| 75 | ORANGE250/075 | Locking pin d.10 x 43 mm |
| 76 | ORANGE250/076 | Locking lever carousel |
| 77 | ORANGE250/077 | Spring d.8 x 21 mm x d.0,7 |
| 78 | ORANGE250/078 | Nut M12 closed |
| 79 | ORANGE250/079 | Flat washer M12 |
| 80 | ORANGE250/080 | Galletto M8 x 40 mm Conical |
| 81 | ORANGE250/081 | Non-slip Rubber Foot |
| 82 | ORANGE250/082 | Base Orange 250/0 |
| 83 | ORANGE250/083 | Locking pawl M6 x 20 mm |
| 84 | ORANGE250/084 | M8 x 40 mm |
| 85 | ORANGE250/085 | Joust Orange 250/0 |
| 86 | ORANGE250/086 | bracket |
| 87 | ORANGE250/087 | fifth wheel |
| 88 | ORANGE250/088 | Cage portarullini complete |
| 89 | ORANGE250/089 | roll |
| 90 | ORANGE250/090 | lower protection |
| 91 | ORANGE250/091 | nut M6 |
| 92 | ORANGE250/092 | Threaded bolt M6 x 30 mm |
| 93 | ORANGE250/093 | Screw M12 x 85 mm |
| 94 | ORANGE250/094 | M5 x 10 mm |
| 95 | ORANGE250/095 | Conveyor ORANGE 250/0 |
| 96 | ORANGE250/096 | spring |
| 97 | ORANGE250/097 | M8 x 15 mm |
| 98 | ORANGE250/098 | Flat washer d.8 mm |
| 99 | ORANGE250/099 | Guide plastic blade |
| 100 | ORANGE250/100 | M4 screw |
| 101 | ORANGE250/101 | Handle snap R.80 M12 |
| 102 | ORANGE250/102 | Threaded bolt M6 x 45 mm |
| 103 | ORANGE250/103 | tree arm |
| 104 | ORANGE250/104 | Sealing ring d.16 mm |
| 105 | ORANGE250/105 | Support arm |
| 106 | ORANGE250/106 | Ball Bearing 6002 |
| 107 | ORANGE250/107 | Up Work Table Orange 250 |
| 108 | ORANGE250/108 | upper bracket |
| 109 | ORANGE250/109 | Push stick |
| 110 | ORANGE250/110 | nut M6 |
| 111 | ORANGE250/111 | OBSOLETE SOST.DA ORANGE250 / 067 |
| 112 | ORANGE250/112 | Chip collection bag |
| 113 | ORANGE250/113 | Retaining bar piece |
| 114 | ORANGE250/114 | hex wrench |
| 115 | ORANGE250/115 | Allen key |
| 116 | ORANGE250/116 | vertical vice |
| 117 | ORANGE250/117 | Electronic card - Old Type |
| 117A | OR.250.01.138-2 | Electronic card - NEW Type |
| 118 | ORANGE250/118 | Capacitor x Orange 250-0 |
| 119 | ORANGE250/119 | Plastic cover |
| 120 | ORANGE250/120 | D.25 knob M12 x 50 tip |
| 121 | ORANGE250/121 | Knob THP d.25 M6x40 |
| 122 | ORANGE250/122 | Power cord ORANGE 250/0 |
| 123 | ORANGE250/123 | Complete engine 250/0 (24-25-36-19-21-30- |
| 150 | ORANGE250/150 | Flange mechanical brake Orange 250-0 |
| 151 | ORANGE250/151 | Brake pad orange 250-0 305-0 |
| 152 | ORANGE250/152 | Spring brake pad ORANGE 250-0 305-0 |
| 153 | ORANGE250/153 | Group upper bracket OR.250-0 |
| 154 | ORANGE250/154 | Superior protection pianetto Orange Line |
| 155 | ORANGE250/155 | Group accessories supplied Orange Line |
| 156 | ORANGE250/156 | Scale stand Orange |
| 157 | ORANGE250/157 | Index reading incl.testa Orange 250-0 |
| 158 | ORANGE250/158 | Scale 0-45ø incl.braccio O250-0 |
| 55 | ORAnge250/055 | Locking pawl M6 x 30 mm |
