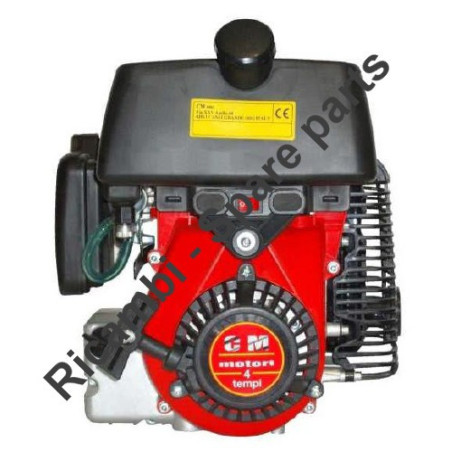

CM Motori Spare Parts for Motor Pumps CM70
€12.04
Tax included
CM Motori Spare Parts for Engine Pumps CM70
CM Motori genuine parts or replacement parts for to repair Engine PUMPS CM70.Engine characteristics
Model: CM 70
Type: 4 Stroke
Displacement: 70 cc
Fuel: Gasoline
Pump features
Aspiration: 1"1/2
Flow: 1"1/2
Maximum suction height: 8 m
Max capacity: 230 lt
Max head: 25 mt
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
CM Motori Spare Parts for Engine Pumps CM70
CM Motori genuine parts or replacement parts for to repair Engine PUMPS CM70.
In the following table, look for the model of the Motor Pump and the respective parts of the code.
Items will be shipped within 7/10 working days approx.
| Engine PUMP 70 CM | ||
| 1 | M2T428F00 | TAPPING SCREWTC4,5X 15 |
| 3 | M2T075F00 | AIR CLEANER COVER |
| 4 | M2T074F00 | AIR FILTER CARTRIDGE |
| 5 | 9400160F00 | SCREW TCEI 5x20 5931 |
| 6 | M2T550F00 | WASHER GEAR 5 · 10 |
| 7 | M4ZSS3F00 | FLAT WASHER D.Sx15x1,5 |
| 8 | M2T072F00 | BODY AIR |
| 9 | M2T073F00 | AIR BAFFLEINTAKE |
| 10 | M2T119F00 | CARB SEAL FILTER |
| 11 | M2T227F00 | OIL BREATHER PIPE |
| 12 | 3100090F00 | SELF-LOCKING NUT M5 7474 |
| 14 | 7400590F00 | SPRING WASHER D.6 |
| 15 | 1700000F00 | KEY FLY |
| 18 | M2T099F00 | DELIVERY PIPE OIL |
| 17 | M2T100F00 | OIL RETURN PIPE |
| 18 | 3100300F00 | SELF-LOCKING NUT M6 UNI7474 |
| 19 | 7100800F00 | FLAT WASHER D 6 6592 |
| 20 | M2T228F00 | SPRING SHOOT GAME |
| 21 | M2T223F00 | SPRING SPEED GOVERNOR MTZ |
| 22 | M2T114F00 | AUCTION THROTTLE |
| 23 | M2T355F00 | SCREW TC CR 4x35 UNI7687 |
| 24 | M2Z120F00 | SPRING REGISTRATION ACCELERATOR |
| 25 | M2T108F00 | THROTTLE LEVER |
| 26 | M2T632F00 | OR 132 |
| 27 | M2T066F00 | DUCT INTAKE |
| 28 | M2T631F00 | OR 121 |
| 29 | M2T222F00 | GROUP CYLINDER COMPLETE |
| 30 | M2T061F00 | HEADPHONES |
| 31 | 9400600F00 | SCREW TCEI 5x25 5931 |
| 32 | M2T049F00 | MUFFLER PROTECTION |
| 33 | M2T048F00 | MUFFLER |
| 34 | 3100100F00 | NUT M5 5587 |
| 35 | M2T053F00 | DISTANCE FLY |
| 36 | 3100500F00 | NUT M 10xH8 |
| 37 | M2T233F00 | FUEL PIPE |
| 38 | 7800110F00 | FUEL COCK UT |
| 39 | 8010050F00 | CUP OR |
| 40 | 4108570F00 | RING OR 4028 |
| 41 | M2T220F00 | GROUP REWIND COMPLETE |
| 42 | M2T440F00 | SCREW TC CR 5x15 9709 |
| 43 | M2T084F00 | ANTIVIBRANTE |
| 44 | M2T068F00 | SUPPORT TANK |
| 45 | M2T429F00 | TAPPING SCREW TC 4,8x25 |
| 47 | 9110850F00 | TANK CAP |
| 48 | M2T08BF00 | TANK ENGINE |
| 49 | M2T083F00 | CONVOGLIATORE |
| 50 | M2T234F00 | GROUP FLY |
| 52 | M2T076F00 | TIMING BELT 450 |
| 53 | M2T070F00 | CARBURATOR |
| 54 | 0202000F00 | CANDLE JOINT COMPLETE |
| 55 | M2T055F00 | REEL |
| 56 | 9402500F00 | SCREW TCEI 4X16 |
| 57 | 5200100F00 | CABLE |
| 58 | M2T087F00 | SWITCH |
| 60 | M2T001F00 | FLYWHEEL |
| 61 | 2350000F00 | FLY COUNTERWEIGHT CM46 / 80/90 |
| 62 | M2T050F00 | WHEEL DRIVE |
| 65 | M2T052F00 | INSERT FLY |
| 66 | 3270200F00 | POLAR ESPANSlON |
| 67 | 4280100F00 | MAGNET |
| 70 | M2T030F00 | HEADSET RECOIL |
| 71 | M2T031F00 | BUSH PULLEY |
| 72 | M2T040F00 | SPRING RIAVVOLGMENTO |
| 73 | M2T038F00 | CABLE STARTER PULLEY |
| 74 | M2T037F00 | SPRING CAM Ratchet |
| 75 | M2T032F00 | Ratchet START |
| 76 | M2T033F00 | CAM OPENING Ratchet |
| 77 | M2T036F00 | BOX SPRING RATCHET |
| 78 | M2T034F00 | BUSH BRASS |
| 79 | 24230020 | HANDLE |
| 80 | 1600000F00 | CABLE REWIND |
| 90 | M2T058F00 | PLUG OIL FILTER |
| 91 | M2T554F00 | WASHER ALUMINIUM 12X1 |
| 92 | M2T059F00 | BOAT OIL FILTER |
| 93 | M2T060F00 | NETWORK FILTER |
| 94 | M2T056F00 | CARTER SEMI SIDE CLUTCH |
| 95 | M2T700F00 | RING SEAL OIL 15x30.7 TC |
| 96 | M2T608F00 | BEARING 6302 C3 |
| 97A | M2T039F00 | SHAFT ASSEMBLY M2Z |
| 97B | M2T041F00 | SHAFT ASSEMBLY P25 |
| 97C | M2T125F00 | SHAFT ASSEMBLY Udor |
| 97D | M2T126F00 | SHAFT ASSEMBLY 20 S |
| 97E | M2T127F00 | SHAFT ASSEMBLY Bertolini |
| 97F | M2T128F00 | SHAFT ASSEMBLY Carpi |
| 97G | M2T129F00 | SHAFT ASSEMBLY Trial |
| 97H | M2T130F00 | SHAFT ASSEMBLY Cone 12 |
| 97-I | M2T043F00 | SHAFT ASSEMBLY MTP |
| 9a | M2T045F00 | SEGMENT 49x1 |
| 98-1 | M2T045F01 | RING CHROME |
| 99 | M2T046F00 | OIL SCRAPER RING 49x2 |
| 100 | M2T051F00 | PISTON D.49 |
| 101 | M2T047F00 | PISTON PIN |
| 102 | 0092000F00 | PIN LOCKING RING D.12 |
| 103 | M2T054F00 | PISTON COMPLETE |
| 104 | M2T847F00 | RING OR 209 |
| 105 | M2T830F00 | OR 2100 |
| 106 | M2T065F00 | PLUG OIL BREATHER |
| 107 | 29320041 | CAP LEVEL ouo |
| 108 | MU095F00 | CENTERING BUSH CARTER |
| 109 | M2T064F00 | SEAL CARTER |
| 110 | M2T106F00 | OIL PIPE |
| 111 | M2T410F00 | PRISONER 5x30 ROOT 15 12 9 |
| 113 | M2T077F00 | M.5 0.4 FITTING STRAIGHT |
| 114 | M2T785F00 | STUD 5x26 |
| 115 | M2T780F00 | STUD 6x16 |
| 116 | M2T062F00 | BLADE CARTER |
| 117 | M2T063F00 | STILL REED |
| 118 | M2T433F00 | SCREW TCEI 4x8 |
| 119 | 7401120F00 | SPRING WASHER D.4 |
| 120 | M2T057F00 | HALF CARTER SIDE FLYWHEEL |
| 121 | M2T248F00 | BREATHER PIPE FITTING |
| 122 | P25837F00 | RING OR 012 |
| 123 | 7400100F00 | WASHER 5.3x10x1 6592 |
| 124 | 7400500F00 | WASHER D.5 Schnor |
| 125 | M2T096F00 | FITTING M 5-0RmO 0.5 |
| 130 | M2T239F00 | SPRING OUTER DECOMPRESSOR |
| 131 | M2T656F00 | RING BENZING 0.5 6799 |
| 132 | M2T003F00 | CAP REGULATOR |
| 133 | M2T022F00 | SPRING INSIDE DECOMPRESSOR |
| 134 | M2T014F00 | PUSHER REGULATOR DIGIRI |
| 135 | M2T844F00 | OR 2137 |
| 136 | M2T560F00 | BALL D.6 |
| 137 | M2T237F00 | HOLDER MASSE |
| 138 | M2T662F00 | ELASTIC RING 30-1 |
| 139 | M2T113F00 | JUMPER WEIGHTS HOLDER |
| 140 | M2T703F00 | RING OIL SEAL SHIELD 6x12x2,5 |
| 141 | M2T091F00 | LEVER CONTROLLER |
| 142 | M2T561F00 | ROLLER 4x12 1707 |
| 143 | MZT577F00 | ROLLER 2.5x13,8 |
| 144 | M2T009F00 | MASS CENTRIFUGAL |
| 145 | M2T021F00 | VALVE COVER |
| 146 | M2T018F00 | ROCKER |
| 147 | M2T004F00 | FULCRUM ROCKER |
| 148 | M2T082F00 | NUT FULCRUM 6x0,75 |
| 149 | M2T010F00 | PLATE VALVE SPRING |
| 150 | M2T006F00 | VALVE SPRING |
| 151 | M2T238F00 | OIL SCRAPER ROD |
| 152 | M2T005F00 | VALVE INTAKE |
| 153 | M2T015F00 | EXHAUST VALVE |
| 154 | M2T016F00 | VALVE SEAT INTAKE |
| 155 | M2T019F00 | VALVE SEAT DRAIN |
| 156 | M2T078F00 | ELBOW FITTING M.5 D.4 |
| 157 | M2T576F00 | PLUG SPIROL 3x28 |
| 158 | M2T027F00 | LEVER DECOMPRESSOR |
| 159 | M2T105F00 | Camshaft |
| 160 | M2T610F00 | ROLLER CASE HK 10x12 |
| 161 | M2T706F00 | RING SEAL OIL 10x14X3 |
| 163 | M2T013F00 | WHEEL CONDUCT |
| 164 | M2T509F00 | NUT M 8 x1 5588 |
| 165 | M2T071F00 | CYLINDER |
| 166 | M2T023F00 | CANCELA |
| 167 | M2T609F00 | BEARING 6000 10x26X8 |
| 168 | M2T002F00 | DRIVE PIN DECOMPRESSOR |
| 169 | M2T833F00 | OR 3206 |
| 170 | M2T557F00 | Shim 6x12x04 |
| 171 | M2T028F00 | RING CORE |
| 172 | M2T653F00 | The SNAP RING 40X1,75 |
| 173 | M2T660F00 | SEEGER 10 |
| 174 | 1000800F00 | BOLT TE 5x10 |
| 175 | M2T085F00 | DISTANCE |
| 181 | M2T250F00 | AIR CLEANER COVER |
| 182 | 23410061 | FILTER PAPER |
| 183 | M2T243F00 | SUPPORT AIR |
| 184 | M2T245F00 | PIPE RECOVERY OIL |
| 185 | M2T246F00 | BUSH REDUCTION TUBE |
| 186 | M2T247F00 | PIPE VENT D.6 |
| 188 | M2T240F00 | SPRING ROD ACCELERATOR |
| 189 | M2T241F00 | SPRING THROTTLE ENGINE |
| 190 | 23410062 | FILTER DISPUGNA |
| 191 | M2T232F00 | THROTTLE LEVER |
| 192 | M2Z529F00 | NUT PANEL M, 4 DIN 557 |
| 193 | M2Z062F00 | TANK MTZ |
| 194 | M2T249F00 | FUEL PIPE |
| 195 | 7400700F00 | WASHER 6X18 |
| 196 | M2T375F00 | SCREW TCEI 6X80 5931 |
| 197 | M2Z095F00 | DISTANCE TANK |
| 198 | 7400300F00 | WASHER 6X24 |
| 199 | M2T225F00 | CARTER SEMI SIDE FLYWHEEL MTZ |
| 200 | M2T226F00 | CARTER SEMI CLUTCH SIDE MTZ |
| 201 | M2T092F00 | AIR BAFFLE PIN |
| 202 | M2T855F00 | FASTON TYPE SABA |
| 203 | 9402090F00 | TAPPING SCREW 2,9X13 TCTC |
| 204 | M2T548F00 | WASHER D.3 6592 |
| 205 | 7400630F00 | WAVY WASHER D10 DIN 137 / B |
| 206 | M2T102F00 | RING shim DOOR MASSE |
| 207 | M2T096F00 | FITTING STRAIGHT M 5 D.5 |
| 208 | M2T856F00 | FASTON MALE |
| 209 | M2T857F00 | FASTON FEMALE |
| 210 | M2Z117F00 | SPRING RETURN GAS |
| BODY PUMP 70/1A - 70/2A - 70/2 | ||
| 25 | 0104510F00 | RING OR 123 |
| 26 | 0104400F00 | RING OR 4162 |
| 27 | 4106620F00 | RING OR 4700 |
| 96 | 1000300F00 | BOLT TE 6x16 |
| 100 | 1000700F00 | BOLT TE 8x14 |
| 151 | 2000190F00 | NUT PUMP |
| 156 | 2000210F00 | NUT PUMP |
| 187 | 2400100F00 | STAND IN SEAL 17/38/8 |
| 225 | 2860610F00 | BODY PUMP CM 70/2 |
| 228 | 2850900F00 | BODY PUMP 70 CM / 1A |
| 230 | 2851100F00 | BODY PUMP CM70 / 1A |
| 260 | 3100100F00 | NUT M5 UNI 5567 |
| 300 | 3500200F00 | Suction flange 1" |
| 303 | 3500300F00 | Flange PUMP SUPPORT |
| 305 | 3500750F00 | Flange PUMP SUPPORT |
| 307 | 3500500F00 | FLANGE INTAKE |
| 306 | 3500600F00 | FLANGE DISCHARGE |
| 316 | 3750310F00 | IMPELLER |
| 327 | 3750300F00 | IMPELLER |
| 331 | 3750710F00 | IMPELLER |
| 343 | 4102620F00 | SEAL BODY PUMP |
| 344 | 4100310F00 | SEAL ASPRIRAZIONE CM 70 / 1A |
| 345 | 4100400F00 | OR 119 |
| 371 | 4102500F00 | SEAL NUT |
| 372 | 4102600F00 | SEAL BODY PUMP |
| 390 | 4109800F00 | SEAL INTAKE |
| 391 | 4103810F00 | WOE \ nition DELIVERY |
| 494 | 6800300F00 | STUD BOLT 5x25 |
| 530 | 7400100F00 | FLAT WASHER D.5 |
| 535 | 7400020F00 | FLAT WASHER D.8 |
| 646 | 9000910F00 | PUMP SUPPORT |
| 662 | 9120300F00 | CAP LOADING AND DISCHARGE |
| 668 | 9120750F00 | PLUG AND EXHAUST CARlCO |
| 672 | 9170300F00 | SEAL |
| 711 | 9400220F00 | SCREW TCEI 8x22 |
| 729 | 9401390F00 | SCREW TCEI 6x60 |
| 730 | 9401700F00 | SCREW TCEI 6X40 |
| 731 | 9401800F00 | SCREW TCEI 6X18 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s CM Motori snc websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to CM Motori snc brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
