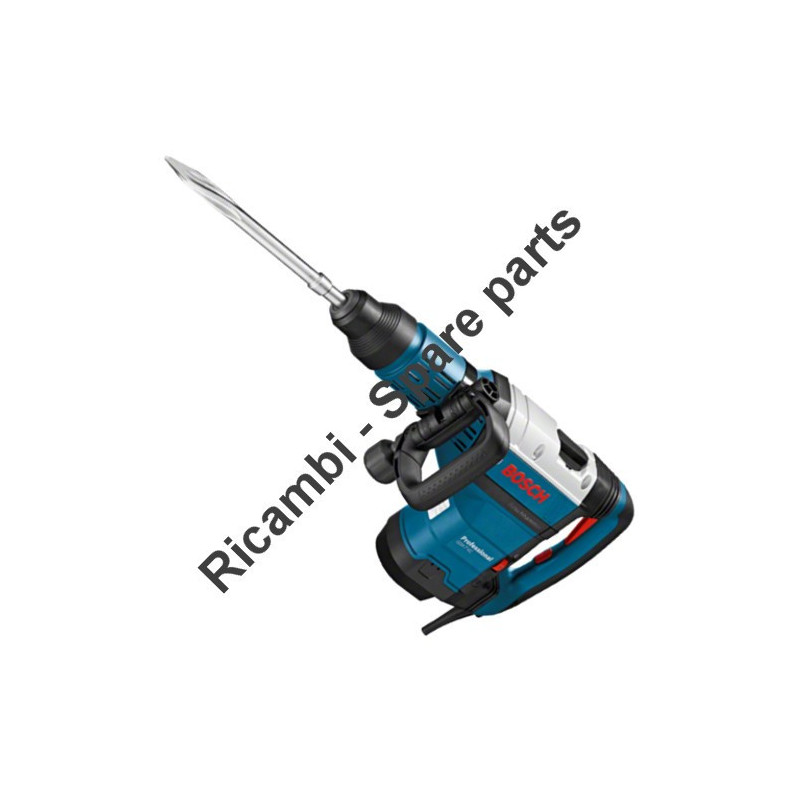

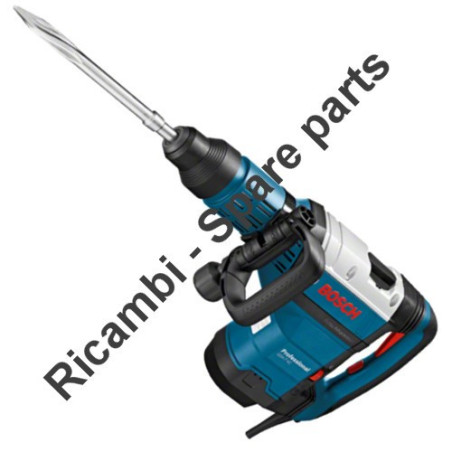

Bosch genuine spare parts or replacement parts for to repair Demolition Hammer GSH 7 VC - 3611C22000.
In the following table, look for the model of the Demolition Hammer and the respective parts of the code.![]()
| Demolition Hammer GSH 7 VC/3 611 C22 000 | ||
| # | Part Num. | Description |
| 1 | 1615108165 | Motor Housing |
| 2 | 1614220124 | Field 220-240V |
| 4 | 1617200130 | Switch |
| 6 | 1610703053 | Grommet Ø9,7-Ø12x89 MM |
| 7 | 1601302018 | Fastening Clamp |
| 9 | 160111A48C | Manufacturer's nameplate |
| 13 | 1610900026 | groove ball bearing 8x24x8 |
| 14 | 1610910089 | Needle-Roller Bearing |
| 15 | 1616610109 | Fan |
| 21 | 1610508038 | Protective Cap |
| 22 | 1610591051 | Protection Sleeve |
| 23 | 1610520006 | Stop Sleeve |
| 24 | 1610500025 | Headed Bush |
| 25 | 1612300027 | Stopping Device |
| 26 | 1610290109 | Indexing Disk |
| 27 | 160059105C | Air-Deflector Ring |
| 28 | 1614621010 | Compression Spring |
| 31 | 1610290129 | Damping Ring |
| 35 | 1615806249 | Hammer Pipe |
| 37 | 1610322018 | Control Bushing |
| 38 | 1615190177 | Covering hood |
| 42 | 1614336090 | Brush Holder |
| 43 | 1615500435 | Brush-Cover |
| 44 | 1614621020 | Compression Spring |
| 45 | 1610591052 | Holding-Down-Appliance |
| 48 | 1619990186 | Clutch Sleeve |
| 52 | 1610224015 | Retaining snap ring |
| 54 | 1610190071 | Spacer Tube |
| 58 | 1600A0014J | Locking Bush |
| 59 | 1615805074 | Bearing Pedestal |
| 72 | 1616317090 | Eccentric Cog Wheel |
| 80 | 1607233458 | Speed governor |
| 84 | 1602025081 | Auxiliary Handle |
| 85 | 1600A008BL | Clamping Piece |
| 86 | 2911021267 | Hex Screw |
| 88 | 1613349017 | Star Knob M8 BLACK |
| 94 | 1610290111 | Supporting Disc |
| 95 | 1613120023 | Driving Pin |
| 99 | 1600220029 | Backup ring |
| 110 | 1610190073 | Seal ring |
| 111 | 1610290046 | Bushing |
| 112 | 1613300007 | Hex Nut |
| 113 | 1613412001 | Tapping Screw B 4,8x68 MM |
| 115 | 1610300086 | Bushing |
| 117 | 1610913023 | Needle-Roller Assembly |
| 119 | 1610910081 | Needle-Roller Bearing |
| 120 | 1610190080 | Spacer Tube |
| 122 | 1610290128 | Spacer Ring |
| 125 | 1613435040 | Torx Oval-Head Screw |
| 126 | 2603490023 | Torx Oval-Head Screw 4x20 |
| 129 | 1610300080 | Bushing |
| 131 | 161111A082 | Reference Plate |
| 138 | 1611015064 | Sealing Frame |
| 142 | 1610290112 | Rotary shaft lip seal |
| 143 | 1614601072 | Retaining ring |
| 144 | 1610103025 | Supporting Disc |
| 151 | 1610210222 | O-Ring |
| 152 | 1614601073 | Retaining ring |
| 153 | 2916540017 | Retaining ring DIN 7993 A 30 |
| 154 | 2916660027 | Spring retaining ring DIN 472 62x2 MM |
| 155 | 1614601074 | Retaining ring |
| 157 | 1610210103 | O-Ring 33,0x2,0 MM |
| 158 | 1610210224 | O-Ring |
| 160 | 1610210246 | O-Ring |
| 161 | 1610210227 | Damping Ring |
| 162 | 1610210228 | O-Ring |
| 165 | 1610290125 | Seal ring |
| 166 | 1613200020 | Cylindrical Roller |
| 167 | 161029012A | Rotary shaft lip seal |
| 168 | 1610206027 | Packing Washer |
| 171 | 1613414026 | Torx socket button screw |
| 172 | 1613435041 | Torx Oval-Head Screw |
| 175 | 2603490021 | Torx Oval-Head Screw 4x12 |
| 189 | 1615133038 | Handle |
| 190 | 1615500438 | Handle Cover |
| 192 | 1614611028 | Rocker Foot |
| 194 | 1610099018 | Screw Plate |
| 195 | 1610099019 | Screw Plate |
| 196 | 1610026004 | Damping rubber |
| 197 | 1616232000 | Leaf Spring |
| 204 | 1615102162 | Rear Housing Section |
| 206 | 1612386006 | Holding strip |
| 661 | 1615430010 | Grease Tube 30 ML |
| 691 | 161543851A | Carrying Case |
| 803 | 1614010267 | Armature 230V |
| 804 | 1610190027 | Stop Disc |
| 805 | 1617000723 | Power supply cord |
| 808 | 160111A3H5 | Nameplate |
| 810 | 1617000A50 | Carbon-Brush Set |
| 820 | 1618597102 | Toolholder |
| 821 | 1610508058 | Plain bearing |
| 840 | 1607000C38 | Impact Mechanism Housing |
| 841 | 1617000A4R | Striker Pin |
| 849 | 1617000A31 | Control Fork |
| 853 | 1610231004 | Guide Bushing |
| 856 | 1617000A32 | Hammer Piston |
| 857 | 1617000A33 | Striker |
| 858 | 1616317620 | Cylindrical Gear |
| 872 | 1617000A35 | Eccentric |
| 873 | 1617000A4S | Housing Cover |
| 883 | 1613490019 | Hex Screw |
| 884 | 160202508T | Auxiliary Handle |
| 885 | 160202508J | Auxiliary Handle |
| 887 | 1611316029 | Clamping Band |
| 891 | 1612099005 | Rocker Arm |
| 895 | 1613120024 | Diaphragm |
| 897 | 1610415005 | Bellows |
| 898 | 1610415004 | Bellows |
| 899 | 1600A004E6 | Service package |
