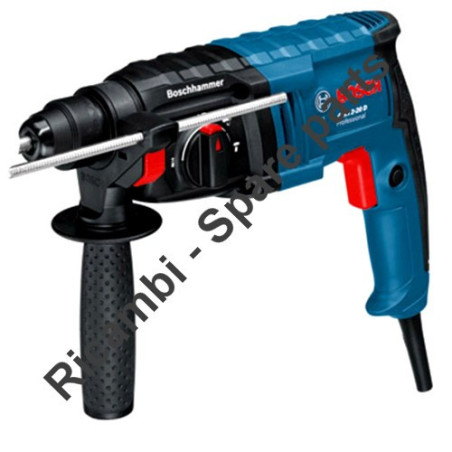

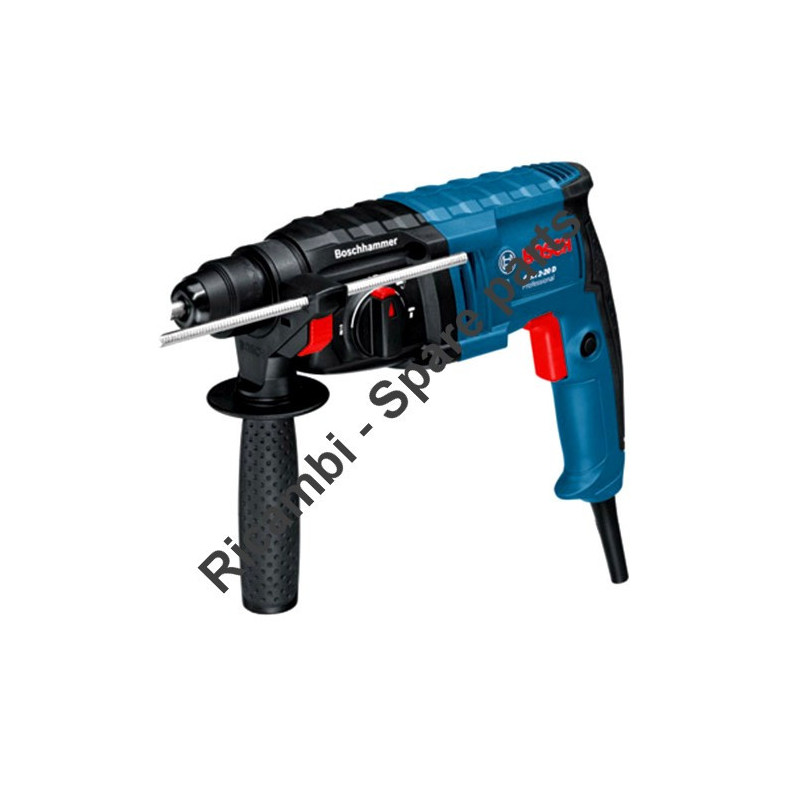

Bosch Spare Parts for Rotary Hammer GBH 2-20 D
€1.43
Tax included
Bosch Spare Parts for Rotary Hammer GBH 2-20 D
Bosch original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Rotary Hammer GBH 2-20 D - 3611B5A400.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Rotary Hammer GBH 2-20 D
Bosch original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Rotary Hammer GBH 2-20 D - 3611B5A400.
In the following table, look for the model of the Hammer and the respective parts of the code.
| Rotary Hammer GBH 2-20 D/3 611 B5A 400 | ||
| # | Part Num. | Description |
| 2 | 1614220219 | Field 230-240V |
| 3/3/5 | 1616610113 | Fan |
| 4/4 | 1617200542 | Switch |
| 4/6 | 2600703018 | Grommet Ø7,3-Ø8,6x76 MM |
| 4/73 | 1613435034 | Lens Head Screw 3x10 ST |
| 9 | 1611110Z91 | Manufacturer's nameplate GBH 2-20 D SUNNY SIDE |
| 10 | 1611110Z92 | Manufacturer's nameplate GBH 2-20 D SHADOW SIDE |
| 11 | 1618B00401 | Reference Plate |
| 12 | 1617328032 | Suppression Filter |
| 14 | 1615806187 | Bearing Bracket |
| 15 | 2603100056 | Rubber Buffer |
| 17 | 1610290108 | O-Ring |
| 19 | 1610210184 | O-Ring 22,0x2,5 MM |
| 20 | 1612026151 | Clamp Handle BLACK |
| 42420 | 1614690009 | Driver Pin |
| 42449 | 1612026035 | Switch Button RED |
| 42480 | 1610210046 | O-Ring 10,5x2,7 MM |
| 42510 | 1614611006 | Compression Spring |
| 21 | 16170006B7 | Hammer Pipe |
| 21/28 | 1613124084 | Striker Pin |
| 21/31 | 1614601053 | Retaining ring |
| 21/32 | 1610508051 | Rubber Bushing |
| 21/36 | 1610551008 | Holding Plate |
| 21/38 | 1616317084 | Cylindrical Gear |
| 21/39 | 1614601055 | Retaining ring |
| 21/40 | 1613100032 | Straight Pin |
| 21/41 | 1610102072 | Ratchet Disc |
| 21/44 | 1610102092 | Friction Washer |
| 21/46 | 1614630003 | Compression Spring |
| 21/50 | 1610400039 | Guide Bushing |
| 21/211 | 1619P09815 | Hammer Pipe |
| 22 | 1616328053 | Gear Sleeve |
| 26 | 1600A0013X | Hammer Piston |
| 26/26 | 1618700083 | Hammer Piston |
| 26/27 | 1618710085 | Striker |
| 26/29 | 1613100034 | Piston Pin |
| 26/37 | 1610100016 | Guide Disc |
| 26/65 | 1610210244 | O-Ring 13,0x3,0 MM |
| 33 | 1615820103 | Switching Element |
| 34 | 1619P00829 | Retaining ring |
| 43 | 16170006BF | Gear Housing |
| 43/47 | 1610202031 | Plain bearing |
| 43/77 | 1610283019 | Shaft Seal |
| 45 | 1611016003 | Holding Plate |
| 49 | 1615820104 | Switching Element |
| 54 | 1600A0013W | Guide Rod |
| 54/51 | 1610021004 | Shift Plate |
| 54/52 | 1610021006 | Shift Plate |
| 54/53 | 1610021005 | Shift Plate |
| 54/54 | 1613023005 | Guide Rod |
| 54/75 | 1614643025 | Compression Spring |
| 54/76 | 1614643023 | Compression Spring |
| 55 | 1610508052 | Protective Cap |
| 60 | 1614601077 | Spring retaining ring |
| 63 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 66 | 2609110491 | groove ball bearing |
| 67 | 1610905047 | groove ball bearing |
| 68 | 1600100037 | Plain Washer |
| 69 | 1613231030 | Change-Over Switch |
| 71 | 2603490023 | Torx Oval-Head Screw 4x20 |
| 72 | 1613435039 | Torx Oval-Head Screw |
| 73 | 1613435034 | Lens Head Screw 3x10 ST |
| 120 | 160202508X | Auxiliary Handle |
| 120/120 | 1612025058 | Auxiliary Handle M8 BLACK |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490002 | T-Head Bolt M8x40 MM |
| 120/802 | 1617000475 | index turning toolholder |
| 651 | 1613001009 | Depth-Gauge SW 6x210 MM |
| 801 | 16170006B8 | Motor Housing |
| 803 | 1614010711 | Armature 230V |
| 805 | 1607000227 | Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F |
| 807 | 1611035007 | Cable Clip |
| 808 | 1601106036 | Nameplate 26x37 MM |
| 816 | 1617014146 | Carbon-Brush Set |
| 820 | 16170006BB | Intermediate Flange |
| 824 | 16170006BC | Jack Shaft |
| 843 | 16170006EP | Protection Sleeve |
| 870 | 1619P01776 | Connecting Cable |
| 873 | 1613435034 | Lens Head Screw 3x10 ST |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBH 2-20 D - 3611B5A400
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
