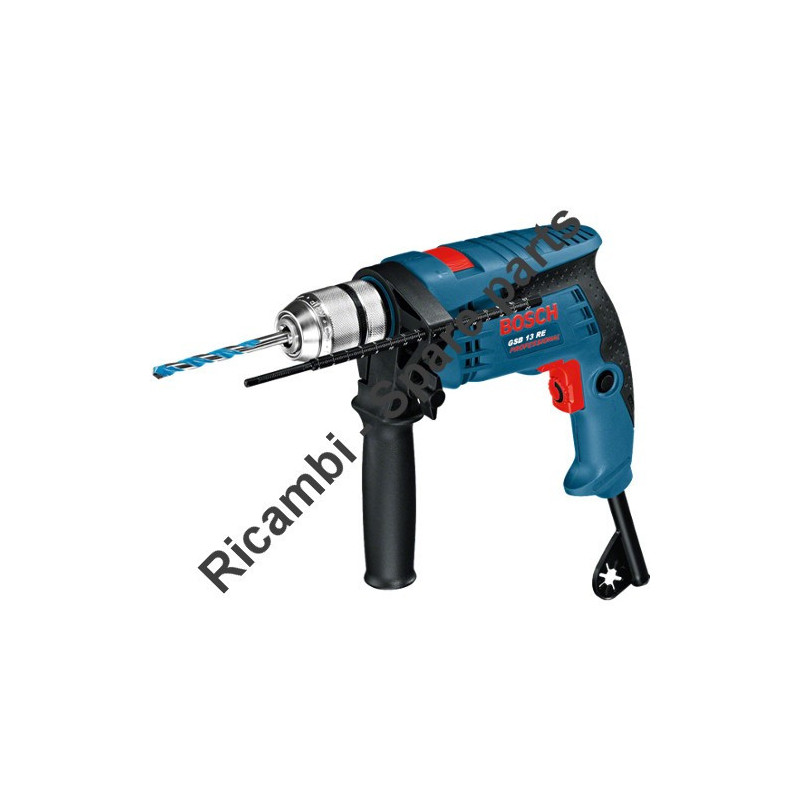

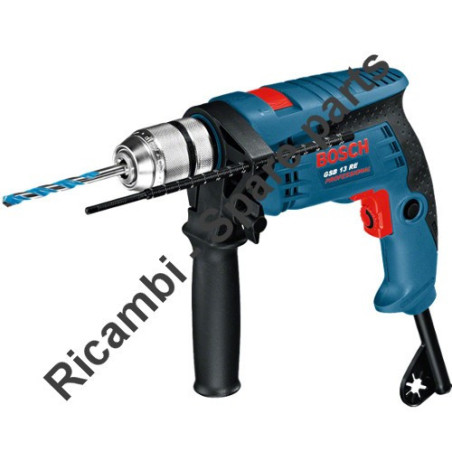

Bosch Spare Parts for Impact Drill GSB 13 RE
€17.28
Tax included
Bosch Spare Parts for Impact Drill GSB 13 RE
We have the original Spares BOSCH for Impact Drill GSB 13 RE - 0601131603, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Impact Drill GSB 13 RE. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Impact Drill GSB 13 RE
We have the original Spares BOSCH for Impact Drill GSB 13 RE - 0601131603, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Impact Drill GSB 13 RE. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
In the following table, look for the model of the Percussion Drill and the respective parts of the code.
| Impact Drill GSB 13 RE/0 601 131603 | ||
| 1 | 2605104 33 | Housing Section |
| 2 | 2604220601 | Field 220-240V |
| 3 | 2604011259 | Armature 220-230V |
| 3/50 | 2606610097 | Fan |
| 4 | 2607200556 | Switch |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9x90 MM |
| 9 | 2601116652 | Manufacturer's nameplate |
| 16 | 2604337104 | Brush Plate |
| 22 | 2910611002 | Tapping Screw DIN 7981-ST2,2x9,5-C-H |
| 24 | 1900210000 | O-Ring 5,0x1,5 MM |
| 25 | 2602098008 | Change-Over Switch RED |
| 31 | 2605510189 | Locking Piece |
| 32 | 2600190078 | Catch Disk |
| 35 | 2600914019 | Needle bearing |
| 37 | 2605805009 | Flanged Bearing |
| 38 | 2601990010 | Indexing Disk BLACK |
| 39 | 2601074004 | Pressure Plate |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 41 | 2604616006 | Compression Spring |
| 42 | 2600101047 | Shim 0,3 MM |
| 47 | 2608040120 | Frame |
| 53 | 2601329043 | Contact Strap |
| 55 | 1614431025 | Pvc-Insulated Cable L=95 MM |
| 56 | 2604448228 | Pvc-Insulated Cable L=120 MM BLUE |
| 746 | 2608571056 | Key Chuck 1/2" |
| 746/7 | 2607950007 | Chuck Wrench SG2 |
| 754 | 1612025031 | Auxiliary Handle Ø43 MM BLACK |
| 755 | 1613001009 | Depth-Gauge SW 6x210 MM |
| 805 | 1607000385 | Power supply cord EU 2,6m 2 x 1,0 mm |
| 808 | 2601117506 | Marking Plate |
| 813 | 2600905032 | Deep-Groove Ball Bearing 7x19x6 |
| 816/04 | 2607014017 | Carbon-Brush Set |
| 819 | 2603490017 | Torx Oval-Head Screw 3x10 |
| 826 | 2603490022 | Torx Oval-Head Screw 4x16 |
| 830 | 2606200094 | Gear Unit |
| 831 | 2606135933 | Drilling Spindle |
| 833 | 2605807933 | Bearing Bracket |
| 836 | 2605808925 | Gear Cover |
| 890 | 2607001305 | Fastening parts kit |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
GSB 13 RE - 0601131603
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
