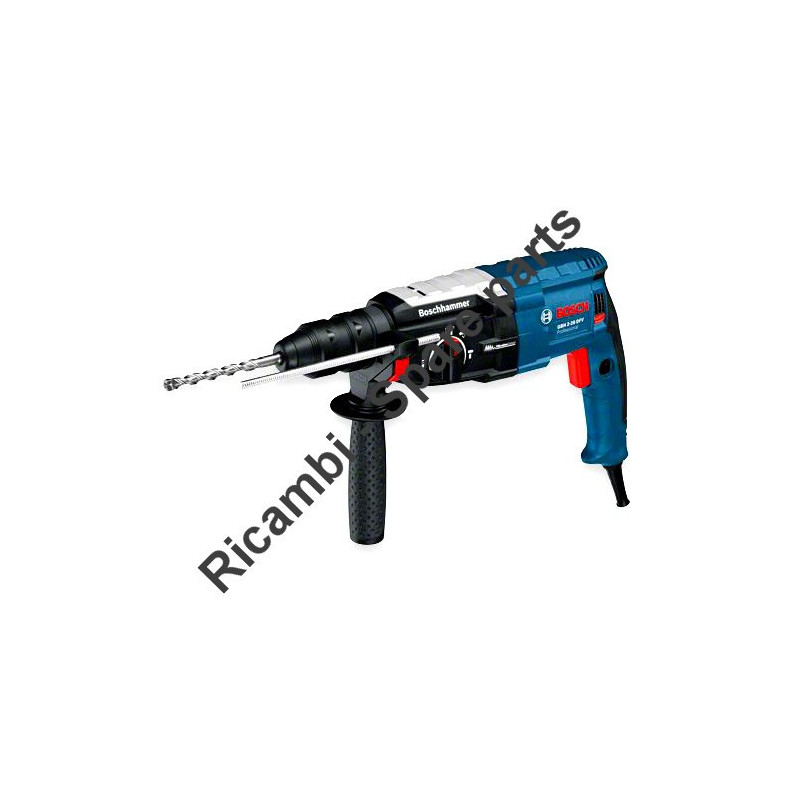

Bosch Spare Parts for Rotary Hammer SDS-Plus GBH 2-26 DFR

Bosch

 Original spare parts sourced directly from the manufacturer, with after-sales assistance at the best price on the web for to repair Rotary Hammer GBH 2-26 DFR - 0611254703.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Bosch GBH 2-26 DFR 0611254703

Rotary Hammer GBH 2-26 DFR/0 611 254 703
# Part Num. Description
2 1614220117 Field 230V
3 1614010709 Armature 230V
3/5 1616610094 Fan
3/13 1610905025 Deep-Groove Ball Bearing 7x19x6
3/14 1610905048 Deep-Groove Ball Bearing 9x24x7
3/49 1615700044 End Shield
4/102 1614449015 Connecting Cable
4/1/102 1614449021 Connecting Cable
6 1600703034 Grommet Ø7,3-Ø8,6x66 MM
9 1611110Z35 Manufacturer's nameplate GBH 2-26 DFR
10 1611110Z36 Manufacturer's nameplate GBH 2-26 DFR
11 1611110X17 Reference Plate
16 1614336061 Brush Plate
17 1614465011 Suppression Filter
19 1611329024 Switch Contact
24 1617000556 Toothed Shaft
26 1617000557 Hammer Piston
26/27 1610311018 Striker
26/29 1613105012 Piston Pin
26/56 1610210187 O-Ring
26/71 1610101011 Shim washer 1,2 MM THICK
30 1615819028 Drive end shield
30/35 1610202024 Plain bearing
31 1610913016 Needle-Roller Assembly
32 1612026037 Clamp Handle BLACK
32/46 1614690002 Driver Pin
32/49 1612026035 Switch Button RED
32/76 1610210046 O-Ring 10,5x2,7 MM
32/83 1614611006 Compression Spring
36 1611016003 Holding Plate
41 1615500343 Housing Cover BLUE
45 1610522013 Air-Deflector Ring
48 1611098008 Tab Washer
54 1610502016 Rubber Bushing
55 1610290226 Seal ring 53,0x7,0 MM
57 1610210068 O-Ring 24,0x2,5 MM
63 1610910063 Needle bearing Ø30xØ37x12 MM
64/1 1610190060 Supporting Disc
66 1610202021 Plain bearing
68 1610283036 Rotary shaft lip seal
76 1613435022 Thread-forming tap. Screw
77 2603490024 Torx Oval-Head Screw 4x25
78 2603490022 Torx Oval-Head Screw 4x16
79 1613435023 Thread-forming tap. Screw
80 1613435043 Screw
96 1614601046 Retaining ring
101 1614449014 Connecting Cable
103 2603490017 Torx Oval-Head Screw 3x10
106 1614611022 Plain bearing
106/105 1614611021 Compression Spring
321/22 1616312004 Cylindrical Gear
321/28 1613124082 Striker Pin
321/34 1610190049 Supporting Disc
321/37 1613100019 Straight Pin DIN6325-2,5x12-RIKO
321/38 1610190065 Catch Disk
321/42 1610290099 Thrust Ring
321/46 1610390066 Guide Bushing
321/50 1614611020 Compression Spring
321/58 1610210178 O-Ring
321/59 1610283039 Rotary shaft lip seal
321/60 1610210176 O-Ring 9,0x3,5 MM
321/72 1604601027 Retaining ring
321/82 1614601034 Retaining ring
321/83 1604601028 Retaining ring A22 DIN 7993
356/217 2603421229 Countersunk-Head Screw M6x23
390/89 1610499059 Guide Sleeve
390/90 1610590016 Collar Sleeve
390/91 1610200033 Thrust ring
390/95 1614643016 Compression Spring
390/97 1614601047 Retaining ring
651 1613001009 Depth-Gauge SW 6x210 MM
691/895 1615438409 Lock for 1 615 438 486+...358+...367
691/895 1615438431 Lock for 1 615 438 429 + 1 615 438 430
801 1617000558 Motor Housing BLUE
804 16170006D4 On-Off Switch
805 1607000392 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
806 1900452012 End Splice DIN 46 228-A1-6
807 2601035001 Cable Clip
808 1601106035 Nameplate 26x42 MM
811 1617000525 Carbon-Brush Set
820 16170006DX Intermediate Flange
821 1617000V42 Pipe
822 1612025057 Auxiliary Handle BLACK
822/120 1612025058 Auxiliary Handle M8 BLACK
822/124 1611316021 Clamping Band Ø50 MM
822/125 1613490002 T-Head Bolt M8x40 MM
822/802 1617000475 index turning toolholder
823 1617000579 Toothed Shaft
825 1617000895 Tool Holding Fixture
825/203 1610508047 Protective Cap
828 1617000V43 Striker Pin
833 1610590018 Holding Jacket
840 1617000581 Gear Housing
861 1615820097 Switching Element
864 1617000A07 Supporting Disc
883 1604601028 Retaining ring A22 DIN 7993
890 1617000V41 Guide Sleeve
891 1617000876 Hammer Pipe
895 1615430001 Grease Tube 225 ML
896 1615430020 Grease Tube 225 ML
897 1615430002 Grease Tube 225 ML
898 1615430019 Oil Reservoir 1000 ML
