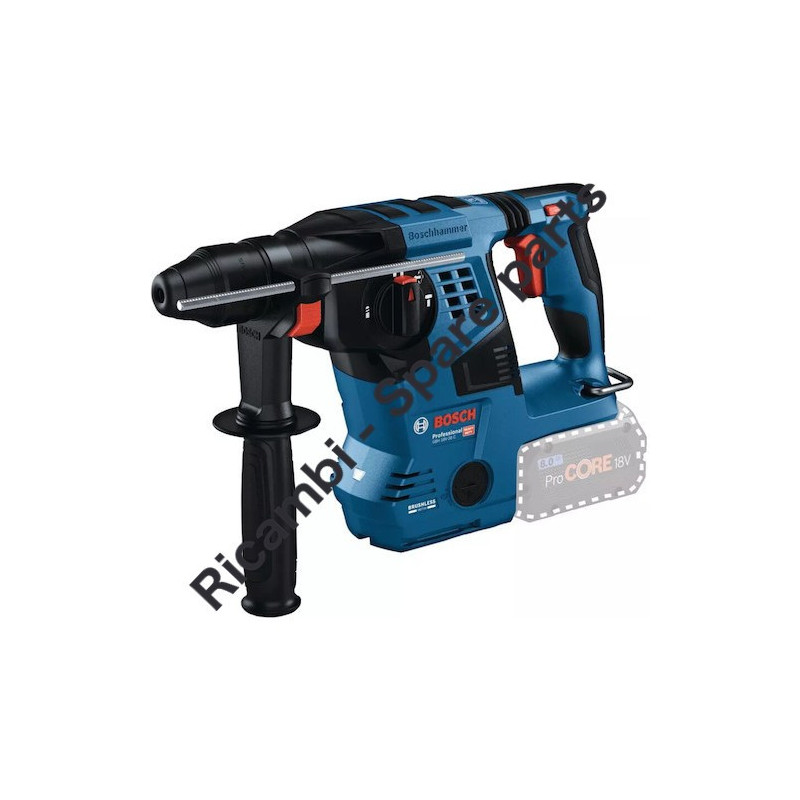

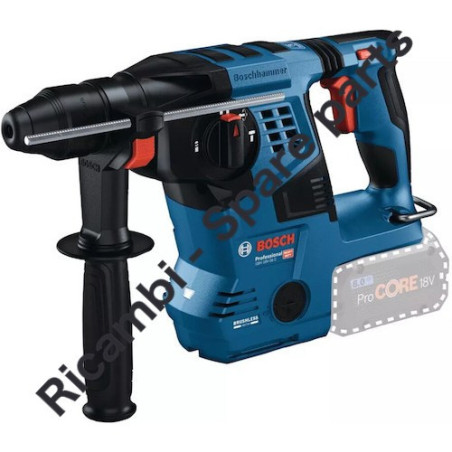

Bosch GBH 18V-28 C Parts
€30.39
Tax included
Bosch Spare Parts for Cordless Hammer Drill GBH 18V-28 C
Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Hammer Drill GBH 18V-28 C - 3611J20050.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Cordless Hammer Drill GBH 18V-28 C
Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Hammer Drill GBH 18V-28 C - 3611J20050.
In the following table, look for the model of the Hammer and the respective parts of the code.
| GBH 18V-28 C - 3 611 J20 050 | ||
| Pag.1 | ||
| # | Part Num | Description |
| 1/1 | 16051082R9 | Housing Section |
| 1/61 | 1600A0202R | Hook |
| 1/62 | 1600A0248A | Compression Spring |
| 1/65 | 1600A0248B | Set screw |
| 1/69 | 16055002H3 | Cover |
| 1/70 | 1600A020GG | Sliding element |
| 2/41 | 1600A01U07 | Stator Casing |
| 2/81 | 1603435086 | Torx head screw |
| 3 | 1600A01RN0 | Rotor |
| 3/14 | 1610905044 | Groove ball bearing |
| 3/47 | 1610283047 | Rotary shaft lip seal |
| 3/48 | 1610290102 | Bearing Ring |
| 3/48/1 | 1610210208 | O-Ring 24,0X2,0 MM |
| 3/49 | 1615700044 | End Shield |
| 5 | 1609280477 | Compression Spring |
| 9 | 160111C4V5 | Manufacturer’s nameplate |
| 10 | 160111C4V6 | Manufacturer’s nameplate |
| 11 | 160111C4UW | Reference Plate |
| 16 | 2607202905 | Switch |
| 17 | 1600A0253T | Switch-Pawl |
| 26 | 16170006A5 | Hammer Piston |
| 26/27 | 1610311019 | Striker |
| 26/29 | 1600A01TD0 | Piston Pin |
| 26/56 | 1610210121 | O-Ring 17,0X3,0 MM GREEN |
| 26/71 | 1610100016 | Guide Disc |
| 32 | 1612026151 | Clamp Handle BLACK |
| 32/32/2 | 1614690009 | Driver Pin |
| 32/32/3 | 1612026035 | Switch Button RED |
| 32/32/4 | 16002100A4 | O-Ring |
| 32/32/5 | 1614611006 | Compression Spring |
| 40 | 1600A01VU9 | Impact Mechanism Housing |
| 53 | 1610210245 | O-Ring |
| 55 | 1610210206 | Seal Ring 63,0X5,0 MM |
| 63/63 | 1600A001CN | Needle bearing |
| 63/64 | 1610390069 | Bushing |
| 66 | 1610202021 | Plain bearing |
| 68 | 1610283036 | Rotary shaft lip seal |
| 73 | 160343003T | Screw |
| 74 | 160343000V | Torx Oval-Head Screw |
| 75 | 2603490023 | Torx Oval-Head Screw 4×20 |
| 76 | 2603490027 | Torx Oval-Head Screw 4×40 |
| 78 | 1600A003TA | Shim 0,3 mm |
| 78 | 1600A004FU | Shim 0,15 mm |
| 78 | 1600A004FV | Shim 0,45 mm |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 80 | 1600A0276C | Ferrite |
| 82 | 1613490017 | Thread-forming tap. Screw M4×30 DIN7500-1 T-20 |
| 83 | 1600A029GH | Woven-Fabric Flex. Tubing |
| 84 | 1600A021VM | Switch Slide |
| 85 | 160120000P | Leaf Spring |
| 94 | 1600A02603 | Ribbon Cable |
| 98 | 1600A022TD | Contact Block |
| 100 | 1600A000LE | Lens |
| 101 | 1607503764 | Printed-Board Assembly |
| 102 | 1600A016CY | Electronics Module |
| 103 | 1600A024Y3 | Ribbon Cable |
| 104 | 16072335NS | Electronic Module |
| 113 | 1616325002 | Switching Panel |
| 130 | 1616333049 | Gear Sleeve |
| 135 | 1614601067 | Retaining Ring |
| 136 | 1610205017 | Felt Disc |
| 137 | 2916660012 | Spring Retaining Ring 30×1,2 mm, DIN 472 |
| 138 | 1600A028UM | Guide Piece |
| 200 | 1600A001CL | Bellows |
| 203 | 1610508047 | Protective Cap |
| 206 | 1613230003 | Ball Ø7,3 mm |
| 207 | 1614601027 | Retaining Ring |
| 208 | 1610101629 | Retaining Washer |
| 209 | 1610102089 | Friction Washer |
| 211 | 160460102S | Retaining ring |
| 321 | 1618597135 | Tool Holding Fixture |
| 321/22 | 1616312004 | Cylindrical Gear |
| 321/28 | 1613124098 | Striker Pin |
| 321/33 | 1610590020 | Holding Jacket |
| 321/34 | 1610190067 | Supporting Disc |
| 321/37 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 321/38 | 1600A008AG | Catch Disk |
| 321/42 | 1610102084 | Thrust Ring |
| 321/46 | 1610390068 | Guide Bushing |
| 321/50 | 1614615008 | Compression Spring |
| 321/58 | 1610210105 | O-Ring 18,0X3,5 MM |
| 321/59 | 1600A009VC | Shaft Seal |
| 321/60 | 1610210209 | O-Ring 9,5X3,5 MM |
| 321/72 | 1604601027 | Retaining ring |
| 321/86 | 1614601034 | Retaining ring |
| 321/87 | 1604601028 | Retaining ring A22 DIN 7993 |
| 802 | 1607000EX5 | Stator |
| 804 | 1607000EX3 | Electronics Module |
| 805 | 1607000EX6 | Electronics Module |
| 808 | 160111AA1D | Nameplate |
| 820 | 1617000A5J | Intermediate Flange |
| 821 | 1618597138 | Tool Holding Fixture |
| 825 | 1617000A5K | Jack Shaft |
| 828 | 1617000697 | Striker Pin |
| 830 | 1617000698 | Gear Sleeve |
| 892/1 | 1600A016ML | Cover Panel |
| 892/2 | 1600A013WF | Electronics Module |
| 893 | 1600A01N8R | Cover Unit |
| 899 | 1607000EX4 | Contact Plate |
| 8025 | 1618597139 | Tool Holding Fixture |
| 120 | 16020250AS | Auxiliary Handle |
| 120/120 | 160202509C | Auxiliary Handle |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490001 | T-Head Bolt M8X80 MM |
| 120/802 | 1618040092 | Support Clamp |
| 651 | 1613001009 | Depth-Gauge SW 6×210 mm |
| 653 | 1607A350AR | Battery Pack |
| 653/1/22 | 160111C29Y | Sticker |
| 654 | 2607225931 | Charger |
| 661 | 1615430010 | Grease Tube 30 ML |
| 870 | 1613523011 | Drill Chuck Shank 1/2", SDS-PLUS |
| 870/2 | 2603421207 | Countersunk-Head Screw M6×27-KØ11 (Lefthand Threads) |
| 871 | 1608571069 | Chuck Ø1,5–13 mm, 1/2" |
| 872 | 2607950007 | Chuck Wrench SG2 |
