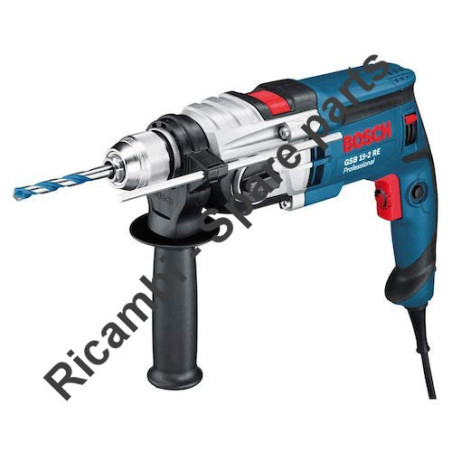

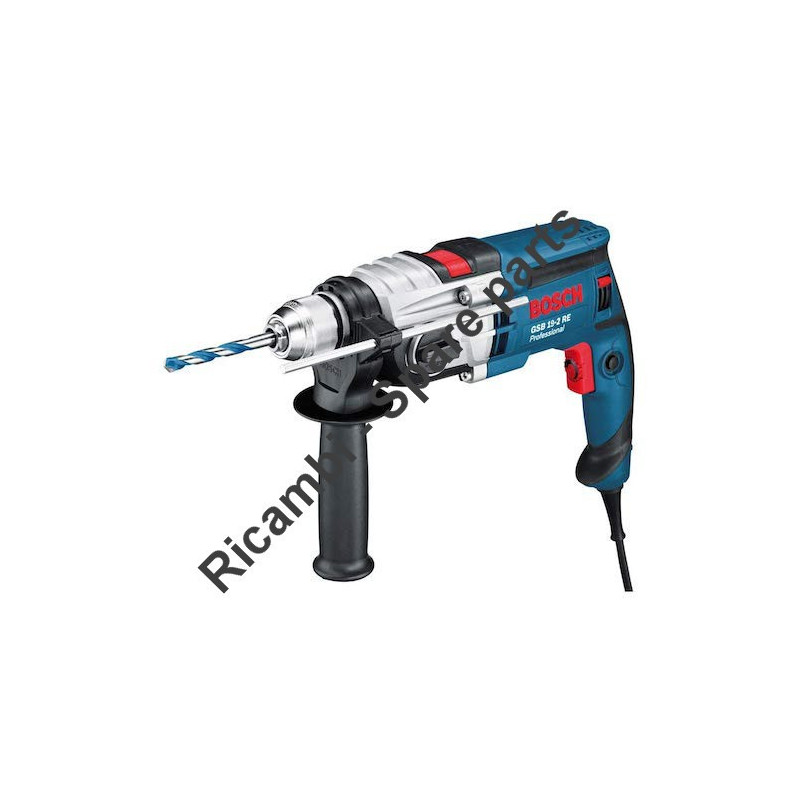

Bosch Spare Parts for Percussion Drill GSB 19-2 RE
€28.59
Tax included
Bosch Spare Parts for Percussion Drill GSB 19-2 RE
Bosch Original spare parts at attractive prices never seen on the web, we are a service center with after-sales service able to quickly solve the maintenance or repair any issues for Percussion Drill GSB 19-2 RE - 3601A7B500.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Percussion Drill GSB 19-2 RE
Bosch Original spare parts at attractive prices never seen on the web, we are a service center with after-sales service able to quickly solve the maintenance or repair any issues for Percussion Drill GSB 19-2 RE - 3601A7B500.
In the following table, look for the model of the Percussion Drill and the respective parts of the code.
| Percussion Drill GSB 19-2 RE - 3601A7B500 | ||
| # | Part Num. | Description |
| 1 | 1618B00A04 | Motor Housing |
| 2 | 1604220456 | Field 220-240V |
| 6 | 2600707075 | Cable Sleeve Ø6,4-Ø7,0x66 MM |
| 8 | 160111A3ZN | Nameplate |
| 9 | 2601115611 | Manufacturer's nameplate GSB 19-2 RE Sparepart information |
| 19 | 2603490017 | Torx Oval-Head Screw 3x10 |
| 20 | 2601115517 | Reference Plate |
| 24 | 2606135138 | Drilling Spindle |
| 26 | 2604616006 | Compression Spring |
| 27 | 1900905163 | groove ball bearing 17x35x10 |
| 28 | 2600100695 | Shim 0,5 MM |
| 29 | 2916650008 | Spring retaining ring DIN 471 17x1 MM |
| 30 | 2602300032 | Flat Key |
| 31 | 2600101671 | Retaining Washer |
| 33 | 2606317084 | Cylindrical Gear |
| 34 | 2606317098 | Cylindrical Gear |
| 35 | 2600101047 | Shim 0,3 MM |
| 36 | 2600190105 | Catch Disk |
| 38 | 2600000021 | Shim washer 1,0 MM |
| 38 | 2600000030 | Shim washer 1,35 MM |
| 38 | 2600000031 | Shim washer 1,7 MM |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 40 | 2603230007 | Ball 5,25 MM |
| 41 | 1618B00800 | Slide Switch |
| 42 | 2601074008 | Pressure Plate |
| 44 | 2601015099 | Seal |
| 46 | 1613435007 | Thread-forming tap. Screw DIN 7981-ST3,5x9,5-F |
| 47 | 1618B00A02 | Housing Cover |
| 53 | 2600550008 | Disc Spring |
| 59 | 2606309934 | Transmission |
| 61 | 2600100607 | Shim 0,3 MM |
| 63 | 2603435085 | Headless Screw |
| 65 | 2603105200 | Straight Pin |
| 66 | 1618B00807 | Adjusting Slide |
| 68 | 2604616014 | Compression Spring |
| 69 | 2602026157 | Rotary Knob BLACK |
| 71 | 2600590006 | Ratchet Cap |
| 72 | 2603490027 | Torx Oval-Head Screw 4x40 |
| 73 | 2603490022 | Screw 4x16 |
| 74 | 2601324062 | Switch Contact |
| 75 | 2601099259 | Contact |
| 76 | 2601099260 | Contact |
| 78 | 2916660014 | Spring retaining ring DIN 472 35x1,5 MM |
| 85 | 2608572142 | Keyless Chuck |
| 86 | 2604448331 | Connecting Cable |
| 87 | 2604448334 | Connecting Cable 48 mm |
| 88 | 1618B00808 | Holding Plate |
| 89 | 1618B00A06 | Bulb Shield |
| 90 | 2605510269 | Bulb Shield |
| 93 | 2914491411 | Thread-forming tap. Screw |
| 95 | 2601329118 | Clip BLACK |
| 653 | 2602025175 | Auxiliary Handle BLACK |
| 653/30/1 | 2602025180 | Handle BLACK |
| 653/30/2 | 2911061252 | Hex Screw M8x45 |
| 655 | 1613001009 | Depth-Gauge SW 6x210 MM |
| 803 | 2604011914 | Armature 230-240V |
| 804 | 2607200922 | On-Off Switch |
| 805 | 1607000386 | Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F |
| 810 | 1617000525 | Carbon-Brush Set |
| 810 | 1607000485 | Carbon-Brush Set 10 x 1 617 000 525 |
| 816 | 1614336061 | Brush Plate |
| 825 | 2605806884 | Gear Housing |
| 843 | 1600A0018A | Bearing Bracket |
| 845 | 2600148012 | Air Guide Plate |
| 867 | 2602033900 | Link Guide BLACK |
| 890 | 2607001305 | Fastening parts kit |
| 891 | 2603410046 | Cross Recessed-Head Screw M3x5 |
| 895 | 3605430003 | Grease Tube Albida |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GSB 19-2 RE - 3601A7B500
9 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
