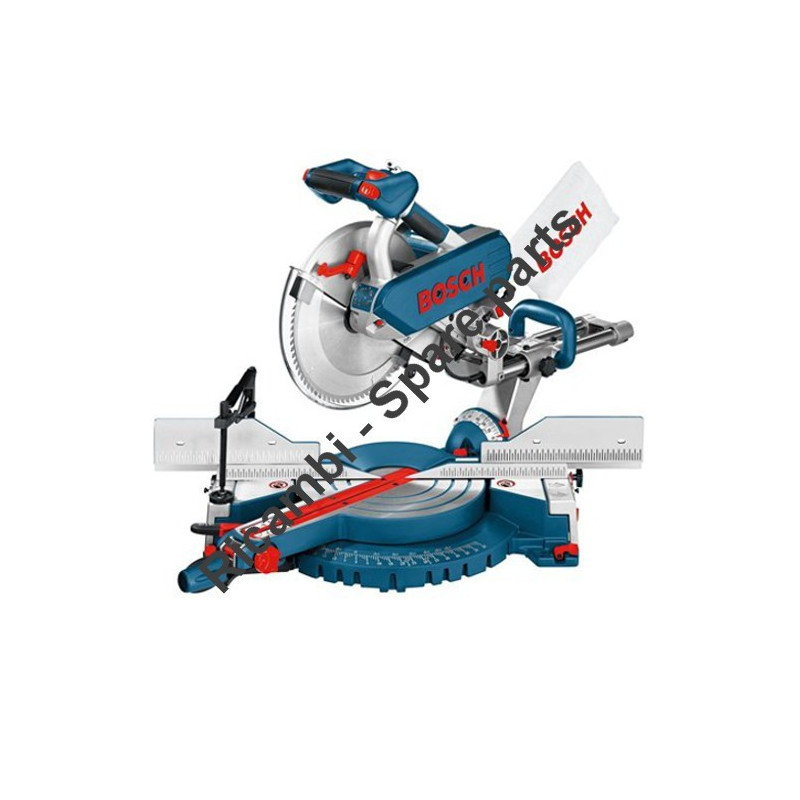

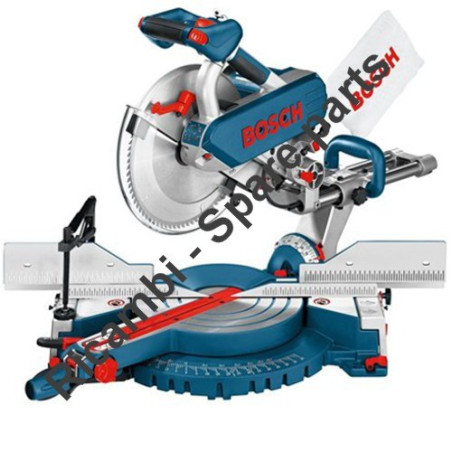

Bosch Spare Parts for Slide Mitre Saw GCM 12 SD - 0601B23503
€40.47
Tax included
Bosch Spare Parts for Slide Mitre Saw GCM 12 SD - 0601B23503
We are BOSCH original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Professional Slide Mitre Saw GCM12SD - 0601B23503.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Slide Mitre Saw GCM 12 SD - 0601B23503
We are BOSCH original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Professional Slide Mitre Saw GCM12SD - 0601B23503.In the following table, look for the model of the Miter Saw and the respective parts of the code.
| Slide Mitre Saw GCM 12 SD - 0601B23503 Pag.1 |
||
| # | Part Num. | Description |
| 5 | 1609902207 | Power supply cord |
| 6 | 2610915755 | Cord guard |
| 25 | 2610915766 | Saw Table |
| 29 | 1609902220 | Bearing Pedestal |
| 30 | 1609902221 | Support |
| 31 | 2610915772 | Handle |
| 32 | 2610915727 | Handle |
| 33 | 1609902222 | Bearing Pedestal |
| 48 | 2610915743 | Pointer |
| 56 | 1609902230 | Support Plate |
| 57 | 2610915706 | Knob |
| 58 | 2610915707 | Linkage |
| 59 | 2610915708 | Holding Fixture |
| 60 | 2610915709 | Leaf Spring |
| 61 | 1609902231 | Cover |
| 62 | 2610915711 | Lever |
| 63 | 2610915712 | Bracket |
| 64 | 2610915713 | Cam |
| 65 | 1609902232 | Knob |
| 66 | 2610915715 | Bracket |
| 68 | 2610915717 | Bracket |
| 72 | 2610911936 | Locking Lever |
| 74 | 2610915723 | Tension Rod |
| 76 | 2610915725 | Cam Ring |
| 82 | 2610915690 | Retaining Plate |
| 83 | 2610915691 | Cover |
| 84 | 2610915692 | Pointer |
| 85 | 2610915693 | Pointer |
| 88 | 2610915696 | Scale |
| 89 | 2610915697 | Stop Block |
| 93 | 2610915701 | Retaining Plate |
| 96 | 2610916458 | Stop Plate |
| 97 | 2610916459 | Guide Bracket |
| 98 | 2610916460 | Bushing |
| 102 | 2610915756 | Shaft L=105mm |
| 103 | 2610915759 | Detent Pin |
| 104 | 2610915760 | Sliding Bearing |
| 105 | 2610916792 | Sliding Rail |
| 106 | 2610916793 | Sliding Rail |
| 107 | 2610916794 | Torsion Spring |
| 108 | 2610916795 | Sleeve |
| 109 | 2610916796 | Shaft |
| 120 | 2610916807 | Guide Plate |
| 123 | 2610916810 | Detent Pin |
| 124 | 2610916811 | Lever Shaft |
| 125 | 1609902486 | Label |
| 135 | 2610917669 | Rod |
| 144 | 1609902689 | Nut |
| 145 | 2610911861 | Hex Screw |
| 147 | 2610911899 | Screw |
| 149 | 2610911918 | Screw |
| 150 | 2610911901 | Self-locking nut |
| 152 | 2610911897 | Screw |
| 154 | 2610911900 | Screw |
| 155 | 2610910784 | Screw |
| 156 | 2610997274 | Pin |
| 158 | 2610358801 | Washer |
| 159 | 2610911589 | Felt Washer |
| 160 | 2610919102 | Clamping Block |
| 161 | 1609902416 | Set screw |
| 162 | 2610328618 | Nut |
| 163 | 2610911584 | Rubber Pad |
| 164 | 2610911583 | Knob |
| 165 | 2610911582 | Spring |
| 166 | 2610911575 | Detent Pin |
| 167 | 2610911576 | Compression Spring |
| 168 | 2610911577 | Retaining Pin |
| 169 | 2610358848 | Screw |
| 170 | 2610327859 | Screw 18,9 MM |
| 193 | 2610913862 | Screw |
| 194 | 2610910786 | Set screw |
| 202 | 2610919066 | Plate |
| 203 | 2610355295 | Screw |
| 204 | 2610919067 | Compression Spring |
| 205 | 2610919068 | Compression Spring |
| 206 | 2610919069 | Spring Pin |
| 207 | 2610911873 | Stop Screw |
| 209 | 2610919071 | Stop Screw |
| 211 | 2610919072 | Brake Plate |
| 212 | 2610919073 | Brake Plate |
| 213 | 2610912587 | Plain Washer |
| 214 | 2615297331 | Nut |
| 215 | 2610919074 | Pvc Tube |
| 241 | 2610351178 | Hex Screw |
| 253 | 1609902276 | Label |
| 255 | 1609902490 | Label |
| 256 | 1609902491 | Label |
| 260 | 2610919090 | Tube |
| 261 | 2610308959 | Plain Washer |
| 266 | 2610910791 | Nut |
| 267 | 2610910792 | Washer |
| 268 | 2610068894 | Plain Washer |
| 306 | 1609902289 | Screw |
| 308 | 1609902308 | Plain Washer |
| 309 | 1609902309 | Spacer |
| 358 | 1609902575 | Screw |
| 3 Pag.2 |
||
| 22 | 2610915763 | Base |
| 23 | 1609902215 | Extension Stand |
| 24 | 1609902216 | Extension Stand |
| 26 | 2610022500 | Mitre Fence |
| 27 | 2610022501 | Parallel-Guide |
| 28 | 2610022502 | Parallel-Guide |
| 78 | 2610915686 | Stop Plate |
| 79 | 2610915687 | Knob |
| 80 | 2610915688 | Locking Lever |
| 81 | 2610915689 | Locking Lever |
| 86 | 2610915694 | Cable Cleat |
| 90 | 2610915698 | Wrench Socket |
| 91 | 2610915699 | Rubber Bushing |
| 95 | 2610911863 | Sliding Plate |
| 116 | 2610916803 | Extension Shaft |
| 126 | 2610911886 | Self-locking nut |
| 127 | 2610911887 | Plain Washer |
| 128 | 2610911868 | Spring Washer |
| 146 | 2610356437 | Set screw |
| 148 | 2610358846 | Rubber Bushing |
| 191 | 2610906037 | Bolt |
| 192 | 2610906041 | Spring Washer |
| 195 | 2610919060 | Shoulder Screw |
| 196 | 2610919061 | Compression Spring |
| 197 | 2610919062 | Screw |
| 198 | 2610919063 | Lock Screw |
| 199 | 2610912556 | Retaining snap ring |
| 201 | 2610919065 | Screwdriver Bit |
| 208 | 2610919070 | Shoulder Screw |
| 254 | 2610911658 | Warning Plate |
| 305 | 1609902288 | Screw |
| 310 | 1609902310 | Screw |
| 4 Pag.3 |
||
| 1 | 2610915750 | Motor Housing |
| 2 | 1609902201 | Field 230V |
| 3 | 1619P03780 | Armature 240V |
| 7 | 1609902306 | Fastening Clamp |
| 8 | 1609902211 | Nameplate |
| 10 | 1609203L02 | Carbon-Brush Set |
| 13 | 2610911928 | Ball Bearing |
| 14 | 2610911927 | Ball Bearing |
| 16 | 2610915761 | Brush Holder |
| 34 | 1609902223 | Gear Housing |
| 35 | 1609902224 | Safety Cover |
| 36 | 2610915731 | Intermediate Layer |
| 37 | 2610915732 | Housing Cover |
| 38 | 2610915733 | Housing Cover |
| 39 | 2610915734 | Handle Cover |
| 54 | 2610911853 | Torsion Spring |
| 55 | 2610915704 | Plate |
| 70 | 2610022558 | Plate Nut |
| 73 | 2610915722 | Baffle |
| 75 | 2610915724 | Roller |
| 77 | 2610915726 | Push-Button |
| 92 | 2610915700 | Bearing Cover Plate |
| 94 | 2610915702 | Gear Cover |
| 110 | 2610916797 | Locking Pin |
| 111 | 2610916798 | Toothed Gear |
| 112 | 1609902520 | Spindle |
| 114 | 1609902234 | Flange |
| 115 | 2610916802 | Brush-Cover Ø 22mm |
| 117 | 2610916804 | Drive disk |
| 118 | 2610916805 | Poli-V Belt 8PJ 584 5E |
| 119 | 2610916806 | Pulley |
| 121 | 2610916808 | Counter Shaft |
| 122 | 2610916809 | Wedge |
| 130 | 2610911908 | Set screw |
| 131 | 2610911937 | Shim |
| 132 | 1609902236 | Flange |
| 133 | 2610911870 | Plain Washer |
| 134 | 2610911871 | Screw |
| 137 | 2610911599 | Plain Washer |
| 140 | 2610911458 | Screw |
| 141 | 1619PA6363 | Screw |
| 151 | 2610347092 | Plain Washer |
| 157 | 2610355332 | Square Nut |
| 171 | 2610911911 | Shoulder Screw |
| 172 | 2610911921 | Round Rubber |
| 178 | 2610990521 | Spring retaining ring |
| 179 | 2610004925 | Screw |
| 181 | 2610355325 | Spring Washer |
| 182 | 2610018984 | Shoulder Screw |
| 183 | 2610327846 | Ball Bearing |
| 185 | 1609902307 | Screw |
| 186 | 2610993102 | Woodruff Key |
| 187 | 2610997281 | Spring retaining ring |
| 188 | 2610029674 | Washer |
| 189 | 2610996948 | Rubber Ring |
| 190 | 2610358922 | Needle-Roller Bearing |
| 218 | 2610327867 | Screw |
| 219 | 2610998575 | Screw |
| 222 | 2610919078 | Pad |
| 223 | 2610919079 | Ball Bearing |
| 224 | 2610919080 | Compression Spring |
| 225 | 2610358869 | Retaining snap ring |
| 226 | 1609902487 | Device cap |
| 228 | 2610358928 | Screw |
| 229 | 2610911569 | Insert |
| 230 | 2610327868 | Nut |
| 231 | 1609902277 | Pvc Tube |
| 232 | 2610911929 | Screw |
| 233 | 2610911450 | Washer |
| 234 | 2610911566 | Bearing cover |
| 235 | 2610318812 | Screw |
| 236 | 2610919083 | Retaining snap ring |
| 237 | 2610919084 | Screw |
| 258 | 1609902280 | Label |
| 259 | 1609902492 | Label |
| 270 | 1609902238 | Safety Cover |
| 272 | 1609902493 | Screw |
| 273 | 1609902241 | Bracket |
| 274 | 1619P03785 | Screw |
| 275 | 1609902243 | Spring |
| 276 | 1609902244 | Lever |
| 277 | 1609902245 | Shaft |
| 278 | 1609902246 | Plain Washer |
| 280 | 1609902494 | Screw M 4 length - 20 mm |
| 281 | 1609902248 | Cover |
| 282 | 1609902495 | Screw M 4 length - 8 mm |
| 283 | 1609902251 | Tractive Electromagnet |
| 285 | 1609902256 | Plunger Bar |
| 286 | 1609902257 | Housing |
| 307 | 1609902296 | Wire Retainer |
| 311 | 1609902311 | Screw |
| 312 | 1609902312 | Screw |
| 313 | 1609902313 | Set screw |
| 315 | 1609902497 | Manufacturer's nameplate |
| 356 | 1609902420 | Spring |
| 827 | 1619P03312 | Assembly Of Service Parts |
| 869 | 2610022556 | Service kit |
| 869/400 | 2610022557 | Wheel Guard |
| 5 Pag.4 |
||
| 4 | 2610950336 | Switch |
| 40 | 2610915735 | Bearing Pedestal |
| 41 | 2610915736 | Bearing Pedestal |
| 42 | 2610915737 | Bearing Pedestal |
| 43 | 2610915738 | Bearing Pedestal |
| 44 | 2610915739 | Trigger |
| 45 | 1609902227 | Button |
| 46 | 1609902228 | Button |
| 47 | 1609902229 | Linkage part |
| 49 | 2610915744 | Release Lever |
| 50 | 2610915745 | Collar |
| 51 | 2610915746 | Collar |
| 52 | 2610915747 | Latch |
| 53 | 2610915748 | Latch |
| 100 | 2610916462 | Detent Pin |
| 101 | 1619P03307 | Block |
| 129 | 2610911907 | Screw and washer assembly |
| 136 | 2610911598 | Shoulder Screw |
| 142 | 2610318846 | Screw |
| 143 | 1609902524 | Screw |
| 180 | 2610358812 | Bolt |
| 210 | 2610320304 | Screw |
| 216 | 1609902706 | Shoulder Screw |
| 221 | 2610919077 | Compression Spring |
| 238 | 2610320330 | Screw |
| 239 | 2610919085 | Compression Spring |
| 240 | 2610915162 | Screw |
| 242 | 2610914401 | Screw |
| 243 | 2610919086 | Pin |
| 244 | 2610919087 | Set screw |
| 245 | 2610358519 | Screw |
| 246 | 2610358521 | Hex Nut |
| 247 | 2610916061 | Stop Plate |
| 249 | 2610917658 | Adjusting Wrench |
| 250 | 2610917670 | Dust container |
| 251 | 2610919088 | Suction Tube |
| 252 | 2610919089 | Quick-Clamping Device |
| 262 | 2610911933 | Connector |
| 263 | 1609902283 | Cable |
| 264 | 1609902284 | Cable |
| 265 | 1609902285 | Cable |
| 279 | 1609902286 | Cable |
| 287 | 1609902258 | Screw |
| 288 | 1609902259 | Upper Housing |
| 289 | 1609902260 | Screw |
| 290 | 1609902262 | Condenser |
| 291 | 1609902263 | Connection Block |
| 292 | 1609902496 | Screw M4 x 10 |
| 293 | 1609902265 | Housing Base |
| 294 | 1609902266 | On-Off Switch |
| 295 | 1609902268 | Condenser |
| 296 | 1609902269 | Clamp |
| 297 | 1609902270 | Pin |
| 298 | 1609902271 | Pin |
| 299 | 1609902273 | Screw |
| 300 | 2610911878 | Fastening Clamp |
| 302 | 1609902275 | Fastening Clamp |
| 304 | 1609902287 | Cable |
| 314 | 2610921512 | Double head engin wrench |
| 317 | 1609902378 | Plain Washer |
| 318 | 1609902399 | Screw |
| 670 | 2610919256 | Fitting |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GCM12SD - 0601B23503
12 Items
Data sheet
- SHIPPING IN:
- RESERVATION ONLY
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
New
You might also like
Comments (0)
No customer reviews for the moment.
Viewed products
Customers who bought this product also bought:
16 other products in the same category:
Bosch Spare Parts for Slide Mitre Saw GCM 12 SD - 0601B23503
We are BOSCH original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Professional Slide Mitre Saw GCM12SD - 0601B23503.
