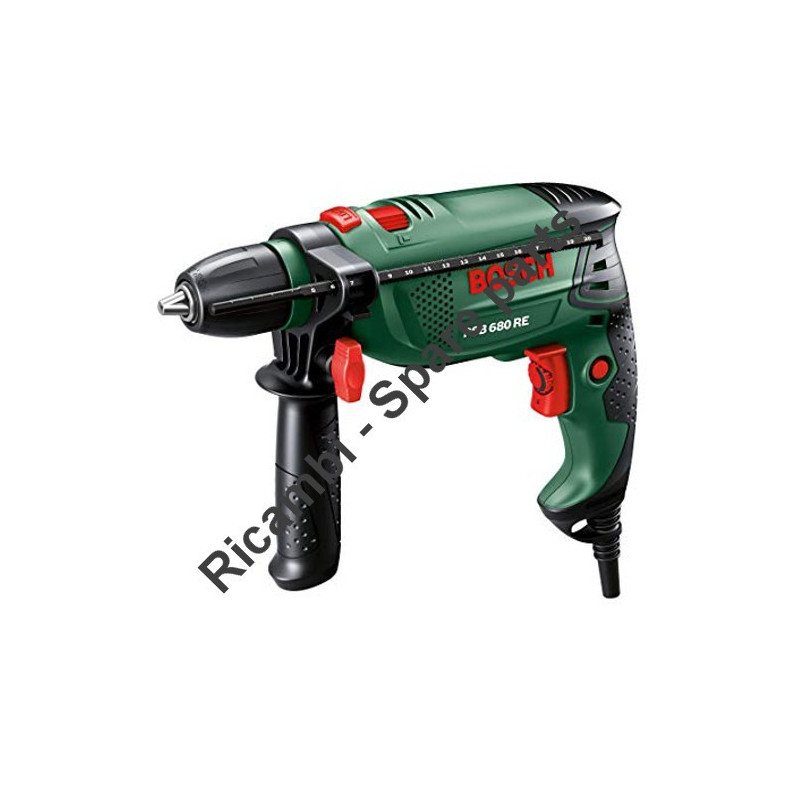

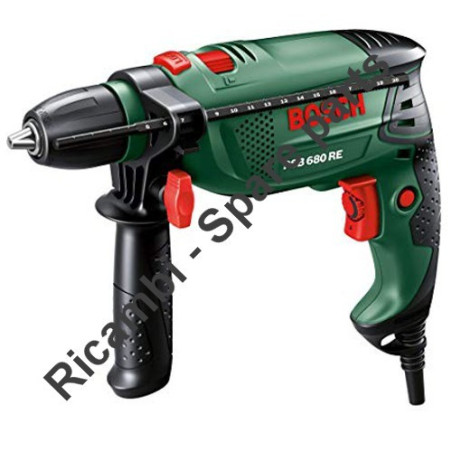

Bosch Spare Parts for Percussion Drill PSB 680-2 RE - 0603161503
€24.82
Tax included
Bosch Spare Parts for Percussion Drill PSB 680-2 RE - 0603161503
BOSCH service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Percussion Drill PSB 680-2 RE - 0603161503 /230 V/EU.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Percussion Drill PSB 680-2 RE - 0603161503
BOSCH service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Percussion Drill PSB 680-2 RE - 0603161503 /230 V/EU.
In the following table, look for the model of the Percussion Drill and the respective parts of the code.
| Percussion Drill 0603161503 - PSB 680-2 RE/230 V/EU | ||
| # | Part Num. | Description |
| 1 | 2605104506 | Housing Section GREEN |
| 2 | 2604220647 | Field 230V |
| 3 | 2604011090 | Armature 230-240V |
| 3/60 | 2606610029 | Fan |
| 4 | 2607200224 | On-Off Switch |
| 2607200190 | Switch | |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 7 | 2601035001 | Cable Clip |
| 9 | 2601118844 | Manufacturer's nameplate SUNNY SIDE |
| 12 | 2607329114 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7x19x6 |
| 14 | 2600914019 | Needle bearing |
| 16 | 2605807060 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3x6,5-4.8 |
| 19 | 2603490022 | Screw 4x16 |
| 20 | 2601118563 | Manufacturer's nameplate SHADOW SIDE |
| 27 | 2603490017 | Torx Oval-Head Screw 3x10 |
| 28 | 2603429006 | Oval-Head Screw |
| 29 | 2601022000 | Damping Plate |
| 30 | 2606135072 | Drilling Spindle 1/2" |
| 31 | 2600118001 | Locking Washer 0,6 MM |
| 2600118002 | Locking Washer 0,8 MM | |
| 2600118006 | Locking Washer 0,3 MM | |
| 32 | 2604616006 | Compression Spring |
| 33 | 2600301031 | Sintered-Metal Bushing 14,7-0,15 |
| 34 | 2606317082 | Cylindrical Gear |
| 35 | 2606317083 | Cylindrical Gear |
| 36 | 2600101515 | Shim 1,0 MM |
| 37 | 2600101047 | Shim 0,3 MM |
| 39 | 2600101084 | Retaining Washer |
| 40 | 2602300034 | Flat Key |
| 41 | 2601098031 | Guiding Plate |
| 42 | 2600190070 | Catch Disk |
| 44 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 45 | 2601990001 | Indexing Disk BLACK |
| 46 | 2601074003 | Pressure Plate |
| 52 | 2600100607 | Shim 0,3 MM |
| 53 | 2600209012 | Spacer Ring |
| 54 | 2600400027 | Bearing Sleeve |
| 56 | 2601990009 | Fork Lever |
| 57 | 2602026091 | Rotary Head |
| 58 | 2600590006 | Ratchet Cap |
| 62 | 2601335001 | Driver Pin |
| 64 | 2600100618 | Shim washer |
| 66 | 2605807073 | Bearing Bracket |
| 67 | 2600190071 | Catch Disk |
| 68 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 75 | 1900210000 | O-Ring 5,0x1,5 MM |
| 76 | 2601005011 | Felt Strip |
| 77 | 2601005016 | Felt Strip |
| 82 | 2603421226 | Countersunk-Head Screw M6x27 LEFTHAND THREADS |
| 85 | 2601110117 | Sticker |
| 90 | 2604448060 | Cable L=173 MM WHITE |
| 91 | 2604448045 | Cable L=98 MM BLACK |
| 92 | 2604448034 | Connecting Cable L=88 MM WHITE |
| 93 | 2604448132 | Connecting Cable L=103 MM BLUE |
| 94 | 2604448115 | Connecting Cable L=73 MM WHITE |
| 95 | 2604448170 | Earth Conductor |
| 96 | 2600100066 | Plain Washer |
| 753 | 1612025031 | Auxiliary Handle Ø43 MM BLACK |
| 753/20 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 753/30 | 1613480007 | Wing Screw M6x(15)55 |
| 753/50 | 2608040014 | Clamping Plate M6 |
| 753/60 | 1613480008 | Wing Screw M6x20 MM |
| 754 | 2607000122 | Drill Holder |
| 755 | 2603001019 | Depth-Gauge |
| 780 | 1608571069 | Chuck Ø1,5-13 MM, 1/2" |
| 780/800 | 2607950007 | Chuck Wrench SG2 |
| 805 | 1607000388 | Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F |
| 808 | 160111A3H3 | Nameplate |
| 816/040 | 2604321916 | Carbon-Brush Set |
| 816/060 | 2601329051 | Ratchet Cap |
| 2601322013 | Ratchet Cap | |
| 822 | 2607200231 | Change-Over Switch |
| 849 | 2606309931 | Toothed Shaft Z= 10/29/22 |
| 863 | 2916080007 | Locking Washer DIN 6799-4-FSt |
