Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5-40 DE

€57.08
Tax included

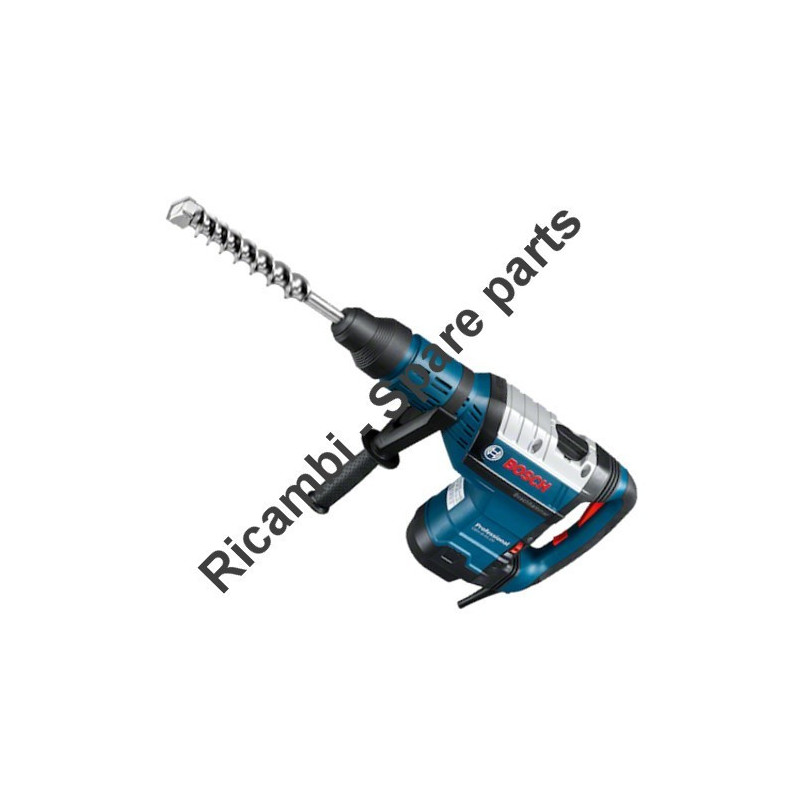

Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5-40 DE

Bosch original spare parts for to replace broken parts for to fix Rotary Hammer GBH 5-40 DE/230V/EU - 0611241703.

Bosch GBH 5-40 DE 0611241703
ITEM CODE: 1614220123
Quantity
Usually Ships in: 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5-40 DE

Bosch original spare parts for to replace broken parts for to fix Rotary Hammer GBH 5-40 DE/230V/EU - 0611241703.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Bosch GBH 5-40 DE 0611241703

Rotary Hammer 0611241703 - GBH 5-40 DE/230V/EU
# Part Num. Description
1 1615102155 Motor Housing BLUE
2 1614220123 Field 220-240V
4 1617200101 Switch
6 1600703035 Grommet Ø8,7-Ø9,6x66 MM
7 1601302018 Fastening Clamp
9 1611110C42 Manufacturer's nameplate
13 1610900026 groove ball bearing 8x24x8
14 1610905028 groove ball bearing 12x32x10
15 1616610090 Fan
21 1610508038 Protective Cap
22 1610591027 Protection Sleeve
23 1610520001 Stop Sleeve
25 1612300036 Stopping Device
26 1610290076 Indexing Disk
27 1610591028 Air-Deflector Ring
28 1614621000 Compression Spring
31 1610290049 Damping Ring
34 1610516013 Flange
37 1615500315 Bearing Pedestal
38 1615190101 Covering hood
42 1614336046 Brush Holder
43 1615500410 Fan Cover BLACK
44 1614617003 Compression Spring
47 1610300064 Gear Sleeve
48 1616334012 Clutch Sleeve
51 1616333041 Crown Gear
53 1610290068 Support Disc
57 1618710074 Striker
72 1616317064 Eccentric Cog Wheel
74 1611921001 Guide Plate
75 1615132087 Handle BLUE
79 1613435015 Torx Oval-Head Screw M5x12-TORX,T25 SILVER
80 1617233032 Speed governor 220-240V
81 1615132088 Handle Cover BLACK
84 160202507H Auxiliary Handle
85 1618040074 Support clamp
86 1613490002 T-Head Bolt M8x40 MM
87 1611316019 Clamping Band Ø62 MM
94 1610102056 Friction Washer
95 1610210173 O-Ring 32,0x1,5 MM
97 1610031005 Locking Washer
99 1610102059 Support Disc
102 1610102057 Shim 0,3 MM
102 1610102058 Shim 0,2 MM
104 1610210160 O-Ring 52,0x2,0 MM
111 1610290064 Bushing
112 1613300008 Hex Nut DIN 936-M8x1-8
113 1613435009 Tapping Screw ST-4,8x57,5-TORX,T20
116 1610311017 Inner Ring
117 1610913029 Needle-Roller Assembly
121 1610328019 Bushing
124 1610115001 Collar Sleeve
126 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
138 1611015053 Sealing Frame
141 1610290066 Rotary shaft lip seal
142 1610290069 Rotary shaft lip seal
143 1614601021 Retaining ring DIN 7993-28x2
144 1610251006 Supporting Disc
145 1610119012 Spring retaining ring
154 2916660023 Spring retaining ring DIN 472 52x2MM
160 1610210161 Damping Ring
162 1610210163 O-Ring 22,0x3,5 MM
163 1610290065 Seal Ring
165 1610210079 O-Ring 22,0x4,0 MM
167 1610283033 Rotary shaft lip seal
171 1613435016 Torx Oval-Head Screw M5x20-TORX,T25 SILVER
172 1613435013 Torx Oval-Head Screw M6x30-TORX,T30 SILVER
174 1613435012 Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER
175 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z
176 1613435012 Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER
177 1603435051 Tapping Screw ST3,9x32 SILVER
192 1614611019 Compression Spring
195 1613435020 Torx Oval-Head Screw
198 1618900001 Control Lever
200 1610284000 Bellows
202 1611010006 Switch Hook
203 1610322009 Support Disc SILVER
661 1615430010 Grease Tube 30 ML
691 1615438461 Carrying Case
803 1614011098 Armature 220-240V
805 1617000723 Power supply cord
806 3604477009 End Splice
808 160111A3H5 Nameplate
811 1617014144 Carbon-Brush Set
811 1607000492 Carbon-Brush Set 10 x 1 617 014 144
816 1609271281 Socket head cap screw
817 1614652004 Spiral Spring
818 2910011082 Socket head cap screw DIN 84-AM3,5x6-5.8
821 1617000842 Bushing
830 1617000478 Supporting Disc
835 1617000433 Hammer Pipe
840 1617000840 Impact Mechanism Housing
841 1617000460 Striker Pin
849 1617000839 Control Fork
854 1617000461 Stop Disc
856 1617000843 Hammer Piston
860 1617000A37 Spur Wheel Clutch
873 1617000861 Housing Cover
884 1612025055 Auxiliary Handle Ø62 MM BLACK
886 1617000459 Auxiliary Handle M8 BLACK
891 1617000853 Spring Pack
895 1615430019 Oil Reservoir 1000 ML
897 1617000430 Wear and Tear Part Set
898 1615437511 Oil Reservoir 50 ML
