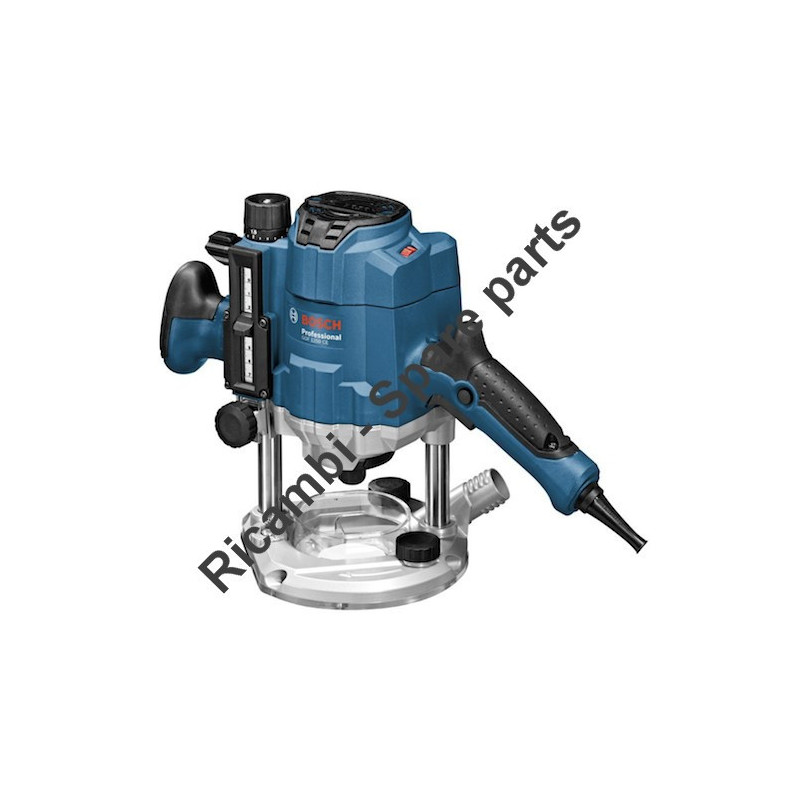

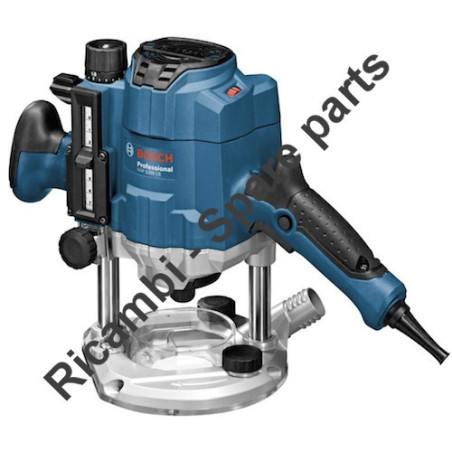

Bosch Spare Parts for Router GOF 1250 CE

Router GOF 1250 CE/3 601 F26 000
2	2604220763	Pole Shoe 230V
4	2607200688	Switch
6	2600707075	Cable Sleeve Ø6,4-Ø7,0x66 MM
8	2601112365	Nameplate
9	160111C15U	Manufacturer's nameplate GOF 1250 CE
13	2600905086	groove ball bearing 7x19x6
16	2604337124	Brush Plate
19	2603490025	Torx Oval-Head Screw 4x30
31	2604618008	Compression Spring
32	2600101127	Plain Washer
33	2600102078	Damping Element
36	2605132076	Handle
37	2605132077	Housing Cover
40	2605133040	Handle
41	2603490022	Screw 4x16
50	2603101067	Guide Piece
54	1600206036	Rubber Ring
55	2600148017	Air-Deflector Ring
59	2916650006	Retaining clip DIN 471-15x1-FSt
60	2603300021	Hex Nut
62	2602305066	Clamping Piece
63	2604618009	Compression Spring
64	2600400077	Chuck
68	2605500213	Cover
70	2601030134	Pointer
74	2603490017	Torx Oval-Head Screw 3x10
78	2600451006	Control Knob
80	2912761122	Torx Oval-Head Screw
81	2600118025	Locking Washer
84	1604477005	Blade terminal
85	1607233549	Speed governor
90	2601030151	Straight Edge
93	2602317075	U section
94	2604448373	Connecting Cable
95	2603435086	Tapping Screw
96	2600224011	Locking Washer
801	2605105971	Motor Housing
803	2604011957	Armature 230V
805	1607000386	Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F
810	2604321958	Carbon-Brush Set
820	2600009022	Sliding Plate
821	2601016110	Base Plate
822	2605500215	Fan Housing
823	2601099903	Adjusting Piece
824	2600290065	Suction Hood
825	2603481024	Knurled Thumbscrew
826	2601902007	Adjusting lever
853	1907950511	Single-Head Eng. Wrench SW19
854	2610991370	Guide Sleeve
855	2603105140	Centering Pin
890	2607001305	Fastening parts kit
891	2603429010	Cross Recessed-Head Screw
