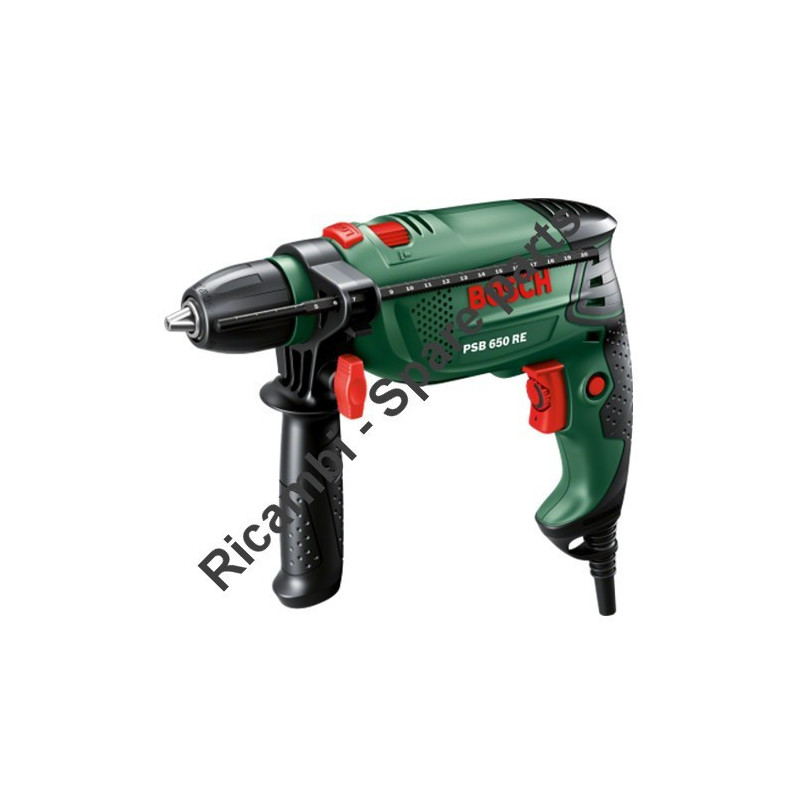

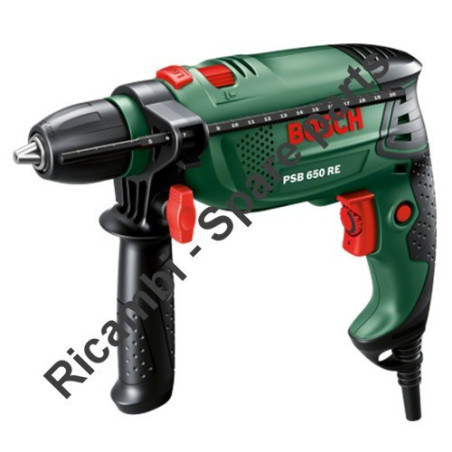

Bosch Spare Parts for Percussion Drills PSB 650 RE
€16.19
Tax included
Bosch Spare Parts for Percussion Drill PSB 650 RE
Bosch genuine replacement parts for to replace broken parts for to fix Percussion Drill PSB 650 RE - 0603338760.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Percussion Drill PSB 650 RE
Bosch genuine replacement parts for to replace broken parts for to fix Percussion Drill PSB 650 RE - 0603338760.
In the following table, look for the model of the Percussion Drill and the respective parts of the code.
| Percussion Drill PSB 650 RE/0 603 338 760 | ||
| # | Part Num. | Description |
| 1 | 2605104561 | Housing Section GREEN |
| 2 | 2604220594 | Field 220-240V |
| 3 | 2604011154 | Armature 220-240V |
| 3/50 | 2606610029 | Fan |
| 4 | 2607200556 | Switch |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9x90 MM |
| 9 | 2601117335 | Manufacturer's nameplate PSB 650 RE |
| 16 | 2604337059 | Brush Plate |
| 22 | 2910611002 | Tapping Screw DIN 7981-ST2,2x9,5-C-H |
| 24 | 1900210000 | O-Ring 5,0x1,5 MM |
| 25 | 2602098008 | Change-Over Switch RED |
| 27 | 2603239024 | Damping Element |
| 28 | 2608040109 | Handle Cover BLACK |
| 29 | 2605510160 | Insert Piece |
| 35 | 2600914019 | Needle bearing |
| 37 | 2600301052 | Porous Bearing |
| 38 | 2601990010 | Indexing Disk BLACK |
| 39 | 2601074004 | Pressure Plate |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 41 | 2604616006 | Compression Spring |
| 42 | 2600101047 | Shim 0,3 MM |
| 45 | 2604610047 | Compression Spring |
| 46 | 2608572121 | Keyless Chuck 1/2" |
| 47 | 2608040120 | Frame |
| 48 | 2600390031 | Sleeve |
| 52 | 2601119419 | Reference Plate |
| 53 | 2601329043 | Contact Strap |
| 54 | 2601119602 | Reference Plate RED |
| 55 | 1614431025 | Pvc-Insulated Cable L=95 MM |
| 56 | 2604448228 | Pvc-Insulated Cable L=120 MM BLUE |
| 754 | 2602025102 | Auxiliary Handle 1/2" |
| 755 | 2603001019 | Depth-Gauge |
| 805 | 1607000388 | Power supply cord EU 2,65m 2 x 1,0mm |
| 808 | 2601117436 | Nameplate |
| 813 | 2600905032 | Deep-Groove Ball Bearing 7x19x6 |
| 816/040 | 2604321930 | Carbon-Brush Set |
| 819 | 2910611006 | Tapping Screw DIN 7981-ST2,9x13-C-H |
| 826 | 2912401020 | Tapping Screw DIN 7981-3,9x19-C-Z-ST |
| 831 | 2606135929 | Drilling Spindle 1/2" |
| 833 | 2605807932 | Bearing Bracket |
| 834 | 2603231040 | Push-Button BLACK |
| 836 | 2605808922 | Gear Cover GREEN |
| 890 | 2607001305 | Fastening parts kit |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
