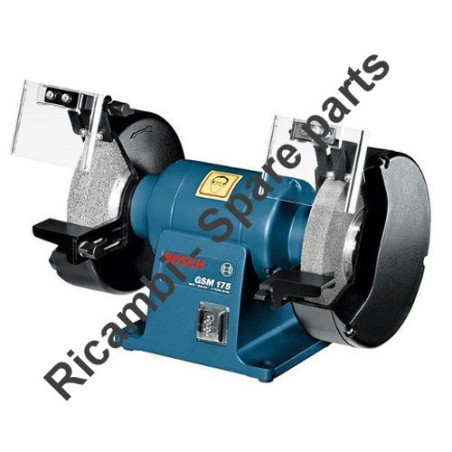

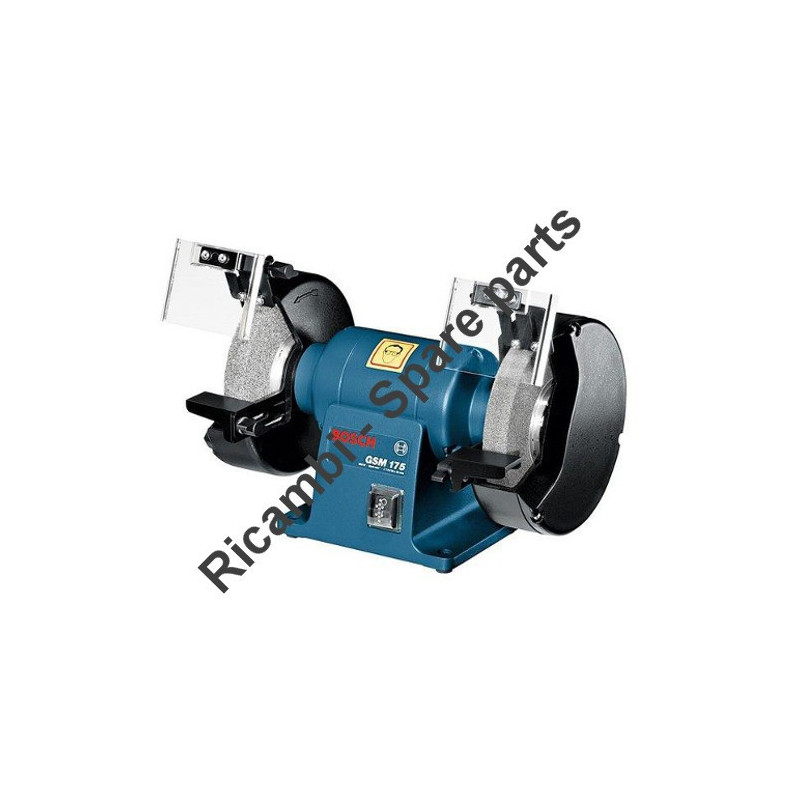

Bosch Spare Parts for Bench Grinder GSM 175

€3.93
Tax included

Bosch Spare Parts for Bench Grinder GSM 175

Bosch genuine replacement parts for to replace broken parts for to fix Bench Grinder GSM 175 - 0601277003.

Bench Grinder GSM 175 - 0601277003
ITEM CODE: 1601118386
Quantity
on 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Bosch Spare Parts for Bench Grinder GSM 175

Bosch genuine replacement parts for to replace broken parts for to fix Bench Grinder GSM 175 - 0601277003.

In the following table, look for the model of the Bench Grinder and the respective parts of the code.
Bench Grinder GSM 175 - 0601277003

Bench Grinder GSM 175/0 601 277 003
# Part Num. Description
1 1609203271 Stator 230-240V
2 1609203649 Rotor 230V
3 1609203298 End Shield
4 1900905124 groove ball bearing 20x42x12
5 1609203230 Corrugated Washer
6 2910011166 Socket head cap screw DIN 84-BM5x30-5.8
7 2916690004 Spring Lock Washer DIN 128-A5-FST
8 1609203231 Insulating Sleeve
9 1609203247 End Splice
10 1609203226 Base Plate
11 1609203273 Motor Capacitor
12 2916040008 Spring Washer DIN 6797-J8,2-FST
13 2915011009 Hex Nut DIN 934-M8-8-A
14 1609203235 Connecting Cable
17 1901091001 Socket-Terminal Strip 2x2,5 MM/2
18 2910011058 Socket head cap screw DIN 84-AM3X14-5.8
19 1609203238 Clamping Plate
20 2916030006 Toothed lock washer DIN 6797-A4,3-FST
21 2910001118 Socket head cap screw DIN 84-AM4x8-4.8
22 2910022197 Socket head cap screw DIN 84-M 6x16-8.8
23 1609203239 Base Plate
24 2910011120 Socket head cap screw DIN 84-AM4x10-5.8
25 1609203240 Rubber Base
26 1609203241 Tip Switch
28 1601118394 Manufacturer's nameplate
29 1609203243 Clamping Plate
30 1609203244 Clamping Plate
31 2910011064 Socket head cap screw DIN 84-AM3x25-5.8
32 2915011003 Hex Nut DIN 934-M 3-m-8
33 2910021130 Socket head cap screw DIN 84-AM4x20-8.8
34 2915011005 Hex Nut DIN 934 -M4-m-8
35 1609203245 Cable Passage
36 1609203246 Power supply cord
37 1609203247 End Splice
38 1609203636 Protective Cover
1609203274 Protective Cover
38/2 1609203636 Protective Cover
39 1609203638 Protective Cover
1609203275 Protective Cover
39/2 1609203639 Protective Cover
40 1609203276 Connecting Carrier
41 1609203302 Connecting Carrier
42 2912341203 Countersunk-Head Screw DIN 965-M6x25-8.8-Z
43 1609203252 Clamping Flange
46 1609203640 Counterflange Ø 10 MM
1609203253 Counterflange Ø18 MM
48 2915011010 Hex Nut DIN 934-M 10-m-8
2915011014 Hex Nut DIN 934 M18-8-A
49 1609203621 Hex Nut M10
1609203299 Hex Nut M18 LEFTHAND THREADS
50 1609203641 Lateral Guard
1609203283 Lateral Guard
51 2910021126 Socket head cap screw DIN 84-AM4x16-8.8
2910021126 Socket head cap screw DIN 84-AM4x16-8.8
52 2916681005 Spring Lock Washer B 4 DIN 127
2916681005 Spring Lock Washer B 4 DIN 127
53 1609203300 Support Plate
55 2910281201 Round-Head Bolt DIN 603-M6x20
56 2916011013 Plain Washer DIN 433-6,4-ST 50
57 1609203258 Wing Nut
58 1609203259 Guard Plate
59 1609203260 Guard Plate
60 2910021152 Socket head cap screw DIN 84-AM5x10-8.8
61 2916060006 Spring Washer DIN 137-A5-FST
62 2911051195 Hex Screw ISO-4017-M6x14-5.6
64 1609203261 Protective Glass
65 1609203295 Protective Glass
66 1601118386 Reference Plate
67 1609203293 Seal
68 1609203296 Grommet
69 2916690005 Spring Lock Washer M6
70 1601118388 Reference Plate
71 1601118391 Nameplate

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GSM 175 - 0601277003
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS APPROX.
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
New

Download

Diagram Bosch GSM 175

Diagram Bosch GSM 175

Download (95.07KB)
