Annovi & Reverberi Parts for Pressure Washer AR1010N
€18.08
Tax included

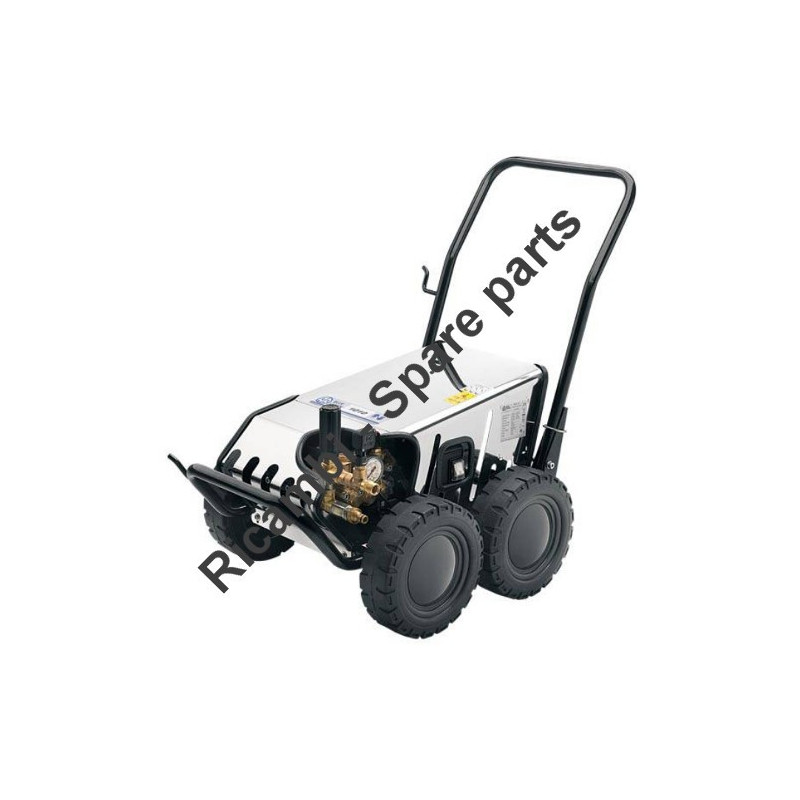

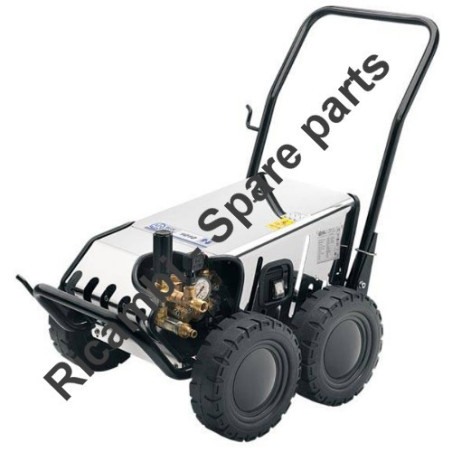

Annovi & Reverberi Parts for Pressure Washer AR 1010N
Genuine Parts Annovi & Reverberi for repair or replacement of Pressure Washer Blue Clean 1010N - 25282.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Annovi & Reverberi Parts for Pressure Washer AR 1010N
Genuine Parts Annovi & Reverberi for repair or replacement of Pressure Washer Blue Clean 1010N - 25282.
In the following tables, look for the spare part and its respective code.
| Pressure Washer AR Blue Clean 1010N - 25282 | ||
| Casing | ||
| # | Part Num. | Description |
| 1 | 50601 | Gasket |
| 2 | 51387 | Casing |
| 3 | 1262790 | Detergent hose |
| 4 | 1341030 | Filter |
| 5 | 50531 | Fitting |
| 6 | 1122260 | Fitting |
| 7 | 51219 | Pressure switch |
| 8 | 50641 | Frame |
| 9 | 50447 | Spring |
| 10 | 50627 | Wheel |
| 11 | 50628 | Guard |
| 12 | 3260170 | Fitting |
| 13 | 51220 | Fitting |
| Pump | ||
| 1 | 960090 | Plug |
| 2 | 960160 | O-ring |
| 3 | 1389051 | Complete valve |
| 4 | 800860 | Screw |
| 5 | 1381850 | Washer |
| 6 | 3220020 | Head |
| 7 | 180101 | O-ring |
| 8 | 820361 | Plug |
| 9 | 1381580 | Pressure gauge |
| 10 | 3220280 | Ring |
| 11 | 1981210 | Bearing |
| 12 | 200390 | Ring |
| 13 | 1780140 | Ring |
| 14 | 1780720 | Water seal |
| 15 | 3200250 | Ring |
| 16 | 3220130 | Piston guide |
| 17 | 3200142 | Gasket |
| 18 | 3200260 | Ring |
| 19 | 770260 | O-ring |
| 20 | 3220120 | Piston guide |
| 21 | 1260110 | Nut |
| 22 | 1260100 | Washer |
| 23 | 1780080 | Piston |
| 24 | 1260091 | Plate |
| 25 | 1260460 | Oil seal |
| 26 | 3220010 | Pump body |
| 27 | 880130 | Plug |
| 28 | 480480 | O-ring |
| 29 | 3220060 | Piston |
| 30 | 3220070 | Pin |
| 31 | 3220040 | Connecting-rod |
| 32 | 651540 | O-ring |
| 33 | 3220030 | Cover |
| 34 | 3200220 | Screw |
| 35 | 820510 | O-ring |
| 36 | 880581 | Plug |
| 37 | 1200430 | Screw |
| 38 | 3200070 | Support |
| 39 | 880830 | O-ring |
| 40 | 3220080 | Level gauge |
| 41 | 3200090 | Plate |
| 42 | 650560 | O-ring |
| 43 | 200390 | Ring |
| 44 | 1981210 | Bearing |
| 45 | 1080550 | Ring |
| 46 | 3229200 | Head assembly |
| 47 | 23772 | Pump |
| 48 | 3220310 | Shaft |
| 49 | 3200230 | Key |
| A | 2864 | Valve kit |
| B | 2746 | Piston kit |
| C | 42547 | Oil seal kit |
| E | 42549 | Water seal kit |
| F | 42550 | Gasket kit |
| G | 2745 | Support ring kit |
| Valve | ||
| 1 | 1560580 | Plug |
| 2 | 540290 | Screw |
| 3 | 1660210 | Nut |
| 4 | 1560400 | Knob |
| 5 | 1080070 | Pin |
| 6 | 1560420 | Screw |
| 7 | 1560410 | Guide |
| 8 | 1560440 | Wobble plate |
| 9 | 1560350 | Spring |
| 10 | 1080610 | Wobble plate |
| 11 | 1080660 | Pin |
| 12 | 1080540 | Piston |
| 13 | 391000 | O-ring |
| 14 | 1080640 | Ring |
| 15 | 1560150 | O-ring |
| 16 | 1560100 | Shutter |
| 17 | 1560140 | Spring |
| 18 | 180101 | O-ring |
| 19 | 1540272 | Screw |
| 21 | 1560010 | Valve body |
| 22 | 1080550 | Ring |
| 23 | 480480 | O-ring |
| 24 | 1560280 | Washer |
| 25 | 1560320 | Piston |
| 26 | 880270 | O-ring |
| 27 | 1560051 | Fitting |
| 28 | 390080 | O-ring |
| 29 | 1560510 | Nut |
| 30 | 1560530 | Fitting |
| 31 | 1560520 | Spring |
| 32 | 1250280 | Ball |
| 33 | 480480 | O-ring |
| 34 | 1560490 | Hose tail |
| 35 | 1540020 | Suction fitting |
| 36 | 1540120 | Washer |
| 37 | 1540090 | Fitting |
| 38 | 1560290 | Washer |
| 39 | 20082 | Complete valve |
| F | 2611 | Gasket kit |
| Motor | ||
| 1 | 50068 | Gasket |
| 2 | 1700080 | Plate |
| 3 | 1940410 | O-ring |
| 4 | 2360950 | Mini-contactor |
| 5 | 1261570 | Screw |
| 6 | 2360590 | Board |
| 7 | 1460460 | Screw |
| 8 | 1700590 | Nut |
| 9 | 2021480 | Gland |
| 10 | 51219 | Pressure switch |
| 11 | 1341140 | Gasket |
| 12 | 2360730 | Switch |
| 13 | 880270 | O-ring |
| 14 | 1382380 | Cable gland |
| 15 | 1261560 | Screw |
| 16 | 1080190 | O-ring |
| 17 | 1701070 | Box |
| 18 | 1700640 | Cable |
| 19 | 44752 | Motor |
| Accessories | ||
| 1 | 41847 | Gun |
| 2 | 3160170 | High pressure hose |
| 3 | 40826 | Lance |
| 4 | 3095 | Nozzle |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 1010N - 25282
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N AR:
- AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
