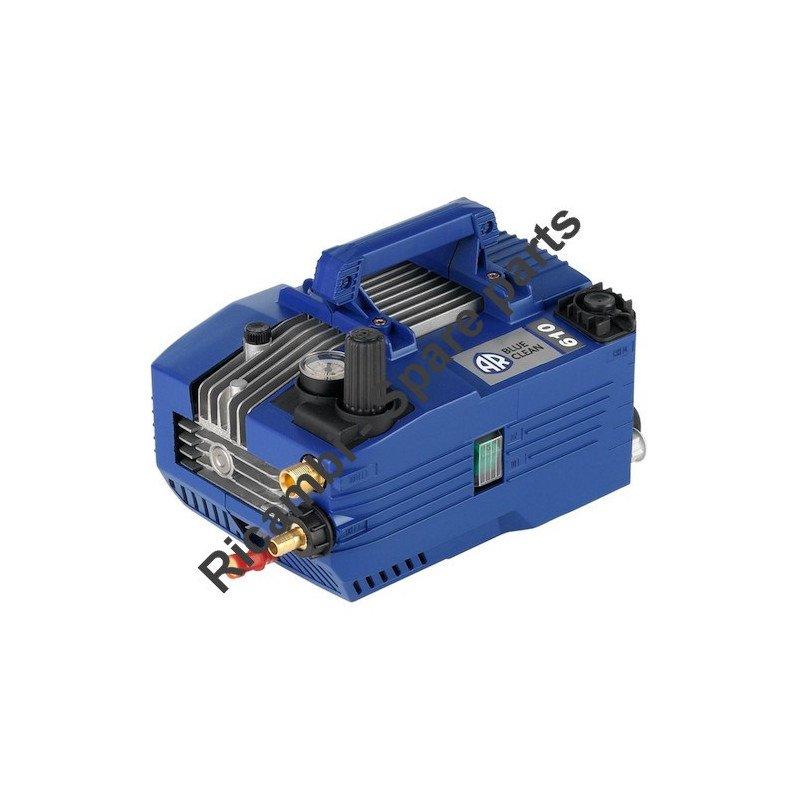

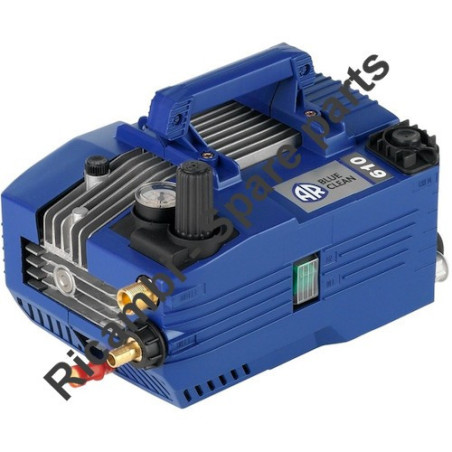

Annovi & Reverberi Parts for Pressure Washer AR 610
€19.96
Tax included
Annovi & Reverberi Parts for Pressure Washer AR 610
We have the original Annovi & Reverberi Parts for Pressure Washer AR 610 Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.Fix Your Pressure Washer AR 610 - 12358. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine and Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Annovi & Reverberi Parts for Pressure Washer AR 610
We have the original Annovi Reverberi Parts for Pressure Washer AR 610 Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.
In the following tables, look for the spare part and its respective code.
| Annovi Reverberi Pressure Washer AR 610 - 12358 | ||
| Casing Pag.1 |
||
| # | Part Num. | Description |
| 1 | 1341281 | Blue casing |
| 2 | 1261560 | Screw |
| 3 | 1260780 | Screw |
| 4 | 1200430 | Screw |
| 5 | 1340811 | Plug |
| 6 | 1260351 | Plug |
| 7 | 390210 | O-ring |
| 8 | 1342201 | Blue casing |
| 9 | 1342001 | Black cover |
| Pump Pag.2 |
||
| 1 | 1260780 | Screw |
| 2 | 1344060 | Cover |
| 3 | 1040710 | O-ring |
| 4 | 1260050 | Bushing |
| 5 | 1344050 | Pump body |
| 6 | 1349000 | Plug |
| 7 | 1340170 | Shaft |
| 8 | 880111 | Key |
| 9 | 1341070 | Bearing |
| 10 | 480890 | Ring |
| 11 | 111120 | Ring |
| 12 | 1341080 | Ring |
| 13 | 1340060 | Connecting-rod |
| 14 | 1340080 | Pin |
| 15 | 1340070 | Piston |
| 16 | 1260460 | Oil seal |
| 17 | 600180 | O-ring |
| 18 | 1341010 | Plate |
| 19 | 1342740 | Piston |
| 20 | 1341020 | Washer |
| 21 | 850670 | Screw |
| 22 | 600180 | O-ring |
| 23 | 1980640 | Insert |
| 24 | 1060120 | Nut |
| 25 | 1349269 | Pump assembly |
| 26 | 1260440 | Water seal |
| 27 | 770260 | O-ring |
| 28 | 1342730 | Piston guide |
| 29 | 1342760 | Water seal |
| 30 | 1342720 | Ring |
| 31 | 1342750 | Plate |
| 32 | 1349053 | Valve |
| 33 | 800560 | O-ring |
| 34 | 390341 | O-ring |
| 35 | 1343110 | O-ring |
| 36 | 1342710 | Nozzle |
| 37 | 1460430 | O-ring |
| 38 | 1460260 | Piston |
| 39 | 1540140 | Spring |
| 40 | 880270 | O-ring |
| 41 | 1342690 | Fitting |
| 42 | 2693 | Head assembly |
| 43 | 2668 | Valve kit adjustment |
| 44 | 1461470 | Fitting |
| 45 | 1340260 | Filter |
| 46 | 1981770 | Plug |
| 47 | 881470 | Screw |
| 48 | 680700 | Screw |
| 49 | 480480 | O-ring |
| 50 | 1340190 | Cover |
| 51 | 780050 | O-ring |
| 52 | 620301 | Cap |
| 53 | 1342670 | Head |
| 54 | 851100 | Screw |
| 55 | 1250270 | Spring |
| 56 | 1250280 | Ball |
| 57 | 1981780 | Knob |
| 58 | 40806 | Pressure gauge |
| 59 | 1342700 | Seat |
| 60 | 1460430 | O-ring |
| 61 | 1460150 | Piston |
| 62 | 1343810 | Plug |
| 63 | 740290 | O-ring |
| 64 | 1260670 | Fitting |
| 65 | 392840 | Screw |
| 66 | 1342680 | Cover |
| 67 | 1381550 | Washer |
| 68 | 1343510 | Screw |
| 69 | 1080190 | O-ring |
| 70 | 2021900 | Piston |
| 71 | 1269115 | Hose assembly |
| 72 | 1080401 | Ring |
| 73 | 1343450 | Wobble plate |
| 74 | 1460190 | Spring |
| 75 | 1343000 | Wobble plate |
| A | 1880 | Valve kit |
| B | 2623 | Piston kit |
| C | 1876 | Oil seal kit |
| E | 2624 | Water seal kit |
| F | 2767 | Gasket kit |
| Motor Pag.3 |
||
| 1 | 1260300 | Fan |
| 2 | 1340350 | Seal |
| 3 | 1260760 | Screw |
| 4 | 1340320 | Shield |
| 5 | 1340340 | Bearing |
| 6 | 1269100 | Clamp |
| 7 | 1340780 | Gasket |
| 8 | 1340480 | Box |
| 9 | 1261560 | Screw |
| 10 | 1263510 | Capacitor |
| 11 | 1340280 | Clamp |
| 12 | 1260810 | Screw |
| 13 | 2320280 | Switch |
| 14 | 1340650 | Gland |
| 15 | 1262370 | Orifice |
| 16 | 1760450 | Cable |
| 17 | 4811 | Motor |
| 18 | 1340660 | Gland |
| 19 | 1340640 | Ring nut |
| Standard Accessories Pag.4 |
||
| 1 | 40925 | Gun |
| 2 | 40030 | Lance+lance head |
| 3 | 1460702 | High pressure hose |
| 4 | 2000770 | O-ring |
