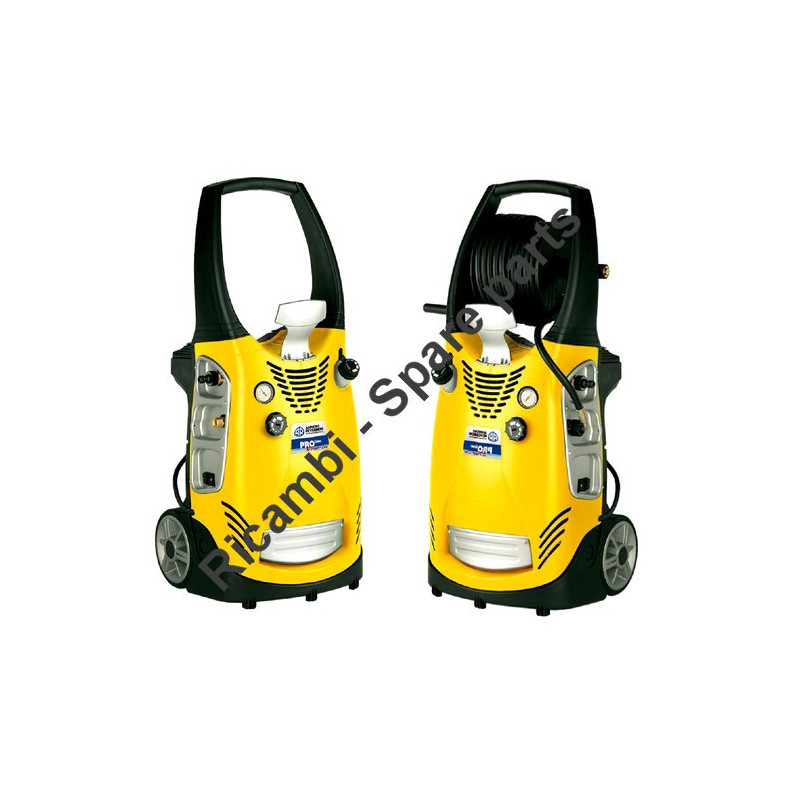

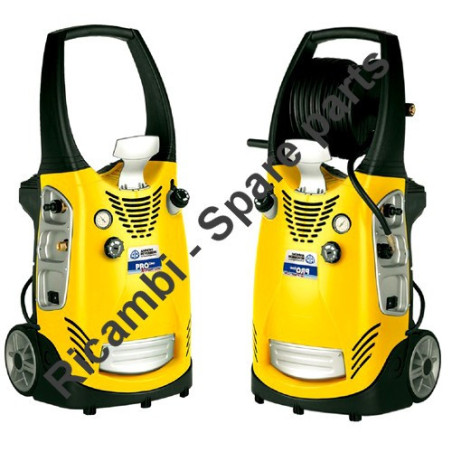

AR Farmer's Division Parts for Pressure PROLINER RS 15.15
€22.01
Tax included
AR Farmer's Division Parts for Pressure PROLINER RS 15.15
Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models RS 15.15 TSS - 22671 - RS 15.15 TSS RLW - 22674 .
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
AR Farmer's Division Parts for Pressure PROLINER RS 15.15
Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models RS 15.15 TSS - 22671.
In the following tables, look for the spare part and its respective code.
| Casing RS 15.15 TSS - 22671 Pag.1 | ||
| # | Part Num. | Description |
| 1 | 2500371 | Yellow Casing |
| 3 | 2500310 | Knob |
| 4 | 2500050 | Hook |
| 5 | 2500380 | Bowl |
| 6 | 1680880 | Washer |
| 7 | 2500320 | Wheel |
| 9 | 2500410 | Plate |
| 10 | 850370 | Screw |
| 11 | 2100300 | Screw |
| 12 | 2600100 | Cable Clamp |
| 13 | 2100300 | Screw |
| 14 | 2500020 | Handle |
| 15 | 2500130 | Grommet |
| 16 | 880280 | Screw |
| 17 | 2180300 | Washer |
| 18 | 2500120 | Axle |
| 19 | 2500110 | Tank |
| 20 | 2500010 | Base |
| 21 | 42113 | Pre-Assembly Plug |
| 22 | 1261560 | Screw |
| 23 | 2500440 | Protection |
| 24 | 2000110 | Screw |
| 25 | 3232 | Manometer |
| 26 | 2500330 | Tube Cleaner |
| 27 | 2500330 | Tube Cleaner |
| 28 | 2000230 | Filter |
| 29 | 2509000 | Pre-Assembly Base |
| Pump RS 15.15 TSS - 22671 Pag.2 | ||
| 1 | 1980300 | Nut |
| 2 | 1980470 | Screw |
| 3 | 2760700 | Insert |
| 4 | 1980220 | Disk |
| 5 | 2760410 | Spring |
| 6 | 2760400 | Piston |
| 7 | 2260100 | O-Ring |
| 8 | 660190 | O-Ring |
| 9 | 2760210 | Ring |
| 10 | 2760570 | Guide |
| 11 | 1200690 | O-Ring |
| 12 | 394280 | O-Ring |
| 13 | 2260070 | Shutter |
| 14 | 2760090 | Venue |
| 15 | 770140 | O-Ring |
| 16 | 1982520 | Hose |
| 17 | 480480 | O-Ring |
| 18 | 1250280 | Ball |
| 19 | 1560520 | Spring |
| 20 | 2760230 | Junction |
| 21 | 2760270 | O-Ring |
| 22 | 1470210 | O-Ring |
| 23 | 2760120 | Insert |
| 24 | 2760200 | Spring |
| 25 | 2760130 | Shutter |
| 26 | 1460430 | O-Ring |
| 27 | 801080 | Screw |
| 28 | 1381550 | Washer |
| 29 | 2760500 | Head |
| 33 | 2760260 | Cork |
| 34 | 2760180 | Cork |
| 35 | 2769050 | Complete Valve |
| 36 | 1780140 | Ring |
| 37 | 1260220 | Watertight |
| 39 | 1320351 | Piston Guide |
| 40 | 1260420 | O-Ring |
| 41 | 1260450 | Watertight |
| 42 | 480440 | O-Ring |
| 43 | 2760600 | Spacer |
| 44 | 2460170 | Oil Seal |
| 45 | 2760460 | Pump Housing |
| 46 | 1266740 | Oil Seal |
| 47 | 1260790 | Ring |
| 48 | 1780550 | Ring |
| 49 | 1780490 | Bearing |
| 51 | 2760450 | Piston |
| 52 | 1780050 | Plug |
| 53 | 1780040 | Piston Rod |
| 54 | 2760280 | O-Ring |
| 55 | 802190 | Screw |
| 56 | 2760110 | Cover |
| 57 | 2760550 | Shaft |
| 58 | 1321190 | Bearing |
| 59 | 1321080 | Ring |
| 60 | 1260750 | Ring |
| 61 | 650250 | Tab |
| 62 | 2769208 | Pre-Assembly Head |
| 63 | 1080190 | O-Ring |
| 64 | 1981320 | Spring |
| 65 | 660190 | O-Ring |
| 66 | 1540881 | Piston |
| 67 | 880840 | O-Ring |
| 68 | 1540870 | Cork |
| 69 | 1260820 | O-Ring |
| 70 | 2022201 | Fork |
| 71 | 2029758 | Pre-Assembly Box TSS |
| 72 | 1981190 | Screw |
| 73 | 2760560 | Cork |
| 74 | 1340260 | Filter |
| 75 | 2500490 | Junction |
| 76 | 480440 | O-Ring |
| 77 | 1122260 | Junction |
| 78 | 2500210 | Knob |
| 79 | 740290 | O-Ring |
| 80 | 1980740 | Cork |
| 81 | 40393 | Junction |
| 82 | 2500550 | Cotter Pin |
| 83 | 22229 | Pre-Installing Pump |
| 84 | 42458 | Kit TSS |
| A | 2186 | Valve Kit |
| B | 42154 | Piston Kit |
| C | 42194 | Oil Seals Kit |
| E | 42155 | Kit Held Water |
| F | 2190 | Seal Kit |
| G | 2745 | Kit Support Rings |
| Motor RS 15.15 TSS - 22671 Pag.3 | ||
| 1 | 50068 | Gasket |
| 2 | 1700080 | Plate |
| 3 | 1940410 | O-Ring |
| 4 | 1700740 | Mini-Contactor |
| 5 | 1261570 | Screw |
| 6 | 1460460 | Screw |
| 7 | 2320280 | Switch |
| 8 | 2180650 | Cable |
| 9 | 1261560 | Screw |
| 10 | 1080190 | O-Ring |
| 11 | 1700930 | Cover |
| 12 | 1700590 | Nut |
| 13 | 880270 | O-Ring |
| 14 | 1382380 | Cable Clamp |
| 15 | 1700640 | Cable |
| 16 | 44079 | Engine |
| Accessories RS 15.15 TSS - 22671 Pag.4 | ||
| 1 | 41046 | Gun |
| 2 | 40115 | Lance + Nozle |
| 3 | 1271960 | High Pressure Tube |
| 4 | 2000770 | O-Ring |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG PROLINER RS 15.15
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N AR:
- AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
