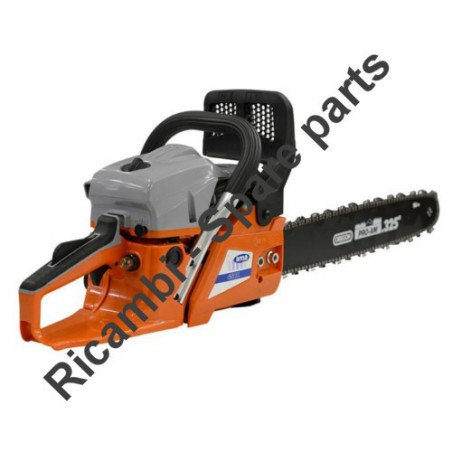

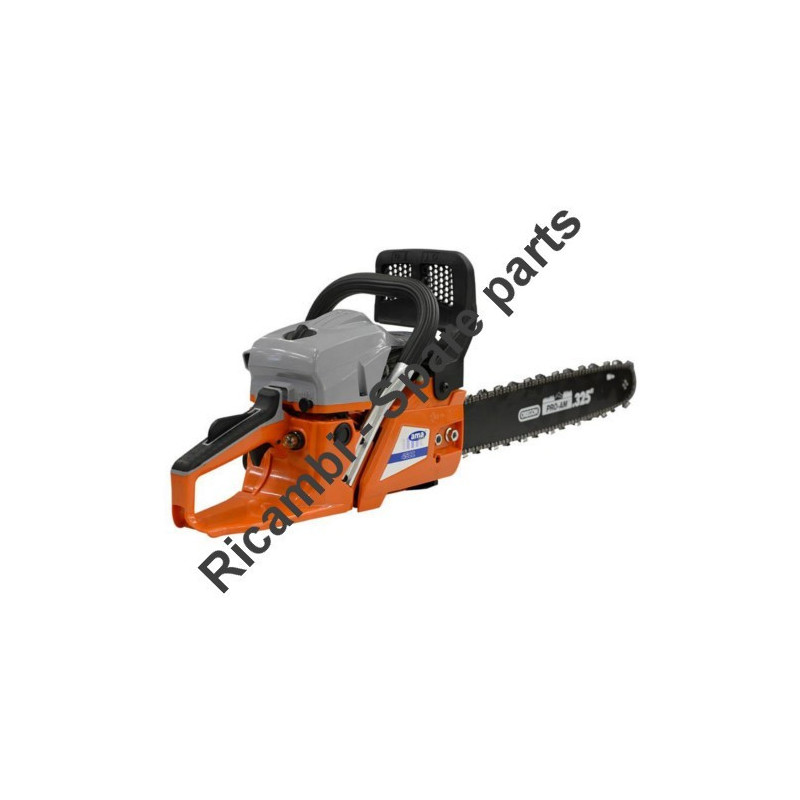

Ama Spare Parts for Chainsaw NBG 45.16

€5.90
Tax included

Ama Spare Parts for Chainsaw NBG 45.16

AMA Garden service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chainsaw NBG 45.16–79975.
ITEM CODE: 10660
Quantity
on 7/10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Ama Spare Parts for Chainsaw NBG 45.16

AMA Garden service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chainsaw NBG 45.16–79975.

In the following table, look for the model of the Chainsaw and the respective parts of the code.
Ama NBG 45.16 – 79975

Chainsaw NBG 45.16 – code 79975 Pag.1
# Part Num. Description
1 57872 Cylinder
5 57516 Muffler cover plate
6 57517 Muffler body
7 57518 Muffler sealing plate
8 64078 Muffler connecting screw
10 10660 Spark plug
11 57497 Air intake tube sealing plate
12 57498 Air intake tube
14 88180 Hold coil
15 57499 Cylinder sealing plate
16 57874 Piston ring
17 57875 Piston
18 57876 Piston pin circlip
19 57873 Piston pin
20 58216 Needle bearing ring
21 60334 Crank Shaft Ass'y
22 58213 Needle bearing 11×15×12.5
23 63818 Semicircular key 3×3.5×10
24 58212 Conical spring base
25 64074 Conical spreader base
27 60339 Chain shield
32 64075 Spiked bumper
35 57633 Oil filter
36 73824 Oil filter pipe
38 57523 Oil pump
39 63862 Sponge transition coil
40 57524 Oil pipe nozzle
41 57527 Chain guide block
42 60331 Double-screw bolt M8×26-8.8
43 57529 Clutch Assy
46 57530 Clutch spring
47 57531 Clutch adjusting washer
48 57532 Needle bearing 12×15×14.5
49 88189 Clutch drum
50 57795 Sprocket 325.7
51 55072 Worm
52 58197 Cover plate
53 88178 Oil seal 15×28×4.5
55 88186 Cushion block
56 88185 Choke rod fixation root
57 58209 Choke LEVER
58 57893 Right shock block
59 64073 Shock seat
60 64068 Air intake tube support
61 88182 Tie plate
62 58223 1
63 64077 Air intake tube flange
64 57511 Carburetor
65 64067 Air intake socket
66 88163 Air filter
68 88183 Cushion of air intake socket
70 88188 Right case
71 88184 Dust plate
74 88179 Left shock block
76 88181 Oil shield
80 58204 Flywheel assembly
81 63820 Nut M8×1
83 57519 Anti-drop plate
84 88169 Oil Tank Cap
85 63813 Suction tube circlip
88 88187 Left case
90 88187 Oil seal 15×35×4.5
91 57503 Igniter
94 88176 Dust cover
95 60348 Case body sealing plate
96 57522 Damper
Chainsaw NBG 45.16 – code 79975 Pag.2
1 88170 Right cover assembly
5 58122 Pin 3×14
6 57526 Tightener screw
7 57528 Tension block
8 57525 tensioner cover plate
10 88171 Front damper
11 88198 Brake torsion rod spring
14 64029 Spring base
15 64028 Front damper spring
19 88192 Brake control rod
20 64046 Brake spring
21 88194 Brake Band
22 88193 Brake spring cover plate
23 57808 Tension gear
24 57527 Chain guide block
25 88173 Right cover
26 88184 Dust shield
27 64031 Heavy block spring
28 64030 Heavy block
29 73839 Nut M8
30 88175 Air filter lock nut
31 88195 Air filter cover
33 88174 Upper cover plate
34 88162 Idle adjusting guide set
35 88165 Guide flow cover
36 88164 Starter assembly
39 57877 Starter palte
40 57500 Start coil spring
41 64061 Start handle
43 88166 Starter cover
44 88190 Shock rubber
45 64064 Base
46 57513 Shock rubber gland
48 57496 Dust cover
50 62088 Tank Cap Gasket
51 88168 Petrol Tank Cap
52 57506 Fuel tube
54 57507 Petrol filter componets
55 63771 Balancer
56 63885 Balancer root
57 88191 Throttle rod
58 57802 Trigger
59 57803 Trigger torsion rod spring
60 58122 Pin 6×22
61 88167 Handle cover - DISCONTINUED
62 57801 Trigger control rack
64 60342 Extinction switch
65 57512 Front handle assembly
67 79422 Scavenge nozzle
68 79415 Primer Pump line
69 63833 Primer bulb
93 55087 Chain cover
94 12099 Saw Chain 16" .325-0.58" -1.5MM 66E
94 79541 Saw Chain 16" .325-0.58" -1.5MM 66E
95 57241 Guide Bar 16" .325-0.58" -1.5MM
95 84916 Guide Bar 16" .325-0.58" -1.5MM
