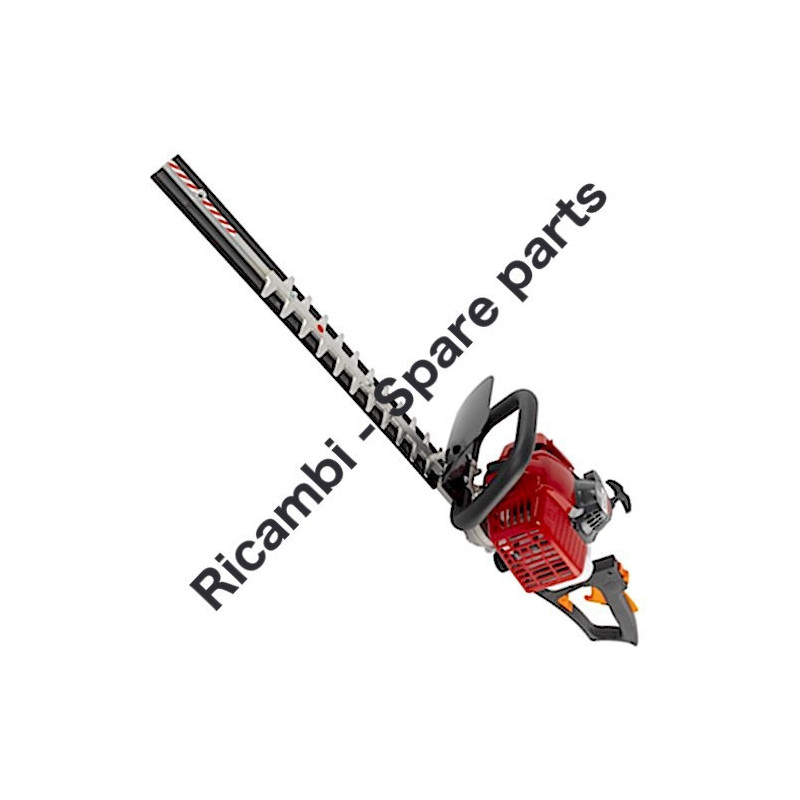

Ama Spare Parts for Petrol Hedgetrimmer AG5 – HT75R

€1.20
Tax included

Ama Spare Parts for Petrol Hedgetrimmer AG5 – HT75R

Repair, replace and maintain your AMA AG5 – HT75R hedge trimmer - 98825 only with original spare parts. Choose to rely on expert hands, buy specific and original AMA spare parts at reduced prices. Enter a new reality, we offer you the possibility to choose and purchase every single part of the Hedge Trimmer comfortably with just a few clicks.
ITEM CODE: M5x18
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Ama Spare Parts for Petrol Hedgetrimmer AG5 – HT75R

Repair, replace and maintain your AMA AG5 – HT75R hedge trimmer - 98825 only with original spare parts. Choose to rely on expert hands, buy specific and original AMA spare parts at reduced prices. Enter a new reality, we offer you the possibility to choose and purchase every single part of the Hedge Trimmer comfortably with just a few clicks.

In the following table, look for the model of the Trimmer and the respective parts of the code.
AMA AG5 – HT75R - HT75R

Hedgetrimmer AMA (AG5 – HT75R) - 98825 Pag.1
Pos. Codice Description
1 M5x18 Screw M5x18
2 Standard Gasket
3 92593 Guide Cover
4 M5x12 Screw M5x12
5 M5x16 Screw M5x16
6 92597 Cylinder
7 92614 Gasket
8 92617 Piston ring
9 RSOF21 Piston pin circlip
10 92619 Piston pin
11 92622 Piston
12 Crank shaft comp.
13 88264 Key
14 PB4x8 Pin B4x8
15 6001-P6 Bearing 6001-P6
16 Crank case gasket
17 Front half Crank Case
18 13554 Oil Seal
19 92627 Clutch
20 M5x20 Screw M5x20
21 Rear half crank case
22 M5x20 Screw M5x20
23 M5x12 Screw M5x12
24 92629 Ignition coil comp.
25 M4x20 Screw M4x20
26 Wire lead assy
27 92629 Fly Wheel
28 R8 Washer 8
29 R8 Washer 8
30 N8 Nut 8
31 92633 Start reel
32 M6x16 Screw M6x16
33 92634 Starter comp.
34 M5x18 Screw M5x18
35 M5x55 Screw M5x55 -12.9
36 Muffler cover
37 88258 Muffler
38 92638 Muffler Gasket
39 64091 Gasket
40 76218 Admitting pipe
41 M5x30 Screw M5x30
42 RSOF47 Gasket
43 92639 Carburetor
44 92641 Inside cover
45 M5x55 Screw M5x55
46 13715 Filter net
47 92642 Outside cover
48 92643 Screw
49 90054 Fuel pipe 90mm
50 13568 Fuel pipe plug
51 88342 Fuel pipe 160mm
52 92644 Cleaner cover
53 92645 Fuel tank
54 Gasket
55 13758 Fuel tank lid
61 Standard Screw M5x16
62 56432 SPARK Plug
63 6x70 pipe
64 92647 Spring
65 92648 Cap
Hedgetrimmer AMA (AG5 – HT75R) - 98825 Pag.2
1 79430 Complete Blade Ass’y
2 64111 Upper Blade Guide
3 64108 Blade Guard
4 64106 Flange Nut
5 64105 Upper Blade
6 64103 Lower Blade
7 64137 Blade Stand
8 64101 Screw
9 73163 Blade Cover 75 cm.
10 79437 Gear Box Ass’y
11 84884 Front handle Support Plate
12 64100 Screw
13 64099 Screw
14 98897 Cluth Drum (Reverse)
15 64109 Felt Pads Set
16 64092 Connecting Rod Ass’y
17 90458 Fan
18 79398 Case Cover
19 55031 Throttle Cable
20 61413 Throttle Handle Ass’y
21 55024 Front Handle Ass’y
22 55002 Column
23 55003 Fixing Block
24 13808 Front Handle
25 62121 Handguard Black
26 63782 Blade set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
