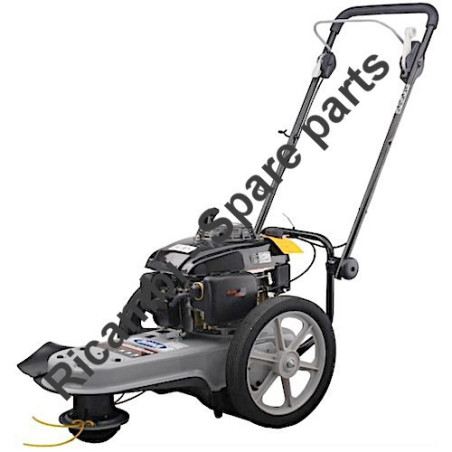

Ama Spare Parts for Whelled Brushcutter DC565
Fix Your Whelled Brushcutter DC565 - 95105. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Whelled Brushcutter and the respective parts of the code.
| Whelled Brushcutter DC565 - 95105 | ||
| Handle Pag.1 | ||
| # | Part Num. | Description |
| 1 | Upper Handle | |
| 2 | 90838 | Lever, Stop |
| 3 | Lower Handle | |
| 4 | 90847 | Pivot, Handle |
| 5 | Washer, Spring | |
| 6 | W asher | |
| 7 | Screw, 5/16-18x.62 HHWA TAP | |
| 8 | Tie, Cable | |
| 9 | Guide, Rope | |
| 10 | 90848 | Knob, Handle |
| 11 | 90849 | Control, Throttle |
| 12 | 90851 | Cable, Control Latching |
| 13 | Tubing, Foam | |
| 14 | Bolt, Carriage M8x85 | |
| 15 | Nut, Nylon Lock M6 | |
| 16 | Screw, PHPN M6x50 | |
| 17 | Nut, 1/4-20 | |
| 18 | 98805 | Engine Top-Level Ass'y |
| 19 | 90833 | Cutting Head Ass'y |
| 20 | Wheel Ass'y | |
| 21 | 90930 | Belt, Trimmer |
| Chassis Pag.2 |
||
| 1 | Frame, Trimmer | |
| 2 | 90852 | Spacer, Drive Belt |
| 3 | 98814 | Screw, 3/8-16x2.5 HXW |
| 4 | 90853 | Bracket, Idler Ass'y |
| 4,1 | 90854 | Bracket, Idler |
| 4,2 | 90856 | Pulley |
| 4,3 | 90857 | “V” Pulley |
| 4,4 | 90858 | Spacer |
| 5 | Bolt, HHSH | |
| 6 | 90859 | Spring, Extension |
| 7 | Lock Nut, M10 | |
| 8 | Screw, #10-16x1.25 | |
| 9 | Bolt, Carriage, M6x283 | |
| 10 | Nut, Nylon Lock M6 | |
| 11 | 98815 | Shied, Trailing |
| 12 | 98816 | Flap, Depris |
| 13 | 90861 | Shield Ass'y |
| 14 | Screw, ST4.8x12 | |
| 15 | Screw, #10-16x.75 | |
| 16 | Washer, Spring | |
| 17 | 90868 | Spacer |
| 18 | Bolt, Hex Head M8x16 | |
| 19 | 90871 | Axle & Bracket |
| 20 | 90872 | Wheel & Tire |
| 21 | 90873 | Bearing |
| Cut Pag.3 |
||
| 1 | 98805 | Engine Sub-Level Ass'y |
| 2 | 90836 | Motor Pulley |
| 3 | Lock Washer, Φ10 | |
| 4 | 90837 | Bolt, Hex Head 3/8-24x1.0 |
| 5 | Screw, Engine, 3/8-16x1.0 | |
| 6 | 90862 | Nut, M10x1.25 |
| 7 | Washer, Flat Φ10 | |
| 8 | 90863 | Pulley, Cutting Head |
| 9 | Spacer | |
| 10 | Wrap Weed, Upper BLK | |
| 11 | Screw, #10-16x.75 | |
| 12 | 90864 | Shaft, Cutting Head |
| 13 | 90866 | Cutter Head & Wrap Ass'y |
| 14 | Wrench, T-Handle | |
| 15 | 92437 | Guide, Height |
| 16 | Line, Trimmer | |
| 17 | 90867 | Jackshaft Housing Ass'y |
| Engine Pag.4 |
||
| 1 | 90874 | Cylinder Head Ass'y |
| 2 | 90877 | Valve Timing Ass'y |
| 3 | Crankcase Ass'y | |
| 4 | Crankshaft Ass'y | |
| 5 | 90878 | Piston & Connecting Rod Ass'y |
| 6 | Muffler Ass'y | |
| 7 | 90879 | Air Filter Ass'y |
| 8 | 90880 | Carburetor Ass'y |
| 9 | Ignition System Ass'y | |
| 10 | Engine Cover Ass'y | |
| 11 | Centrifugal Governor Ass'y | |
| 12 | 90009 | Fuel Tank Ass'y |
| Engine 2 Pag.5 |
||
| 1 | Bolt | |
| 2 | Bolt, M6x14 | |
| 3 | Cylinder Head Cover | |
| 4 | 90809 | Gasket, Cylinder Head (I) |
| 5 | Breather Pipe | |
| 6 | Cylinder Head Cover Spacer | |
| 7 | Bolt, M8×55 | |
| 8 | Cylinder Head | |
| 9 | Double Screw Bolt | |
| 10 | Aligning Pin | |
| 11 | 90890 | Gasket, Cylinder Head (II) |
| 12 | Spark Plug | |
| 13 | 90891 | Oil Seal Ass'y |
| 14 | Bearing, 6025/P53 | |
| 15 | Bolt, M6×30 | |
| 16 | 90892 | Oil Dip Rod Ass'y |
| 17 | Wind Shield, Left | |
| 18 | Blind | |
| 19 | Bolt, M6x12 | |
| 20 | Drain Plug, M16×15 | |
| 21 | Washer, 16×24×1.4 | |
| 22 | Oil Seal | |
| 23 | Crankcase Body | |
| 24 | Wind Shield, Right | |
| 25 | Aligning Pin | |
| 26 | 90893 | Paper Gasket |
| 27 | Crankcase Cover | |
| Starter Pag.6 |
||
| 1 | Acorn Nut | |
| 2 | 90914 | Starter Ass'y |
| 3 | 90931 | Engine Shield |
| 4 | Bolt Hole Cover | |
| 5 | Double Screw Bolt | |
| 6 | Double Screw Bolt | |
| 7 | Fly Wheel Fixing Nut, M14×1.5 | |
| 8 | Start-up Ratchet Gear | |
| 9 | Work Protecting Wire Net | |
| 10 | Start-up Protecting Wire Net | |
| 11 | 90912 | Fly Wheel |
| 12 | Screw | |
| 13 | 90913 | Ignition Coil |
| 14 | Bumingout Wire | |
| Carburator / Air Filter Pag.7 |
||
| 1 | 90896 | Paper Gasket (I) |
| 2 | 90897 | Carburetor Joint |
| 3 | 90898 | Paper Gasket (II) |
| 4 | Blind | |
| 5 | 90899 | Carburetor |
| 6 | 90910 | Paper Gasket (III) |
| 7 | 90911 | Primer Bulb |
| 8 | Clamp, Fuel Line, ø 6.5 | |
| 9 | Fuel Line | |
| 10 | 90895 | Air Filter Element |
| 11 | Air Filter Housing Ass'y | |
| 12 | Bolt, M6x14 | |
| 13 | Nut, M6 | |
| Tank / Muffler Pag.8 |
||
| 1 | 90939 | Position Fix Ring |
| 2 | 90940 | Fuel Tank Cap |
| 3 | Bolt, M6x14 | |
| 4 | Washer, Heat Insulating | |
| 5 | 90941 | Fuel Tank |
| 6 | 90942 | Fuel Tank On/Off Valve |
| 7 | Clamp, Fuel Line | |
| 8 | Fuel Line | |
| 9 | Spacer, Heat insulating | |
| 10 | Bolt, M6x12 | |
| 11 | Muffler Guard | |
| 12 | Bolt | |
| 13 | 90894 | Muffler |
| 14 | Muffler Heat Shield | |
| Regulator Pag.9 |
||
| 1 | Bolt, M6x12 | |
| 2 | 90932 | Gasket |
| 3 | 90933 | Steel Wire Nutted Rod (II) |
| 4 | Tension Spring (II) | |
| 5 | Nut, M6 | |
| 6 | Hair Pin | |
| 7 | Nutted Rod | |
| 8 | 90934 | Tension Spring (I) |
| 9 | 90935 | Coach Bolt |
| 10 | Shifting Fork | |
| 11 | Bunt | |
| 12 | Washer 3 | |
| 13 | Retaining Ring | |
| 14 | 90936 | Centrifugal Governor Ass'y |
| 15 | Mount Bracket & Axle | |
| 16 | Grounding Flameout Wire | |
| 17 | Bolt, M3×12 | |
| 18 | 90937 | Ground Switch |
| 19 | Bolt, M3×8 | |
| 20 | Nut, M4 | |
| 21 | Governor Control Panel | |
| 22 | 90938 | Controller Tension Spring |
| 23 | Bolt, M6×60 | |
