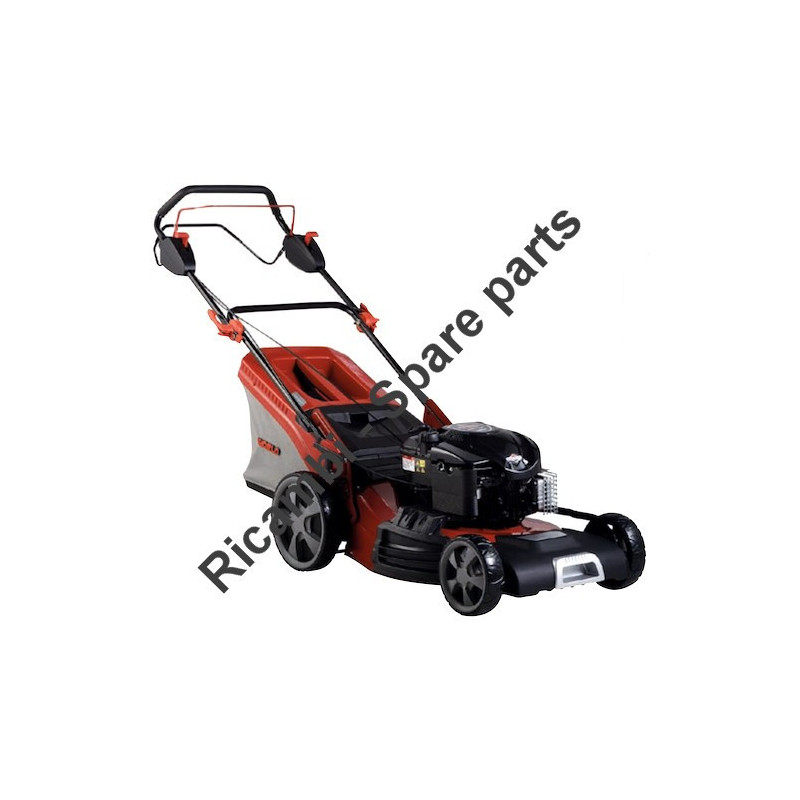

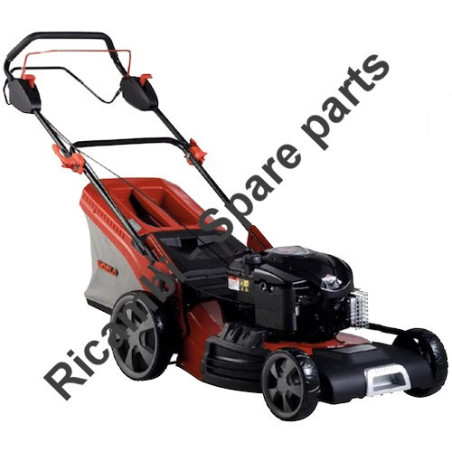

Ama Spare Parts for Petrol Lawnmower 4 speeds R4W53B
€6.17
Tax included
Ama Spare Parts for Petrol Lawnmower 4 speeds R4W53B
Buy at the best price original spare parts and accessories for petrol lawn mower world 4 speeds R4W53B – 89702.Repair or replace all the components of the lawnmower in total safety and professionalism like a real mechanic, in this page open diagram file PDF AMA R4W53B petrol lawnmower to view all the components of the lawnmower.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Ama Spare Parts for Petrol Lawnmower 4 speeds R4W53B
Buy at the best price original spare parts and accessories for petrol lawn mower world 4 speeds R4W53B – 89702.Repair or replace all the components of the lawnmower in total safety and professionalism like a real mechanic, in this page open diagram file PDF AMA R4W53B petrol lawnmower to view all the components of the lawnmower. Select the desired spare parts from the add to cart menu.
Fast shipping in the world, safety payment.
In the following table, look for the model of the Petrol Lawnmower world R4W53B - 89702 and the respective parts of the code.
| MANICO & COMANDI - HANDLEBAR & CONSOLE Pag.1 | ||
| Pos. | Codice | Descrizione |
| 10 | 89672 | Manico inferiore / Lower handle |
| 11 | 89673 | Manico superiore / Upper handle |
| 12 | 89674 | Spugnetta manico / Handle grip |
| 13 | 89675 | Supporto interno / Inner adjust tooth plate |
| 14 | 89676 | Supporto esterno / Outer adjust tooth plate |
| 15 | 89679 | Supporto manettino / Throttle Bracket |
| 16 | 89680 | Leva "STOP" / Blade control handle |
| 17 | 89681 | Distanziale / Spacer |
| 18 | 89682 | Leva acceleratore / Speed adjust handle |
| 19 | 89684 | Impugnatura / Grip |
| 20 | 89685 | Leva trazione / Clutch handle |
| 21 | 89686 | Guida corda avv.to / Hook |
| 22 | 89687 | Piastra fissaggio / Adjust plate |
| 23 | 89688 | Pomello fissaggio / Quick fix assembly |
| 24 | 89689 | Anello di fissaggio / Star shape lock |
| 25 | 89690 | Coperchio inf. (dx) / Cover-right-bottom |
| 26 | 89692 | Coperchio sup. (dx) / Cover-right-upper |
| 27 | 89693 | Coperchio inf. (sx) / Cover-left-bottom |
| 28 | 89694 | Coperchio sup. (sx) / Cover-left-upper |
| 29 | Vite M5X50 / Screw M550 | |
| 30 | Dado M5 / Nut M5 | |
| 31 | Rondella 5 / Washer 5 | |
| 32 | Dado M5 / Nut M5 | |
| 33 | Bullone M6X35 / Bolt M6*35 | |
| 34 | Rondella 6 / Washer 6 | |
| 35 | Bullone M6X20 / Bolt M6*20 | |
| 36 | Dado M6 / Nut M6 | |
| 37 | Molla tazza 6 / Spring 6 | |
| 38 | Rondella 8 / Washer 8 | |
| 39 | Dado M8 / Nut M8 | |
| 40 | Vite autofil. / Self-tapping screw ST3.5*25 | |
| 41 | 89697 | Cavo trazione / Clutch Cable |
| 42 | 89698 | Cavo freno motore / Brake cable |
| 43 | 89703 | Cavo acceleratore / Throttle cable |
| 44 | 89704 | Pomello / Knob |
| 45 | 89705 | Spina / Pin 2*12 |
| 46 | 89706 | Molla / Spring |
| 47 | 89707 | Sede molla / Spring seat |
| 48 | 89708 | Perno / Pin |
| 49 | 89710 | Sede acceleratore / Throttle plate |
| 50 | 89709 | Fermacavi / Cable clips |
| 51 | 89683 | Leva acceleratore / Throttle handle |
| 52 | 89711 | Molla a tazza / Spring A12.5-1 |
| CHASSIS COMPLETO - MOWER DECK ASSEMBLY Pag.2 |
||
| 38 | Rondella 8 / Washer 8 | |
| 39 | Dado M8 / Nut M8 | |
| 60 | 89713 | Supp. manico (dx) / Right bracket |
| 61 | 89715 | Supp. manico (sx) / Left bracket |
| 62 | 89716 | Deflettore post. / Rear Cover |
| 63 | 89718 | Coperchio post. / Rear Cover seat |
| 64 | 89719 | Asta deflettore / Rear Cover rod |
| 65 | 89720 | Molla deflettore (dx) / Spring-R |
| 66 | Spina / Pin 2*16 | |
| 67 | 89721 | Molla deflettore (sx) / Spring-L |
| 68 | 89723 | Musetto / Front Cover |
| 69 | 89724 | Maniglia / Handle-FC |
| 70 | 89725 | Porta etichetta / Label plate |
| 71 | 89727 | Deflettore scarico lat. / Side discharge |
| 72 | 89729 | Convogliatore post. / Rear plate |
| 73 | 89731 | Supporto coperchio / Side plate |
| 74 | 89732 | Supporto asta / Side fix plate |
| 75 | 89733 | Molla coperchio / Side spring |
| 76 | 89734 | Asta coperchio / Side rod |
| 77 | 89736 | Coperchio scarico lat. / Side cover |
| 78 | 89738 | Supp. coperchio / Comb |
| 79 | 89740 | Coperchietto sup. / Small plate |
| 80 | 89742 | Coperchietto post. / Small cover |
| 81 | Rivetto / Core pulling rivets | |
| 82 | Rondella 5 / Flat washer 5 | |
| 83 | Vite autofil. / Bolt ST4.2*13 | |
| 84 | 89745 | Cinghia trazione / V-Belt 3LP835 |
| 85 | 89747 | Tappo mulching / Mulching plug |
| 86 | 89748 | Bandella post. / Rear guard |
| 87 | 0 | Spina / Pin |
| 88 | 89750 | Carter copricinghia / Belt pulley cover |
| 89 | Bullone M8X20 / Bolt M8*20 | |
| 90 | 89751 | Rivetto / Core pulling rivets |
| 91 | 89752 | Rivetto / Core pulling rivets |
| 92 | Vite autofil. / Self-tapping screw | |
| 93 | 89753 | Spessore / Spacer |
| 94 | 89754 | Rondella in gomma / Rubber strip |
| 96 | 89755 | Portagomma lavaggio / Wash pot |
| 97 | 89756 | O-Ring / O-Ring 11.2*2.65 |
| 99 | 89758 | Chassis / Deck |
| 183 | 89831 | Copri puleggia (sx) / Belt pulley cover-L |
| 187 | 89832 | Coperchiettto post. / Small cover |
| 191 | 89833 | Sede motore / Engine seat |
| 192 | 89834 | Copertura sede / Seat cover |
| GRUPPO TRAZIONE CPL.- DRIVE ASSEMBLY Pag.3 |
||
| 38 | Rondella 8 / Washer 8 | |
| 39 | Dado M8 / Nut M8 | |
| 87 | Spina / Pin | |
| 110 | 89760 | Assale post. cpl. / Rear axle assembly |
| 111 | 89763 | Trazione cpl. / GT gear box |
| 112 | 89764 | Maniglia / Handle |
| 113 | 89765 | Pulsante / Botton |
| 114 | 89767 | Leva reg. altezza taglio / Rear Handle |
| 115 | 89768 | Molla pulsante / Spring |
| 116 | Spina / Pin 2*20 | |
| 117 | Bullone M6X20 / Bolt M6*20 | |
| 118 | Rondella 6 / Washer 6 | |
| 119 | Rondella 6 / Washer 6 | |
| 120 | 89769 | Sede cuscinetto / Bear seat |
| 121 | 89770 | Rondella / Wash |
| 122 | 89771 | Spina / Pin 5*2 |
| 123 | 89773 | Assale anteriore cpl. / Front axle assembly |
| 124 | 89774 | Ruota anteriore / 8" Front wheel |
| 125 | 89775 | Ruota posteriore / 11" Rear wheel |
| 126 | 89777 | Asta alzapiatto / Pull rod |
| 127 | 89778 | Indicatore altezza / Height adjust. pointer |
| 128 | 0 | Rivetto / Core pulling rivets 5*10 |
| 129 | 89779 | Supporto cuscinetto / Bear fix plate |
| 130 | 89780 | Blocchetto inferiore / Bear plate-lower |
| 131 | 89781 | Blocchetto superiore / Bear plate upper |
| 132 | 89782 | Distanziale / Spacer |
| 133 | 89783 | Ingranaggio trazione (sx) / Tooth gear-L |
| 134 | 89784 | Ingranaggio trazione (dx) / Tooth gear-R |
| 135 | 89787 | Piastra fiss. trazione / Gear fix plate |
| 136 | 89788 | Spina trazione / Pin |
| 137 | 0 | Bullone M8X16 / Bolt M8*16 |
| 138 | 89789 | Copriruota post. / Wheel cap |
| 139 | 89790 | Cuscinetto ruota / Bearing |
| 140 | 89791 | Copriruota ant. / Wheel cap |
| 141 | 89792 | Rondella ruota / Washer 12 |
| 142 | 89793 | Rondella ruota / Washer 12 |
| 143 | Bullone M8X35 / Bolt M8*35 | |
| 145 | 89794 | Molla assale / Spring |
| 147 | Bullone M6X60 / Bolt M6*60 | |
| 148 | Vite autofilettante / Self-tapping screw | |
| 150 | 89795 | Copriruota interno / Dust cap |
| GRUPPO LAMA - BLADE ASSEMBLY Pag.4 |
||
| 151 | 89796 | Rondella sup. / Washer |
| 152 | 89820 | Boccola / Bushing |
| 153 | 89797 | Chiavetta / Key |
| 154 | 89798 | Puleggia / Pulley |
| 155 | 89799 | Rondella inf. / Washer |
| 156 | 89817 | Portalama / Blade adaptor |
| 157 | 89822 | Lama 53 cm. / Blade |
| 158 | 89823 | Rondella lama / Washer |
| 159 | 89824 | Vite lama / Engine bolt |
| CESTO RACCOLTA - GRASS CATCHER ASSEMBLY Pag.5 |
||
| 170 | 89825 | Coperchio cesto / Grass Catcher cover-upper |
| 171 | 89826 | Coperchietto / Grass Catcher cover-small |
| 172 | 89827 | Coprimaniglia / Handle seat |
| 173 | 89828 | Spioncino / Observation cover |
| 174 | 89829 | Tela cesto / Nylon bag |
| 175 | 89830 | Telaio cesto / Grass Catcher frame |
| 176 | Etichetta / World label plate | |
| 177 | Fascetta cesto / Frame clips | |
| 178 | Bullone M4X16 / Bolt M4*16 | |
| 179 | Rondella 4 / Washer 4 | |
| 180 | Dado autobloccante M4 / Lock nut M4 | |
| 181 | Vite autofil. / Self-tapping screw ST4.2*13 | |
| 182 | Vite autofil. / Self-tapping screw ST3.5*9.5 | |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
