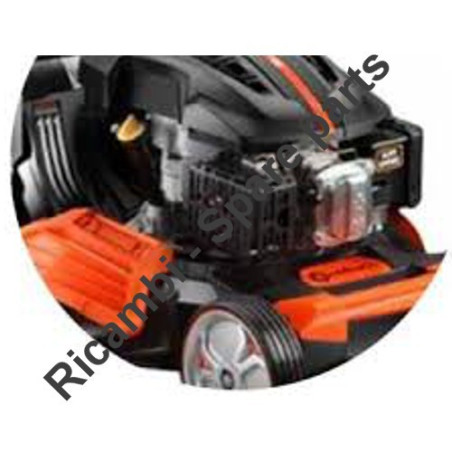

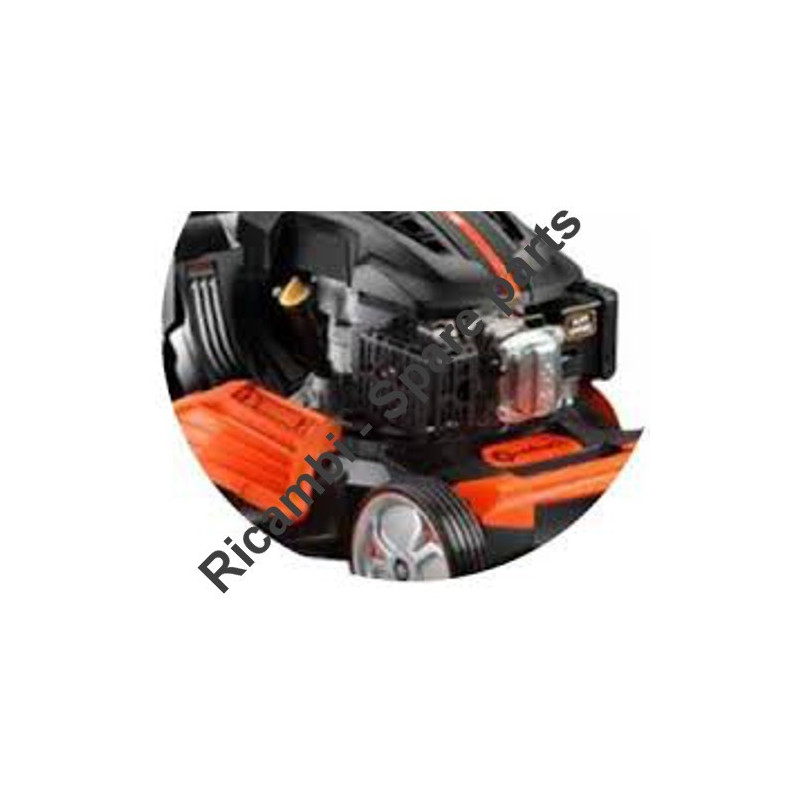

Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260
search
  • Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260
  • Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260

Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260

€18.28
Tax included

Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260

AMA Garden service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower Engine MVG - T680 ART. 90260.
ITEM CODE: RMG25190120000
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260

AMA Garden service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower Engine MVG - T680 ART. 90260.

In the following table, look for the model of the Engine and the respective parts of the code.
Contact us to know availability.
Ama MVG - T680 - 90260

ENGINE Model MVG-T680 ART. 90260
# Part Num. Description
1 Standard Hex flange nuts
2 RMG25190120000 Engine Cover
3 RMG20740100014 Pull starter assy.
4 RMG25010170000 Blower Housing
5 RMG60140050000 Hex flange nuts
6 RMGP70B07010000 Starter hub
7 RMGP70B07040000 Fan
8 RMG75390160000 Flywheel assy
9 Standard Bolt
10 RMGV510000000 Respirator Cover Plate
11 RMGV510020000 Respirator head gasket
12 RMGP65010104000 Oil filter net
13 RMGV510010000 Respirator valve plate
14 RMG60190310000 W asher
15 RMG25310030000 Cushion Blocking
16 RMG25170100014 Fuel tank cap
17 RMG25250080000 Rope
18 RMG60440330000 Fuel Tank Cap seal gasket
19 RMG25180210000 Fuel tank body
20 Standard M6 nut
21 RMG60240250000 Bush
22 RMGP65050500000 Filtering Net
23 RMGP65050600000 Fuel pipe lock clamp I
24 RMGP70B05050000 Fuel pipe
25 Standard Clip
26 RMG60230010000 Fuel pipe lock clamp II
27 RMG25250090000 Flywheel Tooth Ring
28 RMG30040280000 Charging coil
29 RMG25010190000 Wind shield
30 RMG75330060000 Main bracket of fuel tank
32 RMG75380200000 Detent assy.
33 Standard Bolt M6 X 25
34 90472 Motor
35 RMG60360100000 Oil seal
36 RMG60080230000 Double-head bolts III
37 RMG60080240000 Double-head bolts I
38 RMG60080220000 Double-head bolts II
39 Standard Bolt
40 RMG75030070000 Wind shield
41 RMG75370032000 Ignition assy.
42 RMG25030050000 Waste pipe
43 RMGP65010105000 Rate-limiting rocker arm shaft
44 RMG60200060000 Gasket
45 RMGP65010112000 Oil seal
46 Standard R type pin
47 RMGV510103000 Handspike of Valve
48 RMGP65010601000 Valve spring
49 RMGV510004000 Throttle rocker arm
50 RMG60060730000 Bolt
51 RMGP70B01060000 Throttle assy.
52 RMG60410640000 Throttle control spring
53 Standard Self-locking nut
54 RMG75530090000 Muffler cover assy.
55 RMG75540120000 Muffler assy.
56 RMG75740080000 Gasket of Muffler
57 79567 Spark plug
59 RMGP70B02040000 Cylinder head gasket
60 RMG60280020000 Spacing pin
61 RMGP70B08060000 IntakeValve
62 RMGP70B08070000 Exhaust Valve
63 RMGP70B02010000 Cyclinder head assy.
64 Standard Locking bolt
65 RMGP70B08020000 Push rod
66 RMGP70B08030000 Push rod director plate
67 RMGP65020600000 Oil seal assy
68 RMGP70B08080000 Valve spring
69 RMGP65080900000 Spring Coil of Exhaust Valve
70 Standard Flat busher
71 RMGP65080202000 Valve rocker arm bolts
72 RMGP65080200000 Rocker of Valve
73 RMGP65080203000 Valve adjustment nut
74 RMGP65080204000 And nuts
75 RMGP65020300000 Cylinder head gasket
76 RMGP70B02020000 Cylinder head cover I
77 RMGP70B02030000 Cylinder head cover II
78 Standard Bolt
79 RMGP70B03020000 Intake pipe paper pad I
80 RMGP70B03040000 Air Inlet Pipe
81 RMGP70B03030000 Intake pipe paper pad II
82 RMG75410500000 Carburetor assy.
83 RMGP65030500000 Steel Gasket
84 RMG75560050000 Fan Holder II
85 RMG75200020000 Top Cover of Exhaust Valve
86 Standard Spacing pin
87 RMG25110090000 Air filter base assy.(II)
88 RMG25020040000 Exhaust Gas Cover Board
89 RMGP65040104000 Paper filter
90 RMG65070100000 Pull starter assy.
91 RMG25120050000 Air Filter Upper Cover
92 RMG75500100000 Crankshaft box
93 RMGP65010210000 Oil seal 25X38X7
94 Standard Rolling bearing
95 RMG75510690000 Crankshaft assy.
96 RMG75460060000 Connecting rod assy.
97 RMGV510006000 Piston
98 RMGH140003000 W asher
99 RMGH140002000 Piston pin
100 RMGP70B01030700 Guide Rail
101 RMGP70B01030600 Bushing Ring
102 RMGP70B01030500 Piston Ring II
103 RMGP70B01030400 Piston Ring I
104 RMGP65010500000 Lubricating Gauge Assy
105 RMG25080020000 Distance Sleeve
106 Standard Bolt
107 RMGV510009000 Clockwise gear gasket
108 RMGV510007000 Joint box packing
109 Standard Spacing pin
110 RMGV510008000 Crank box cover
111 RMG60200150000 Oil drain bolt gasket
112 RMG60061020000 Oil drain bolt
113 RMGP65080300000 Pin
114 RMG75470080000 Camshaft assy.
116 RMGP70B01020500 Rate-limiting gear shaft
117 RMGP65010202000 Sliding Sleeve
118 RMG60200490000 Gasket
119 RMGP65010203000 Rate-limiting gear assy.
120 RMGV410001000 Rate-limiting gear shaft
121 Standard Bolt
122 RMG30070420000 Fan operator II
123 Standard Bolt
124 RMG75760140000 Thermostat operator
125 RMG75760130000 Fan operator
126 RMGP65030300000 Paper filter
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama MVG - T680 - 90260
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS APPROX.
MORE INFO:
info@bricoutensili.com
New

Download

Drawing Ama MVG - T680

Drawing Ama MVG - T680

Download (279.22KB)
