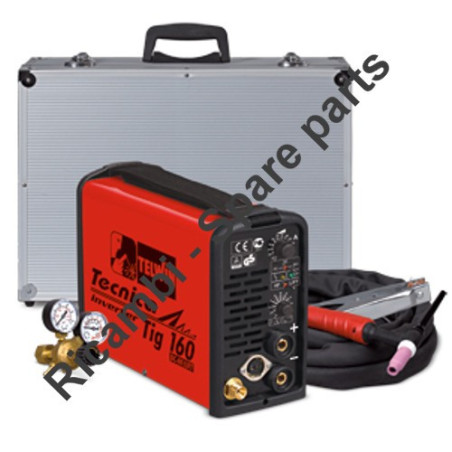

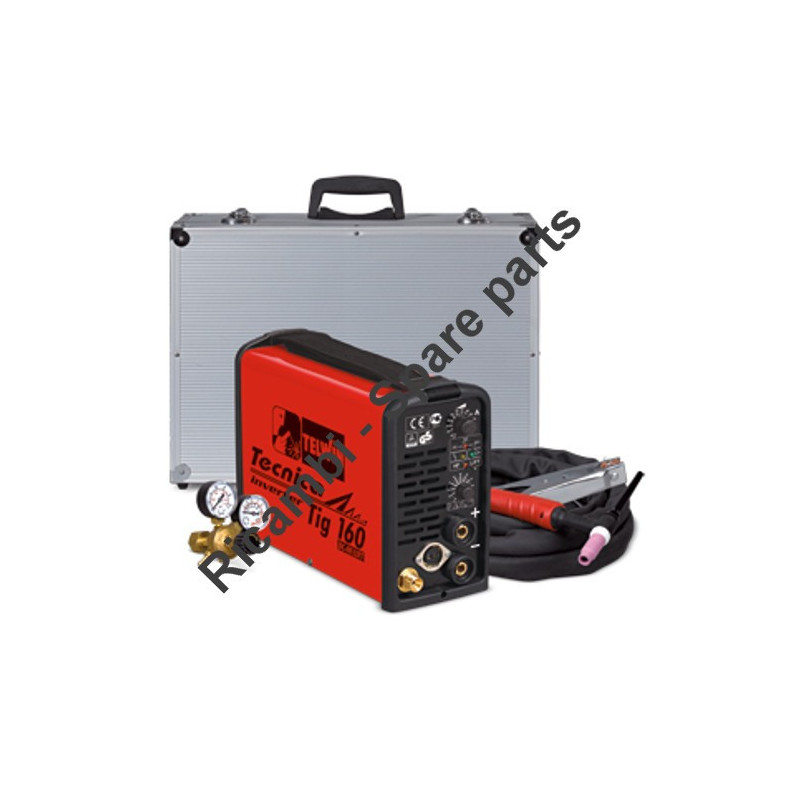

Telwin Parts for Inverter Welding TECNICA TIG 160 DC-HF/LIFT 230V
€7.84
Tax included
Telwin Parts for Inverter Welding TECNICA TIG 160 DC-HF/LIFT 230V
We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Telwin inverter TIG, TECNICA TIG 160 DC-HF/LIFT 230V - 815957.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Telwin Parts for Inverter Welding TECNICA TIG 160 DC-HF/LIFT 230V
We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Telwin inverter TIG, TECNICA TIG 160 DC-HF/LIFT 230V - 815957.In the following table, look for the model of the drill and the respective parts of the code.
| TECNICA TIG 160 DC-HF/LIFT 230V-815957 Pag.1 | ||
| # | Description | Part Num. |
| 1 | POTENTIOMETER | 112017 |
| 2 | RESISTANCE | 112048 |
| 3 | CAPACITOR | 112514 |
| 4 | DIODE | 112948 |
| 5 | RECTIFIER | 116346 |
| 6 | RELAIS | 111925 |
| 7 | PWM CONTROLLER | 111199 |
| 8 | CONTROL PCB KIT | 980678 |
| 9 | HF BOARD KIT | 980021 |
| 10 | CONTROL CABLE | 120605 |
| 11 | SOCKET CABLE | 120612 |
| 12 | ELECTROVALVE | 121029 |
| 13 | KNOB | 121395 |
| 14 | SWITCH | 121192 |
| 15 | SWITCH | 122381 |
| 16 | KNOB | 121394 |
| 17 | SWITCH | 121193 |
| 18 | MAINS CABLE 3G1.5 2 M SCHUKO PLUG | 132155 |
| 19 | FAN | 152006 |
| 20 | FILTER INDUCTANCE | 164741 |
| 21 | AUXILIARY TRANSFORMER | 164932 |
| 22 | POWER TRANSFORMER KIT | 980167 |
| 23 | INDUCTANCE | 169506 |
| 24 | TRANSFORMER KIT | 980170 |
| 25 | TRANSFORMER KIT | 980282 |
| 26 | CABLE BUSHING | 322112 |
| 27 | BELT BUCKLE | 322065 |
| 28 | FRAME | 322906 |
| 29 | BELT | 322408 |
| 30 | PIPE FITTING | 602052 |
| 31 | FRONT PANEL | 642128 |
| 32 | SOCKET DX 25 | 712035 |
| 33 | KIT IGBT + DIODE | 990734 |
| 34 | COVER KIT | 980930 |
| 35 | COMPLETE PCB KIT | 990818 |
| 36 | GAS PIPE CONNECTOR KIT | 990120 |
| 37 | CABLE 16 MMQ 3 M - 25 | 123437 |
| 38 | ARGON GAS BOTTLE IT ADAPTOR | 432036 |
| 39 | PLUG DX 25 | 712039 |
| 40 | TOLEDO 300 WORK CLAMP | 712231 |
| 41 | GAS REGULATOR 2 MANOMETERS | 722119 |
| 42 | ST17 TIG TORCH 4 M 180 A | 742423 |
| TORCH TECNICA TIG 160 DC-HF/LIFT 230V-815957 Pag.2 | ||
| 1 | KIT 10 CERAMIC NOZZLES NR.6 | 802245 |
| 1 | KIT 10 CERAMIC NOZZLES NR.4 | 802244 |
| 1 | KIT 10 CERAMIC NOZZLES NR.7 | 802246 |
| 2 | INSULATOR | 722248 |
| 4 | KIT 10 CERIUM-TUNGSTEN ELECTR. D.2,4 MM | 802232 |
| 4 | KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM | 802220 |
| 4 | KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM | 802222 |
| 5 | KIT 3 ELECTRODE HOLDER CLAMPS D.2,4 MM | 802241 |
| 5 | KIT 3 ELECTRODE HOLDER CLAMPS D.1,0 MM | 802239 |
| 5 | KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM | 802240 |
| 6 | SHORT CAP | 722192 |
| 7 | LONG CAP | 722193 |
| 8 | CONNECTION KIT 25 | 981442 |
| 12 | 3P PLUG | 722999 |
| 14 | PUSHBOTTON CONTACT | 452089 |
| 16 | OR RING | 722061 |
| 17 | PUSHBOTTON | 742042 |
| 18 | TORCH BODY | 722204 |
| 19 | KIT 3 ELECTRODE DIFFUSERS D.1,6 MM | 802250 |
| 19 | KIT 3 ELECTRODE DIFFUSERS D.1 MM | 802249 |
| 19 | KIT 3 ELECTRODE DIFFUSERS D.2,4 MM | 802251 |
| 21 | 3/8" CONNECTION KIT TIG TORCH | 990263 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
TECNICA TIG 160 DC-HF - 815957
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM OR S/N CODE TELWIN:
- TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
