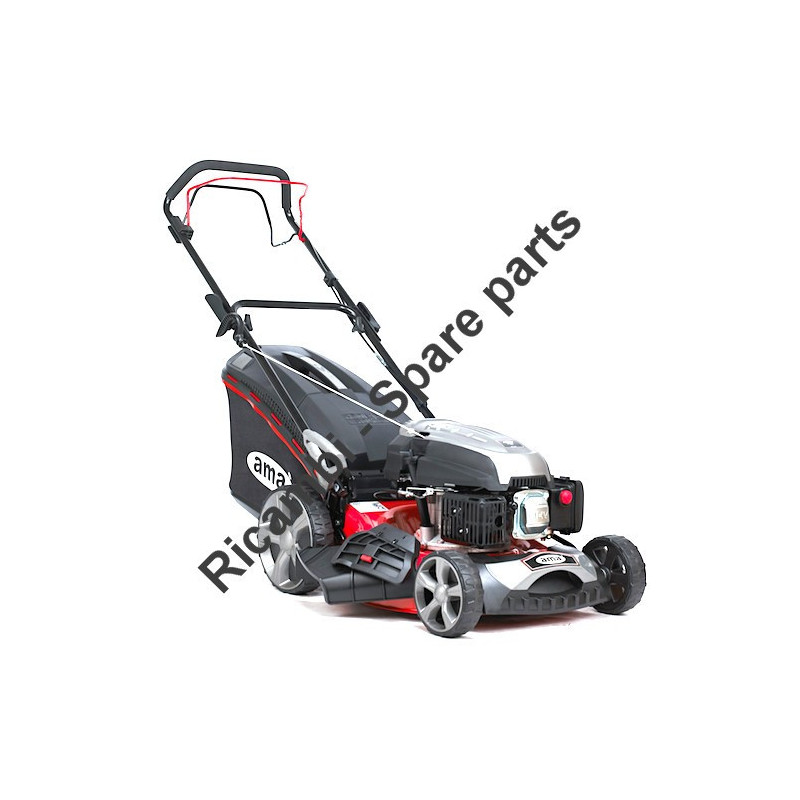

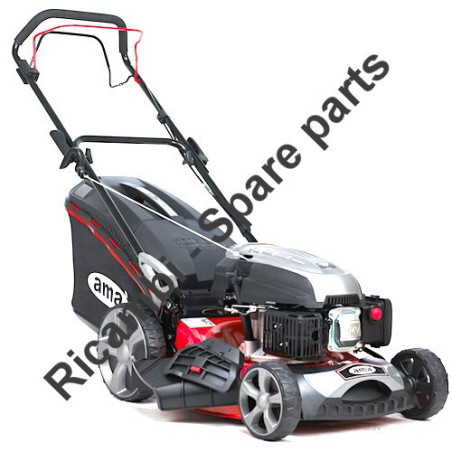

Ama Spare Parts for Lawnmower TRX-461
€278.92
Tax included
Ama Spare Parts for Lawnmower TRX-461
Ama genuine spare parts or replacements parts for to repair Lawnmower TRX-461 - 92601.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Ama Spare Parts for Lawnmower TRX-461
Ama genuine spare parts or replacements parts for to repair Lawnmower TRX-461 - 92601.
In the following table, look for the model of the Lawnmower and the respective parts of the code.
| AMA Garden Lawnmower TRX-461 - 92601 | ||
| Handle Pag.1 | ||
| # | Part Num. | Description |
| 1 | TRX-0082 | Clutch Lever - DISCONTINUED |
| 2 | TRX-0079 | Brake Lever |
| 3 | TRX-0125 | Limiting Stopper |
| 4 | TRX-0073 | Foam Pipe |
| 5 | TRX-0074 | Upper handrail |
| 6 | Standard | Nut |
| 7 | TRX-0083 | Cable Fixing Clamp |
| 8 | TRX-0084 | Brake Cable |
| 9 | TRX-0086 | Clutch Cable |
| 10 | Standard | Bolt |
| 11 | TRX-0088 | Lower handrail |
| 12 | TRX-0076 | Control Handle |
| 13 | TRX-0032 | Pin |
| 14 | TRX-0078 | Handle Pin |
| 15 | TRX-0077 | Lever seat |
| 16 | Standard | Flat Washer |
| 17 | TRX-0089 | Knob |
| 18 | TRX-0093 | Rope Guide |
| 19 | TRX-0091 | Cable Support |
| 20 | TRX-0014 | Bolt |
| 21 | Standard | Nut |
| 22 | TRX-0015 | Bolt |
| 23 | TRX-0092 | Handle Plug |
| Chassis Pag.2 |
||
| 1 | Standard | Bolt |
| 2 | TRX-0109 | Height Adjustment Plate |
| 3 | TRX-0065 | Right Bracket |
| 4 | Standard | Nut |
| 5 | TRX-0050 | DECK |
| 6 | TRX-0123 | Mulching Plug |
| 7 | TRX-0068 | Cable Sleeve |
| 8 | TRX-0039 | Seal Ring |
| 9 | TRX-0067 | Washing Linker |
| 10 | TRX-0022 | Screw / Nut |
| 11 | TRX-0066 | Left Bracket |
| 12 | TRX-0071 | Rear Cover Support |
| 13 | Standard | Bolt M6X14 |
| 14 | TRX-0064 | Rear Cover Pedestal |
| 15 | Standard | Nut |
| 16 | TRX-0072 | Plug |
| 17 | TRX-0144 | Rear Cover |
| 18 | TRX-0122 | Rear Cover Spring |
| 19 | TRX-0121 | Rear Cover Shaft |
| 20 | TRX-0055 | Front handle |
| 21 | TRX-0025 | Screw |
| 22 | TRX-0054 | Front part |
| 23 | TRX-0026 | Screw |
| 24 | TRX-0069 | Washer R |
| 25 | TRX-0070 | Washer L |
| 26 | Standard | Nut |
| 27 | TRX-0056 | Side Discharge Bracket |
| 28 | Standard | Bolt |
| 29 | TRX-0057 | Side Discharge Cover Shaft |
| 30 | TRX-0058 | Side Discharge Cover Spring |
| 31 | TRX-0025 | Screw |
| 32 | TRX-0061 | Cover Plate |
| 33 | TRX-0062 | Spring |
| 34 | TRX-0059 | Side Discharge Cover |
| 35 | TRX-0060 | Lock |
| 36 | TRX-0063 | Side-Discharge Guiding Board |
| Traction Pag.3 |
||
| 1 | TRX-0097 | Height Adjustment Handle |
| 2 | TRX-0099 | Rear Wheel Shaft Assy |
| 3 | TRX-0101 | Inner Wheel Cover |
| 4 | Standard | Spring Washer |
| 5 | Standard | Screw |
| 6 | TRX-0001 | Ball Bearing |
| 7 | TRX-0113 | 10" Wheel |
| 8 | Standard | Flat Washer |
| 9 | Standard | Nut |
| 10 | TRX-0116 | 10" outer wheel cover |
| 11 | Standard | Split Pin |
| 12 | TRX-0036 | Belt Li650 |
| 13 | TRX-0104 | Gear box |
| 14 | TRX-0102 | Self-Propelled Spring |
| 15 | TRX-0103 | Pin |
| 16 | Standard | Nut |
| 17 | TRX-0110 | Shaft Sleeve |
| 17-1 | TRX-0003 | Ball Bearing |
| 18 | Standard | Bolt |
| 19 | TRX-0033 | Lock Ring |
| 20 | TRX-0030 | Flat Washer |
| 21 | TRX-0158 | Left Gear |
| 22 | TRX-0159 | Right Gear |
| 23 | TRX-0098 | Front Wheel Shaft |
| 24 | Standard | Nut |
| 25 | Standard | Bolt |
| 26 | Standard | Nut |
| 27 | TRX-0002 | Bearing |
| 28 | TRX-0046 | 7" Wheel |
| 29 | TRX-0048 | 7" outer wheel cover |
| 30 | TRX-0108 | Height Adjustment Spring |
| 31 | TRX-0096 | Height Adjustment Connecting Rod |
| 32 | TRX-0100 | Shaft Sleeve |
| 33 | TRX-0124 | Front axle bush |
| Bag Pag.4 |
||
| 1 | TRX-0142 | Metal Bracket |
| 2 | Standard | Flat Washer |
| 3 | Standard | Screw |
| 4 | TRX-0143 | Fixed plate |
| 5 | TRX-0139 | Plastic Cover |
| 6 | TRX-0120 | Cover Plate |
| 7 | TRX-0141 | Hand Decoration Cover |
| 8 | TRX-0140 | Indicated Board |
| 9 | TRX-0044 | Fabric bag |
| Blade Pag.5 |
||
| 1 | 92621 | Y139V engine |
| 2 | Standard | Bolt |
| 3 | TRX-0040 | Flat Key |
| 4 | TRX-0107 | Blade Boss |
| 5 | TRX-0045 | Screw Cap |
| 6 | TRX-0053 | Belt Cover |
| 7 | Standard | Screw |
| 8 | TRX-0051 | Belt Cover Plate1 |
| 9 | TRX-0052 | Belt Cover Plate2 |
| 10 | Standard | Screw |
| 11 | TRX-0118 | 18"Blade |
| 12 | TRX-0119 | Blade Washer |
| 13 | TRX-0004 | Blade Bolt |
| Engine Pag.6 |
||
| 1 | Standard | Bolt |
| 2 | TRX-0200 | Engine cover |
| 3 | Standard | Nut M6 |
| 4 | TRX-0201 | Recoil Start Assy |
| 5 | TRX-0202 | Blower Housing |
| 6 | TRX-0203 | Bush |
| 7 | TRX-0204 | Bolt I |
| 8 | TRX-0206 | Bolt II |
| 9 | TRX-0208 | Bolt III |
| 10 | TRX-0210 | Nut M14x1.5 |
| 11 | TRX-0211 | Start-up Hub |
| 12 | TRX-0213 | Fan |
| 13 | TRX-0215 | Flywheel |
| 14 | Standard | Bolt |
| 15 | TRX-0217 | Respirator Cover Plate |
| 16 | TRX-0219 | Gasket of Respirator Cover |
| 17 | TRX-0221 | Valve Element |
| 18 | TRX-0223 | Lubricate Filtering Net |
| 19 | Standard | Bolt M6x10 |
| 20 | TRX-0224 | Back plate |
| 21 | Standard | BoltM6*22 |
| 22 | TRX-0226 | Brake Assy |
| 23 | Standard | Bolt M6x25 |
| 24 | TRX-0229 | Ignition |
| 25 | TRX-0230 | Bush |
| 26 | TRX-0231 | Gasket of Cylinder Head Cover |
| 27 | TRX-0233 | Locating Pin |
| 28 | TRX-0235 | Inlet valve |
| 29 | TRX-0236 | Outlet valve |
| 30 | Standard | Spark Plug |
| 31 | TRX-0239 | Gasket of Muffler |
| 32 | TRX-0240 | Muffler Assy |
| 33 | TRX-0241 | Muffler Cover Assy |
| 34 | Standard | Locknut M6 |
| 35 | TRX-0244 | Handspike Assy |
| 36 | TRX-0245 | Guide Board of Handspike |
| 37 | TRX-0247 | Rocker Support Bolt of Valve |
| 38 | TRX-0249 | Oil Seal of valve |
| 39 | TRX-0250 | Spring of Valve |
| 40 | TRX-0251 | Spring Coil of outlet Valve |
| 41 | TRX-0254 | Rocker of Valve |
| 42 | TRX-0255 | Adjust Nut of Valve |
| 43 | TRX-0257 | Combined Nut |
| 44 | Standard | Bolt M8x45 |
| 45 | TRX-0258 | Cylinder Head Cover Gasket |
| 46 | TRX-0259 | Cylinder Head Inner Cover |
| 47 | TRX-0260 | Cylinder Head Outer Cover |
| 48 | Standard | Bolt M6x14 |
| 49 | TRX-0261 | Cylinder Head Assy |
| 50 | Standard | Two Stud Bolt M6x92 |
| 51 | TRX-0264 | Paper Gasket of Inlet Pipe |
| 52 | TRX-0265 | Air Inlet Pipe |
| 53 | TRX-0267 | Paper Gasket of Carburetor |
| 54 | TRX-0268 | Carburetor Assy |
| 55 | TRX-0270 | Paper Gasket of Air Filter |
| 56 | TRX-0272 | Primer |
| 57 | Standard | Circlip |
| 58 | TRX-0275 | Exhuast Pipe |
| 59 | TRX-0276 | Air Filter Pedestal |
| 60 | TRX-0278 | Exhuast Pipe φ8xφ12x165 |
| 61 | Standard | O Ring φ6.5xφ15x0.5 |
| 62 | TRX-0279 | Paper Filter Element |
| 63 | TRX-0280 | Filter Element |
| 64 | TRX-0282 | Air Filter Upper Cover |
| 65 | TRX-0283 | Fuel tank cap |
| 66 | TRX-0285 | Seal Gasket of Fuel Tank Cap |
| 67 | TRX-0286 | Connecting Rope |
| 68 | TRX-0288 | Gasket |
| 69 | TRX-0289 | Fuel Tank |
| 70 | TRX-0290 | Right Bracket of Fuel Tank |
| 71 | Standard | Locknut M6 |
| 72 | TRX-0291 | Left Bracket of Fuel Tank |
| 73 | TRX-0292 | Filtering Net Duct of Fuel |
| 74 | Standard | Oil Pipe Circlip I |
| 75 | TRX-0295 | Oil Pipe |
| 76 | Standard | Oil Pipe Fixing Clip |
| 77 | Standard | Oil Pipe Circlip II |
| 78 | TRX-0297 | Crankcase Assy |
| 79 | TRX-0298 | Speed Regulator Rocker Spindle |
| 80 | TRX-0300 | Oil Seal 6x11x4 |
| 81 | TRX-0301 | Springness Split Pin |
| 82 | TRX-0302 | Plate |
| 83 | TRX-0304 | Handspike of Valve |
| 84 | TRX-0306 | Spring of Valve |
| 85 | TRX-0307 | Ttype Bolt M6x23 |
| 86 | TRX-0308 | Speed Regulator Rocker |
| 87 | TRX-0309 | Spring |
| 88 | TRX-0310 | Oil Seal 22x35x7 |
| 89 | TRX-0311 | Ball bearing |
| 90 | TRX-0312 | Crankshaft Assy |
| 91 | TRX-0314 | Connecting Rod Assy |
| 92 | TRX-0316 | Circlip of Piston Pin |
| 93 | TRX-0317 | Piston Assy |
| 94 | TRX-0319 | Piston Pin |
| 95 | TRX-0321 | Scraper Ring |
| 96 | TRX-0322 | Bushing Ring |
| 97 | TRX-0323 | Piston Ring II |
| 98 | TRX-0325 | Piston Ring I |
| 99 | TRX-0327 | Gasket of Crankcase |
| 100 | TRX-0329 | Lubricating Gauge |
| 101 | TRX-0331 | Seal Ring |
| 102 | TRX-0333 | Lubricating Pipe Assy |
| 103 | TRX-0335 | Locating Pin of Crankcase |
| 104 | Standard | O Ring φ21xφ2.3 |
| 105 | TRX-0338 | Draining Oil Bolt |
| 106 | TRX-0340 | Draining Oil Bolt Gasket |
| 107 | TRX-0342 | Crankcase Cover |
| 108 | Standard | Bolt M6x30 |
| 109 | TRX-0345 | Oil seal 25x38x7 |
| 110 | TRX-0346 | Tappet |
| 111 | TRX-0348 | Camshaft Assy |
| 112 | TRX-0349 | Gear Shaft Hold-down Plate |
| 113 | TRX-0351 | Sliding Sleeve |
| 114 | TRX-0352 | Gear Shaft Assy |
| 115 | TRX-0353 | Circlip of Gear shaft |
| 116 | Standard | Gasket φ6.5xφ12xφ1 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
