- Online only

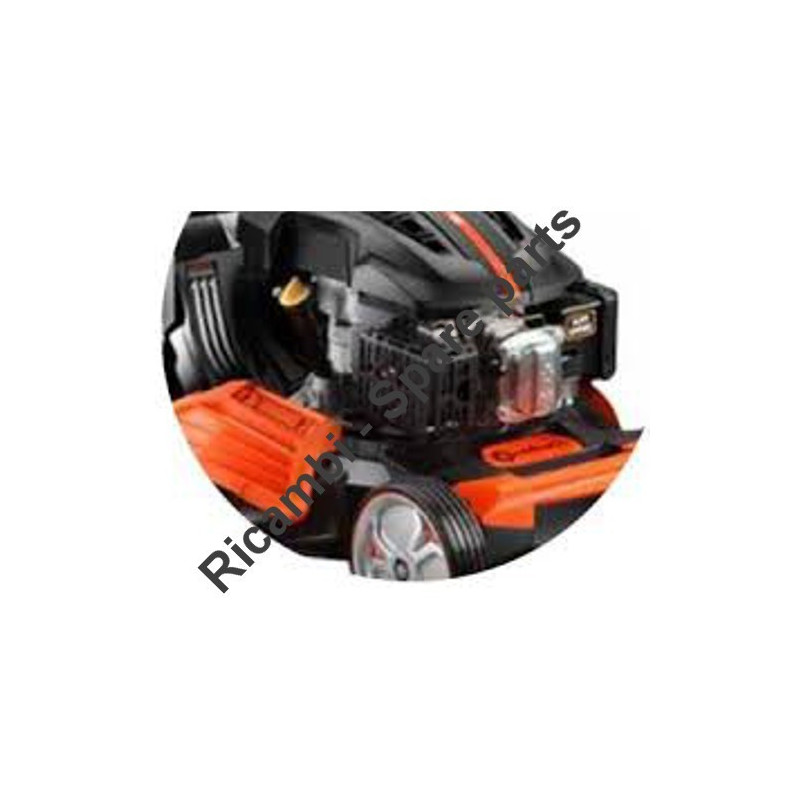

Ama Spare Parts for Engine MVG-T6 OHV -92595
€25.47
Tax included
Ama Spare Parts for Engine MVG-T6 OHV -92595
We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine MVG-T6 OHV 146 cc - 92595.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Ama Spare Parts for Engine MVG-T6 OHV -92595
We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine MVG-T6 OHV 146 cc - 92595.In the following table, look for the model of the Lawnmower and the respective parts of the code.
| Petrol Engine MVG-T6 OHV 146 cc - 92595 |
||
| # | Part NUm. | Description |
| 1 | 88564 | Cap nut |
| 2 | RMG65070100000 | Pull starter assy. |
| 3 | RMG25170110000 | Fuel tank cap |
| 4 | RMGP65050106000 | Fuel tank cap sponge |
| 5 | RMGP65050102000 | Fuel Tank Cap seal gasket |
| 6 | 92486 | Connect cable of fuel cap |
| 7 | Standard | Hex flange nuts |
| 8 | RMG60190310000 | The oil tank mount big washer |
| 9 | RMG25310030000 | Fuel Tank Cap seal gasket |
| 10 | RMG25180230000 | Fuel tank body |
| 11 | RMGP65050500000 | Filtering Net Duct of Fuel |
| 12 | RMGP65050600000 | Fuel pipe lock clamp I |
| 13 | RMGP70B05050000 | Fuel pipe |
| 14 | 92489 | Fuel pipe lock clamp II |
| 15 | RMG60240250000 | Fuel tank mounting bushing |
| 16 | RMG25190250000 | The transparent cover |
| 17 | RMG60140050000 | Hex flange nuts |
| 18 | RMGP65070200000 | Starter hub |
| 19 | RMG25040110000 | Fan |
| 20 | RMG75390240000 | Flywheel assy |
| 21 | RMGP65010109000 | Oil seal |
| 22 | RMG60080230000 | Dual-head bolts |
| 23 | 88621 | Bolt |
| 24 | RMG75330070000 | Main bracket of fuel tank |
| 25 | Standard | Bolt |
| 26 | Standard | Bolt |
| 27 | RMG75380900000 | Detent ass’y |
| 28 | RMGP65010601000 | Valve spring |
| 29 | RMG75160060000 | Handspike of Valve |
| 30 | RMGP65010105000 | Rate-limiting rocker arm shaft |
| 31 | RMG60200490000 | Gasket |
| 32 | RMGP65010112000 | Oil seal |
| 33 | Standard | R type pin |
| 34 | 92496 | Bolt |
| 35 | RMGP65010603003 | Throttle rocker arm |
| 36 | Standard | Clip |
| 37 | RMGP70B01060000 | Single phrase throttle assy. |
| 38 | RMGP65010606004 | Throttle control spring |
| 39 | RMGV510009000 | Clockwise gear gasket |
| 40 | RMGP65080300000 | Pin |
| 41 | RMG75470020000 | Camshaft assy. |
| 42 | RMGP65020400000 | Respirator head gasket |
| 43 | RMG60280030000 | Spacing pin |
| 44 | 92478 | Rate-limiting gear assy. |
| 45 | RMGP65010202000 | Sliding Sleeve |
| 46 | RMG60200060000 | Gasket |
| 47 | RMG75280020000 | Rate-limiting gear shaft clamp |
| 48 | RMGV410001000 | Rate-limiting gear shaft |
| 49 | RMG75240120000 | Crank box cover |
| 50 | RMGP65010210000 | Oil seal 25x38x7 |
| 51 | Standard | Bolt |
| 52 | 92498 | Oil drain bolt gasket |
| 53 | 92497 | Oil drain bolt |
| 54 | RMG25200130050 | Lubricating Gauge Assy |
| 55 | Standard | Bolt |
| 56 | RMG25120060000 | Air Filter Cover |
| 57 | RMG25300120000 | Foam filter |
| 58 | RMG25020050000 | Vent groove cover plate |
| 59 | RMG25110100000 | An air filter base. |
| 60 | RMG25030070000 | Waste pipe |
| 61 | RMGP65030500000 | Air filter paper pad |
| 62 | RMG75410410000 | Carburetor |
| 63 | RMGP65051000001 | Primer button II |
| 64 | RMG75730030000 | Carburetor paper pad Ⅱ |
| 65 | RMG25090010000 | Air Inlet Pipe |
| 66 | RMG75730020000 | Carburetor paper pad Ⅰ |
| 67 | RMG60080030000 | Dual-head bolts |
| 68 | RMG75130130000 | Piston Ring I |
| 69 | RMG75130140000 | Piston Ring II |
| 70 | RMG75090060000 | Guide Rail |
| 71 | RMG75000070000 | Bushing Ring |
| 72 | RMG60310010000 | Piston pin |
| 73 | RMG60400020000 | Piston Pin circlip |
| 74 | RMG75120090000 | Piston |
| 75 | RMG75460070000 | Connecting rod assy. |
| 76 | RMG75510750000 | Crankshaft assy. |
| 77 | RMG75500160000 | Crankshaft box assy. |
| 78 | RMGP65020400000 | Cylinder head gasket |
| 79 | RMG60280020000 | Spacing pin |
| 80 | RMG75190040000 | Exhaust Valve |
| 81 | RMG75170040000 | IntakeValve |
| 82 | RMG75490090000 | Cylinder head assy. |
| 83 | Standard | Locking bolt |
| 84 | 92517 | Spring Coil of Exhaust Valve |
| 85 | RMG75350030000 | Push rod |
| 86 | RMG75290050000 | Valve rocker shaft |
| 87 | RMG75080040000 | Cylinder head cover |
| 88 | RMG75720300000 | Valve plate cover gasket |
| 89 | RMG75230031000 | xhaust valve rocker combinatio |
| 90 | RMG60240240000 | Washer |
| 91 | RMG75230030000 | ir intake door rocker combinatio |
| 92 | RMGP65081100000 | Top Cover of Exhaust Valve |
| 93 | RMG75180010000 | Spring Coil of Intake Valve |
| 94 | RMGP70B08080000 | valve spring |
| 95 | RMGP65020600000 | Oil seal assy |
| 96 | 75140010000 | Spark plug |
| 97 | Standard | Self-locking nut |
| 98 | 92523 | Muffler cover assy. |
| 99 | RMG75540030000 | Muffler assy. |
| 100 | RMGP65060200000 | Muffler insulating pad |
| 101 | RMG75030110000 | Wind shield |
| 102 | RMGV510010000 | Respirator valve plate |
| 103 | RMG75720310000 | Respirator head gasket |
| 104 | RMG75400030000 | Valve rocker shaft |
| 105 | RMG75370070000 | Ignition assy. |
| 106 | Standard | Bolt |
| 107 | 92524 | Single speed control panel |
| 108 | Standard | Bolt |
| 109 | RMG25190210086 | The transparent cover |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
