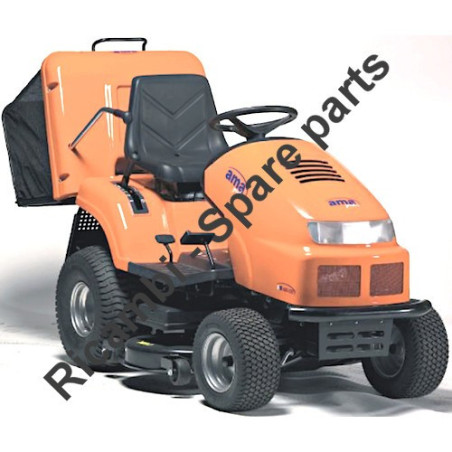

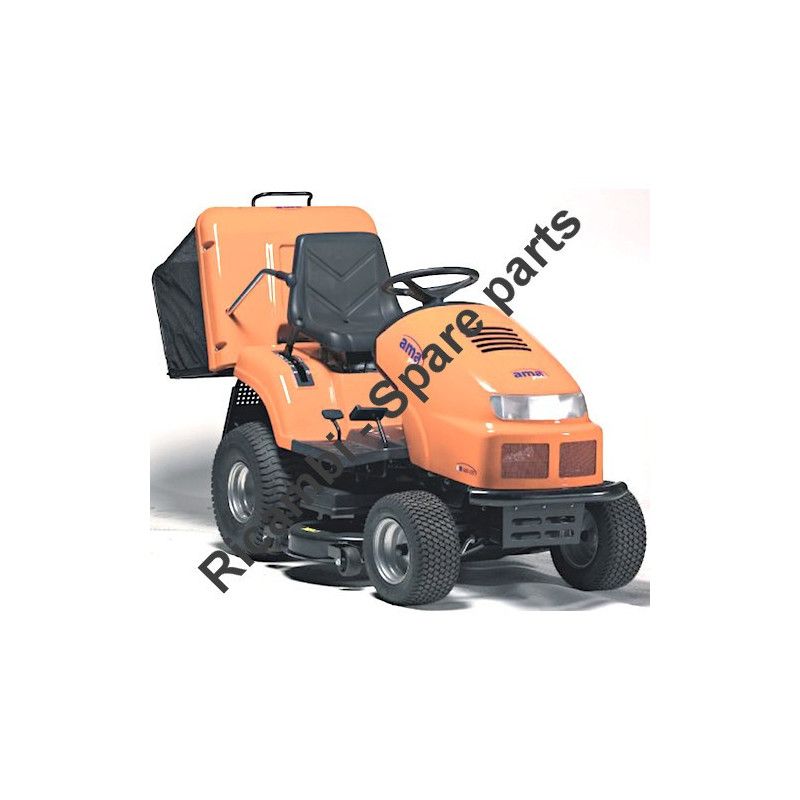

Ama Spare Parts for Lawn Tractor SG 180-102H - 13902

Lawn Tractor SG 180-102H - 13902 - 2004 Spare Parts
Section 1 Pag.1
1	RTA000888305	Oil drain valve
2	RTA201958449	Oil drain coupler
4	RTA000721802	Engine, INTEK V-TWIN 18 HP-B&S
5	RTA000900955	Fuel tank cap
6	RTA000490644	Fuel tank
7	RTA000005005	Fuel line 240mm
8	RTA000476300	Fuel tank valve
9	RTA000318164	Fuel line clamp UM 5008
10	RTA000008646	Fuel line 70mm
11	RTA000299530	Hex screw M8x35 DIN 933 8.8
12	RTA000291500	Flat washer 8.4 DIN 125 A
13	RTA000280885	Self locking nut M8 DIN 985 CI.8
14	RTA000201003	Spring washer 8 DIN 127 B
15	RTA000201531	Exhaust screw 5/16-18NC 3/4 LG
16	RTA000291500	Flat washer 8.4 DIN 125 A
17	RTA000201003	Spring washer 8 DIN 127 B
18	RTA000244563	Hex screw M8x20 DIN 933 8.8
19	RTA195800062	Muffler heat guard, left
20	RTA505900065	Taptite thread form screw M6x12 DIN 7500 D
21	RTA505900054	Muffler
22	RTA203058134	Gasket cap
28	RTA195800926	Muffler heat guard, right
30	RTA595900101	Exhaust tube, left - INTEK
31	RTA595900102	Exhaust tube, right - INTEK
32	RTA571001801	Exhaust gasket 18 HP - INTEK
33	RTA000033242	Hair pin clip
37	RTA000247357	Screw M6x12 DIN 933 8.8
38	RTA000283118	Self locking nut M6 DIN 985 Cl.8
39	RTA200058399	Heat shield
40	RTA000290389	Washer 6.4 DIN 125 A
41	RTA000259094	Screw M5x12 Ecofix 4.8
42	RTA000239448	Flat washer 5.3 DIN 9021 B
43	RTA000285912	Self locking nut M5 DIN 985 Cl.8
Section 2 Pag.2
1	RTA221012090	Hex screw M12x90 DIN 931 8.8
2	RTA201221175	Hex screw M10x75 DIN 931 8.8
3	RTA201058447	Spacer
4	RTA000740113	Grease fitting MK 6 DIN 71412
5	RTA000295966	Flat washer 19 DIN 125 A
6	RTA000230230	Spring clip 15 DIN 6799
7	RTA000093852	Front axle
8	RTA000292061	Flat washer 10.5 DIN 125 A
9	RTA000281446	Self locking nut M10 DIN 985 Cl.8
10	RTA505900004	Front axle bushing
11	RTA000282557	Self locking nut M12 DIN 982 Cl.8
12	RTA000069080	Tie rod front axle
13	RTA000207152	Square key 5x7.5 DIN 6888
14	RTA000283118	Self locking nut M6 DIN 985 Cl.8
15	RTA000407121	Hub cap SC 1-1/2
16	RTA000230230	Spring Clip 15 DIN 6799
17	RTA000096349	Washer
18	RTA203959258	Front tyre wheel assy 16x6.5-8 KST
19	RTA200958719	Spindle, left
20	RTA221006045	Hex screw M6x45 DIN 931 8.8
21	RTA200058647	Steering spindle lever for Y2K
22	RTA000273625	Hex nut M10 DIN 934 Cl.8
26	RTA000235246	Locking stirrups 16 DIN 71805 S
27	RTA200958718	Spindle, right
28	RTA201852444	Washer 10.3 NORD-LOCK
50	RTA204598001	Tyre 16x6.5-8 KENDA SUPER TURF
51	RTA000415426	Tube 16x6.5-8
52	RTA204598014	Rim complete 16x6.5-8
55	RTA195800901	Ball angle joint 16
Section 2 Pag.3
22	RTA000273625	Hex nut M10 DIN 934 Cl.8
26	RTA000235246	Locking stirrups 16 DIN 71805 S
28	RTA201852444	Washer 10.3 NORD-LOCK
55	RTA195800901	Ball angle joint 16
70	RTA000243441	Hex screw M8x16 DIN 933 8.8
71	RTA000280885	Self-locking nut M8 DIN 985 Cl.8
72	RTA000291500	Flat washer 8.4 DIN 125 A
73	RTA000244563	Hex screw M8x20 DIN 933 8.8
74	RTA000230230	Spring clip C15 DIN 6799
75	RTA105800970	Spacer, upper
76	RTA505900002	Spherical bearing FJB 12
77	RTA105800969	Spacer, lower
78	RTA195800920	Steering shaft pinioin gear
79	RTA000282557	Self-locking nut M12 DIN 985 Cl.8
80	RTA505900043	Eccentric bolt washer 12.4x50x5
81	RTA000281446	Self-locking nut M10 DIN 985 Cl.8
82	RTA201058244	Bushing
83	RTA201058248	Steering plate
84	RTA000040667	Sector gear
85	RTA201058246	Shoulder bolt
86	RTA201058247	Steering pin
87	RTA220012045	Hex screw M12x45 DIN 933 8.8
88	RTA000050413	Drag link
Section 3 Pag.4
1	RTA505900074	Idler pulley V3000-3316-steel
2	RTA000280885	Self locking nut M8 DIN 985 CI.8
3	RTA000291500	Flat washer 8.4 DIN 125 A
11	RTA200492077	Traction v-belt La 103
12	RTA000358698	Tuff Torq transmission K46
13	RTA000407121	Hub cap SC 1-1/2 - black
14	RTA000230230	Spring clip 15 DIN 6799
15	RTA000096349	Washer
16	RTA000299299	Square key 3/16x3/16x2.5
17	RTA203959262	Rear tyre wheel assy 20x10.00-8 KST
18	RTA200058432	Spacer, axle
19	RTA201221875	Hex screw M8x75 DIN 931 8.8
22	RTA000238414	Hex screw M10x40 DIN 931 8.8
23	RTA000292061	Flat washer 10.5 DIN 125 A
24	RTA000091993	Idler bushing
25	RTA000281446	Self locking nut M10 DIN 985 CI.8
28	RTA200058260	Spring
29	RTA000292061	Flat washer 10.5 DIN 125 A
30	RTA000281446	Self locking nut M10 DIN 985 CI.8
31	RTA000244563	Hex screw M8x20 DIN 933 8.8
33	RTA000924605	Retainer
35	RTA000273955	Square key 1/4x1/4x1-1/4
36	RTA000294833	Clutch bolt 7/16-20x2-1/2 LG
37	RTA000276012	Spring washer 7/16
38	RTA000892595	El. magnet clutch Warner MSS-80C 5217-9
39	RTA200959137	Engine pulley
42	RTA000298760	Flat washer 8.4 DIN 9021 B
43	RTA200958721	Idler arm
44	RTA000786445	Idler pulley F 3000-0750
45	RTA000091993	Idler bushing
46	RTA000238414	Hex screw M10x40 DIN 931 8.8
60	RTA204598004	Tyre 20x10.00-8 KENDA SUPER TURF
61	RTA000496826	Tube 20x10.00-8
62	RTA204598018	Rim complete 20x10.00-8
66	RTA200958444	Stabilizer
67	RTA000221845	Screw M8x45 DIN 931 10.9
68	RTA000246235	Screw M8x25 DIN 933 8.8
72	RTA201058448	Support plate
73	RTA000740113	Grease fitting MK 6 DIN 71412
74	RTA203958746	Bracket, left
75	RTA203958007	Bracket, right
Section 4 Pag.5
1	RTA000784256	Handle grip - black
2	RTA000015994	Ratchet pivot plate
3	RTA000403535	Plunger button - black
4	RTA000045639	Connection rod
5	RTA000280885	Self-locking nut M8 DIN 985 Cl.8
7	RTA000244563	Hex screw M8x20 DIN 933 8.8
8	RTA201058107	Gear segment
9	RTA000001485	Spring
10	RTA105800953	Arm lever pin
11	RTA000926222	Height adjustment arm lever
12	RTA275200006	Clip for pin 6 DIN 6799
13	RTA000324467	Spring pin 5x30 DIN 1481
14	RTA201958365	Height adjuster shaft
17	RTA000291500	Flat washer 8.4 DIN 125 A
21	RTA000281446	Self-locking nut M10 DIN 985 Cl.8
22	RTA000292061	Flat washer 10.5 DIN 125 A
23	RTA000910283	Eye bolt M10x50x14 - Zc
24	RTA000080608	Lift spring
25	RTA000957110	Pivot arm assy
27	RTA000072985	Lifting pin
29	RTA000235323	Cotter pin 5x50 DIN 94
30	RTA202958277	Bent pin
31	RTA000033242	Hair pin 2.5-63
32	RTA000965305	Front suspension mower deck
33	RTA000282557	Self-locking nut M12 DIN 985 Cl.8
34	RTA000228019	Hex nut M12 DIN 934 Cl.8
35	RTA000918005	Front holder
36	RTA000293172	Flat washer 13 DIN 125 A
37	RTA000037246	Pin
38	RTA000075812	Hair pin clip 3.15-49
41	RTA200958670	Height adjustment rod
42	RTA000282218	Cotter pin 2x18 DIN 94
43	RTA202056038	Rubber washer
Section 4 Pag.6
103	RTA105800975	Spring lever
104	RTA000200090	Flat washer 4.3 DIN 125 A
105	RTA000284240	Self locking nut M4 DIN 985 CI.8
107	RTA200958754	Bracket, brake rod
112	RTA000406560	Caps A281/B1 1/2
113	RTA200058634	Lever bypass
116	RTA201958399	Arm, by-pass lever
118	RTA000290389	Flat washer 6.4 DIN 125 A
119	RTA200258742	Cotter pin 1.6x12 DIN 94
120	RTA000411312	Pedal pad - black
121	RTA195800998	Pedal
123	RTA000280885	Self locking nut M8 DIN 985 CI.8
124	RTA000291500	Flat washer 8.4 DIN 125 A
125	RTA000054340	Brake spring
126	RTA200958651	Brake connecting rod
128	RTA200958707	Brake - shaft
129	RTA000060280	Hand brake spring
130	RTA195800964	Hand brake lever
131	RTA000244563	Hex screw M8x20 DIN 933 8.8
132	RTA000048400	Parking brake lever clamp
135	RTA000291610	Spring pin 5x22 DIN 1481
136	RTA220004025	Hex screw M4x25 DIN 933 8.8
137	RTA200059136	Hair pin 1.8-36
138	RTA200958761	Bracket, brake rod
139	RTA200058690	Spring
140	RTA201058193	Plate by-pass
141	RTA200208243	Stirrup 4 DIN 6799
142	RTA000208263	Stirrup 7 DIN 6799
144	RTA000292061	Washer 10.5 DIN 125 A
145	RTA201878008	Flat washer 10.5 BN 735
146	RTA201852111	Spring washer 10.5 DIN 137 A
147	RTA201852112	Spring washer 6.4 DIN 137 A
148	RTA201878006	Flat washer 6.4 BN 735
Section 4 Pag.7
150	RTA200958756	Travel pedal, rear
151	RTA000406901	Pedal pad - Skoda
152	RTA203958202	Travel pedal, front
153	RTA202056153	Pedal pad, front
154	RTA200958752	Travel pad weldment
155	RTA200958755	Tie rod
156	RTA200958760	Diagonal shaft
157	RTA203958216	Formed link
158	RTA200958758	Diagonal shaft
159	RTA200058594	Pin
160	RTA000292061	Washer 10.5 DIN 125 A
161	RTA000282218	Cotter pin 2x18 DIN 94
162	RTA000255530	Cotter pin 2.5x18 DIN 94
163	RTA200058606	Spacer
164	RTA200058618	Pin
165	RTA000272503	Nut M8 DIN 934 Cl.8
166	RTA200225405	Screw M8x60 DIN 931 8.8
167	RTA000291610	Spring pin 5x22 DIN 1481
168	RTA203126311	Spring pin 5x26 ISO 8748
169	RTA200296000	Washer 9 DIN 126
170	RTA000246235	Screw M8x25 DIN 933 8.8
Section 5 Pag.8
1	RTA200119023	Cutting system, complete
2	RTA221010090	Hex screw M10x90 DIN 931 8.8
3	RTA105700018	Gauge wheel
4	RTA000281446	Self locking nut M10 DIN 985 Cl.8
5	RTA200958647	Mower housing, complete
6	RTA232108008	Self locking flange nut M8 DIN 6926 CI.8
7	RTA203056136	Quill housing
9	RTA201852083	Hex flange bolt M8x30 DIN 6921 8.8
10	RTA505900059	Ring support
11	RTA222008035	Hex flange bolt M8x35 DIN 6921 8.8
12	RTA000106590	Key 6h9x6x63 DIN 6885 A
13	RTA105800988	Blade shaft, left
14	RTA000233453	Hex screw M10x1x35
15	RTA202056048	Blade, left
16	RTA202056049	Blade, right
17	RTA000245025	Hex screw M10x1x35, left
18	RTA505900073	Belleville washer 40x10.2x2x3.1
19	RTA000281490	Grooved shear pin
20	RTA202058022	Blade adaptor
21	RTA000296076	Locking ring 25 DIN 471
22	RTA201878010	Bearing 6205 2RS P6
23	RTA000206030	Square key 6h9x6x25 DIN 6885 A
24	RTA105800987	Blade shaft, right
26	RTA200292003	Plastic connection
28	RTA201852163	Washer 10.5 DIN 93
Section 5 Pag.9
40	RTA000013783	Engagement lever
41	RTA000280885	Self locking nut M8 DIN 985 CI.8
42	RTA000320870	Spring
43	RTA000224730	Hex nut M8 DIN 439 B CI.04
44	RTA000201003	Spring washer 8 DIN 127 B
45	RTA000298761	Flat washer 8.4 DIN 7349
46	RTA000785884	Idler pulley W3500 - 3712
47	RTA105800931	Bushing
48	RTA105800943	Belt retainer
49	RTA000282557	Self locking nut M12 DIN 985 CI.8
50	RTA000078573	Flat washer
51	RTA000903606	Drive pulley
52	RTA000246235	Hex screw M8x25 DIN 933 8.8
53	RTA000201003	Spring washer 8 DIN 127 B
54	RTA000069729	Shoulder spacer
55	RTA105800944	Idler arm
56	RTA000221850	Hex screw M8x50 DIN 931 8.8
57	RTA203258354	Hex screw M6x16 DIN 912 8.8
58	RTA271030064	Flat washer 6.4 BN 737
59	RTA105800863	Rubber washer 6.4
60	RTA202248107	Cog belt 20DS 8M 1760 Bando
61	RTA195800954	Cog pulley assy
62	RTA105800928	Cog pulley pin
63	RTA000280885	Self locking nut M8 DIN 985 CI.8
64	RTA000291500	Flat washer 8.4 DIN 125 A
65	RTA105800945	Pulley support
66	RTA000993663	Drive cog pulley 28
68	RTA240306016	Carriage bolt M6x16 DIN 603 6.8
69	RTA000290389	Flat washer 6.4 DIN 125 A
70	RTA000283118	Self locking nut M6 DIN 985 CI.8
72	RTA105800946	Flat washer
73	RTA203958208	Blade drive plate assy
74	RTA505900043	Cog pulley washer
75	RTA220010045	Hex screw M10x45 DIN 933 8.8
76	RTA105800947	Bracket idler
77	RTA000292061	Flat washer 10.5 DIN 125 A
78	RTA000281446	Self locking nut M10 DIN 985 CI.8
79	RTA195800887	Cog pulley 28
80	RTA201878011	Bearing 6203 2RS P6
81	RTA275100040	Locking ring 40 DIN 472
82	RTA000293172	Flat washer 13 DIN 125 A
83	RTA105700013	Belt cover - black
84	RTA000492063	V-Belt 17x1350 B53 - Mitsuboshi
85	RTA203056142	Drive pulley cover - black
86	RTA203056019	Cover holder
87	RTA203125378	Bolt M4x12 4.6 BN 354
88	RTA000271243	Flat washer 4.3 DIN 9021 B
89	RTA000254067	Hex screw M5x16 DIN 933 8.8
90	RTA203125377	Flat washer 5x20 BN 732
91	RTA000285912	Self locking nut M5 DIN 985 CI.8
Section 6 Pag.10
1	RTA202958270	Tunnel
2	RTA000284240	Self locking nut M4 DIN 985 CI.8
3	RTA000072765	Support plate
4	RTA000071082	Rubber seal
7	RTA202359367	Hex screw M8x12 DIN 933 8.8
8	RTA253504012	Ecofix screw M4x12 BN 4825 H 4.8
9	RTA000262911	Head slotted screw M4x12 DIN 84 A 8.8
10	RTA105800926	Switch cover
11	RTA255108016	Carriage bolt M8x16 BN 11252 10.9
12	RTA000251691	Screw M8x25 Verbus Ripp BN 2797 CI.100
13	RTA200958653	Collector support, right
14	RTA200958652	Collector support, left
15	RTA200058625	Tow hitch
16	RTA222008020	Hex screw M8x20 DIN 6921 8.8
17	RTA201958419	Collector plate assy
18	RTA000291500	Flat washer 8.4 DIN 125 A
19	RTA000280885	Self locking nut M8 DIN 985 CI.8
20	RTA200058623	Tow hitch support
21	RTA000213312	Hex screw M8x25 DIN 6921 8.8
23	RTA202056034	Tunnel support, left
24	RTA202056033	Tunnel support, right
26	RTA200058627	Protective shield bracket
27	RTA201058222	Protective shield
28	RTA201058237	Adjustable shield
29	RTA201058238	Rear plate chute
31	RTA200958656	Overload switch assy, complete
32	RTA201058119	Overload switch actuation lever
33	RTA201058121	Upper housing, over-load switch
34	RTA201058120	Lower housing, over-load switch
35	RTA200059134	Pin, over-load switch
36	RTA240306016	Carriage bolt M6x16 DIN 603 6.8
37	RTA000247357	Hex screw M6x12 DIN 933 8.8
38	RTA000283118	Self locking nut M6 DIN 985 CI.8
39	RTA000846802	Plastic wing nut 1/4-20
40	RTA000290389	Flat washer 6.4 DIN 125 A
41	RTA000207086	Carriage bolt M5x16 DIN 603 6.8
42	RTA000285912	Nut M5 DIN 985 KL8
43	RTA000244563	Hex screw M8x20 DIN 933 8.8
44	RTA000201003	Spring washer 8 DIN 127 B
45	RTA201115853	Reinforcing
46	RTA203125379	Bushing KD 716
48	RTA000284449	Hex screw M6x16 DIN 933 8.8
49	RTA000289828	Flat washer 5.3 DIN 125 A
Section 7 Pag.11
1	RTA201958325	Grass collector assy
2	RTA000254067	Hex screw M5x16 DIN 933 8.8
3	RTA000285912	Self locking nut M5 DIN 985 Cl.8
4	RTA105800918	Collector spring, interlock
5	RTA201958329	Spring bracket
6	RTA000489951	Handle grip, dump lever
7	RTA105800952	Dumping lever
8	RTA000975249	Front frame assy
9	RTA200058278	Grass collector bag CZ
10	RTA000019063	Corner support - right
11	RTA000239448	Flat washer 5.3 DIN 9021 B
12	RTA000272635	Hex screw M5x30 DIN 933 8.8
13	RTA000289828	Flat washer 5.3 DIN 125 A
14	RTA000286605	Hex screw M5x25 DIN 933 8.8
15	RTA000060269	Corner support- left
16	RTA000024937	Connecting brace
17	RTA000283250	Hex screw M5x35 DIN 933 8.8
18	RTA200958657	Bottom frame assy
19	RTA000280885	Self locking nut M8 DIN 985 Cl.8
20	RTA000026048	Brace
21	RTA000246235	Hex screw M8x25 DIN 933 8.8
22	RTA000207086	Carriage bolt M5x16 DIN 603 6.8
23	RTA000244563	Hex screw M8x20 DIN 933 8.8
24	RTA000201003	Spring washer 8 DIN 127 B
25	RTA000298760	Flat washer 8.4 DIN 9021 B
26	RTA201958328	Top frame assy
27	RTA000978604	Lift handle
28	RTA204056413	Collector cover RAL 2004
29	RTA505900065	Taptite thread form screw M6x12 DIN 7500 D
30	RTA105800862	Rubber washer 5
31	RTA000639144	Decal arrow
Section 8 Pag.12
1	RTA105800940	Seat support bracket
2	RTA000201003	Spring washer 8 DIN 127 B
3	RTA000244563	Hex screw M8x20 DIN 933 8.8
4	RTA222008020	Hex flange bolt M8x20 DIN 6921 8.8
5	RTA201058223	Spacer
7	RTA105800939	Seat support
8	RTA240306030	Carriage bolt M6x30 DIN 603 6.8
9	RTA000298210	Flat washer 6.4 DIN 9021 B
10	RTA000331386	Seat spring
11	RTA105800935	Spacer split
12	RTA505900119	Seat quatro 400 071
13	RTA105800938	Bracket
14	RTA000002156	Bushing
15	RTA000283118	Self locking nut M6 DIN 985 Cl.8
16	RTA000290642	Spring washer 8 DIN 137 A
17	RTA203150000	Adj. knob KRG 1A 40 M8x15
18	RTA200958705	Chasis frame
19	RTA000246235	Hex screw M8x25 DIN 933 8.8
20	RTA000074690	Seat support screw
21	RTA000291500	Flat washer 8.4 DIN 125 A
22	RTA000280885	Self locking nut M8 DIN 985 Cl.8
23	RTA000262064	Flat head socket screw M5x20 DIN 7991 10.9
24	RTA000268774	Finishing washer 5.3 SN 213912
25	RTA204056456	Fender RAL 2004
26	RTA000292061	Flat washer 10.5 DIN 125 A
27	RTA000281446	Self locking nut M10 DIN 985 Cl.8
28	RTA000285912	Self locking nut M5 DIN 985 Cl.8
29	RTA000239448	Flat washer 5.3 DIN 9021 B
30	RTA200057102	Footrest assy - black
31	RTA000098692	Seat spring
32	RTA201058111	Battery box
33	RTA000298760	Flat washer 8.4 DIN 9021 B
36	RTA000239448	Flat washer 5.3 DIN 9021 B
37	RTA000207086	Carriage bolt M5x16 DIN 603 6.8
38	RTA000407121	Hub cap SC 1-1/2 - black
39	RTA105800864	Rubber washer 10.5
40	RTA105800862	Rubber washer 5.3
41	RTA105800870	Rubber washer 11.5
42	RTA000289828	Flat washer 5.3 DIN 125 A
43	RTA254505016	Flat head screw M5x16 DIN 965 A 4.8
Section 8 Pag.13
61	RTA204956018	Bumper
62	RTA204956011	Hood
63	RTA000820699	Bushing 23x2 KD5
64	RTA203056190	Fuel tank holder
65	RTA203056191	Support holder
66	RTA000256300	Hex screw M5x12 DIN 933 8.8
67	RTA203845122	Screw M5x12 DIN 965 A 4.8
68	RTA000323906	Spring pin 6x45 DIN 7346
69	RTA000058527	Steering wheel, 14 640 CZ
70	RTA254505016	Flat head screw M5x16 DIN 965 A 4.8
71	RTA250004014	Head-slotted screw M4x14 DIN 84 A 4.8
72	RTA000084414	Throttle knob - black
73	RTA000284240	Self locking nut M4 DIN 985 Cl.8
74	RTA000285912	Self locking nut M5 DIN 985 Cl.8
75	RTA000770880	Throttle lever assy
76	RTA105800812	Brace
77	RTA203056091	Dash panel - black
78	RTA204100503	Nut M5 DIN 934
79	RTA000289828	Flat washer 5.3 DIN 125 A
80	RTA204120500	Spring washer 5 DIN 127 B
81	RTA220005020	Hex screw M5x20 DIN 933 8.8
82	RTA000239448	Flat washer 5.3 DIN 9021 B
83	RTA000244563	Hex screw M8x20 DIN 933 8.8
84	RTA000298760	Flat washer 8.4 DIN 9021 B
86	RTA105800818	Safety bar
87	RTA105800801	Hood spring
89	RTA195800866	Heat shield
90	RTA000259314	Self drilling screw 4.2x13 DIN 7504 K
91	RTA000978450	Choke - Capro
92	RTA505900084	Hex nut 3/8 - 24
93	RTA203300113	Hub cap GL 25x3-3.5 - black
94	RTA201852111	Spring washer 10 DIN 137 A
95	RTA000201003	Spring washer 8 DIN 127 B
96	RTA000239448	Flat washer 5.3 DIN 9021 B
Section 9 Pag.14
1	RTA000820556	Battery 12V-22Ah
2	RTA000271942	Hex nut M6 DIN 934 Cl.8
3	RTA000284449	Hex screw M6x16 DIN 933 8.8
4	RTA000874962	Battery clamp
5	RTA000652388	Rubber boot
6	RTA000872421	Battery cable (-)
7	RTA000280885	Self locking nut M8 DIN 985 Cl.8
8	RTA000290389	Flat washer 6.4 DIN 125 A
12	RTA000323356	Cable ties RT 360
14	RTA000059004	Wiring harness holder
15	RTA000829191	Clip - snap in 1903-00 F/A
16	RTA201958368	Light wiring harness CZ
18	RTA000818323	Light bulb R 10W 12V BA15s
20	RTA195800914	Clutch harness with diode
21	RTA201958441	Main wiring harness HYDRO-01
22	RTA000890670	Cap - 15455 - 4539
23	RTA000430595	Bushing 9x1.5 KD 712
24	RTA820002202	Bushing 18x2
25	RTA195800915	Battery cable (+)
26	RTA000692054	Nylon clips - adhesive 1/4 PCNY 250-9
27	RTA000820699	Bushing 23x2 KD 5
28	RTA203800004	Bushing 16x2 KD 7
Section 9 Pag.15
35	RTA505900049	Protective cover 9910
36	RTA000877943	Switch DELTA 6440-04
37	RTA201059200	Switch DELTA 6440-53
38	RTA201852333	Screw 2.9x13 DIN 7981 Z
39	RTA201958440	Control modulus HYDRO-01
40	RTA200058252	Holder modulus
41	RTA201852334	Flat washer 3 DIN 125 A
47	RTA000247357	Hex screw M6x12 DIN 933 8.8
48	RTA000200442	Spring washer 6 DIN 127 B
49	RTA000290389	Flat washer 6.4 DIN 125 A
50	RTA000277816	Nut W 1/4" - 20
51	RTA000453332	Rubber boot 16x11
52	RTA195800916	El. starter lead (10)
53	RTA000821117	Solenoid 94255/12V - 150A
54	RTA203356752	Screw 4.2x13 DIN 7981 F
Section 9 Pag.16
56	RTA195800895	Connect cable
57	RTA505900052	Locking rocker switch
58	RTA200830600	Ignition switch DELTA integral with key
59	RTA200800001	Key with moulded cover for integral switch
60	RTA000304909	Ring 406 15/40
65	RTA201852002	Buzzer
67	RTA201958410	Buzzer compl.
68	RTA505900098	Hourmeter 82001
Section 10 Pag.17
1	RTA000639144	Decal arrow
3	RTA000604945	Battery label
4	RTA201059075	Decal B&S
5	RTA203056086	Decal, dash panel, right
6	RTA201058188	Decal, dash panel, left
7	RTA204056450	Hood decal, side
8	RTA204056451	Hood decal, front
9	RTA000689315	Brake locking
10	RTA000686620	Users information
11	RTA000668041	Safety label
12	RTA000601920	Safety label - cutting
13	RTA000697521	Label of lifting, left
14	RTA105800819	Label of lifting, right
15	RTA000641179	Travel direction decal
16	RTA200058280	By-pass decal
17	RTA201058186	Safety decal
19	RTA204056452	Decal, SG 180-102
23	RTA201058253	Rear plate chute decal

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
