ST. S.P.A. Parts for Engine OM55 (2008) 118550317/0_070098OM55
€93.71
Tax included
ST. S.P.A. Parts for Engine OM55 (2008) 118550317/0_070098OM55
ALPINA ST. S.P.A. authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine ST. S.P.A. OM55 (2008) 118550317/0_070098OM55.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
ST. S.P.A. Parts for Engine OM55 (2008) 118550317/0_070098OM55
ALPINA ST. S.P.A. authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine ST. S.P.A. OM55 (2008) 118550317/0_070098OM55.

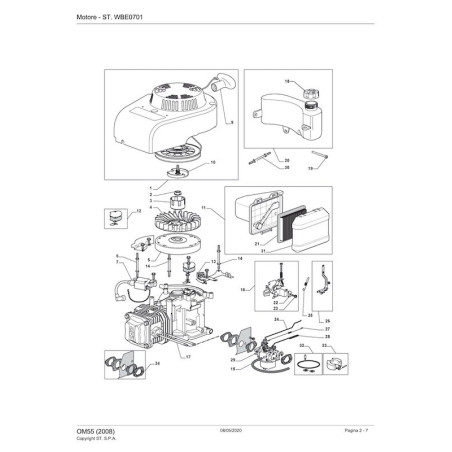

In the following table, look for the model of the Engine and the respective parts of the code.
| ENGINE ST. S.P.A. OM55 (2008) 118550317/0_070098OM55 pag.1 | ||
| # | Part Num. | Description |
| 1 | 118550276/0 | Starter assembly |
| 2 | 118550336/0 | Nut |
| 3 | 118550335/0 | Starter cup |
| 4 | 118550254/0 | Flywheel fan |
| 5 | 118550253/0 | Flywheel Assembly |
| 6 | 118550301/0 | Stud Bolt |
| 7 | 118550255/0 | Electronic Ignition coil |
| 9 | 118550274/0 | Starter handle |
| 10 | 118550275/0 | Starter Powl Set |
| 11 | 118550258/1 | Air filter assembly |
| 12 | 118550378/0 | Oil Breath Gasket Assembly |
| 13 | 118550376/0 | Flywheel Brake Assembly |
| 14 | 118550302/0 | Stud Bolt |
| 15 | 118550340/0 | Fuel Hose |
| 16 | 118550259/0 | Throttle control |
| 17 | 118550298/0 | Stud Bolt |
| 18 | 118550339/0 | Tank cap |
| 19 | 118550314/0 | Fuel filter |
| 20 | 118550316/0 | Gasoline tank |
| 21 | 118550257/0 | Air filter |
| 22 | 118550337/0 | Cable clip |
| 23 | 118550338/0 | Screw |
| 24 | 118550397/0 | Throttle rod |
| 25 | 118550260/0 | Spring |
| 26 | 118550266/0 | Throttle Control Lever |
| 27 | 118550263/0 | Spring |
| 28 | 118550264/0 | Aria lever control |
| 29 | 118550251/0 | Carburetor |
| 30 | 118550315/0 | Stud Bolt |
| 31 | 118550396/0 | Air filter cover |
| 32 | 118550389/0 | Service kit |
| 33 | 118550388/0 | Carburettor Service Kit |
| 34 | 118550248/0 | Carburettor Gasket Kits |
| ENGINE ST. S.P.A. OM55 (2008) 118550317/0_070098OM55 pag.2 | ||
| 32 | 118550244/0 | Cylinder Head Assembly |
| 33 | 118550268/1 | Muffler protection |
| 34 | 118550269/0 | Muffler |
| 35 | 118550270/0 | Muffler gasket |
| 36 | 118550297/0 | Screw |
| 37 | 118550298/0 | Stud Bolt |
| 38 | 9400-0244-00 | Spark Plug |
| 39 | 118550296/1 | Valves cover |
| 40 | 118550278/0 | Piston assembly |
| 41 | 118550271/0 | Camshaft |
| 42 | 118550281/0 | Motor Crank shaft |
| 43 | 118550311/0 | Oil Level Cap Assembly |
| 44 | 118550377/0 | Breath Hose |
| 45 | 118550308/0 | Control Shaft Assembly |
| 46 | 118550291/0 | Valve lifter assembly |
| 47 | 118550289/0 | Tappet Rods Assembly |
| 48 | 118550280/0 | Ball bearing |
| 49 | 118550284/0 | Link Rod Assembly |
| 50 | 118550283/0 | Washer |
| 51 | 118550288/0 | Flywheel key |
| 52 | 118550300/0 | Oil Seal |
| 53 | 118550383/0 | Crankcase Assembly |
| 54 | 118550312/0 | Controller assembly |
| 55 | 118550379/0 | Oil Seal |
| 56 | 118550380/0 | Crankcase Gasket |
| 61 | 118550292/0 | Intake valve assembly |
| 62 | 118550294/0 | Exhaust Valve Assembly |
| 63 | 118550273/0 | Valves Balancer Set |
| 64 | 118550286/0 | Piston Ring Assembly |
| 65 | 118550404/0 | Engine Gasket Assembly |
| 66 | 118550406/0 | Cylinder Head Gaskets Assembly |
| ENGINE ST. S.P.A. OM55 (2008) 118550317/0_070098OM55 pag.3 | ||
| 60 | 322055452/0 | Cover Black |
| 61 | 322055450/0 | Cover Black |
| 62 | 322055439/0 | Cover Black |
| 63 | 322055463/1 | Cover |
| 71 | 381002068/0 | Cover |
| 72 | 381002067/0 | Cover |
| 100 | 118550408/0 | Complete engine |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ST. S.P.A. OM55 2008 118550317/0
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
New
