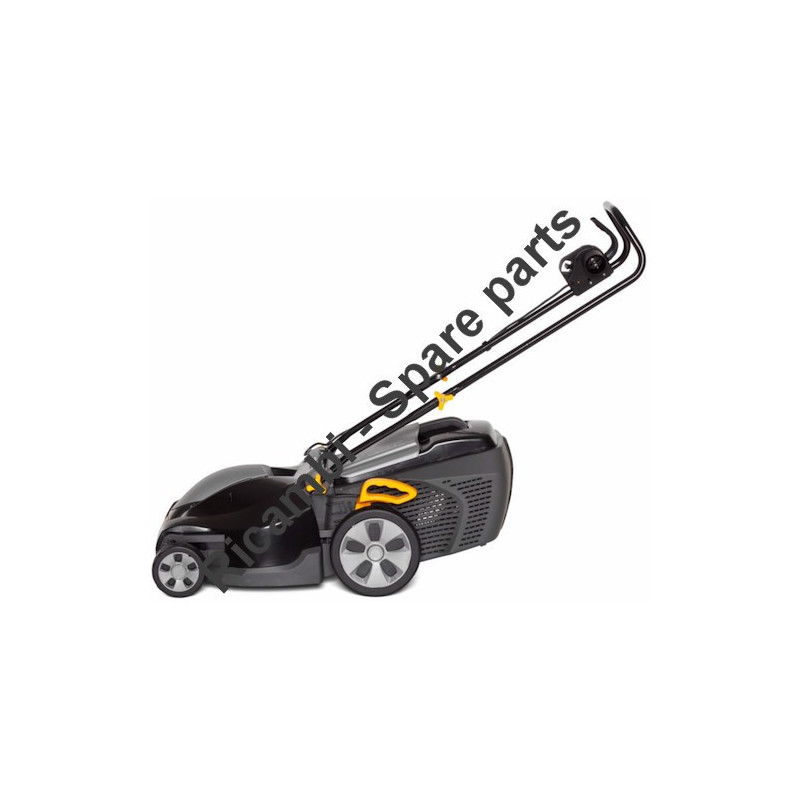

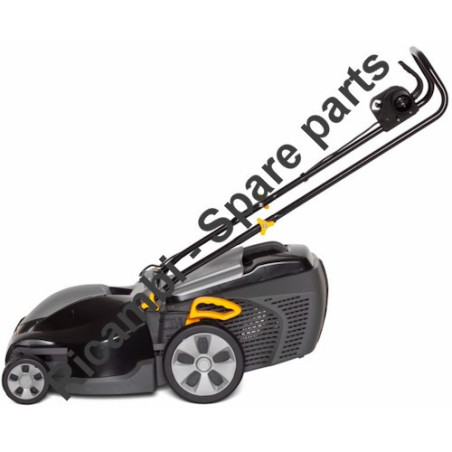

Alpina Spare Parts for Lawn Mower BL 380 EP
€1.70
Tax included
Alpina Spare Parts for Lawn Mower BL 380 EP
ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower BL 420 EP/294420064/A19-2019.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Lawn Mower BL 380 EP
ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower BL 420 EP/294420064/A19-2019.
In the following table, look for the model of the Lawn Mower and the respective parts of the code.
| Chassis/Height Adjustment Pag.1 | ||
| # | Part Num. | Description |
| 2 | 322785387/0 | Wheel Support |
| 2 | 322785450/0 | Wheel Support |
| 3 | 322686105/0 | Wheel |
| 4 | 322110637/0 | Gray hubcap |
| 5 | 112604903/0 | Washer |
| 6 | 122033427/0 | Rear Wheel Axle |
| 7 | 322545142/0 | Plate |
| 8 | 112728714/0 | Screw |
| 9 | 322785388/0 | Height Adjustment Lever |
| 9 | 322785388/1 | Height Adjustment Lever |
| 9 | 322785443/0 | Height Adjustment Lever |
| 9 | 322785443/1 | Height Adjustment Lever |
| 10 | 322524354/0 | Pin |
| 11 | 122446195/0 | Spring |
| 12 | 322869680/0 | Height Adjustment Control Rod |
| 12 | 322869690/0 | Height Adjustment Control Rod from 01-September-2014 |
| 13 | 322785415/0 | Plate |
| 14 | 122033426/0 | Rear Wheel Axle |
| 15 | 322785386/0 | Wheel Support |
| 15 | 322785438/0 | Wheel Support |
| 16 | 322686104/0 | Wheel |
| 17 | 322110685/0 | Gray hubcap |
| 18 | 322785385/0 | Wheel Support |
| 18 | 322785449/0 | Wheel Support |
| Chassis Pag.2 | ||
| 1 | 322055168/0 | Front plate |
| 1 | 322055252/0 | Front plate |
| 2 | 322055162/0 | Red hood |
| 2 | 322055209/0 | Red hood |
| 2 | 322055216/0 | Black Hood |
| 2 | 322055217/0 | Red hood |
| 3 | 112728714/0 | Screw |
| 4 | 322393661/0 | Hood |
| 4 | 322393661/1 | Hood |
| 4 | 322393726/0 | Hood |
| 5 | 322393668/0 | Handle |
| 5 | 322393725/0 | Handle |
| 6 | 122450470/0 | Spring |
| 7 | 322524356/0 | Pin |
| 8 | 322600236/0 | Stoneguard |
| 8 | 322600292/0 | Stoneguard |
| 9 | 322486301/0 | Bag, Right Lower Side |
| 9 | 322486406/0 | Bag, Right Lower Side |
| 10 | 322486302/0 | Bag, Left Lower Side |
| 10 | 322486405/0 | Bag, Left Lower Side |
| 11 | 322486330/0 | Bag, Upper Sdide Black |
| 16 | 322140243/0 | Mulching cap |
| 17 | 322393676/0 | Motor Protection |
| 18 | 322393670/0 | Right Engine Cover |
| 19 | 322393671/0 | Left Engine Cover |
| Handle Upper Side Pag.3 | ||
| CE | 381600547/2 | EC motor protector |
| UK | 381600548/2 | UK motor protection |
| 1 | 381007516/0 | Handle, Upper Part |
| 2 | 322195101/4 | Cable Clamp |
| 3 | 112728701/0 | Screw |
| 4 | 381600547/0 | EC motor protector |
| 4 | 381600547/1 | EC motor protector |
| 4 | 381600547/2 | EC motor protector |
| 5 | 122192000/1 | Clamp |
| 6 | 122192151/0 | Clamp |
| 7 | 122943016/0 | Screw |
| 8 | 118566112/0 | Polyethylene ethylene ferrule |
| 9 | 112523050/0 | Washer |
| 10 | 122399900/0 | Knob |
| 11 | 112154521/0 | Nut |
| 12 | 381007517/0 | Handle, Part Inf Dx |
| 13 | 381007518/0 | Handle, Lower Part Left |
| 14 | 322246102/0 | Jpint |
| 15 | 122430210/0 | Bearing |
| 16 | 322745055/0 | Right Joint |
| 17 | 112728714/0 | Screw |
| 18 | 122943017/0 | Screw |
| 19 | 322745056/0 | Left Joint |
| 20 | 112521320/0 | Washer |
| 21 | 322319529/0 | Motor Protection Lever |
| Motor/Blade Pag.4 | ||
| 1 | 112728699/0 | Screw |
| 3 | 112523020/0 | Washer |
| 4 | 118563697/0 | 1800W Electric Motor |
| 4 | 118563697/1 | 1800W Electric Motor |
| 5 | 322465644/0 | Hub |
| 5 | 322465644/1 | Hub |
| 6 | 181004155/0 | Blade |
| 6 | 181004161/0 | Blade |
| 7 | 381004352/1 | Screw |
| 9 | 118810092/0 | Belt |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
