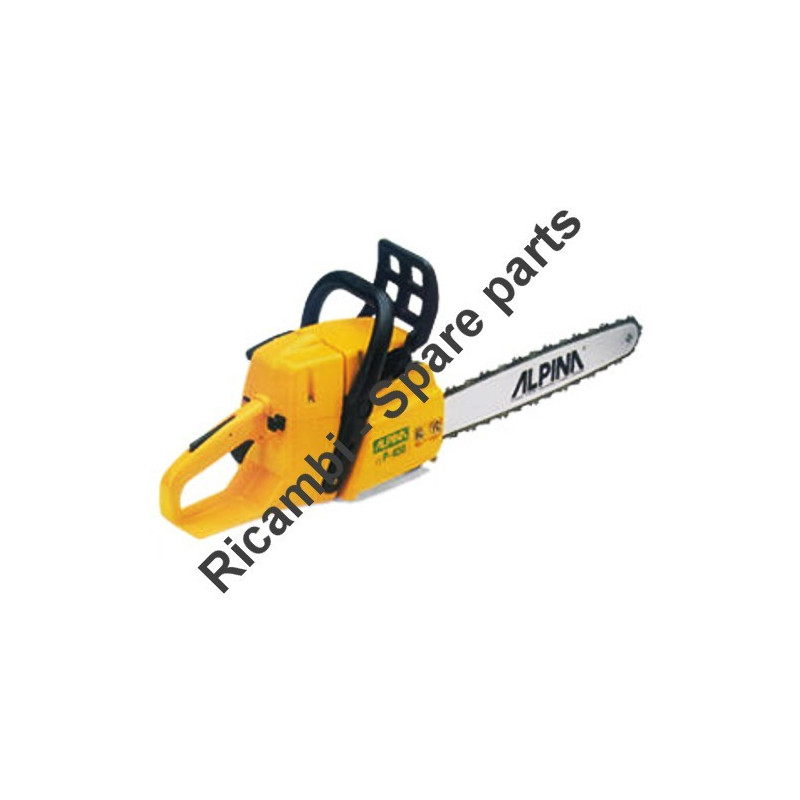

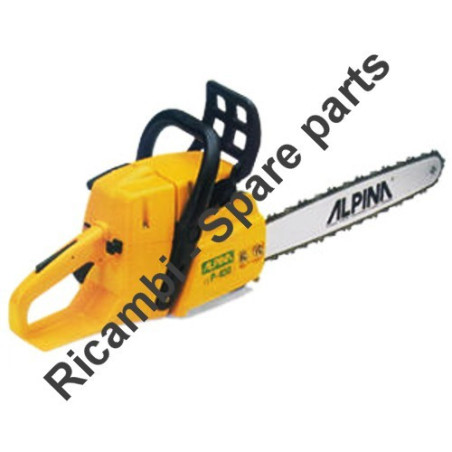

Alpina Spare Parts for Chain Saw P 450 (2004) 224618000/04
€2.61
Tax included
Alpina Spare Parts for Chain Saw P 450 (2004) 224618000/04
Alpina-Stiga-Castor-Castelgarden-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chain Saw P 450 (2004) 224618000/04.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Chain Saw P 450 (2004) 224618000/04
Alpina-Stiga-Castor-Castelgarden-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chain Saw P 450 (2004) 224618000/04.
In the following table, look for the model of the Chain Saw and the respective parts of the code.
| ALPINA P 450 (2004) 224618000/04 pag.1 | ||
| # | Part Num. | Description |
| 1 | 2135030 | Screw |
| 2 | 4121931 | Ass. Muffler |
| 3 | 3615180 | Muffler gasket |
| 4 | 2432040 | Nut |
| 5 | 2135060 | Screw |
| 6 | 3L8540970/1 | Ass.Cil-Pist Ø 45 (Incl.49) |
| 7 | 8540960 | Ass. Piston Ø 45 |
| 8 | 3123110 | Elastic band Ø 45 |
| 9 | 3158080 | Piston pin |
| 10 | 3356020 | Circlip |
| 11 | 3116020 | Needle Bearing |
| 12 | 8251360 | Crankshaft |
| 13 | 3151010 | Flywheel Key |
| 15 | 3724190 | Cylinder gasket |
| 16 | 4562417 | Hand-guard |
| 17 | 4250720 | Chain Link |
| 18 | 3630660 | Pin |
| 19 | 3657450 | Clamp Supp. Wire Coil |
| 20 | 3657050 | Spark Plug Spring |
| 21 | 3745130 | Grommet |
| 22 | 3748880 | Spark Plug Cover |
| 23 | 3721420 | Washer |
| 24 | 3210024 | Spark Plug |
| 25 | 3211080 | Spark Plug cable |
| 26 | 3210690 | Electronic Ignition coil |
| 27 | 4541220 | Flywheel |
| 31 | 2312080 | Washer |
| 32 | 2432050 | Nut |
| 33 | 3749837 | Plug |
| 34 | 2123030 | Screw |
| 35 | 3642680 | Bushing |
| 36 | 3744250 | Shock Absorber |
| 37 | 2135130 | Screw |
| 38 | 2132510 | Screw |
| 39 | 2321050 | Washer |
| 40 | 8520940 | Crankcase Assy |
| 41 | 2112460 | Screw |
| 43 | 3121120 | Seal ring |
| 44 | 3121070 | Seal ring |
| 45 | 3112030 | Ball bearing |
| 46 | 3613760 | Brake band |
| 47 | 8251590 | Ass. Oil Pump |
| 48 | 3744730 | Gasket |
| 49 | 3613770 | Washer |
| 50 | 3180310 | Worm Screw |
| 51 | 4251750 | Clutch Assy |
| 52 | 4121960 | Clutch Drum |
| 53 | 3114080 | Needle Bearing |
| 54 | 3612620 | Pinion Washer - NON FORNIBILE |
| 55 | 3351110 | Circlip |
| 56 | 4121970 | Chain Brake Lever |
| 57 | 3654200 | Brake Spring |
| 58 | 3630670 | Pin |
| 59 | 4251710 | Ass. Chain tensioner |
| 60 | 3613880 | Plate |
| 61 | 2132500 | Screw |
| 62 | 3744710 | Intake Manifold |
| 63 | 4251730 | Flange Assy |
| 64 | 2312090 | Washer |
| 65 | 4520960 | Support Carburetor |
| 66 | 2135040 | Screw |
| 67 | 3613900 | Bushing |
| 68 | 3657140 | Clamp |
| 69 | 3782850 | Carburator Pulse pipe |
| 70 | 2123090 | Screw |
| 71 | 3749840 | Air Filter Support |
| 72 | 3749850 | Air Filter Holder |
| 73 | 3745650 | Air Lever Grommet |
| 74 | 3743407 | ChokeLever |
| 75 | 2135110 | Screw M5x45 |
| 76 | 4253650 | Carburetor |
| 77 | 2652440 | Screw |
| 78 | 3660520 | Pump Cover |
| 79 | 3654140 | Spring |
| 80 | 2653310 | Screw |
| 83 | 3781450 | Screen |
| 84 | 3748600 | Fitting |
| 85 | 2652430 | Screw |
| 86 | 2652610 | Screw |
| 87 | 3654230 | Spring |
| 88 | 2652390 | Screw |
| 89 | 3613650 | Throttle shutter |
| 90 | 3642870 | Throttle shutter shaft |
| 91 | 3614090 | Choke shutter |
| 92 | 3642880 | Choke Throttle shutter |
| 93 | 3781510 | Filter |
| 94 | 3356080 | Retainer |
| 95 | 2653291 | Screw |
| 96 | 3654100 | Spring |
| 97 | 2653420 | Screw |
| 98 | 3654110 | Spring |
| 99 | 3613640 | Plug |
| 100 | 3613630 | Carburetor Cap |
| 101 | 3630680 | Needle Valve |
| 102 | 3640820 | Pin balance |
| 103 | 3654130 | Spring |
| 104 | 3612470 | Control Lever |
| 107 | 3611510 | Cover |
| 108 | 8724090 | Diaph.-gasket set |
| 109 | 8724230 | Gaskets set |
| 110 | 3642860 | Bushing |
| 111 | 3614340 | Lever |
| 112 | 3654350 | Spring |
| 113 | 3614350 | Lever |
| 114 | 3750050 | Bushing |
| 115 | 2653450 | Screw |
| 116 | 2125010 | Screw |
| 117 | 2312120 | Washer |
| 118 | 3749400 | Chain Guard |
| 119 | 2135050 | Screw |
| 120 | 2432040 | Nut autoblock |
| 121 | 2135010 | Screw |
| 122 | 3L3614510/1 | Chain-Saw Hinge 460/510 |
| 123 | 2360060 | Washer |
| 124 | 3L4252080/2 | decompressor |
| ALPINA P 450 (2004) 224618000/04 pag.2 | ||
| 1 | 4562397 | Handle |
| 2 | 2312090 | Washer |
| 3 | 2123030 | Screw |
| 4 | 3744250 | Shock absorber |
| 5 | 3642680 | Bushing |
| 6 | 2135030 | Screw |
| 7 | 3749837 | Cap |
| 9 | 2135040 | Screw |
| 10 | 4252177 | Starter Yellow Ass |
| 11 | 2382250 | Bushing |
| 12 | 3749437 | Starter handle |
| 13 | 4611480 | Starter Spring |
| 14 | 3623510 | Bushing |
| 15 | 3723640 | Disc |
| 16 | 4563040 | Starter Pulley |
| 17 | 3784010 | Starter cord |
| 18 | 3613420 | Washer |
| 19 | 2123030 | Screw |
| 20 | 8211060 | Ground terminal Assy |
| 21 | 3210970 | Stop switch |
| 22 | 8251600 | Handle |
| 23 | 4250950 | Fuel cap assy |
| 24 | 3721300 | O-Ring |
| 25 | 4250960 | Oil Cap assy |
| 26 | 3721330 | O-Ring |
| 28 | 4253580 | Venting Tube Blend |
| 32 | 4253690 | Oil tube assy |
| 33 | 8782880 | Oil Filter assy |
| 34 | 8782870 | Intake filter assy - DISCONTINUED |
| 35 | 3655290 | Throttle rod |
| 36 | 3654180 | Spring |
| 37 | 3314140 | Spring band pin |
| 38 | 3743387 | Throttle lever |
| 39 | 3743397 | Safety Lever |
| 40 | 3320170 | Clamp |
| 41 | 2412030 | Nut |
| 42 | 3781470 | Air filter |
| 43 | 2653190 | Screw |
| 44 | 8562300 | Filter Cover Yellow - DISCONTINUED |
| 45 | 2123060 | Screw |
| 46 | 3613890 | Plate |
| 47 | 4251620 | Clutch Housing Yellow |
| 48 | 2670120 | Nut |
| 49 | 4112490 | Guide Bar 18inch |
| 50 | 4113433 | chain 18inch |
| 51 | 3750080 | Starter Hook |
| 52 | 3750090 | Starter Hook Guide |
| 53 | 3654390 | Spring |
| 54 | 3642980 | Bushing |
| 55 | 4181307 | 16 "cover |
