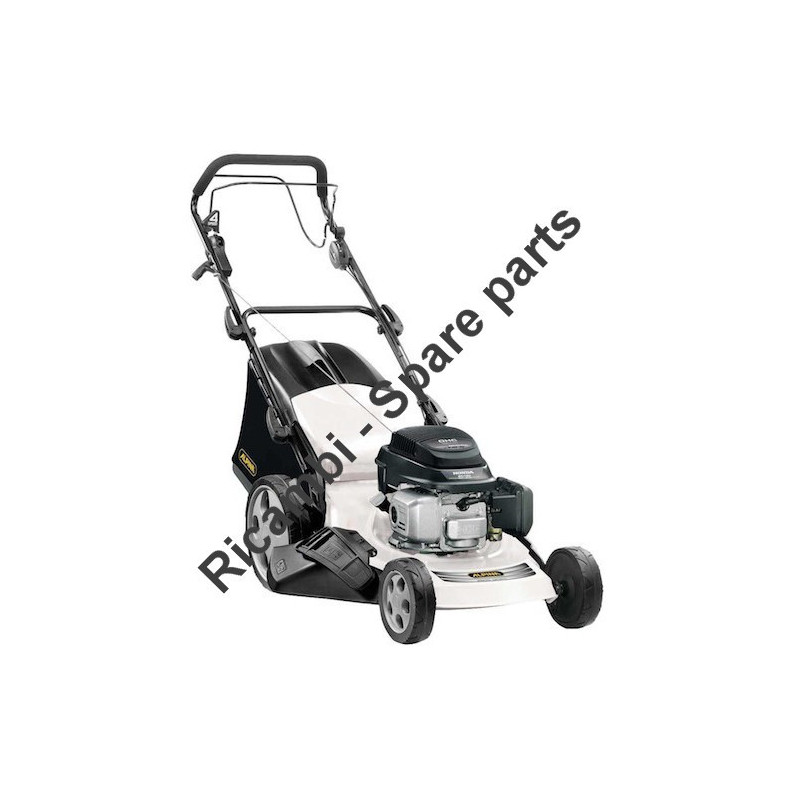

Alpina Spare Parts for Lawn Mower AL5 51 G
€2.08
Tax included
Alpina Spare Parts for Lawn Mower AL5 51 G
Alpina-Stiga-Castelgarden-Castor-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower AL5 51 G/299531040-A17-2017.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Lawn Mower AL5 51 G
Alpina-Stiga-Castelgarden-Castor-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower AL5 51 G/299531040-A17-2017.
In the following table, look for the model of the Lawn Mower and the respective parts of the code.
| Lawn Mower AL5 51 G/299531040-A17-2017 | ||
| Deck And Height Adjusting Pag.1 | ||
| # | Part Num. | Description |
| 1 | 381003909/0 | Red Deck |
| 1 | 381004540/0 | Red Deck |
| 2 | 122534131/0 | Pin |
| 3 | 322322851/0 | Lever, Height Adjustment |
| 3 | 322322857/0 | Lever, Height Adjustment |
| 4 | 112154510/0 | Nut |
| 5 | 112788512/0 | Screw |
| 6 | 322394503/0 | Knob |
| 7 | 112521310/0 | Washer |
| 8 | 112150000/0 | Nut |
| 9 | 112369500/0 | Elastic Washer |
| 10 | 122943013/0 | Screw |
| 11 | 381002031/0 | Rod, Height Adjustment |
| 11 | 381002050/0 | Rod, Height Adjustment |
| 12 | 112436051/0 | Plate |
| 13 | 112727803/0 | Screw |
| 14 | 112154510/0 | Nut |
| 15 | 112727801/0 | Screw |
| 16 | 381002887/1 | Front Wheel Axle |
| 16 | 381302923/0 | Front Wheel Axle |
| 17 | 112154510/0 | Nut |
| 18 | 112728450/0 | Screw |
| 19 | 322034002/0 | Washing Connection |
| 20 | 322394522/0 | Knob |
| 21 | 322600145/0 | Protection, Wheel |
| 24 | 112521350/0 | Washer |
| 25 | 112155000/0 | Nut |
| 31 | 381302823/0 | Axle, Rear Wheels |
| 31 | 381302825/0 | Axle, Rear Wheels |
| 33 | 112728697/0 | Screw |
| 34 | 322545152/0 | Plate |
| 35 | 112728697/0 | Screw |
| 36 | 322785304/1 | Support |
| 40 | 122446192/0 | Spring |
| Mask Pag.2 | ||
| 1 | 322226158/0 | Mask, Black |
| 2 | 322393642/0 | Bumper Handle |
| 3 | 112727799/0 | Screw |
| 4 | 112154510/0 | Nut |
| Handle, Lower Part Pag.3 | ||
| 1 | 381006889/0 | Handle Lower Part |
| 1 | 381007043/0 | Handle Lower Part |
| 2 | 381005125/0 | Right Bracket |
| 2 | 381005133/0 | Right Bracket |
| 3 | 381005127/0 | Left Bracket |
| 3 | 381005135/0 | Left Bracket |
| 4 | 112819120/0 | Screw |
| 4 | 112819121/0 | Screw |
| 5 | 122680006/1 | Washer |
| 6 | 322399804/1 | Nut |
| 7 | 112293200/0 | Nut |
| 10 | 112760605/0 | Screw |
| 11 | 112521350/0 | Washer |
| 11 | 125038002/1 | Bushing |
| 12 | 112155000/0 | Nut |
| 13 | 322192156/0 | Clip |
| 14 | 112523040/0 | Washer |
| 15 | 112154510/0 | Nut |
| 16 | 112369500/0 | Elastic Washer |
| 17 | 381008686/0 | Screw |
| Handle, Upper Part Pag.4 | ||
| 1 | 381006840/0 | Handle, Upper Part |
| 2 | 122430313/0 | Guide Spring |
| 3 | 112521330/0 | Washer |
| 4 | 112154510/0 | Nut |
| 5 | 118390020/0 | Conduit Clip |
| 6 | 181030053/0 | Cable, Thread Engine Brake |
| 9 | 181003363/1 | Lever, Engine Brake Black |
| 10 | 381030051/0 | Cable Rear Drive |
| 10 | 381030092/0 | Cable Rear Drive |
| 10 | 381030092/1 | Cable Rear Drive |
| 12 | 181003364/0 | Cable Rear Drive |
| 13 | 122291050/0 | Handgrip Black |
| Controls Pag.5 | ||
| 1 | 181005501/1 | Throttle cable |
| 2 | 112735103/0 | Screw |
| 3 | 112523040/0 | Washer |
| Wheels and Hub Caps Pag.6 | ||
| 1 | 119216035/0 | Bearing |
| 2 | 381007477/0 | Whel |
| 3 | 322110640/0 | Hub Cap Grey |
| Protection, Belt Pag.7 | ||
| 1 | 322291150/0 | Rubber Insert |
| 2 | 322060197/2 | Belt Protection |
| 2 | 322060197/3 | Belt Protection |
| 3 | 112728530/0 | Screw |
| 3 | 112728531/0 | Screw |
| 4 | 122140222/0 | Mulching Deflector |
| Blade Pag.8 | ||
| 1 | 112735108/1 | Screw |
| 2 | 122463012/2 | Blade Boss Ø 22.2 |
| 3 | 181004381/1 | Blade Standard |
| 4 | 122160400/0 | Elastic Disc |
| 5 | 112523080/0 | Washer M 10 |
| 6 | 112735698/0 | Screw |
| 7 | 112139100/0 | Woodruff Key |
| Grass-Catcher Pag.9 | ||
| 1 | 381008081/1 | Stone Guard, Black |
| 1 | 381008081/2 | Stone Guard, Black |
| 1 | 381008082/2 | Stone Guard, Yellow |
| 2 | 122450466/0 | Left Spring |
| 3 | 122517882/0 | Pin |
| 4 | 122450465/0 | Right Spring |
| 5 | 112604899/0 | Crown Fastener |
| 6 | 322486101/0 | Grass-Box, Upper Part |
| 6 | 381486008/0 | Grass-Box, Upper Part |
| 6 | 381486013/0 | Grass-Box, Upper Part |
| 7 | 122608525/0 | Stiffening Lower |
| 7 | 122608525/1 | Box, Fabric |
| 8 | 181002211/0 | Box |
| 9 | 112728680/0 | Screw |
| 10 | 112523050/0 | Washer |
| Engine - Carburettor, Tank Pag.10 | ||
| 1 | 112292102/0 | Nut |
| 2 | 118550276/1 | Starter Assy |
| 3 | 118550274/0 | Starter Handle |
| 4 | 118550779/0 | Starting Rope |
| 5 | 118550778/0 | Starter Pulley |
| 6 | 118550275/0 | Starter Pawl Set |
| 7 | 118550336/0 | Nut |
| 8 | 118550335/0 | Starter Cup |
| 9 | 118550254/0 | Flywheel Fan |
| 10 | 118550253/0 | Flywheel Ass.Y |
| 11 | 118550774/0 | Guard |
| 12 | 112791213/1 | Screw |
| 13 | 118550907/0 | Pin |
| 14 | 118550301/0 | Stud Bolt |
| 15 | 118550255/1 | Electronic Coil |
| 16 | 112791500/0 | Screw |
| 17 | 118551274/0 | Spark Plug Cap |
| 18 | 118551288/0 | Spring |
| 19 | 112791500/0 | Screw |
| 20 | 118551205/0 | Flywheel Brake |
| 21 | 118550259/0 | Remote Control Assy |
| 22 | 118550337/0 | Casing Clamp |
| 23 | 118550338/0 | Screw |
| 24 | 112791213/1 | Screw |
| 25 | 118550260/0 | Spring |
| 26 | 118550266/0 | Arm Governor Assy |
| 27 | 118550397/0 | Governor Link |
| 28 | 118550263/0 | Spring |
| 29 | 118550264/0 | Choke Control Rod |
| 30 | 118550390/0 | Carburetor |
| 31 | 118550738/0 | Air Filter Gasket |
| 32 | 118550737/0 | Air Cleaner Assy |
| 33 | 118550257/0 | Air Filter |
| 34 | 118550739/0 | Air Cleaner Cover |
| 35 | 118550377/0 | Breather Fule Pipe |
| 36 | 118550930/0 | Stud Bolt |
| 37 | 112292102/0 | Nut |
| 38 | 118550929/0 | Gasket |
| 39 | 118550928/0 | Insulator, Carburettor |
| 40 | 118550315/0 | Stud Bolt |
| 41 | 118550316/1 | Fuel Tank |
| 42 | 118550943/0 | Fuel Tank Cap |
| 43 | 118550806/0 | Nut |
| 44 | 118550314/0 | Fuel Filter |
| 45 | 118550340/0 | Fuel Pipe |
| 46 | 118551264/0 | Carburetor Gasket |
| 47 | 118551266/0 | Carburetor Gasket |
| 48 | 118550388/0 | Kit Repair, Carburettor |
| 49 | 118550389/0 | Kit Repair |
| 50 | 118550805/0 | Screw |
| 51 | 118550806/0 | Nut |
| 52 | 118550918/0 | Clamp |
| 55 | 118550408/0 | Engine Cpl |
| Engine - Piston, Crankshaft Pag.11 | ||
| 1 | 112674550/0 | Screw |
| 2 | 118551208/0 | Crankcase Cover |
| 3 | 118550379/0 | Oil Seal |
| 4 | 118550775/0 | Grommet |
| 5 | 118550312/1 | Speed Governor Assy |
| 6 | 118550380/1 | Crankcase Gasket |
| 8 | 118550283/0 | Washer |
| 9 | 118550271/0 | Camshaft assy |
| 10 | 118550385/0 | Crankshaft |
| 11 | 118550288/0 | Woodruff Key |
| 12 | 118550284/0 | Connecting Rod Assy |
| 13 | 118551213/0 | Piston |
| 14 | 118550286/0 | Piston, Ring Set |
| 15 | 118550280/0 | Ball Bearing |
| 16 | 118550936/0 | Shaft, Governor Arm |
| 17 | 118550291/0 | Valve Lifter Assy |
| 18 | 118551251/0 | Push Rod |
| 19 | 118551212/0 | Cylinder Head |
| 20 | 118550296/2 | Cover Comp., Head |
| 21 | 118551277/0 | Bolt |
| 22 | 9400-0244-00 | Spark Plug RC12YC |
| 23 | 118550297/0 | Screw |
| 24 | 118550298/0 | Stud Bolt |
| 25 | 118550270/0 | Muffler Gasket |
| 26 | 118550269/0 | Muffler |
| 27 | 118550268/1 | Muffler Guard |
| 28 | 118550806/0 | Nut |
| 29 | 118550300/0 | Oil Seal |
| 30 | 112674550/0 | Screw |
| 31 | 118550311/1 | Oil Filler Assy |
| 32 | 118551210/0 | Cap,Breather Chamber |
| 33 | 118551211/0 | Breather Chamber Gasket |
| 34 | 118550303/0 | Plate |
| 35 | 118550273/0 | Valve Arm Set |
| 36 | 118550910/0 | Valve Assy, Intake + Exhaust |
| 37 | 118551300/0 | Spring |
| 38 | 118550895/0 | Retainer |
| 39 | 118551253/0 | Plate |
| 43 | 112790500/0 | Screw |
| 44 | 118550935/0 | Oil Seal |
| 45 | 118550856/0 | Cotter Pin |
| 46 | 118551237/0 | Cylinder head gasket |
| 47 | 118551233/0 | Cylinder Gasket |
| 48 | 118551269/0 | Plate,Governor Holder |
| 49 | 118550915/0 | Piston Pin |
| 50 | 118550914/0 | Washer, Piston Pin |
| Cover Engine Pag.12 | ||
| 1 | 322055463/1 | Cover |
| 3 | 322055452/0 | Cover, Black |
| 4 | 322055450/0 | Cover, Black |
| 5 | 322055439/0 | Cover, Black |
| 6 | 381002068/0 | Cover |
| 7 | 381002067/0 | Cover |
| 8 | 112728680/0 | Screw |
| 10 | 322055516/0 | Engine Cover |
| 11 | 112728099/1 | Screw |
| 12 | 322055517/0 | Engine Base Cover, Yellow |
| 12 | 322055552/0 | Engine Base Cover, Black |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AL5 51 G/299531040-A17-2017
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
