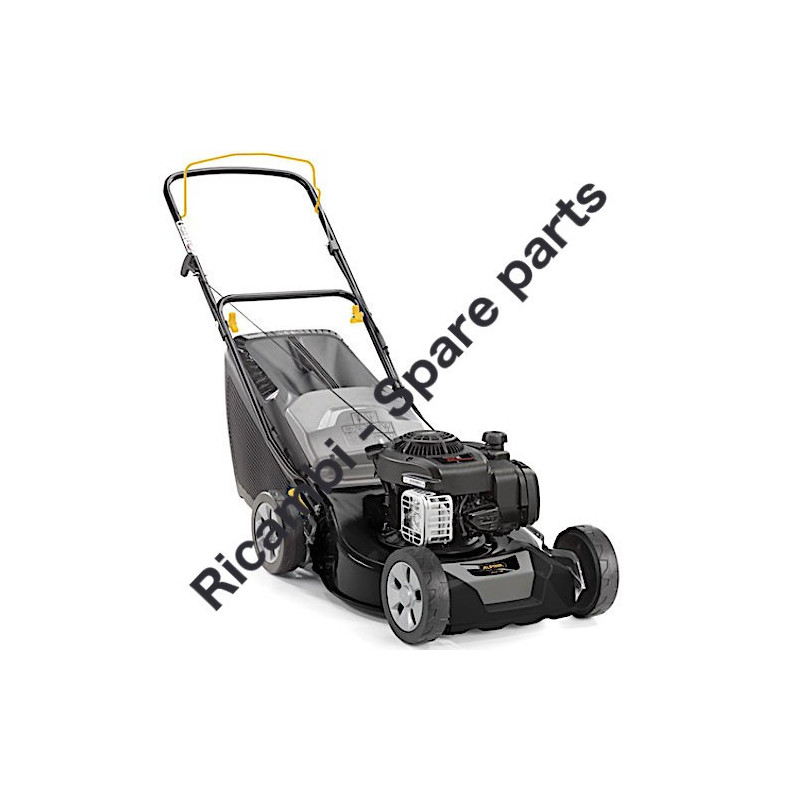

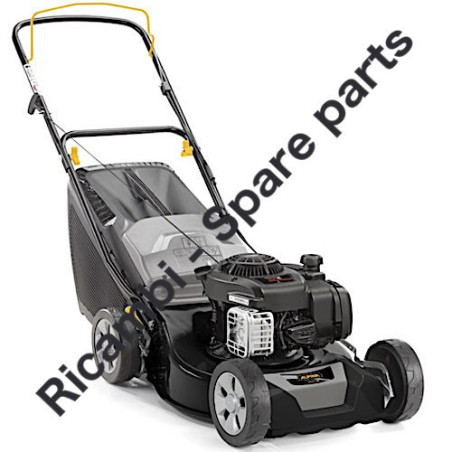

Alpina Lawnmower AL4 46 Parts
€22.33
Tax included
Alpina Lawnmower AL4 46 Spare Parts
Alpina Genuine spare parts or replacement parts for to repair Petrol Lawnmower AL4 46 (2022) - 2L0481024/A21.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Lawnmower AL4 46 Spare Parts
Alpina Genuine spare parts or replacement parts for to repair Petrol Lawnmower AL4 46 (2022) - 2L0481024/A21.In the following table, look for the model of the Lawn Mower and the respective parts of the code.
| Lawnmower AL4 46 - 2L0481024/A21 Deck without Brackets pag.1 | ||
| # | Part Num. | Description |
| 1 | 322034002/0 | Washing Connection |
| 2 | 112728450/0 | Screw |
| 3 | 119035000/0 | Or Ring |
| 4 | 322820077/1 | Cap |
| 5 | 322600310/0 | Rear door |
| 6 | 322108329/0 | Rear Conveyor |
| 7 | 112728697/0 | Screw |
| 8 | 322060242/2 | Belt Protection |
| 9 | 112728903/0 | Screw |
| 10 | 322140239/1 | Mulching Deflector |
| 10 | 322140250/0 | Mulching Deflector |
| 11 | 381005027/0 | Grey Deck |
| Lawnmower AL4 46 - 2L0481024/A21 Height Adjusting pag.2 | ||
| 1 | 381302935/0 | Axle, Front Wheels |
| 1 | 381302935/1 | Axle, Front Wheels |
| 2 | 322785305/1 | Support |
| 3 | 112728697/0 | Screw |
| 4 | 322869733/0 | Rod, Height Adjustment |
| 4 | 322869733/1 | Rod, Height Adjustment |
| 5 | 122519823/0 | Pin |
| 6 | 112436050/0 | Plate |
| 7 | 122450494/0 | Spring |
| 8 | 381302855/1 | Rear Wheel Axle |
| 8 | 381302855/2 | Rear Wheel Axle |
| 9 | 381003356/0 | Wheels Rear Adj. Lever |
| 9 | 381003356/1 | Wheels Rear Adj. Lever |
| 10 | 122534131/0 | Pin |
| 11 | 122446192/0 | Spring |
| 12 | 112154510/0 | Nut |
| 13 | 322785500/0 | Support |
| Lawnmower AL4 46 - 2L0481024/A21 Mask pag.3 | ||
| 1 | 112735410/0 | Screw |
| 2 | 322226292/0 | Mask, Black |
| 3 | 322393780/0 | Front Handle |
| Lawnmower AL4 46 - 2L0481024/A21 Handle, Lower Part pag.4 | ||
| 1 | 381007645/0 | Handle, Lower Part Black |
| 7 | 322545189/0 | Plate |
| 8 | 112521350/0 | Washer |
| 9 | 112792611/0 | Screw |
| 10 | 112819121/0 | Screw |
| 11 | 122671651/0 | Washer |
| 12 | 122399900/0 | Black Knob |
| 13 | 381108602/1 | Outfit, Screws |
| Lawnmower AL4 46 - 2L0481024/A21 Handle, Lower Part pag.5 | ||
| 1 | 381006740/0 | Handle, Upper Part |
| 2 | 112727783/0 | Screw |
| 3 | 322551640/0 | Cable Holder |
| 3 | 322551685/0 | Cable Holder ø22 |
| 4 | 118390020/0 | Conduit Clip |
| 5 | 181030056/0 | Cable, Thread Engine Brake |
| 6 | 112154510/0 | Nut |
| 7 | 112154510/0 | Nut |
| 8 | 112521330/0 | Washer |
| 9 | 122430313/0 | Guide Spring |
| 10 | 381003394/0 | Lever, Engine Brake Yellow |
| 10 | 381003394/1 | Lever, Engine Brake Yellow |
| Lawnmower AL4 46 - 2L0481024/A21 Wheel and Hub Cap pag.6 | ||
| 1 | 381007814/0 | Wheel ø200 |
| 2 | 321660100/0 | Washer |
| 3 | 112521350/0 | Washer |
| 4 | 112155000/0 | Nut |
| 5 | 322110643/0 | Hub Cap Grey |
| Lawnmower AL4 46 - 2L0481024/A21 Blade pag.7 | ||
| 1 | 112735108/1 | Screw |
| 2 | 1111-9168-01 | Blade Holder |
| 2 | 122463012/4 | Hub, Crankshaft Ø 22.2 |
| 3 | 1111-9121-02 | Blade |
| 3 | 181004346/3 | Left Mulching, Blade |
| 4 | 122160400/0 | Elastic Disc |
| 5 | 112523080/0 | Washer |
| 6 | 112735698/0 | Screw |
| 7 | 112139100/0 | Key |
| Lawnmower AL4 46 - 2L0481024/A21 Grass-Catcher pag.7 | ||
| 1 | 322486497/0 | Rear door |
| 2 | 322486496/0 | Grass-Box, Upper Part |
| 3 | 322486150/1 | Grass-Box, Right Lower Part |
| 4 | 322486151/1 | Grass-Box, Left Lower Part |
| 5 | 122450479/0 | Spring |
| 6 | 122517884/0 | Pin |
| 7 | 322600355/1 | Stone Guard, Black |
| 8 | 322109594/0 | Stone Guard Support, Black |
| 9 | 112728697/0 | Screw |
| 10 | 381008735/0 | Outfit, Plastic Pin |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AL4 46 - 2L0481024/A21
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
