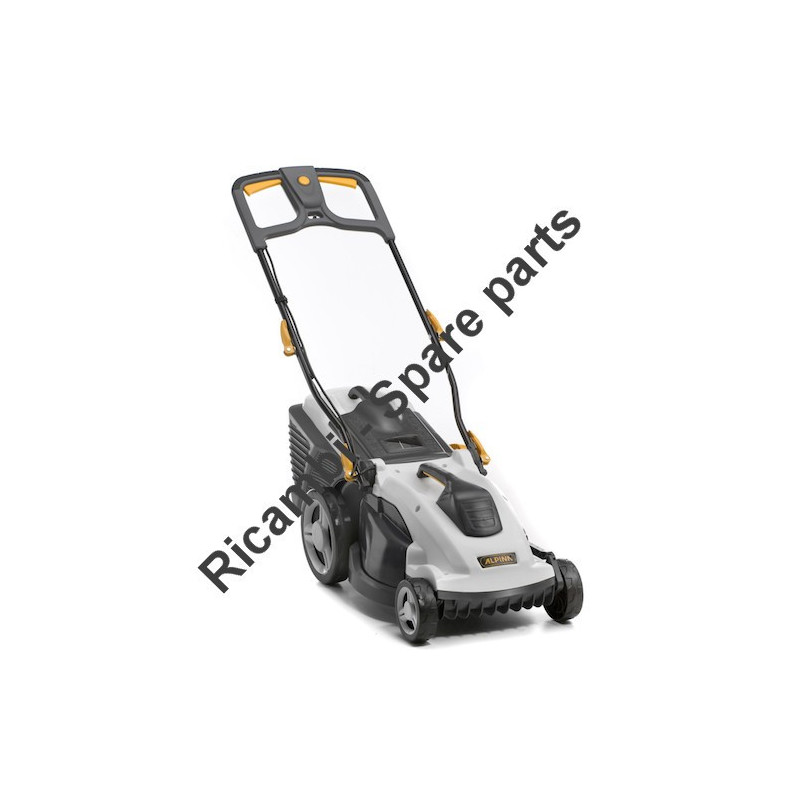

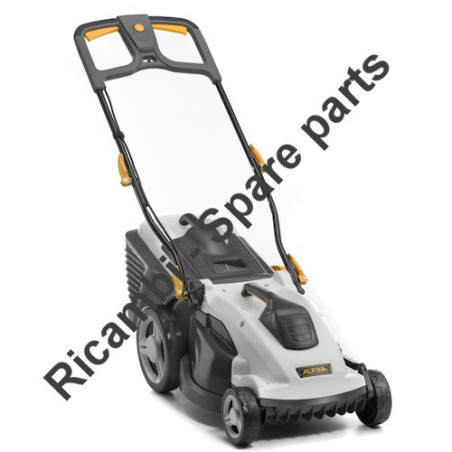

Alpina Spare Parts for Electric Lawn Mower AL1 38 E
€1.74
Tax included
Alpina Spare Parts for Electric Lawn Mower AL1 38 E
ALPINA Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Electric Lawn Mower AL1 38 E/294380060-A12-2017.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Electric Lawn Mower AL1 38 E
ALPINA Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Electric Lawn Mower AL1 38 E/294380060-A12-2017.
In the following table, look for the model of the Electric Lawn Mower and the respective parts of the code.
| Electric Lawn Mower AL1 38 E/294380060-A12-2017 | ||
| Deck And Height Adjusting Pag.1 | ||
| # | Part Num. | Description |
| 1 | 322066783/0 | Deck STIGA Grey |
| 2 | 322785450/0 | Support, Wheel |
| 3 | 322686105/0 | Wheel |
| 4 | 322110684/0 | Hub Cap Grey |
| 5 | 112604903/0 | Washer |
| 6 | 122033425/0 | Rear Wheel Axle |
| 7 | 322545142/0 | Plate |
| 8 | 112728714/0 | Screw |
| 9 | 322785414/1 | Lever, Height Adjustment From 01-September 2012 To 31-August 2017 |
| 10 | 322524354/0 | Pin |
| 11 | 122446195/0 | Spring |
| 12 | 22869680/0 | Rod, Height Adjustment to 31-August 2014 |
| 12 | 322869690/0 | Rod, Height Adjustment from 01-September-2014 |
| 13 | 322785415/0 | Plate |
| 14 | 122033424/0 | Rear Wheel Axle |
| 15 | 322785386/0 | Support, Wheel to 31-August 2014 |
| 15 | 322785438/0 | Support, Wheel from 01-September-2014 |
| 16 | 322686104/0 | Wheel |
| 17 | 322110683/0 | Hub Cap Grey |
| 18 | 322785449/0 | Support, Wheel |
| Deck Pag.2 | ||
| 1 | 322055158/0 | White Cover |
| 1 | 322055175/0 | Yellow Cover |
| 2 | 322109565/0 | Left Side Cover |
| 3 | 322109899/0 | Right Side Cover |
| 4 | 322393720/0 | Handle |
| 5 | 322393659/0 | Handle, Lower Part |
| 6 | 122450470/0 | Spring |
| 7 | 322524356/0 | Pin |
| 8 | 322600288/0 | Stone Guard, Grey |
| 9 | 322486393/0 | Grass-Box, Right Lower Part |
| 10 | 322486394/0 | Grass-Box, Left Lower Part |
| 11 | 322486308/0 | Grass-Box, Upper Part |
| 12 | 322393656/0 | Handle |
| 12 | 322393718/0 | Handle |
| 13 | 322140242/0 | Mulching Plug |
| 14 | 322393672/0 | Engine Protection |
| 17 | 112728714/0 | Screw |
| 18 | 322055168/0 | Front Plate |
| 20 | 113300215/0 | Scraper |
| Handle, Upper Part Pag.3 | ||
| 1 | 322291070/0 | Upper Half Handgrip Switch |
| 2 | 381600521/1 | Dead Hand Switch |
| 3 | 322291071/0 | Lower Half Handgrip Switch |
| 4 | 112728713/0 | Screw |
| 5 | 381007514/1 | Handle Lower Part |
| 6 | 122192000/1 | Clamp |
| 7 | 112523050/0 | Washer |
| 8 | 122524352/0 | Pin |
| 9 | 322319519/0 | Fixing Lever Handle |
| 10 | 122943016/0 | Screw |
| 11 | 322246102/0 | Handle Joint |
| 12 | 122430210/0 | Bearing |
| 13 | 322745055/0 | Right Joint |
| 14 | 112728714/0 | Screw |
| 15 | 322745056/0 | Left Joint |
| 16 | 122943017/0 | Screw |
| 18 | 118566112/0 | Polyethylene Push Road |
| 19 | 381007513/0 | Handle Lower Part |
| 20 | 381007514/1 | Handle Lower Part |
| 21 | 112521320/0 | Washer |
| Electric Motor/Blade Pag.4 | ||
| 1 | 112728699/0 | Screw |
| 3 | 112523020/0 | Washer |
| 4 | 118563696/1 | Electric Motor 1600W From 01-September 2012 To 31-August 2017 |
| 5 | 322465602/1 | Hub Fan |
| 6 | 181004160/0 | Blade |
| 7 | 381004352/1 | Screw |
| 9 | 118810092/0 | Belt |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AL1 38 E 294380060-A12-2017
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
