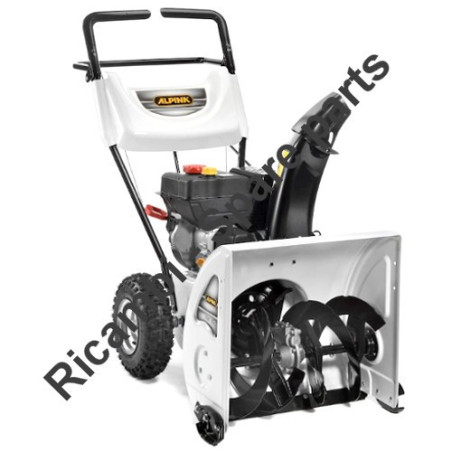

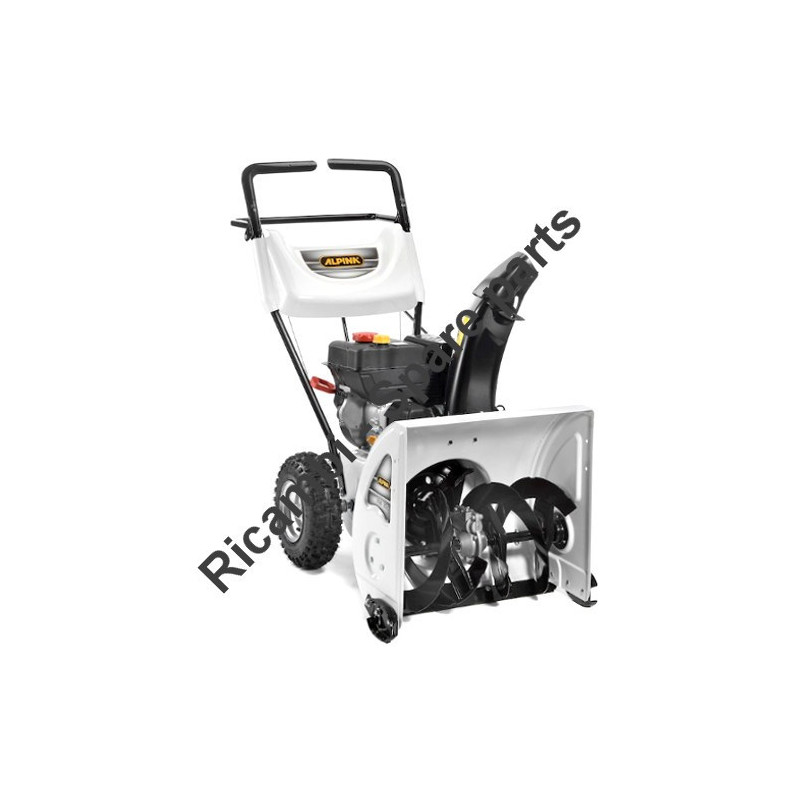

Alpina Spare Parts for Snow Throwers AS 56 A
Alpina genuine spare parts or replacement parts for to repair Snow Throwers AS 56 A/18-2870-422-2018.
In the following table, look for the model of the Snow Throwers and the respective parts of the code.
| Snowthrower AS 56 A/18-2870-422-2018 Handle Pag.1 |
||
| # | Part Num. | Description |
| 1 | 1811-2466-01 | Handle |
| 2 | 9747-0831-02 | Lock Nut |
| 3 | 1811-2567-01 | Clutch Lever, Right |
| 4 | 1811-2472-01 | Rubber Cap |
| 6 | 1811-2570-01 | Yellow Dashboard |
| 6 | 1811-2570-02 | White Dashboard |
| 7 | 1811-2400-01 | Screw |
| 8 | 1811-2458-01 | Adjustment Rod |
| 9 | 9799-0531-02 | Nut |
| 11 | 1811-2566-01 | Clutch Lever, Left |
| 13 | 9747-0831-02 | Lock Nut |
| 15 | 9787-0831-32 | Nut |
| 16 | 1811-2468-01 | Eye Bolt |
| 17 | 1811-2469-01 | Rubber Sleeve |
| 18 | 1811-2563-01 | Gear Lever |
| 19 | 9739-0631-22 | Nut |
| 20 | 9997-0620-16 | Screw |
| 21 | 9739-0631-22 | Nut |
| 22 | 9997-0620-16 | Screw |
| 23 | 1811-2482-01 | Gear Rod - NO LONGER AVAILABLE |
| 27 | 1811-2565-01 | Gear select plate |
| 28 | 9997-0840-16 | Screw |
| 29 | 1811-2453-01 | Handle Washer |
| 30 | 9699-0062-02 | Washer |
| 31 | 9997-0820-16 | Screw |
| 46 | 1811-2476-01 | Shoulder Bolt |
| 47 | 1811-2440-01 | Wire Pulley |
| 48 | 1811-2439-01 | Bracket-Yellow |
| 50 | 9997-0612-16 | Screw |
| 51 | 9739-0631-22 | Nut |
| 52 | 1811-2437-01 | Bracket-Yellow |
| 53 | 1811-2440-01 | Wire Pulley |
| 54 | 9997-0612-16 | Screw |
| 56 | 9747-0831-02 | Lock Nut |
| 57 | 9699-0028-02 | Washer |
| 63 | 9997-0610-16 | Screw |
| 65 | 1811-2442-01 | Grip |
| 66 | 9997-0610-16 | Screw |
| 68 | 1811-2486-01 | Bottom plate-yell |
| 70 | 9997-0610-16 | Screw |
| 141 | 1811-2467-01 | Crank |
| 142 | 1811-2431-01 | Bushing |
| 143 | 9599-0054-02 | Split Pin |
| 144 | 9898-0820-16 | Screw |
| 145 | 1811-2430-01 | Bracket-Yellow |
| 146 | 9747-0831-02 | Lock Nut |
| 193 | 9699-0072-02 | Washer |
| Snowthrower AS 56 A/18-2870-422-2018 Engine - Belts Pag.2 |
||
| 32 | 1811-2452-01 | Wheel Shaft |
| 33 | 1811-2421-01 | Gear |
| 34 | 1811-2406-01 | Key |
| 35 | 9595-0212-00 | Locating Pin |
| 36 | 1811-2441-01 | Wheel Shaft |
| 37 | 1811-2478-01 | Spring Pin |
| 38 | 1811-2407-01 | Flat washer |
| 39 | 1811-2408-01 | Wheel Assy |
| 41 | 9997-0610-16 | Screw |
| 43 | 1811-2455-01 | Belt Cover |
| 44 | 9747-0831-02 | Lock Nut |
| 45 | 9699-0028-02 | Washer |
| 60 | 9997-0630-12 | Screw |
| 61 | 9997-0620-16 | Screw |
| 73 | 1811-2559-01 | Washer |
| 74 | 9997-0820-16 | Screw |
| 75 | 1811-2555-01 | Spring |
| 76 | 1811-2575-01 | Washer |
| 77 | 9997-0812-16 | Screw |
| 78 | 9699-0028-02 | Washer |
| 79 | 1811-2593-01 | Tension Pulley |
| 80 | 1811-2427-01 | Washer |
| 81 | 9997-0830-16 | Screw |
| 82 | 1811-2473-01 | Belt Pulley |
| 83 | 1811-2542-01 | Plain Cushion |
| 84 | 9987-5125-16 | Screw |
| 85 | 1811-2474-01 | Belt Pulley |
| 86 | 1811-2579-01 | Belt |
| 87 | 1811-2410-01 | Belt |
| 88 | 9997-0816-16 | Screw |
| 89 | 9699-0122-02 | Washer |
| 90 | 1811-2411-01 | Bearing |
| 92 | 1811-2423-01 | Hex Shaft |
| 93 | 1811-2435-01 | Hub |
| 94 | 9997-0612-16 | Screw |
| 95 | 1811-2584-01 | Friction ring |
| 96 | 1811-2433-01 | Friction Wheel |
| 97 | 9997-0612-16 | Screw |
| 98 | 1811-2434-01 | Gear Selector Hub |
| 99 | 1811-2412-01 | Lock Ring |
| 100 | 1811-2413-01 | Bearing |
| 102 | 9747-1031-02 | Lock Nut |
| 103 | 1811-2420-01 | Bracket |
| 104 | 9997-0610-16 | Screw |
| 105 | 1811-2465-01 | Gear Lever |
| 106 | 1811-2428-01 | Drive Pulley |
| 107 | 1811-2429-01 | Shaft |
| 108 | 1811-2414-01 | Bearing |
| 109 | 1811-2424-01 | Bracket |
| 110 | 9599-0054-02 | Split Pin |
| 111 | 9747-1031-02 | Lock Nut |
| 112 | 1811-2483-01 | Spring |
| 113 | 1811-2489-01 | Collar |
| 114 | 9699-0037-02 | Washer |
| 184 | 1811-2477-01 | Washer |
| 218 | 9699-0037-02 | Washer |
| 219 | 1811-2581-01 | Key |
| 220 | 1811-2592-01 | Therm. Insulated Shroud |
| Snowthrower AS 56 A/18-2870-422-2018 Housing Pag.3 |
||
| 116 | 1811-2438-01 | Bracket-Yellow |
| 118 | 9997-0610-16 | Screw |
| 119 | 1811-2440-01 | Wire Pulley |
| 120 | 1811-2476-01 | Shoulder Bolt |
| 121 | 1811-2425-01 | Tension Roller W.Bearing |
| 122 | 1811-2426-01 | Spacer |
| 124 | 1811-2427-01 | Washer |
| 125 | 9747-0831-02 | Lock Nut |
| 126 | 9747-1031-02 | Lock Nut |
| 128 | 1811-2448-01 | Tension Arm |
| 129 | 1811-2457-01 | Spring |
| 130 | 1811-2475-01 | Screw |
| 131 | 1811-2462-01 | Spring |
| 132 | 9699-0028-02 | Washer |
| 133 | 9747-0831-02 | Lock Nut |
| 148 | 9747-0831-02 | Lock Nut |
| 149 | 9898-0820-16 | Screw |
| 150 | 9747-0831-02 | Lock Nut |
| 151 | 1811-2548-01 | Shave Plate (56 Cm) |
| 152 | 9898-0820-16 | Screw |
| 154 | 9747-0831-02 | Lock Nut |
| 156 | 1811-2568-01 | Skid |
| 186 | 9898-0820-16 | Screw |
| 188 | 9747-0831-02 | Lock Nut |
| 192 | 1811-2445-01 | Washer |
| 194 | 1811-2551-01 | Screw |
| 195 | 9747-0831-02 | Lock Nut |
| 196 | 1811-2498-01 | Knob |
| 198 | 1811-2571-01 | Chute |
| 199 | 9997-0620-16 | Screw |
| 200 | 1811-2461-01 | Spring |
| 202 | 1811-2432-01 | Chute Guard |
| 203 | 1811-2500-01 | Cleaner Stick |
| 204 | 9898-0820-16 | Screw |
| 205 | 1811-2572-01 | Cleaner Stick Bracket |
| 214 | 1811-2547-01 | Rubber Block |
| Snowthrower AS 56 A/18-2870-422-2018 Gear Housing Auger Pag.4 |
||
| 12 | 9997-0510-16 | Screw |
| 134 | 9997-0820-16 | Screw |
| 136 | 1811-2464-01 | Belt Pulley |
| 137 | 9747-0831-02 | Lock Nut |
| 138 | 1811-2422-01 | Bearing Cover |
| 139 | 9600-0170-00 | Key |
| 140 | 1811-2415-01 | Bearing |
| 158 | 1811-2447-01 | Auger Shaft |
| 159 | 1811-2416-01 | Key |
| 160 | 9747-0831-02 | Lock Nut |
| 161 | 1811-9012-01 | Shear Bolt Kit |
| 162 | 1811-2480-01 | Auger-Lh |
| 163 | 1811-2443-01 | Shaft Bushing - DISCONTINUED |
| 164 | 1811-2418-01 | Flat washer |
| 165 | 1811-2444-01 | Shaft Bushing |
| 166 | 1811-2449-01 | Bearing Cover |
| 167 | 9699-0028-02 | Washer |
| 168 | 9997-0812-16 | Screw |
| 169 | 1811-2479-01 | Auger-Rh |
| 170 | 9997-0620-16 | Screw |
| 171 | 9683-0025-02 | Washer |
| 173 | 1811-2463-01 | Worm Gear |
| 174 | 1811-2484-01 | Gear Housing, Right |
| 175 | 1811-2490-01 | Bushing |
| 176 | 1811-2443-01 | Shaft Bushing - DISCONTINUED |
| 177 | 1811-2485-01 | Gear housing-LH |
| 178 | 1811-2402-01 | Bearing |
| 179 | 1811-2454-01 | Fan Shaft |
| 180 | 1811-2403-01 | Bearing |
| 181 | 1811-2404-01 | Thrust Bearing |
| 182 | 1811-2405-01 | Seal ring |
| 183 | 9595-0258-00 | Locating Pin |
| 184 | 1811-2477-01 | Washer |
| 185 | 1811-2419-01 | Fan |
| 186 | 1811-2569-01 | Gasket |
| 210 | 1811-2544-01 | Grease Filling Joint |
| 211 | 1811-2545-01 | Wave Gasket |
| 217 | 1811-2580-01 | Oil Seal |
| Snowthrower AS 56 A/18-2870-422-2018 Labels Pag.5 |
||
| 3 | 1811-2583-02 | Label kit |
| 4 | 1811-2582-02 | Label kit |
| Snowthrower AS 56 A/18-2870-422-2018 Cylinder Head Pag.6 |
||
| 2 | 118550462/0 | Ball Bearing |
| 3 | 118550459/0 | Shaft, Governor Arm |
| 4 | 118550458/0 | Speed Governor Assy |
| 5 | 118550621/0 | Engine Gasket Set |
| 10 | 118550521/0 | Cylinder Head Assy |
| 11 | 118550626/0 | Hardware Kit, Cyl.Head |
| 12 | 118550627/0 | Cylinder Head Cover |
| 20 | 118550622/0 | Plate |
| 21 | 118550472/0 | Intake Valve Assy |
| 22 | 118550473/0 | Exhaust Valve Assy |
| 23 | 118550474/0 | Push Rod |
| 24 | 118550623/0 | Valve Lifter |
| 25 | 118550624/0 | Camshaft assy |
| 26 | 118550625/0 | Valve Rocker |
| Snowthrower AS 56 A/18-2870-422-2018 Starter Pag.7 |
||
| 1 | 118550615/0 | Piston, Ring Set |
| 2 | 118550614/0 | Piston Assy |
| 3 | 118550786/0 | Piston Pin |
| 4 | 118550617/0 | Crankshaft |
| 5 | 118550787/0 | Speed Governor Assy |
| 10 | 118550619/0 | Case Cover Assy |
| 11 | 118550621/0 | Engine Gasket Set |
| 12 | 118550462/0 | Ball Bearing |
| 13 | 118550620/0 | Cap |
| 20 | 118550628/1 | Starter Assy |
| Snowthrower AS 56 A/18-2870-422-2018 Fly Whell Pag.8 |
||
| 1 | 118550634/0 | Coil Assy., Ignition |
| 2 | 118550633/0 | Cap |
| 3 | 118550635/0 | Cooling Fan Assy |
| 4 | 118550489/0 | Flywheel Ass.Y |
| 4 | 118550735/0 | Flywheel Ass.Y |
| 5 | 118550638/0 | Ignition Switch |
| 6 | 118550639/0 | Switch Key |
| 10 | 118550788/0 | Governor assy |
| 20 | 118550636/0 | Holder Assy, Starting Box |
| Snowthrower AS 56 A/18-2870-422-2018 Fly Whell Pag.9 |
||
| 1 | 118550648/0 | Switch |
| 2 | 118550500/0 | Fuel Tank Hose Connection |
| 3 | 118550649/0 | Fuel Tank |
| 4 | 118550650/0 | Cap |
| 5 | 118550651/0 | Fuel Filter |
| 6 | 118550652/0 | Oil Fill Cap Assy |
| 7 | 118550734/0 | Rear Cover-Tank |
| 10 | 118550780/0 | Carburetor |
| 11 | 118550482/0 | Spacer |
| 12 | 118550654/0 | Carb. Air Pump Assy |
| 13 | 118550621/0 | Engine Gasket Set |
| 14 | 118550484/0 | Carburettor insulator |
| 21 | 118550493/0 | Governor Rod |
| 22 | 118550492/0 | Spring |
| 23 | 118550788/0 | Governor assy |
| 24 | 118550642/0 | Switch Ass.Y |
| Snowthrower AS 56 A/18-2870-422-2018 Fly Muffler Pag.10 |
||
| 1 | 118550646/1 | Muffler Protection |
| 2 | 118550647/0 | Muffler Assy |
| 11 | 118550644/0 | Air Cleaner Assy |
| 12 | 118550645/0 | Choke Control |
| 20 | 118550655/0 | Engine Cover Kit |
| 30 | 118550637/0 | Shroud Assy |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
