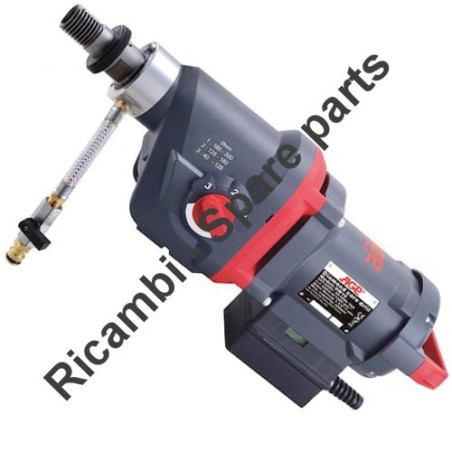

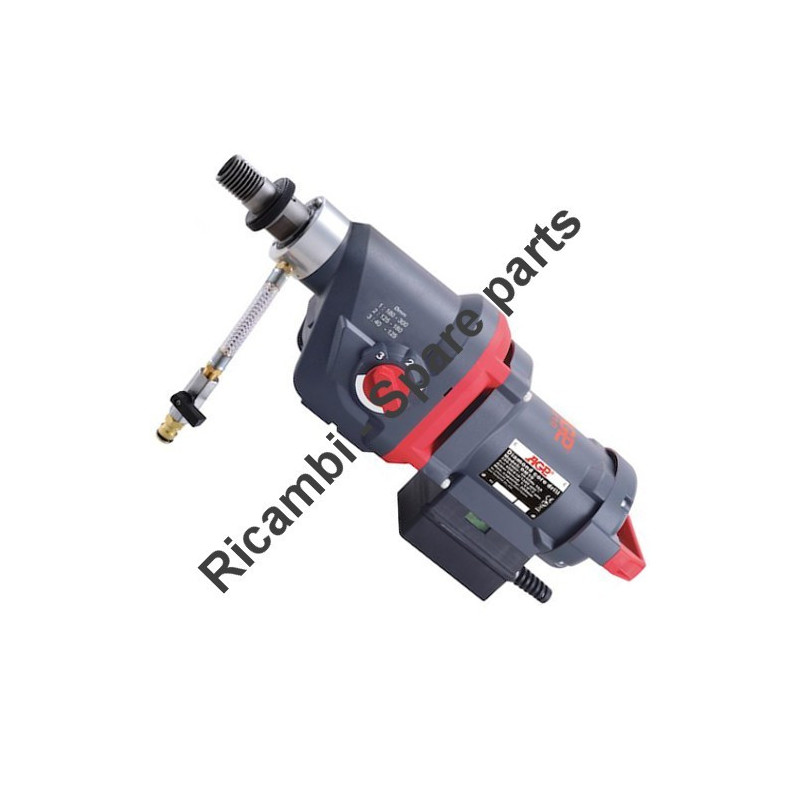

AGP Europe Parts for Diamond Core Drill DM12 / 3 Speed

Name: AGP Europe Parts for Diamond Core Drill DM12 / 3 Speed
Brand: AGP EUROPE
SKU: AGP Europe DM12 Version 2.7
Price: 55.74 EUR
Availability: InStock

€55.74

Tax included

AGP Europe Parts for Diamond Core Drill DM12 / 3 Speed

We have the original Spares AGP Europe Spare Parts for DM12 / 3 Speed Diamond Core Drill the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your DM12 / 3 Speed Diamond Core Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts.

ITEM CODE: 206-031503014-01

206-031503014-01
304-03013-004-008
303-02001-004-006
426-040000-00
407-M04010070-050
304-03017-000-005
403-M04025003-020
203-0108-00004-002
412-M04012070-050
0299-0040-20000-008
406-M05025080-160
424-051210-10
303-01129-164-001
201-0015-00026-002
302-04009-000-004
418-M05000080-050
407-M04006070-120
0299-0141-00000-002
0201-0020-00026-011
406-M06075100-080
303-01297-000-002
299-0002-20000-080
407-M05110080-050
303-01057-004-019
302-05514-000-008
299-0001-20000-125
302-05516-000-002
303-02002-004-036
0299-0125-00164-001
303-02054-000-001
302-05105-000-005
302-04162-901-011
302-03220-000-001
302-06005-000-027
307-03006-000-002
302-06004-000-051
302-05514-000-007
302-05107-000-004
422-W14-0
0299-0182-00000-001
302-06019-000-004
422-W18-0
302-06002-000-039
421-05040-10
302-05128-000-001
418-M20000150-080
302-06008-000-054
302-05306-000-001
0201-0002-00026-102
406-M05012080-070
303-02009-004-018
302-05129-000-001
302-05304-000-002
303-02002-004-025
301-03027-000-001
0299-0018-00000-023
406-M05040080-000
303-02002-004-037
421-06025-10
470-0
302-04225-907-001
303-02009-004-071
302-05404-000-001
302-04226-907-001
303-02009-004-021
0299-0172-00000-001
421-04030-00
303-01336-000-001
303-02063-004-002
303-02064-000-001
201-0068-00164-002
302-04026-901-079
201-0162-00906-001
0299-0180-00000-004
305-00093-000-001
202-0055-00901-007
304-04012-000-008
303-01309-000-001
302-04003-000-141
302-04498-000-002
456-4
403-M04012002-050
423-00000-0
403-M04016002-050
4111-2

Quantity

Usually Ships in: 10/15 Business Days Approx.

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Description
Product Details
Attachments

AGP Europe Parts for Diamond Core Drill DM12 / 3 Speed

Fix Your DM12 / 3 Speed Diamond Core Drill. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Concrete Grinderl and the respective parts of the code.

MODEL : DM12 / 3 Speed diamond core drill (AGP Europe) Version 2.7
NO.	Code	Parts Name
1.)	206-031503014-01	POWER SUPPLY CABLE (VDE-1.5x3Cx1.4M-H07RNF)
2.)	304-03013-004-008	PRCD INTERRUPTER PROTECTION (220V)
3.)	303-02001-004-006	CORD ARMOR
4.)	426-040000-00	EXTERNAL STAR WASHER (M4)
5.)	407-M04010070-050	PANHEAD MACHINE SCREW (M4x10xP0.7)
6.)		N/A
7.)		N/A
8.)	304-03017-000-005	SWITCH (220V)
9.)		N/A
10.)	403-M04025003-020	PANHEAD TAPPING SCREW-B (M4x25)
11.)	203-0108-00004-002	COVER (110V&220V)
12.)	412-M04012070-050	PANHEAD MACHINE SCREW-W/WASHER (M4x12xP0.7)
13.)	0299-0040-20000-008	ELECTRONICS UNIT (220V)
14.)	406-M05025080-160	SOCKET CAP SCREW (M5x25xP0.8)
15.)	424-051210-10	FLAT WASHER (Ø5xØ12x1)
16.)	303-01129-164-001	TOP HANDLE (RED-187C)
17.)	201-0015-00026-002	MOTOR END CASTING (GRAY-RAL7016)
18.)	302-04009-000-004	BRUSH SPRING (0.4x4x3T)
19.)	418-M05000080-050	NYLOCK NUT (M5xP0.8)
20.)	407-M04006070-120	PANHEAD MACHINE SCREW (M4x6xP0.7)
21.)	305-00001-000-031	CARBON BRUSH (7x17x19)(220V)
22.)	0299-0141-00000-002	BRUSH HOLDER PLATE ASSY.
23.)	0201-0020-00026-011	MOTOR HOUSING (GRAY-RAL7016)
24.)	406-M06075100-080	SOCKET CAP SCREW (M6x75xP1.0)
25.)	303-01297-000-002	MOTOR INSULATION SLEEVE
26.)	299-0002-20000-080	STATOR (220V-100x54.1x75)
27.)	407-M05110080-050	PANHEAD MACHINE SCREW (M5x110xP0.8)
28.)	303-01057-004-019	FAN SHROUD (BLACK)
29.)	302-05514-000-008	BALL BEARING (6200)
30.)	299-0001-23000-125	ARMATURE (220V-100x54.1x75)
31.)	302-05516-000-002	BALL BEARING (6202)
32.)	303-02002-004-036	OIL SEAL (Ø14xØ25x7)
33.)	0299-0125-00164-001	GEAR PLATE (RED-187C)
34.)	303-02054-000-001	GASKET
35.)	302-05105-000-005	NEEDLE BEARING (HK 0810)
36.)	302-04162-901-011	CLUTCH NUT (M12xP1.75x9T)
37.)		N/A
38.)	302-03220-000-001	PRESSURE DISC (Ø34.8xØ16x2.5)
39.)		N/A
40.)		N/A
41.)	302-06005-000-027	INPUT GEAR (M1.25x44T)
42.)	307-03006-000-002	BUSHING (Ø15.9xØ22x4.7)
43.)	302-06004-000-051	INPUT SHAFT (M1.5x27TxM1.5x20TxM1.5x13T)
44.)	302-05514-000-007	BALL BEARING (6200)
45.)	302-05107-000-004	NEEDLE BEARING (HK 1010)
46.)	422-W14-0	INTERNAL CIRCLIP (IS14)
47.)	0299-0182-00000-001	COUNTERSHAFT SET
48.)	302-06019-000-004	SPINDLE GEAR (M1.5x38T)
49.)	422-W18-0	INTERNAL CIRCLIP (IS18)
50.)	302-06002-000-039	LAY GEAR (M1.5x45T)
51.)	421-05040-10	PARALLEL KEY (5x5x40)
52.)		N/A
53.)		N/A
54.)	302-05128-000-001	NEEDLE BEARING (TA1815)
55.)	418-M20000150-080	NYLOOK NUT (M20xP1.5)
56.)	302-06008-000-054	OUTPUT GEAR (M2.0x41T)
57.)	302-05306-000-001	THRUST BEARING (NTB3047 + AS3047)
58.)		N/A
59.)	0201-0002-00026-102	GEAR HOUSING (GRAY-RAL7016)
60.)	406-M05012080-070	SOCKET CAP SCREW (M5x12xP0.8)
61.)		N/A
62.)		N/A
63.)	303-02009-004-018	O-RING (Ø20x3)
64.)		N/A
65.)	302-05129-000-001	NEEDLE BEARING (TA3020)
66.)	302-05304-000-002	THRUST BEARING (51106)
67.)	303-02002-004-025	OIL SEAL (Ø40xØ50x7)
68.)	301-03027-000-001	WATER FEED COLLAR
69.)	0299-0018-00000-023	WATER FEED CONNECTOR KIT (1/2")
70.)		N/A
71.)	406-M05040080-000	SOCKET CAP SCREW (M5x40xP0.8)
72.)	303-02002-004-037	OIL SEAL (Ø40xØ52x7)
73.)		N/A
74.)	421-06025-10	PARALLEL KEY (6x6x25)
75.)	470-0	DOWEL PIN (Ø4x11.8)
76.)	302-04225-907-001	ANTI-SEIZE CUP
77.)	303-02009-004-071	O-RING (Ø32x1.5)
78.)	302-05404-000-001	THRUST RING (3252)
79.)	302-04226-907-001	ANTI-SEIZE RING
80.)	303-02009-004-021	O-RING (Ø49x1.5)
81.)		N/A
82.)		N/A
83.)		N/A
84.)		N/A
85.)		N/A
86.)		N/A
87.)	0299-0172-00000-001	CLUTCH DISC SET
88.)	421-04030-00	PARALLEL KEY (4x4x30)
89.)	303-01336-000-001	OIL IMPELLER
90.)	303-02063-004-002	GASKET (BLACK)
91.)	303-02064-000-001	SWITCH BOOT
92.)	201-0068-00164-002	GEAR SELECTOR (RED-187C)
93.)	302-04026-901-079	SPRING (Ø0.6xØ3.8xØ5x11Tx35L)
94.)	201-0162-00906-001	RELEASE PIN
95.)	0299-0180-00000-004	COUNTERSHAFT SET
96.)	305-00093-000-001	BULLS-EYE LEVEL
97.)	202-0055-00901-007	SELECTOR DISC
98.)	304-04012-000-008	LED OVERLOAD LAMP (110V&220V)
99.)	303-01309-000-001	LAMP COVER
100.)	302-04003-000-141	SPINDLE (1 1/4"-7x1/2"BSP-296.5MM)
101.)	302-04498-000-002	STAINLESS BUSHING
102.)	456-4	BUTT SPLICE CONNECTORS
103.)	403-M04012002-050	PANHEAD TAPPING SCREW-B (M4x12)
104.)	423-00000-0	ZIP TIE (TCVS-170)
105.)	403-M04016002-050	PANHEAD TAPPING SCREW-B (M4x16)
＊	4111-2	GEAR OIL (625cc)
