Basic Electrodes SiderArco E48 3,2x450

Basic Electrodes SiderArco E48 3,2x450

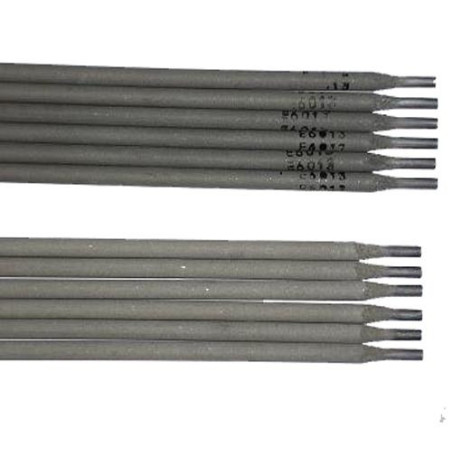

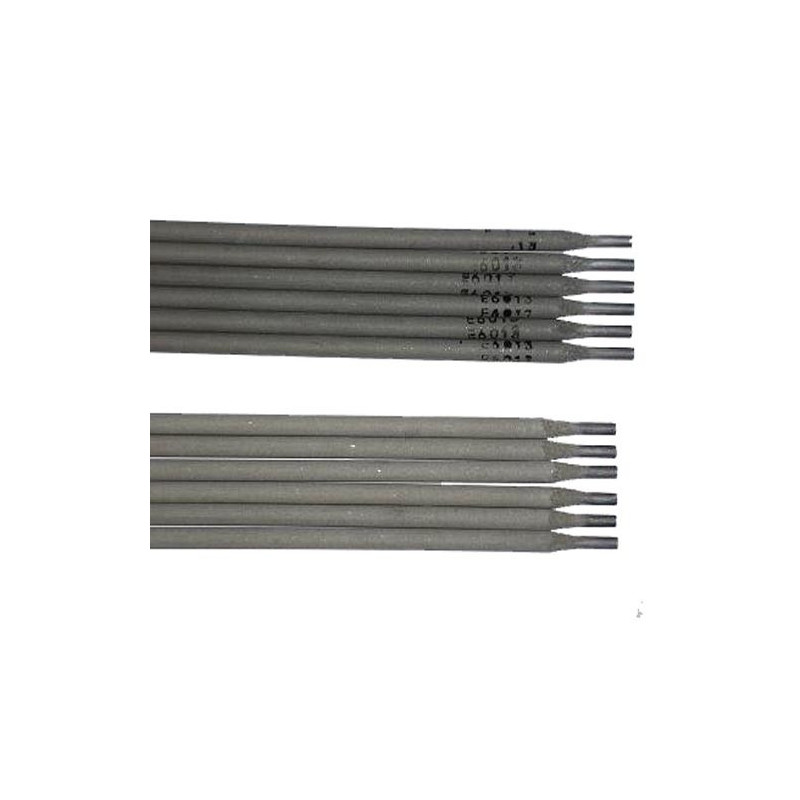

Iron Welding Electrodes 3.25 mm diameter in packs of 120 pieces.
Basic electrode with iron powder.
Electrode for applications that require significant mechanical properties. Basic covered with iron powder and high efficiency for low-temperature applications. Casting sweet with an excellent bead appearance. Excellent arc ignition. TUV APPROVED.
Main applications:
    * Tanks
    * Shipbuilding
    * Lifting equipment
    * Facilities in general
Technical Data:
    * TYPES OF Weldable
         o AFNOR: A 33 - A 34 - E 24 - E 28 - E 30 - E 36 - A 50 - A 37 (CP.AP.FP) - A 42 (CP.AP.FP) - A 48 (CP.AP) - A 52 (CP.AP) - E 355R - A 510 (CP.AP) - A 530 (CP.AP) - A 550 (CP.AP)
          o DIN: ST 33 - 37 - 44 - 52 - ST 50.2 - ST E 36 - HI - HII - HIV - 17 Mn 4 - AST 35 - 41 - 45 - 52 - TT ST 41
          o ASTM: A 283 - A 284 - A 440 - A 441 - A 570 - A 572 Gr 50 - A 573 - A 588 - A 709 Gr 50 - A 285 - A 299 - A 414 - A 442 - A 515 - A 516. Uni: Fe 33 - 34 B - 37 - 44 - 52 - Fe 50 - Fe E - 355 - Fe 360 - 410 - 460 - 510
    * PROPERTY METAL METAL LODGED
          or break: 510 - 640 MPa
          Yield or> 430 MPa
          Elongation A% 5d or> 24
          Toughness or> 80 KV (J)-20oC;> 47 KV (J)-40oC
    * PACKAGING INFORMATION
          Diameter: 3.2 mm
          o Length: 450 mm
          o Weight: 46.7 g / electrode
          or Quantity: 120 pcs
- Weight : 5850 kg
