Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72
€52.67
Tax included
Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72

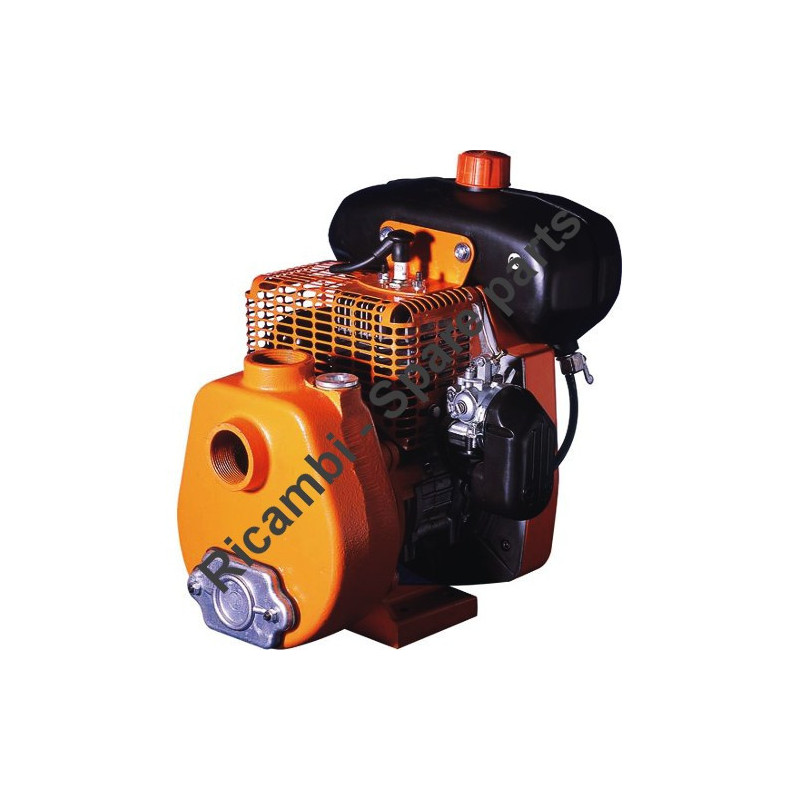

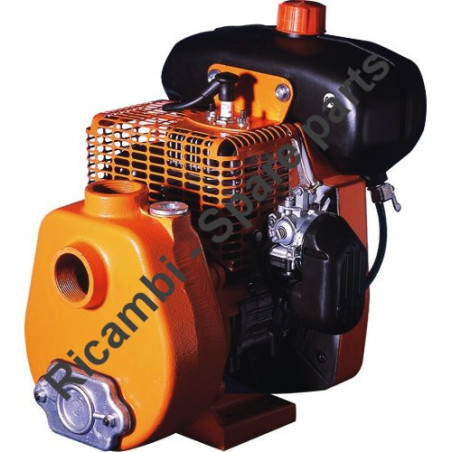

Self-priming centrifugal motor pump for irrigation with 2-stroke petrol engine model ERCOLINO.Engine characteristics
- Motor Type : ERCOLINO
- Displacement: 84 cc
- Power. 3.5 HP
- Fuel Mixture (1/20)
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72
Self-priming centrifugal motor pump for irrigation with 2-stroke petrol engine model ERCOLINO.Engine characteristics
- Motor Type : ERCOLINO
- Displacement: 84 cc
- Power. 3.5 HP
- Fuel Mixture (1/20)
- Characteristics of the pump
- Aspiration: 1 1/2"
- Flow: 1 1/2"
- Depth aspiration. 7 m
- Prevalence: 40 m
- Capacity 80 to 320 L/min
- Weight: 20 kg
In the following table , look for the type of the Motorpump and theirs spare part.
Ordered items will be shipped within 7/10 working days.
| Motorpump ER - AUT 72 | |
| 220602 | Recoil for Ercolino |
| 220706 | Base conveyor Ercolino |
| 222051 | Cylinder engine with 84cc - Only shirt |
| 222201 | Intake Manifold Ercolino |
| 222407 | Cover conveyor Ercolino |
| 224002 | Nylon rope 0 4x1050 starter motors |
| 225002 | Guide rope recoil Ercolino |
| 226306 | Stop button Ercolino |
| 226751 | Piston 0 46 Ercolino complete (1) |
| 226752 | Piston 0 46.5 Ercolino complete (1) |
| 228904 | Support iron tank Ercolino |
| 229201 | Head engine Ercolino ..,., _, |
| 229806 | Flywheel special electronic ignition Ercolino (3) |
| 229807 | Flywheel electronic ignition Ercolino (4) |
| 520253 | Ring washer recoil |
| 521012 | Electronic ignition coil Ercolino |
| 521301 | spark Plug |
| 524202 | Hook dragging recoil |
| 524901 | Head gasket Ercolino |
| 524902 | Gasket basement Ercolino |
| 524903 | Exhaust Gasket Ercolino |
| 524904 | Gasket suction Ercolino |
| 524907 | Gasket fuel cap |
| 525203 | Starter handle Ercolino, Super Jolly |
| 526701 | Piston 0 46 nude Ercolino (9) |
| 526702 | Piston 0 46.5 Ercolino nude (9) |
| 527104 | Pulley recoil Ercolino |
| 527503 | washer locking recoil Ercolino |
| 527611 | tap mixture |
| 528001 | Segment 0 46 |
| 528002 | Segment 0 46.5 |
| 528703 | 12x38 pin 0 |
| 529003 | Fuel cap Ercolino, Master |
| 4001000111 | Circlip inner hole 11 |
| 4001005112 | Ring stop pin 0 12 |
| 4002000231 | Sealing ring 20x30X7 |
| 4011000101 | Key American 2,5x3,7 |
| 4014000131 | Ball Bearing 20x42x12 |
| 4014001210 | Roller bearing 12x10 |
| 4056000156 | Spring stop button Ercolino |
| 4056000254 | Recoil Spring |
| 4072003004 | Lock washer 04 stop button |
| 4093005225 | Stud M 6x25 |
| 4093005288 | Stud M 6x137 |
| AM2EE1 | Crankshaft Ercolino helical complete |
| AM2EH1 | Crankshaft Ercolino AH35 complete |
| AM2EN1 | Crankshaft Ercolino conic complete |
| CAAE1 | Carter recoil Ercolino |
| CAME1 | Crankcase Ercolino |
| SRP2EM50 | Tank mixture Ercolino |
| SRP2EM51 | Fuel tank full Ercolino |
| STR2E1 | September vibration tank Ercolino |
| TUP081530 | Fuel Tube Master, Ercolino |
| MAEO | muffler Ercolino |
| PRLEI | Sheet protection Ercolino |
| CKPU01 | Pump body Aut complete |
| 529008 | Cap M30 pump Aut |
| 524910 | Cover gasket cleaning pump Aut |
| 522401 | Cover cleaning pump Aut |
| 4093005230 | Stud M 6x30 |
| GNPU01 | Rotor pump Aut |
| 524906 | Gasket body pump irrigation |
| 528911 | Support flange irrigation pumps |
| 4003001141 | Mechanical seal complete Ercolino |
| 4003002242 | Sealing ring moving part 19x39x13 |
| 4003003343 | Sealing ring fixed part 21x42x8 |
