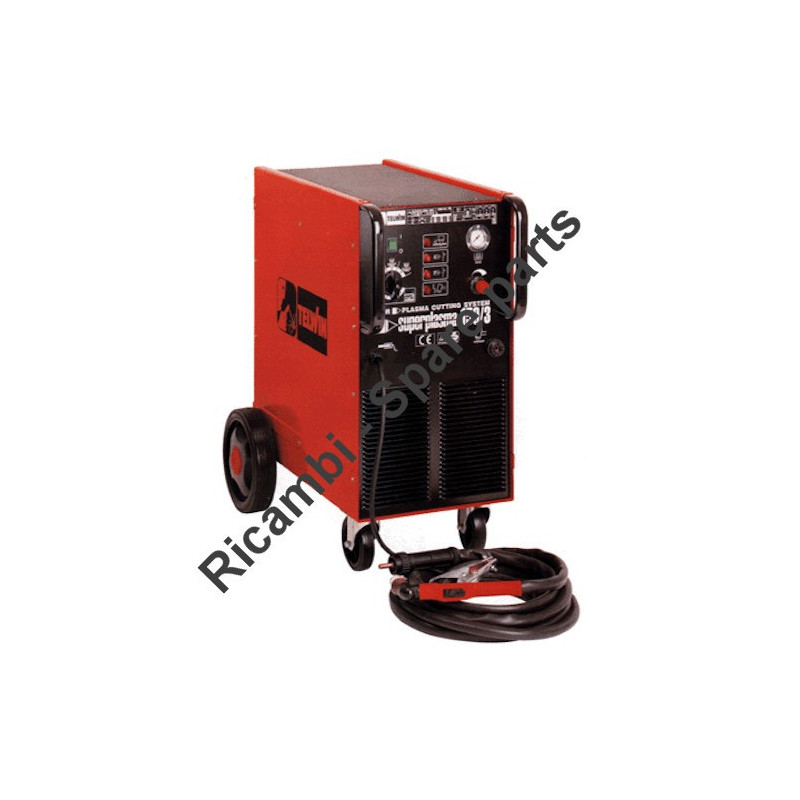

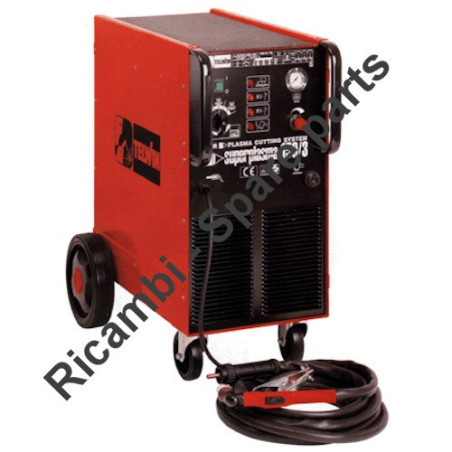

Telwin Spare Parts for Air Plasma Cutting Superplasma 150/3 HF 230/400V
€14.36
Tax included
Telwin Spare Parts for Air Plasma Cutting Superplasma 150/3 HF 230/400V
We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Air Plasma Cutting Superplasma 150/3 HF 230/400V key 830063.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Telwin Spare Parts for Air Plasma Cutting Superplasma 150/3 HF 230/400V
We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Air Plasma Cutting Superplasma 150/3 HF 230/400V key 830063.In the following table, look for the model of the Plasma and the respective parts of the code.
| TELWIN SUPERPLASMA 150/3 HF 230/400V - 830063 Pag.1 | ||
| # | Description | Part Num. |
| 1 | CONTROL MODULE | 114633 |
| 2 | VOLTAGE CHANGING CARD | 112163 |
| 3 | RECTIFIER | 112353 |
| 4 | H.F. CARD | 112495 |
| 5 | FILTER CARD | 114643 |
| 6 | RESISTANCE | 112545 |
| 7 | FUSE | 122437 |
| 8 | THERMOSTAT | 122256 |
| 9 | SWITCH | 122264 |
| 10 | ELECTRO-VALVE | 122497 |
| 11 | ELECTRO-VALVE | 122498 |
| 12 | YELLOW PILOT LAMP | 122594 |
| 13 | RED LIGHT | 122595 |
| 14 | PRESSURE SWITCH | 122599 |
| 15 | CONTACTOR | 122694 |
| 16 | CONTACTOR | 122478 |
| 17 | SWITCH | 122725 |
| 18 | MAINS CABLE 4G6 3 M | 132167 |
| 19 | MOTOR | 152083 |
| 20 | FAN BLADE | 152135 |
| 22 | REACTANCE | 164375 |
| 24 | TRANSFORMER | 164714 |
| 25 | CABLE BUSHING | 312068 |
| 26 | WHEEL + SWIVEL SUPPORT | 322187 |
| 27 | WHEEL KIT | 980109 |
| 28 | WHEELS AXLE | 422801 |
| 30 | GAUGE | 602022 |
| 31 | AIR FILTER | 602040 |
| 32 | PRESSURE REDUCER | 602019 |
| 33 | HANDLE | 644405 |
| 35 | FRONT PANEL | 646846 |
| 36 | BOTTOM | 650369 |
| 37 | COVER | 650370 |
| 38 | RIGHT SIDE | 655656 |
| 40 | CABLE 25 MMQ 5 M | 123469 |
| 41 | PLASMA TORCH 6M | 722332 |
| 42 | TORCH CONNECTION | 722439 |
| 43 | KIT CABLE BUSHING + RING NUT | 990046 |
| 46 | TOLEDO 300 WORK CLAMP | 712231 |
| 47 | SWITCH KNOB | 122060 |
| 48 | VARISTOR | 112513 |
| PLASMA TORCH 6 M SUPERPLASMA 150/3 HF 230/400V Pag.2 | ||
| 1 | TORCH ASSY KIT + GRIP | 742358 |
| 3 | PUSHBUTTON | 722677 |
| 5 | KIT 5 LONG NOZZLES | 802083 |
| 5 | KIT 5 NOZZLES D.1,6 | 802124 |
| 5 | KIT 5 NOZZLES D.1,3 | 802119 |
| 6 | KIT 10 OR RINGS | 802120 |
| 7 | KIT 5 BRASS DIFFUSORS | 802121 |
| 8 | KIT 5 LONG ELECTRODES | 802082 |
| 8 | KIT 5 ELECTRODES | 802122 |
| 9 | KIT 5 INSULATING DIFFUSERS | 802123 |
| 11 | KIT 2 TORCH SAFETY CAPS | 802126 |
| 12 | KIT 5 SPACERS | 802127 |
| 13 | TORCH CONNECTION | 742041 |
