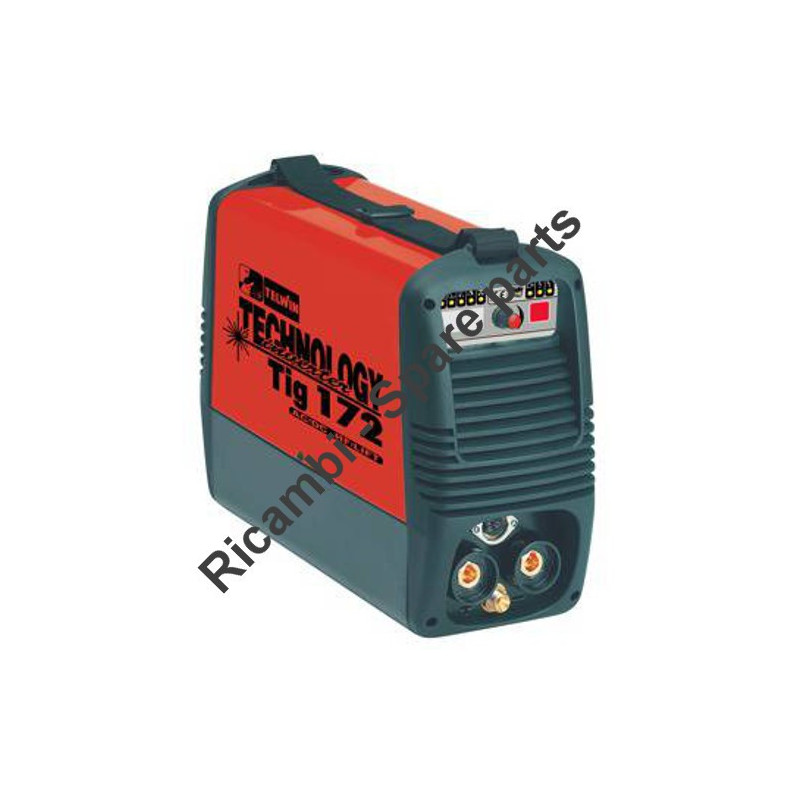

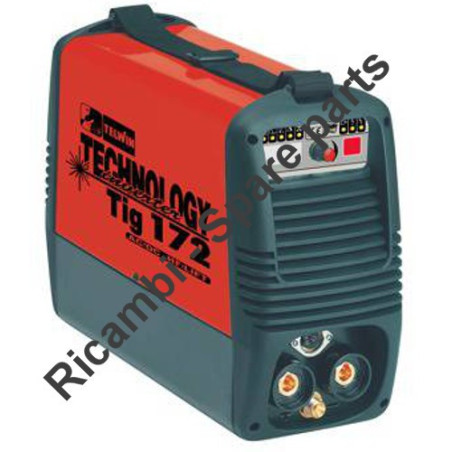

Telwin Parts for Inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V
€2.92
Tax included
Telwin Parts for Inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V
Telwin original spare parts for the replacement of damaged parts or to repair electrical or electronics components of inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V key 815541.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Telwin Parts for Inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V
Telwin genuine spare parts or replacements parts for to repair inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V key 815541.In the following table, look for the model of the drill and the respective parts of the code.
| TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V key 815541 | ||
| # | Description | Part Num. |
| 1 | RESISTANCE | 112048 |
| 2 | RELAIS | 112342 |
| 3 | SINGLE-PHASE RECTIFIER | 112357 |
| 4 | SCR | 113585 |
| 5 | CAPACITOR | 112514 |
| 6 | SCR | 113890 |
| 7 | TORCH PUSHBUTTON CARD KIT | 980472 |
| 8 | H.F. CARD KIT | 980467 |
| 9 | CAPACITOR | 120176 |
| 10 | CONTROL CABLE | 120513 |
| 11 | SOCKET CABLE | 120514 |
| 12 | SWITCH | 121007 |
| 13 | SWITCH | 121233 |
| 14 | ELECTROVALVE | 122035 |
| 15 | THERMOSTAT | 121128 |
| 16 | MAINS CABLE 3G2.5 2 M | 132158 |
| 17 | FAN | 152214 |
| 18 | SHUNT | 152219 |
| 19 | CURRENT TRANSFORMER | 152230 |
| 20 | TRANSFORMER KIT | 980158 |
| 21 | TRANSFORMER KIT | 980159 |
| 22 | OUTPUT INDUCTANCE KIT | 980177 |
| 23 | FRONT PANEL | 313768 |
| 24 | BELT BUCKLE | 322065 |
| 25 | CABLE BUSHING | 322112 |
| 26 | BELT | 322408 |
| 27 | FRAME - FRONT PANEL | 322508 |
| 28 | PIPE FITTING | 602052 |
| 29 | BACK PANEL | 638568 |
| 30 | FRONT PANEL | 644884 |
| 31 | BOTTOM | 644885 |
| 32 | BOTTOM KIT | 980931 |
| 33 | SOCKET DX 50 | 712036 |
| 34 | GAS PIPE CONNECTOR KIT | 990120 |
| 35 | IGBT KIT - DISCONTINUED | 990729 |
| 36 | KIT KNOB | 990661 |
| 37 | PRIMARY KIT | 990727 |
| 38 | SECUNDARY KIT | 990728 |
| 39 | KIT 10 DIODES | 980360 |
| 40 | CONTROL BOARD KIT | 990730 |
| 41 | PANEL KIT | 990731 |
| 42 | COVER KIT | 990732 |
| 43 | KIT SUPPORT CONTROL PCB | 990764 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
TECHNOLOGY TIG 172 AC/DC 815541
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM OR S/N CODE TELWIN:
- TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
